Plan 60724ND

Spacious Southern Farmhouse with Wrap Around Porch

Heated S.F.
2,889
Beds
5
Baths
4.5
Stories
2
Cars
2

Floor Plan

Plan 60724ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 60724ND

M-F 9am-5pm EST |

1-203-761-8500

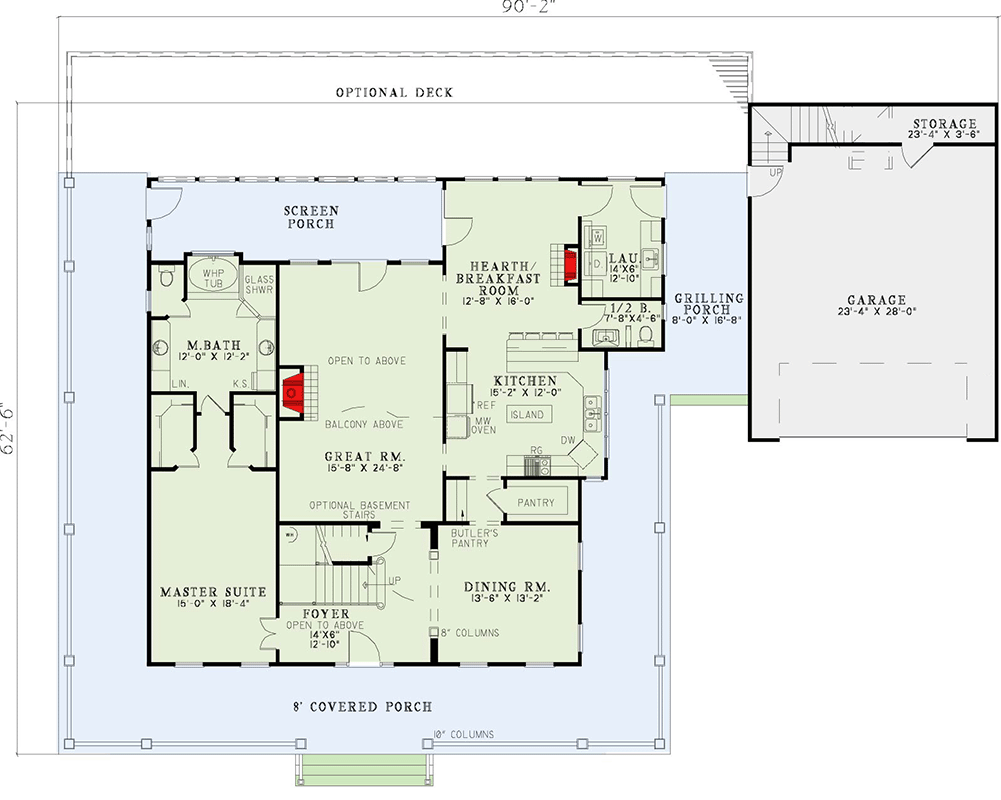

Main Level

Plan 60724ND: Spacious Southern Farmhouse with Wrap Around Porch - Floor Plan - Main Level - Country, Craftsman, Farmhouse, Low Country, Southern, Traditional

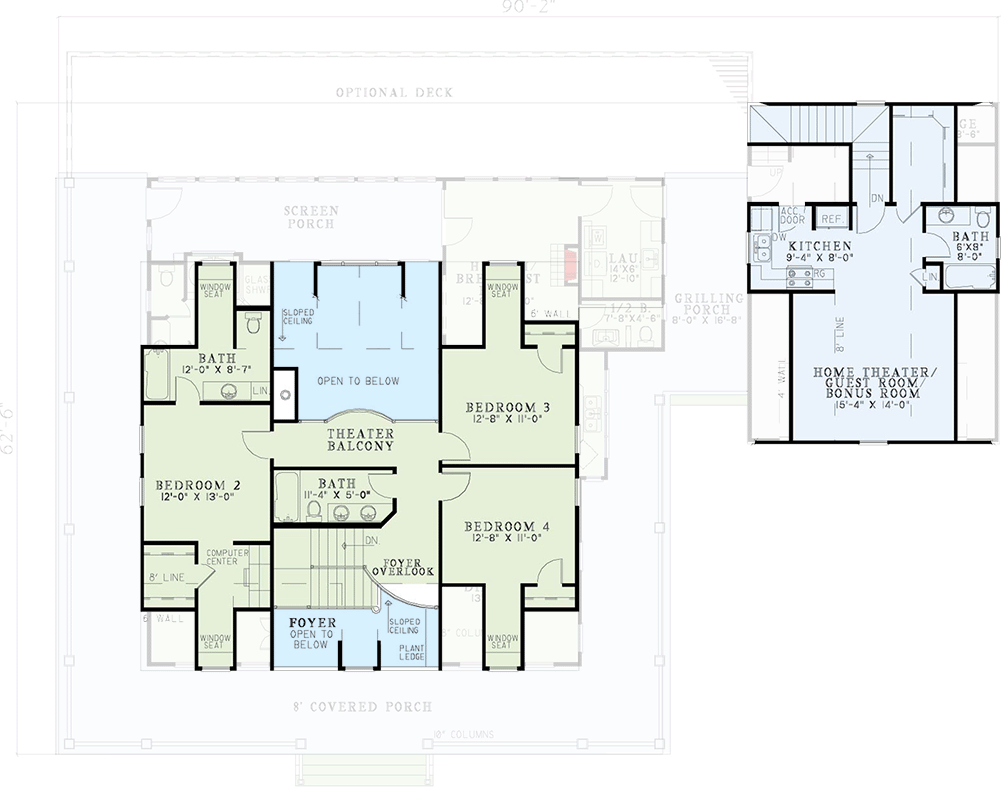

2nd Floor

Plan 60724ND: Spacious Southern Farmhouse with Wrap Around Porch - Floor Plan - 2nd Floor - Country, Craftsman, Farmhouse, Low Country, Southern, Traditional

Plan Details

  • This charming 2,889 sq. ft. home offers 5 bedrooms, 4.5 bathrooms, and a 780 sq. ft. attached, front-entry garage in a delightful blend of Country, Craftsman, and Southern architectural styles.
  • Enter through a welcoming foyer that opens to a grand two-story great room, complemented by a formal dining area and a spacious kitchen with a butler's pantry.
  • The main floor features a master suite with a luxurious ensuite bathroom and direct access to a mudroom and laundry on the same level.
  • A split-bedroom layout ensures privacy, with additional bedrooms upstairs alongside a theater balcony overlooking the great room below.
  • Enjoy outdoor living with an expansive wrap-around porch, grilling area, and optional deck to soak up the serene surroundings.
  • Additional living space includes a 450 sq. ft. bonus room that can be adapted for various uses such as a home theater or guest suite.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,889 sq. ft.

1st Floor

1,894 sq. ft.

2nd Floor

995 sq. ft.

Bonus

450 sq. ft.

Porch, Combined

1,427 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

90' 2"

Depth

62' 6"

Max Ridge Height

28' 10"

Garage

Type

Attached

Area

780 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Farmhouse

Low Country

Southern

Traditional

Special Features

Bedrooms - Split

Formal Dining

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Wraparound Porch

Plan Collections

Closed Floor Plans

Square Footage Breakdown

Total Heated Area

2,889 sq. ft.

1st Floor

1,894 sq. ft.

2nd Floor

995 sq. ft.

Bonus

450 sq. ft.

Porch, Combined

1,427 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

90' 2"

Depth

62' 6"

Max Ridge Height

28' 10"

Garage

Type

Attached

Area

780 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Country

Craftsman

Farmhouse

Low Country

Southern

Traditional

Special Features

Bedrooms - Split

Formal Dining

Keeping Room

Laundry - Main Level

Master Suite - 1st Floor

Mudroom

Optionally Finished Bonus Room

Two Story Great Room

Walk-in Pantry

Wraparound Porch

Plan Collections

Closed Floor Plans
