Plan 36357TX

Spacious Starter Castle

5,900 4 0 2 3
Pageloader

Spacious Starter Castle

Plan 36357TX

  • 5,900

    Heated s.f.

  • 4

    Beds

  • 0

    Baths

  • 2

    Stories

  • 3

    Cars

  • Live in style on both formal and informatl occasions with this spacious starter castle.
  • The foyer has a double vaulted ceiling and affords views to the back of the media room almost 80 feet away!
  • To the right, the circular family room with fireplace and built-ins makes a dramatic statement. A second circular feature is the perfect setting for a piano.
  • The master suite ceiling steps up to 13'. A circular sitting room with private patio is a nice touch. The bath is luxurious as is the enormous wardrobe room.
  • The kitchen has a great walk-in pantry and a butlery services the formal dining room. Note the fireplace in the breakfast room.
  • Bed 4 is private and the media room is roomy.
  • Upstairs, guests will appreciate the private guest suite witht full bath and balcony with views to the side.
  • Bed 3 has its of reading nook and a bonus room off has a sitting area as well.
  • Related Plan: Downsize with the one-story version, house plan 36365TX (4,956 sq. ft.).

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Spacious Starter Castle

  • 5,900

    Heated s.f.

  • 4

    Beds

  • 0

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,420
  • 5 Sets $2,620
  • CAD $3,630
  • View all purchase option online

About This Plan

  • Live in style on both formal and informatl occasions with this spacious starter castle.
  • The foyer has a double vaulted ceiling and affords views to the back of the media room almost 80 feet away!
  • To the right, the circular family room with fireplace and built-ins makes a dramatic statement. A second circular feature is the perfect setting for a piano.
  • The master suite ceiling steps up to 13'. A circular sitting room with private patio is a nice touch. The bath is luxurious as is the enormous wardrobe room.
  • The kitchen has a great walk-in pantry and a butlery services the formal dining room. Note the fireplace in the breakfast room.
  • Bed 4 is private and the media room is roomy.
  • Upstairs, guests will appreciate the private guest suite witht full bath and balcony with views to the side.
  • Bed 3 has its of reading nook and a bonus room off has a sitting area as well.
  • Related Plan: Downsize with the one-story version, house plan 36365TX (4,956 sq. ft.).

Floor Plans

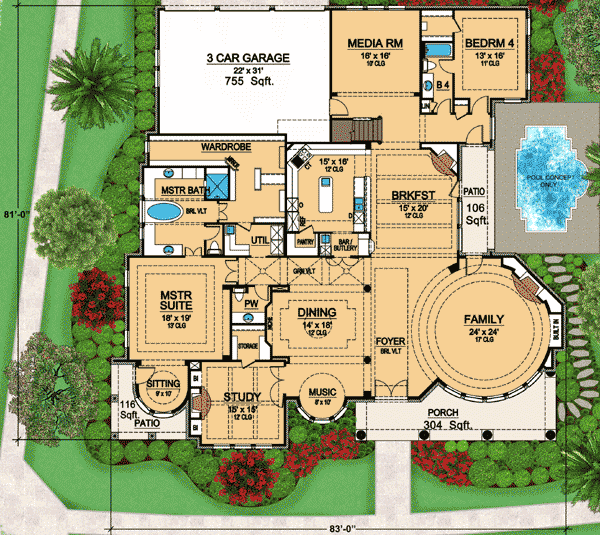

  • Main Level

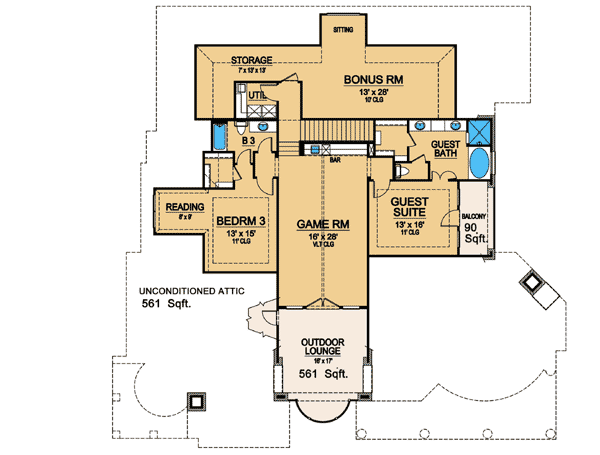

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 5,900 sq. ft.
  • 1st Floor: 4,352 sq. ft.
  • 2nd Floor: 1,548 sq. ft.
  • Porch, Front: 304 sq. ft.
  • Balcony / Veranda: 380 sq. ft.
  • Bonus: 561 sq. ft.
  • Covered Patio: 222 sq. ft.
  • Attic: 561 sq. ft.

Beds/Baths

  • Bedrooms: 4

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 83' 0"
  • Depth: 81' 0"
  • Max ridge height: 44' 0"

Garage

  • Type: Attached
  • Area: 755 sq. ft.
  • Count: 3 Cars
  • Entry Location: Rear

Ceiling Heights

  • Floor / Height: First Floor / 11' 0" Second Floor / 10' 0"
