Plan 710360BTZ
Spacious Two-Story Home Plan with Angled 3-Car Garage
Heated S.F.
4,797
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • Six dormer windows project from gabled rooflines on this spacious, two-story home plan, and a stately front porch welcomes you home, while inviting guests inside.
  • A private study and formal dining room reside on either side of the foyer, and views into the grand room are offered immediately upon entering.
  • Elegant coffered ceilings help to define the grand room, where a fireplace sits at the helm and provides warmth to those nearby.
  • The adjacent kitchen opens to a breakfast nook, and lends a curved, cooktop island for maximum workspace. Those keeping the cook company are sure to enjoy the keeping room, complete with a fireplace and vaulted ceiling.
  • The master suite is privately situated apart from the other bedrooms, and includes a bay-window sitting nook, 5-fixture bath, and roomy closet. Bedrooms 2 and 3 share a Jack-and-Jill bath just down the hall from the 3-car garage.
  • A fourth bedroom can be found upstairs, along with a generous media room for all to enjoy. An optional, bonus room above the garage adds flexibility to the overall design.
What's Included
The plans include the following:
  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Spacious Two-Story Home Plan with Angled 3-Car Garage

  • 4,797

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

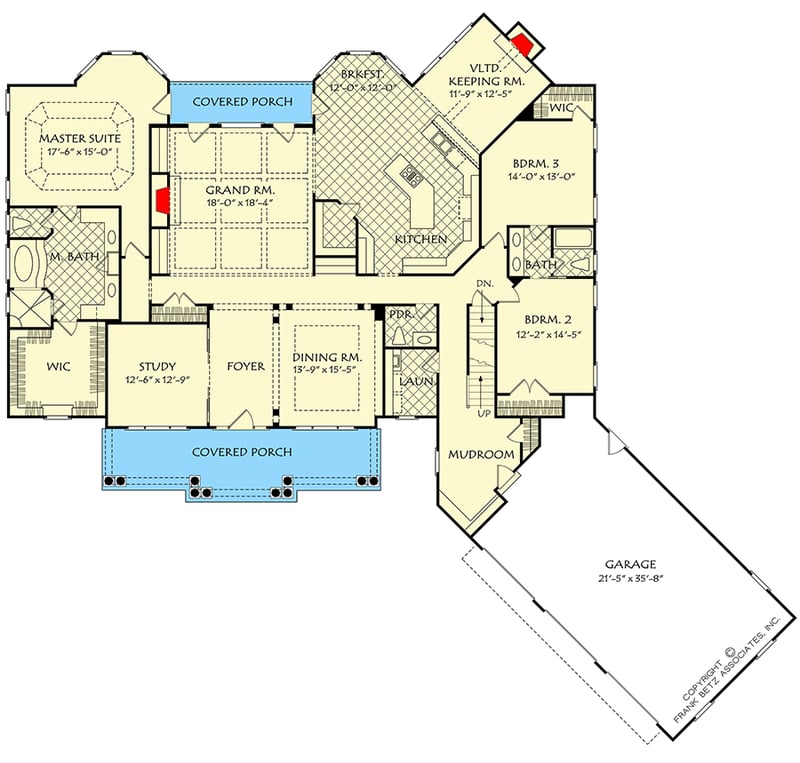

  • Main Level

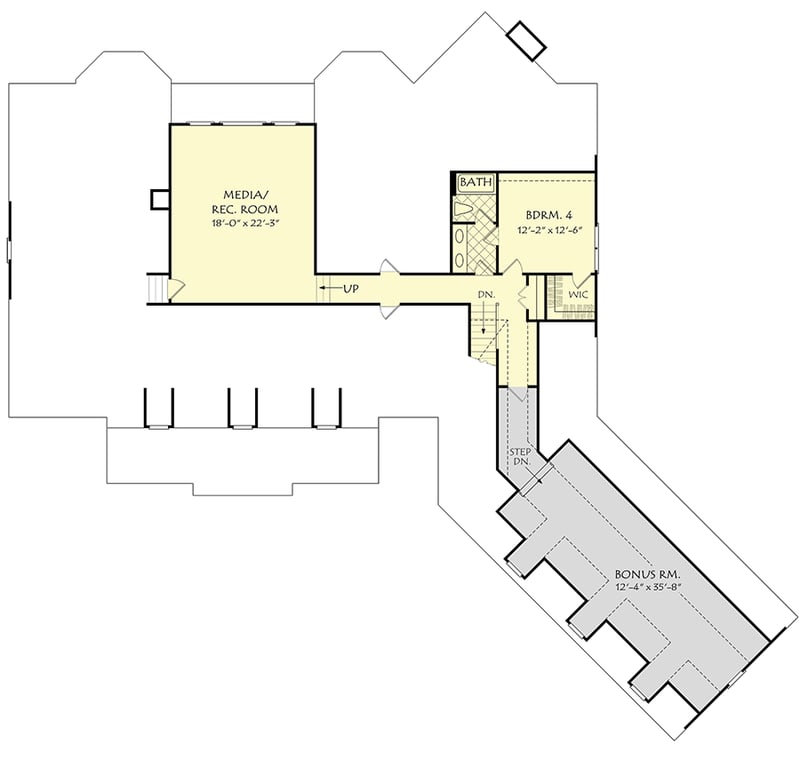

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 4,797 sq. ft.
  • 1st Floor: 3,343 sq. ft.
  • 2nd Floor: 1,454 sq. ft.

Dimensions

  • Width: 99' 3"
  • Depth: 91' 8"
  • Max ridge height: 26' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 836 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4
All house plans are copyright ©2024 by the architects and designers represented on our web site

Spacious Two-Story Home Plan with Angled 3-Car Garage

  • 4,797

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Spacious Two-Story Home Plan with Angled 3-Car Garage

  • 4,797

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Plan Details

Square Footage Breakdown

  • Total: 4,797 sq. ft.
  • 1st Floor: 3,343 sq. ft.
  • 2nd Floor: 1,454 sq. ft.

Dimensions

  • Width: 99' 3"
  • Depth: 91' 8"
  • Max ridge height: 26' 3"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 836 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x4

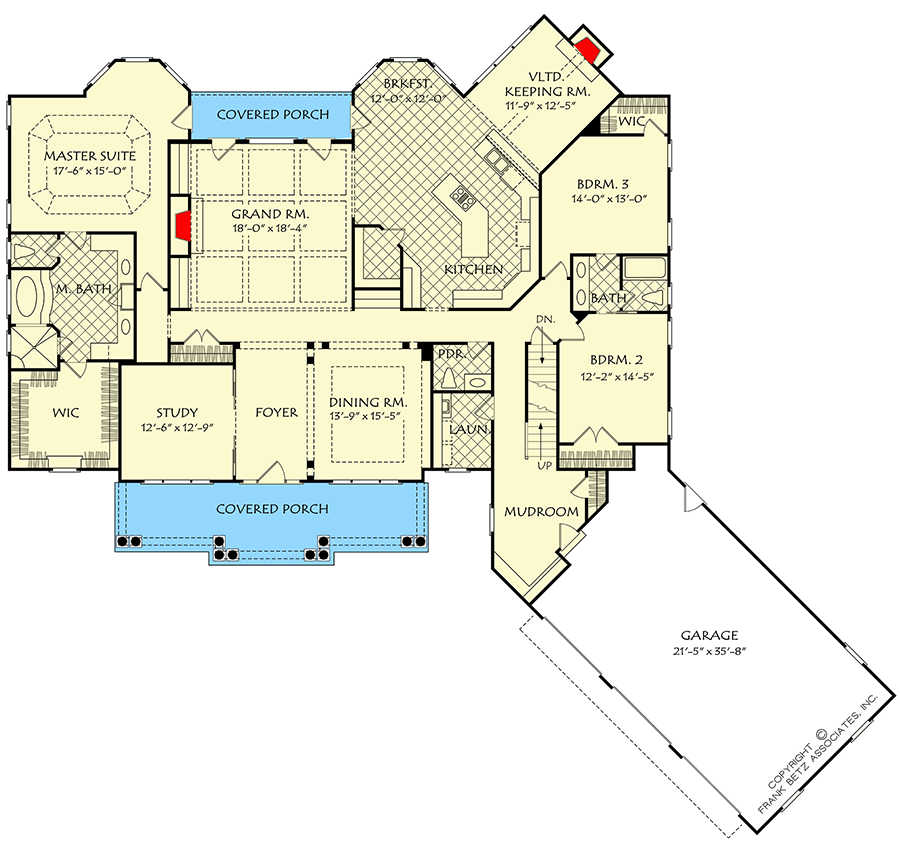

    Main Level

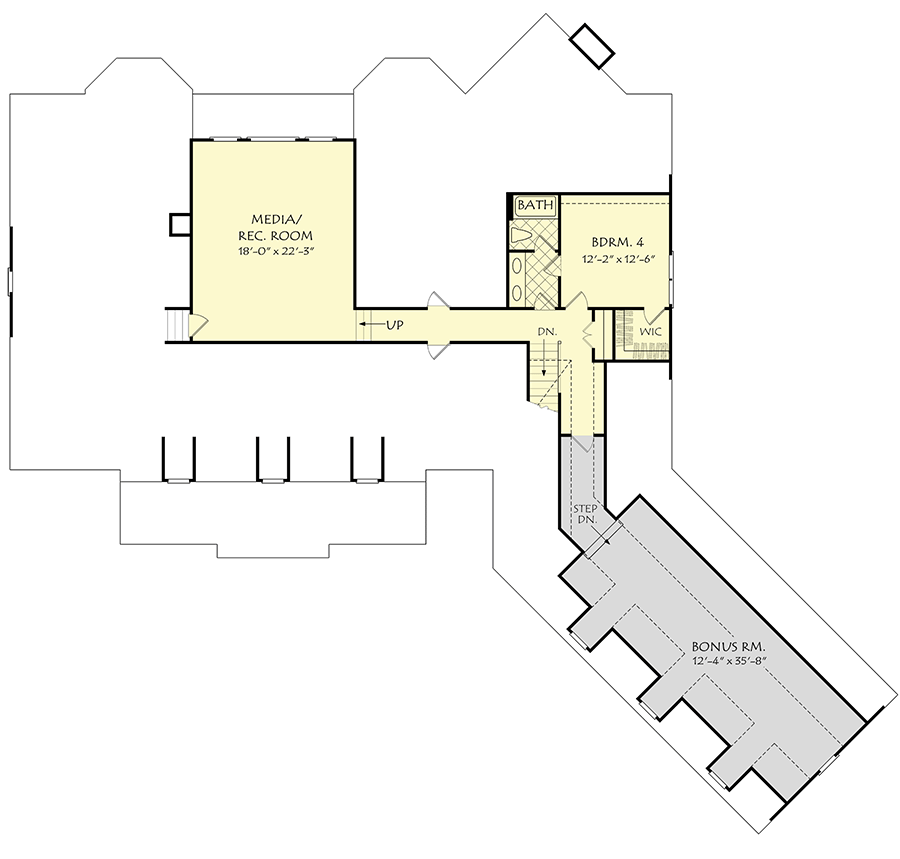

    2nd Floor
