Plan 54203HU
Splendid Mountain Lodge With Two Masters
Heated S.F.
3,513
Beds
4
Baths
3.5
Stories
2
Cars
3
What's Included
Plan Details
  • Bask in the luxury of this splendid Mountain lodge that boasts two master suites on opposite sides of the first floor.
  • The large foyer opens up to the great room that vaults up to 14'8".
  • A half wall has a built-in buffet that separates the great room from the dining room.
  • You'll have tons of counter space in the huge kitchen that has a wall of windows overlooking the backyard.
  • There are built-ins throughout the home including a desk, wet bar and display niches plus a water feature wall in the hall by the den.
  • Two bedrooms on the second floor share a bonus space set up as a lounge that opens to an outdoor deck.
  • The master bedroom can be expanded by 2 feet in both width and length at no additional cost. When you order, let us know you want the expansion and we'll get you that version.
What's Included
  • Cover sheet with renderings or photos
  • Site plan from original project for reference, with floor areas and drawing index

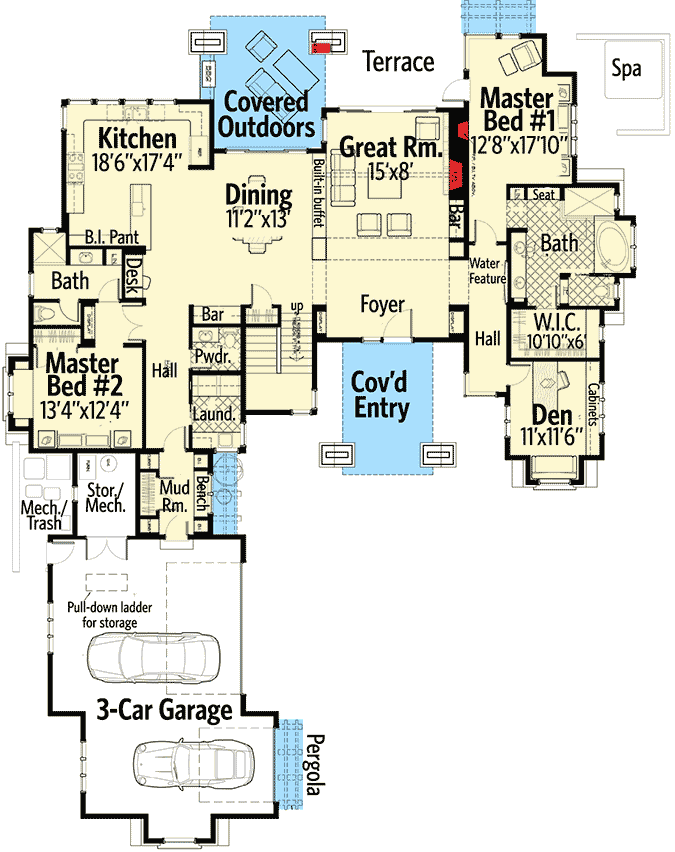

  • Main level architectural plan

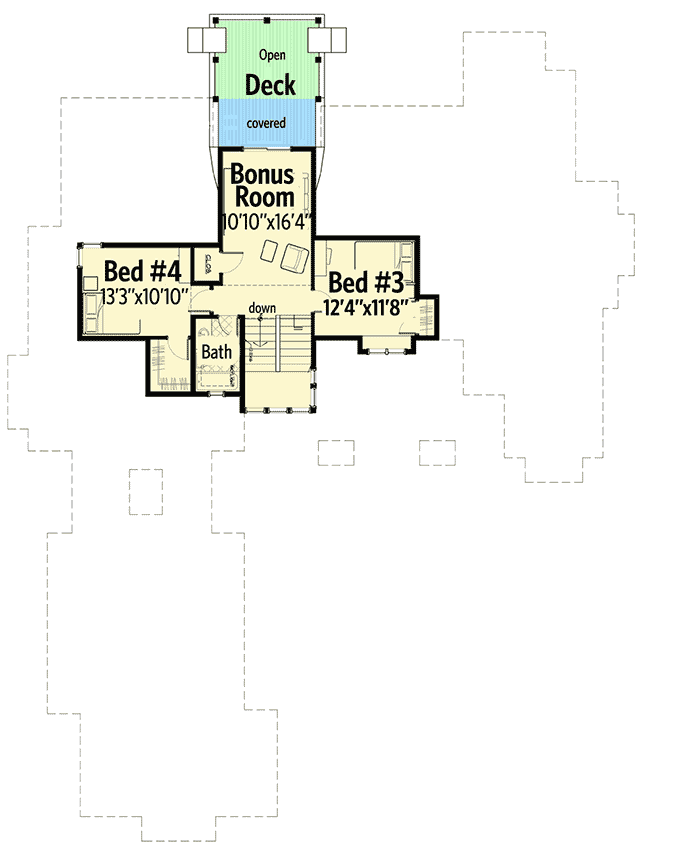

  • Upper level architectural plan

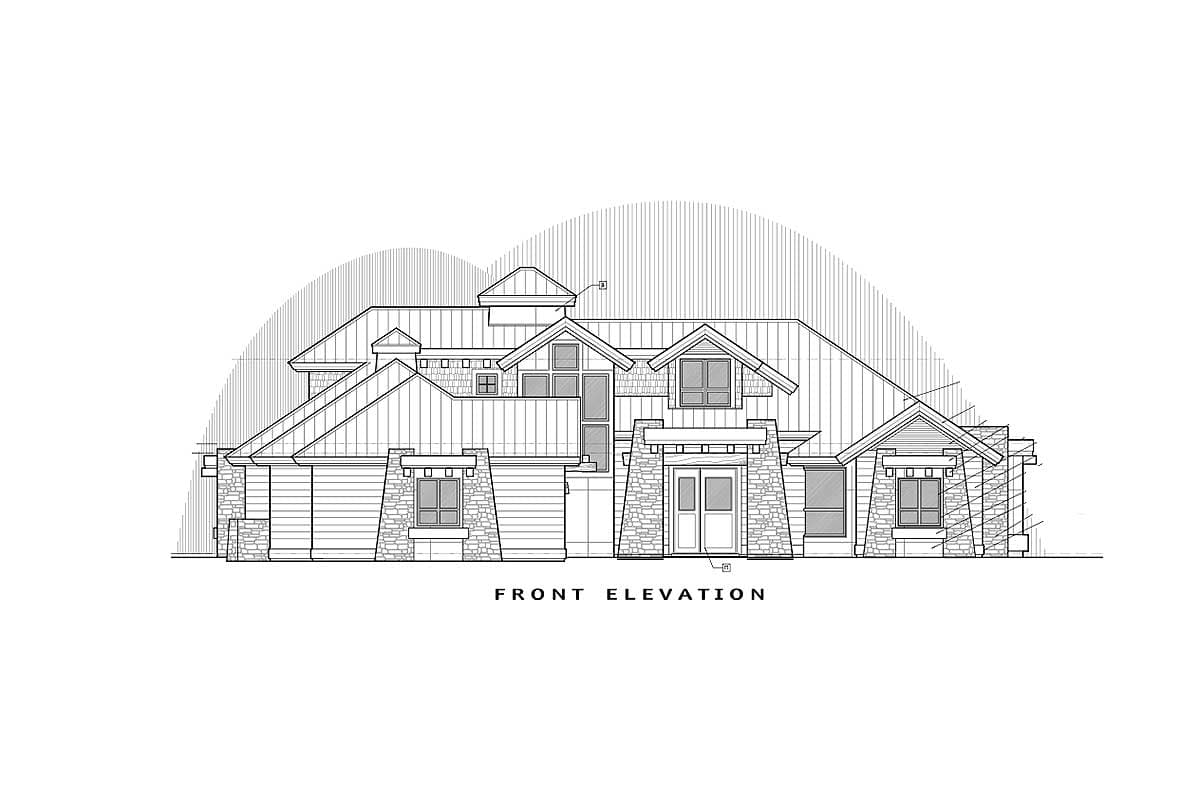

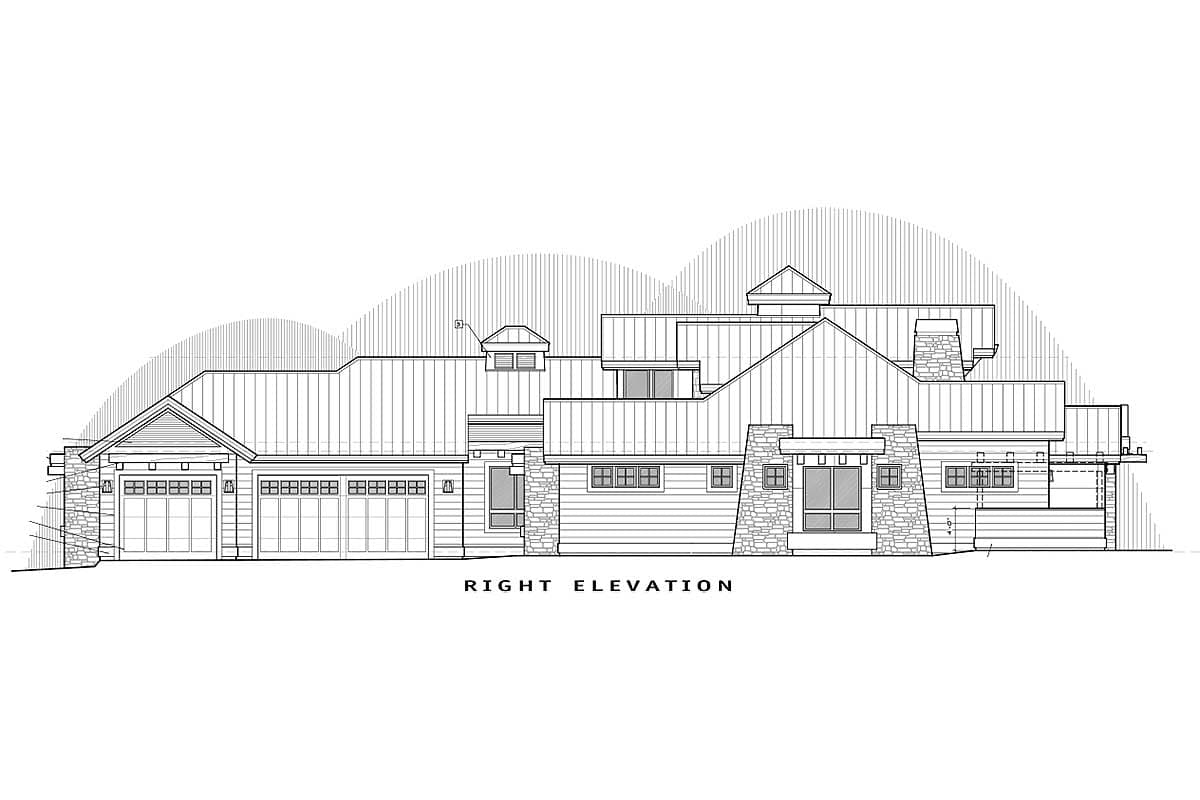

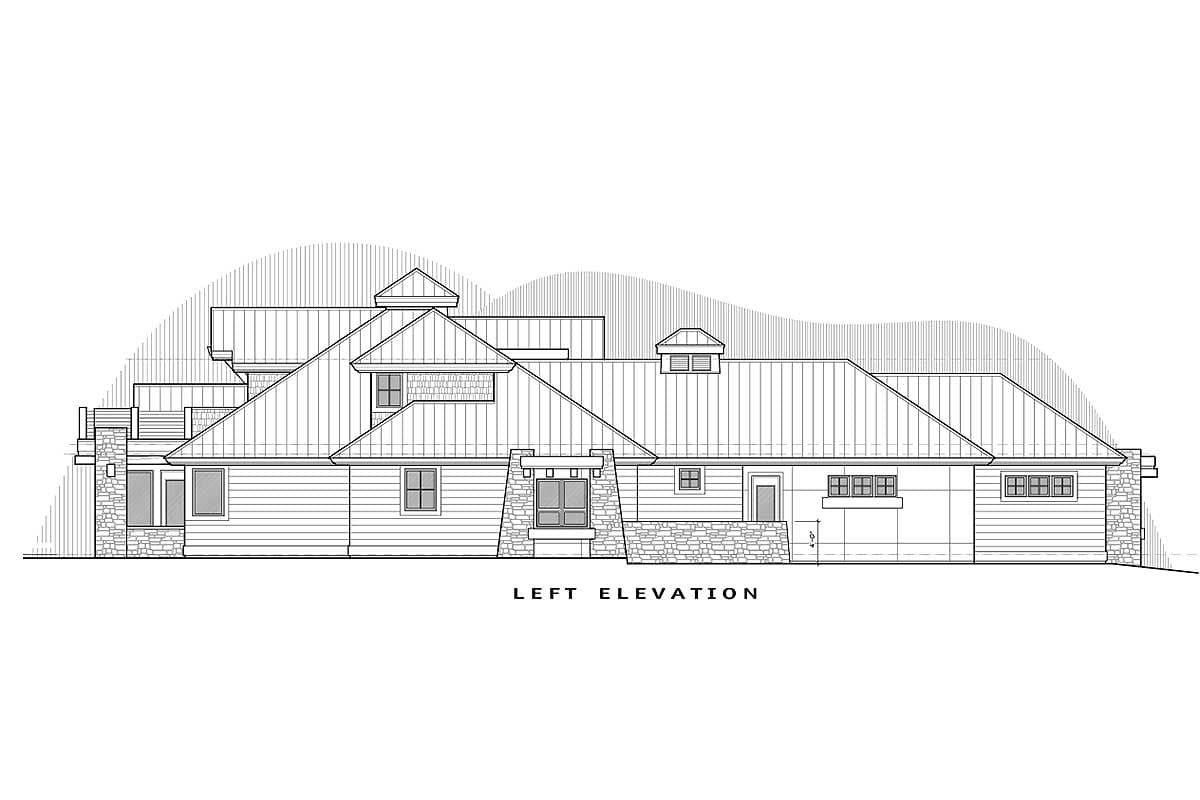

  • Elevations of four sides
  • Section drawings at ¼” scale
  • Typical construction details and framing details
  • Foundation and floor framing plan
  • Upper level floor and lower roof framing plan
  • Upper roof framing plan
  • Basic lighting plans for main and upper levels available for some plans.  Check availability.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Splendid Mountain Lodge With Two Masters

  • 3,513

    Heated s.f.

  • 4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 3

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 3,513 sq. ft.
  • 1st Floor: 2,787 sq. ft.
  • 2nd Floor: 726 sq. ft.

Dimensions

  • Width: 76' 4"
  • Depth: 98' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 928 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 6" Second Floor / 8' 0"
