Plan 280056JWD
Split Bed New American Home with Open-Concept Floor Plan
Heated S.F.
2,912
Beds
3-4
Baths
3.5
Stories
2
Cars
2
Flyer
What's Included
Plan Details

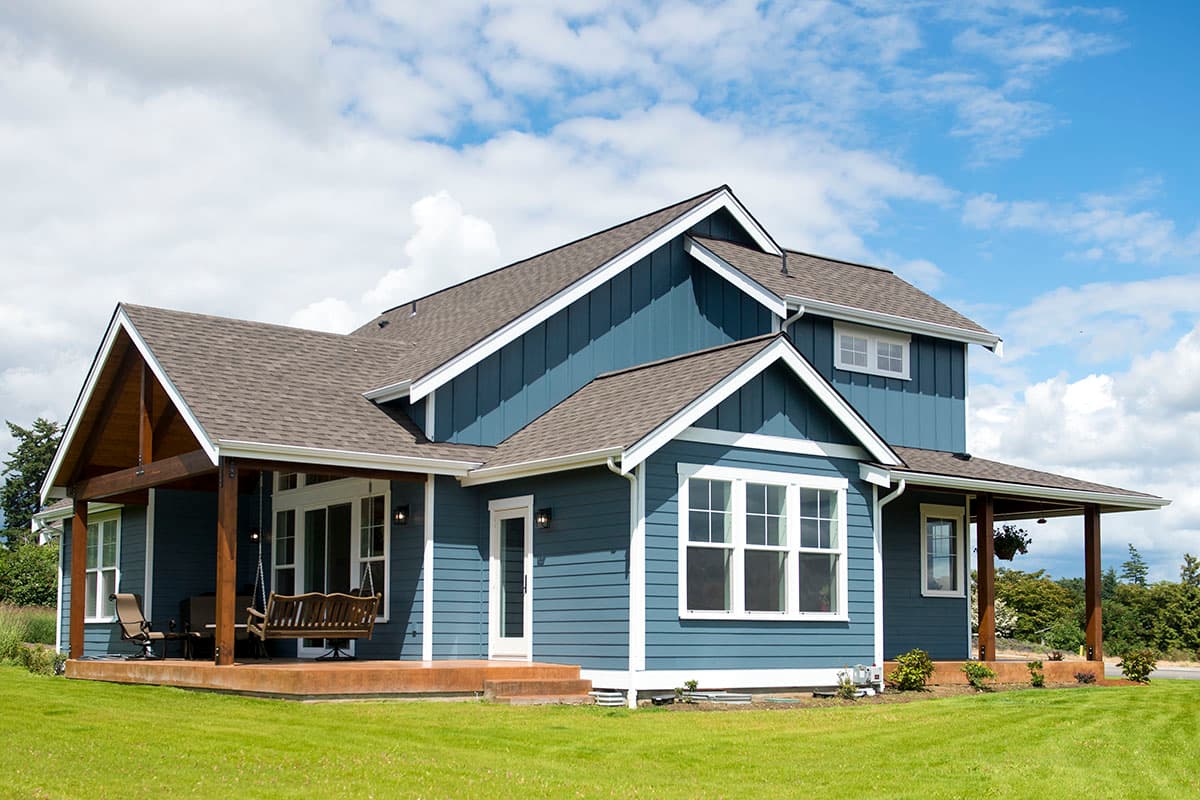

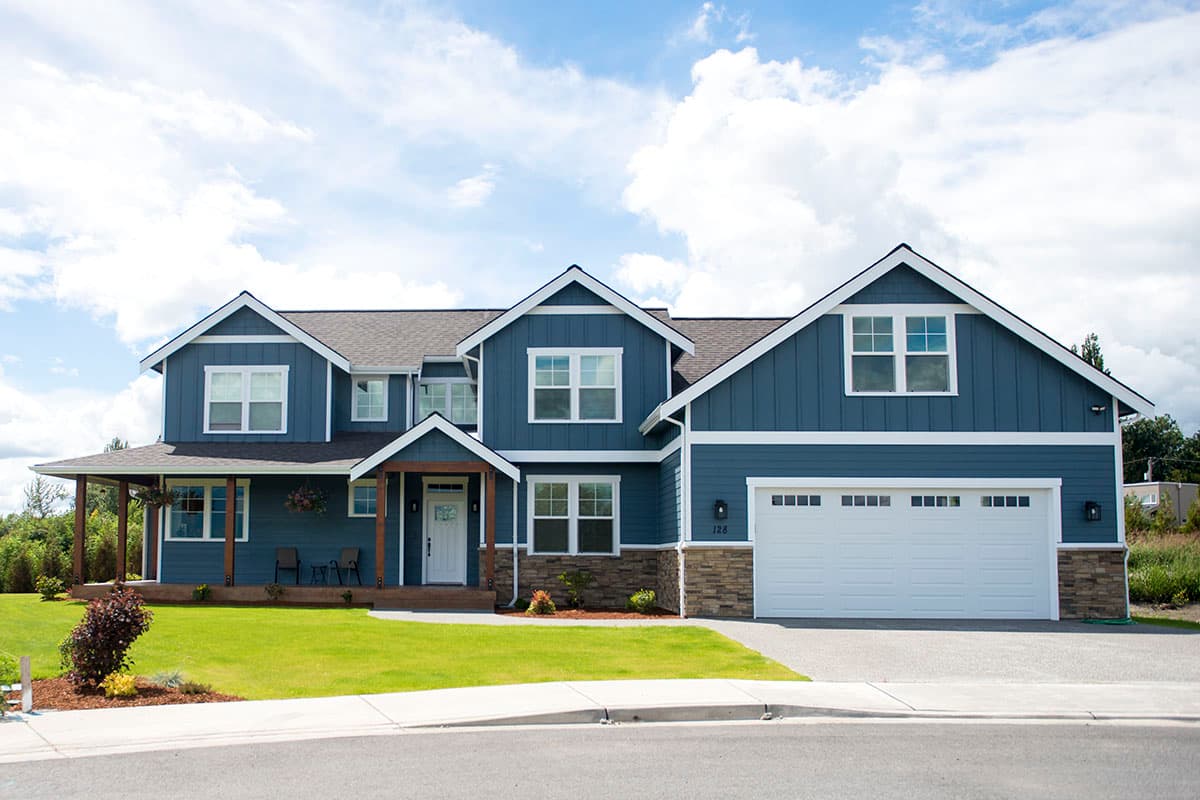

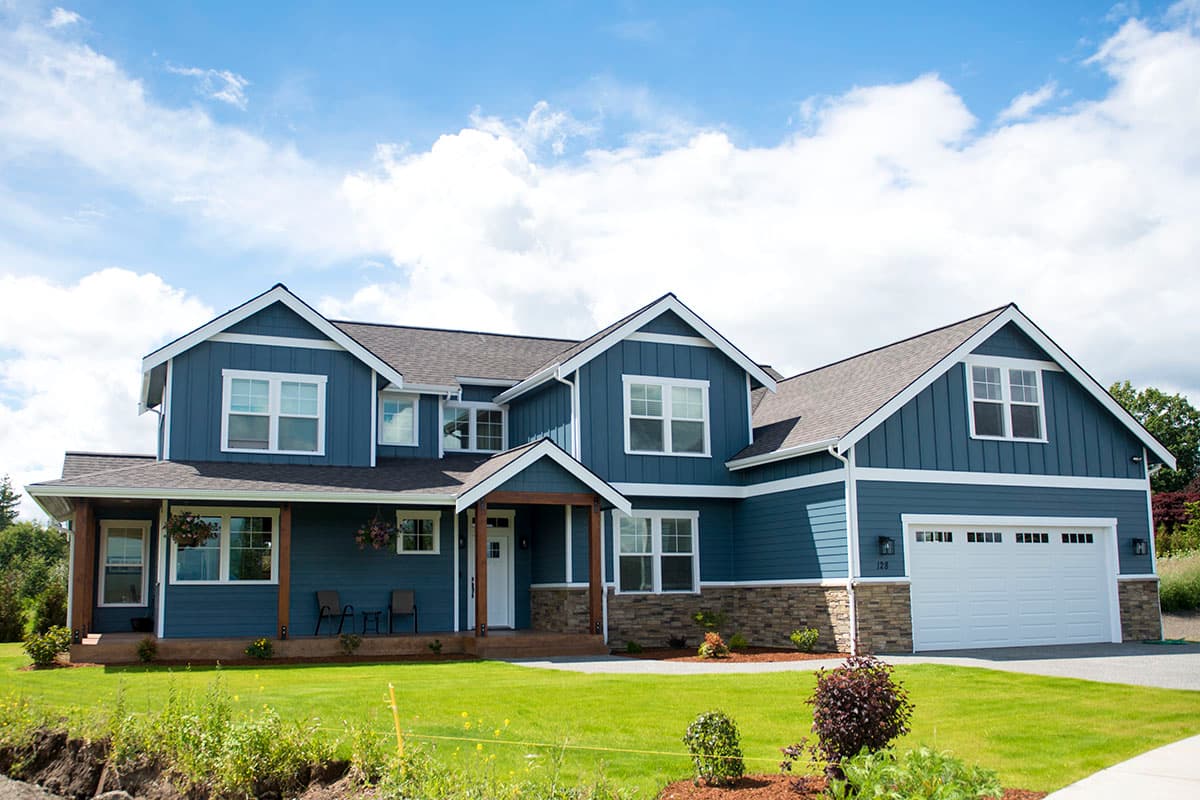

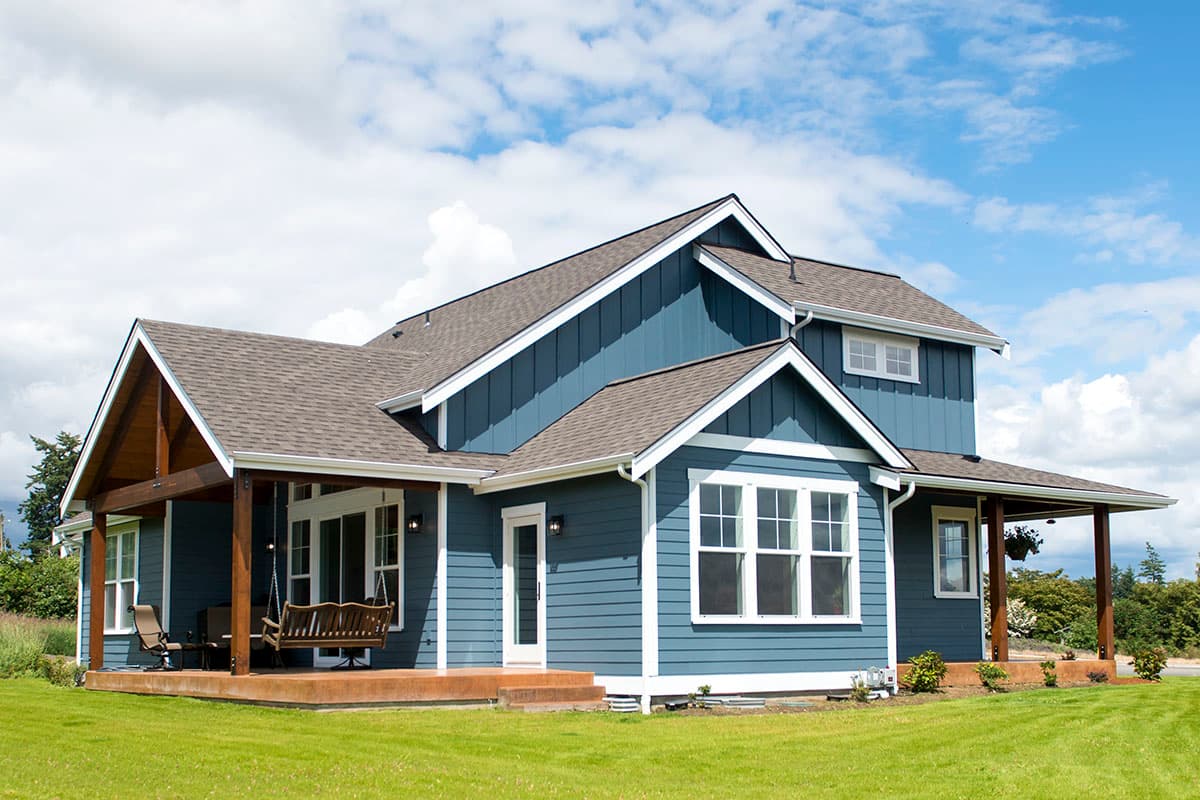

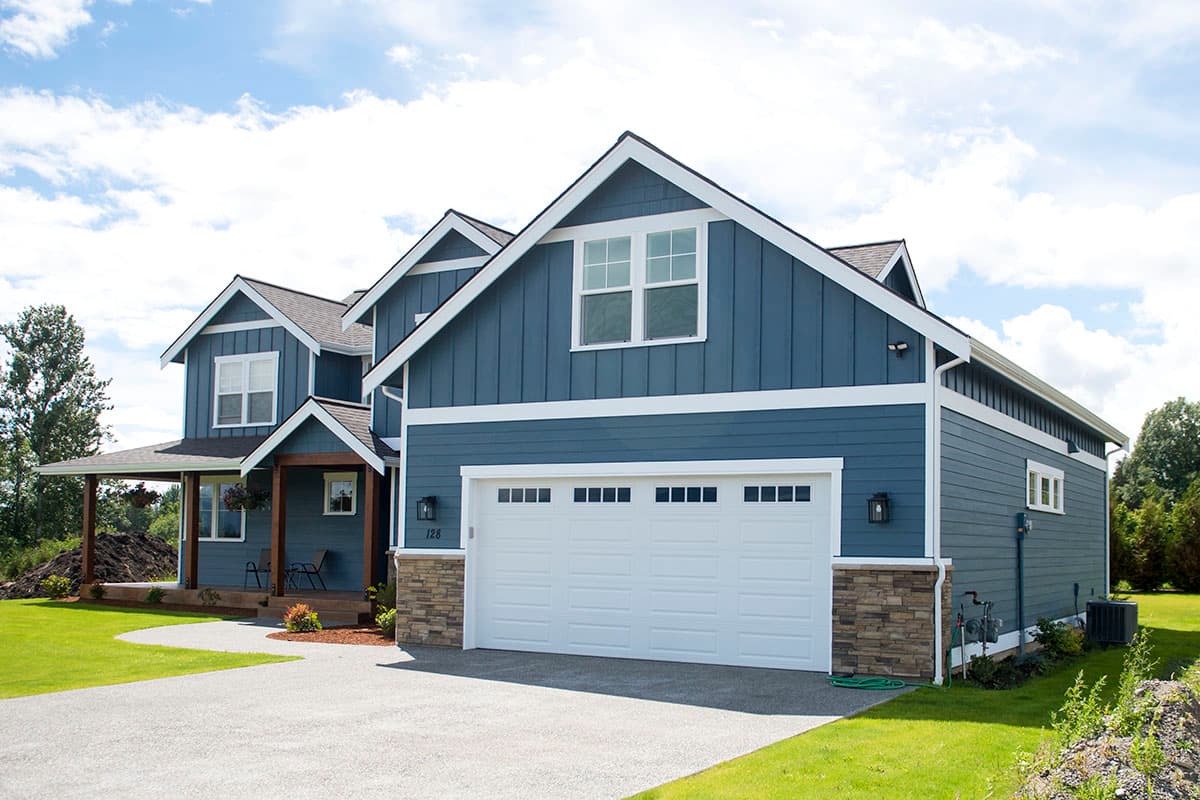

  • The wrap-around front porch welcomes guests into this New American home, which presents an open floor plan that extends onto the covered porch / patio for maximum outdoor enjoyment.

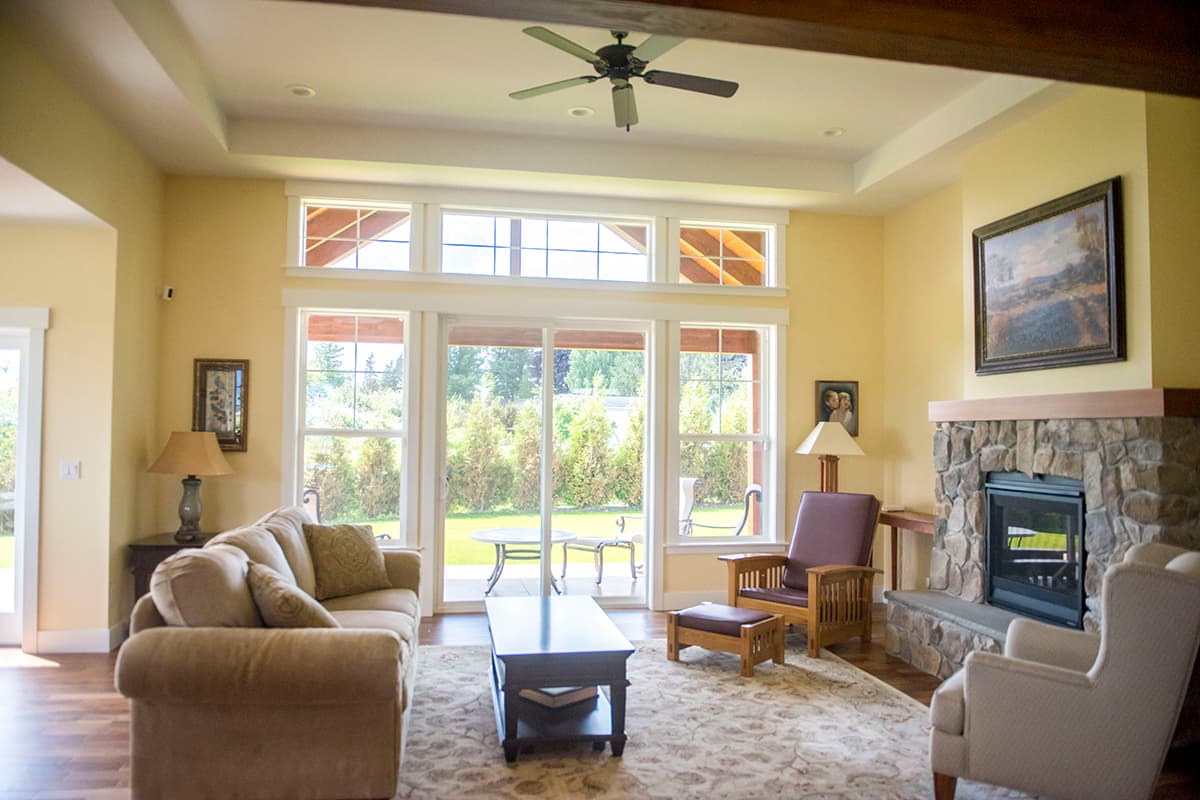

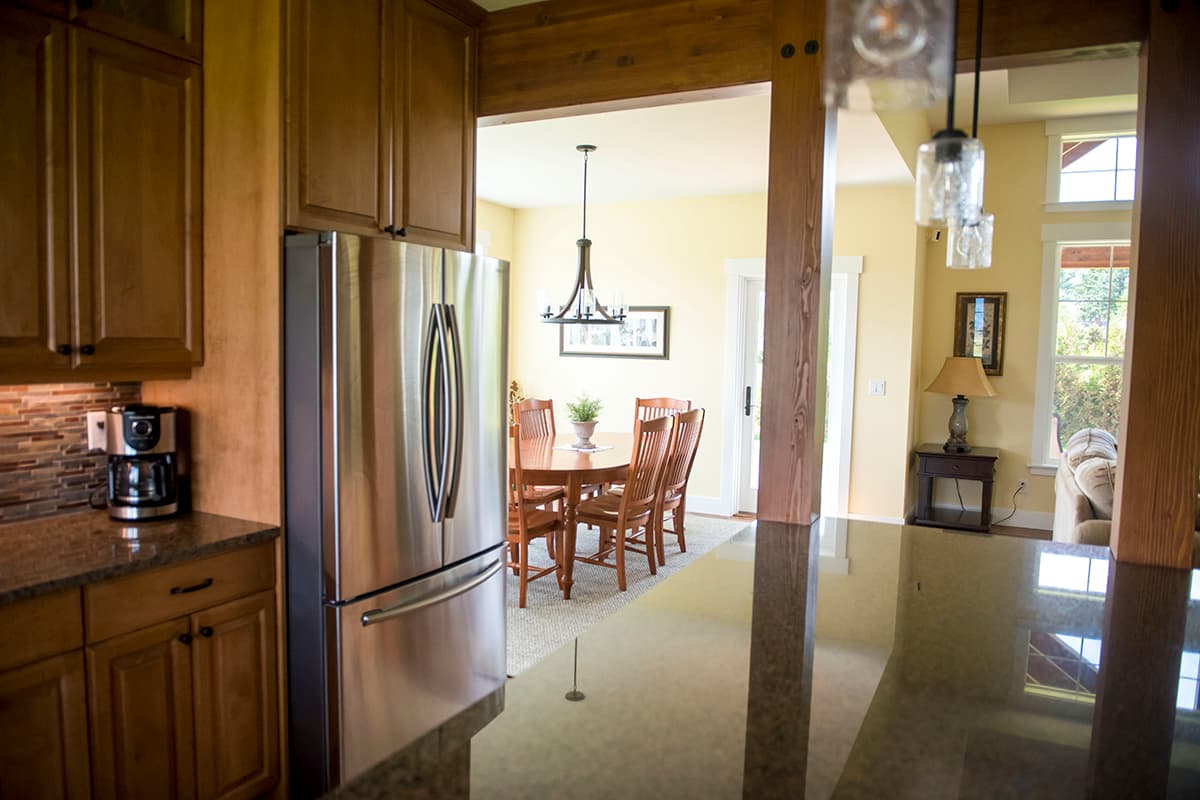

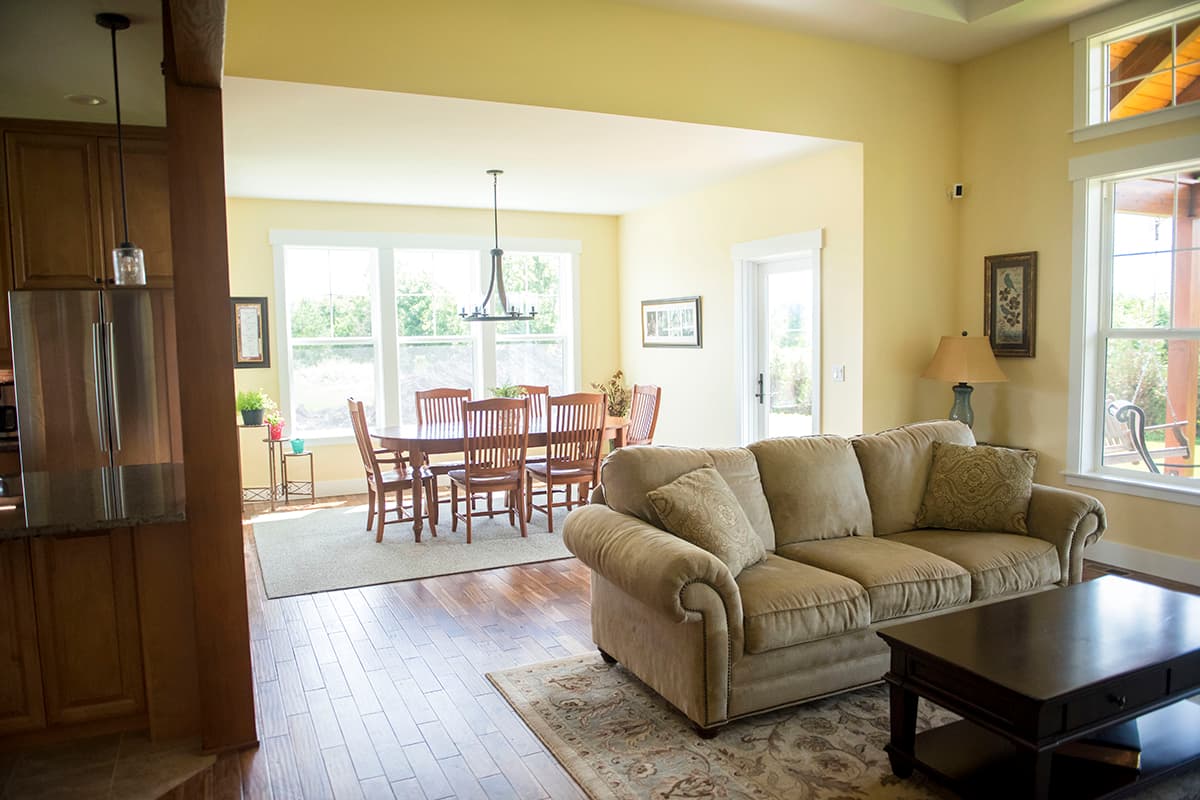

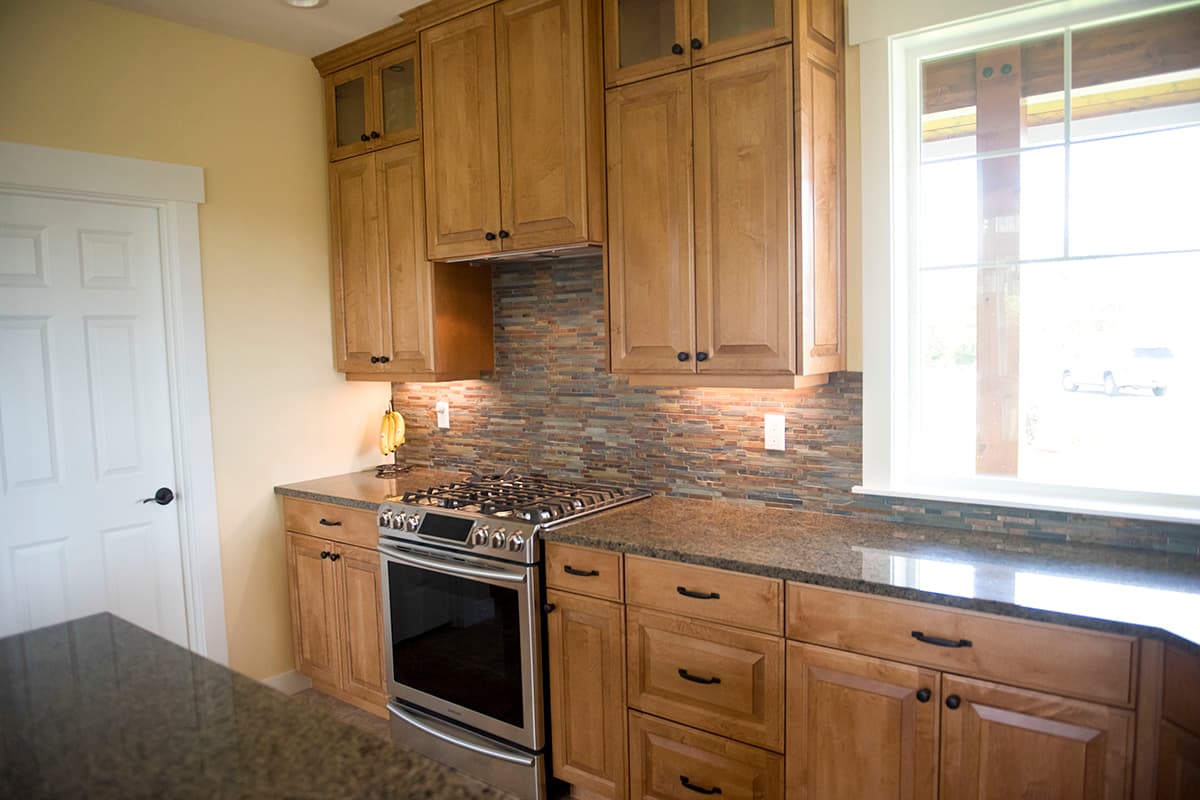

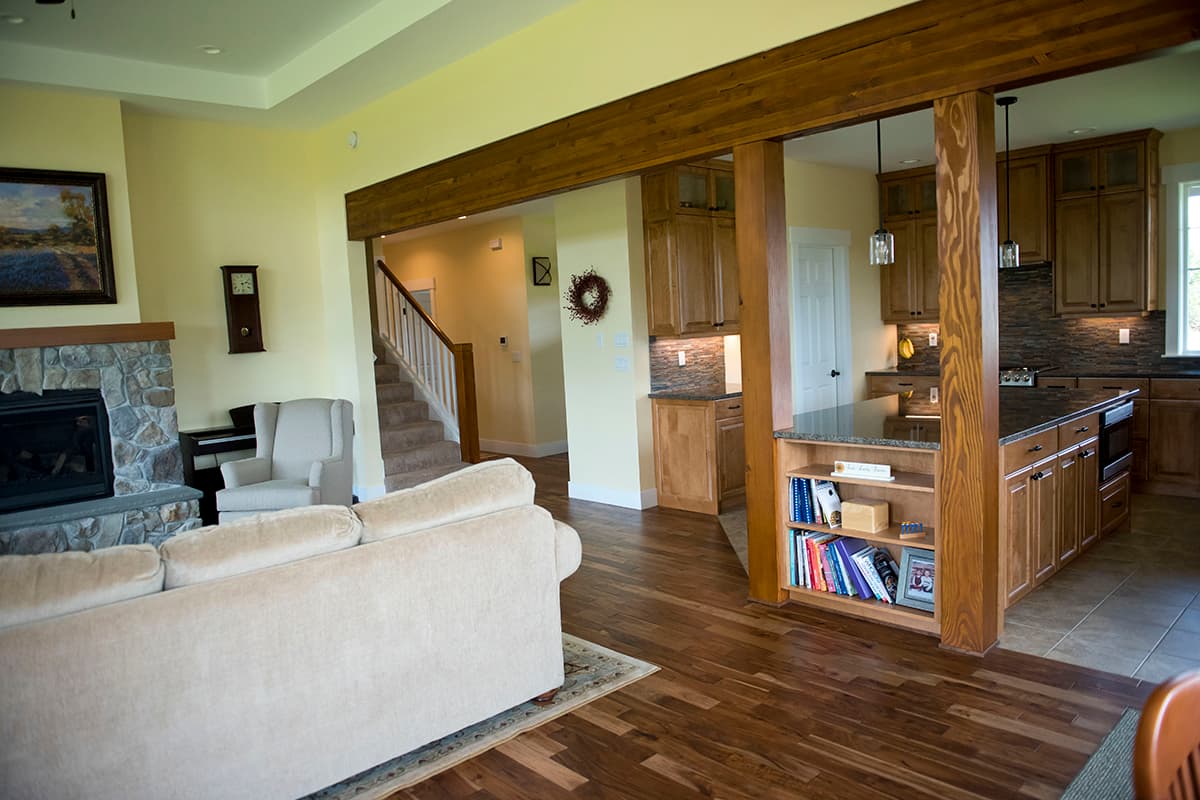

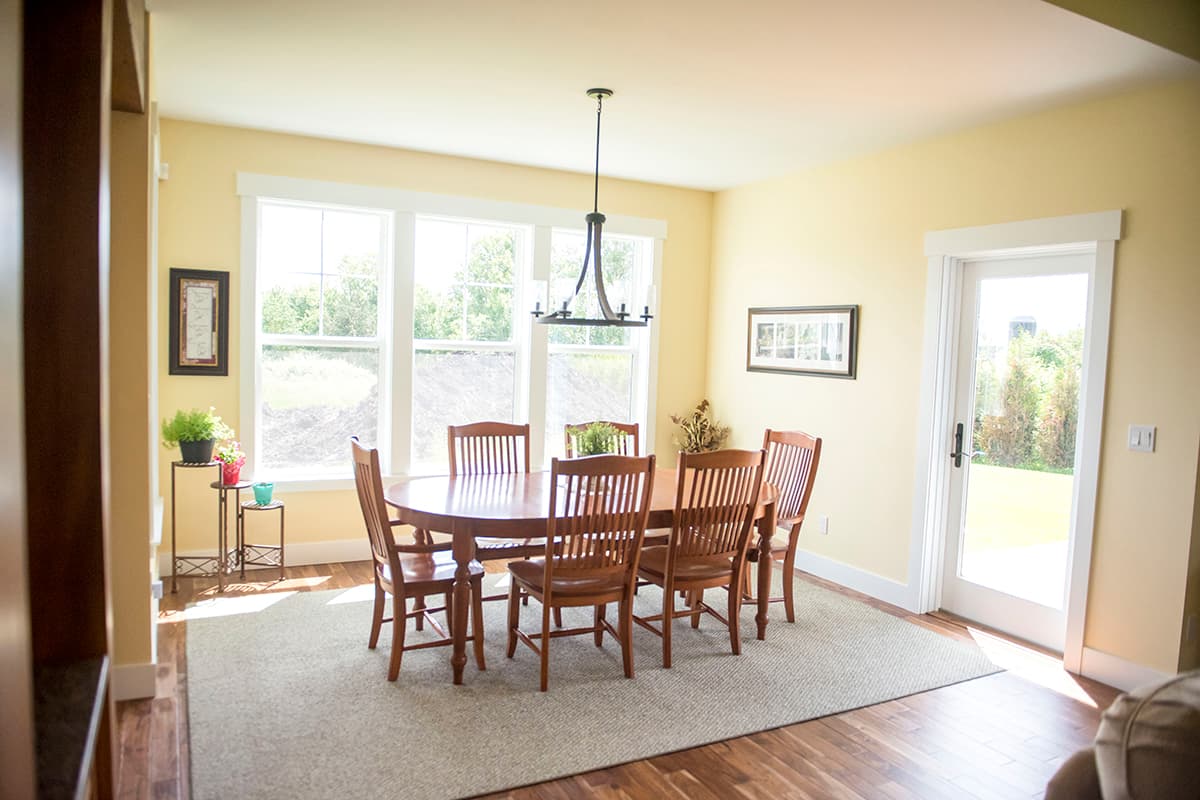

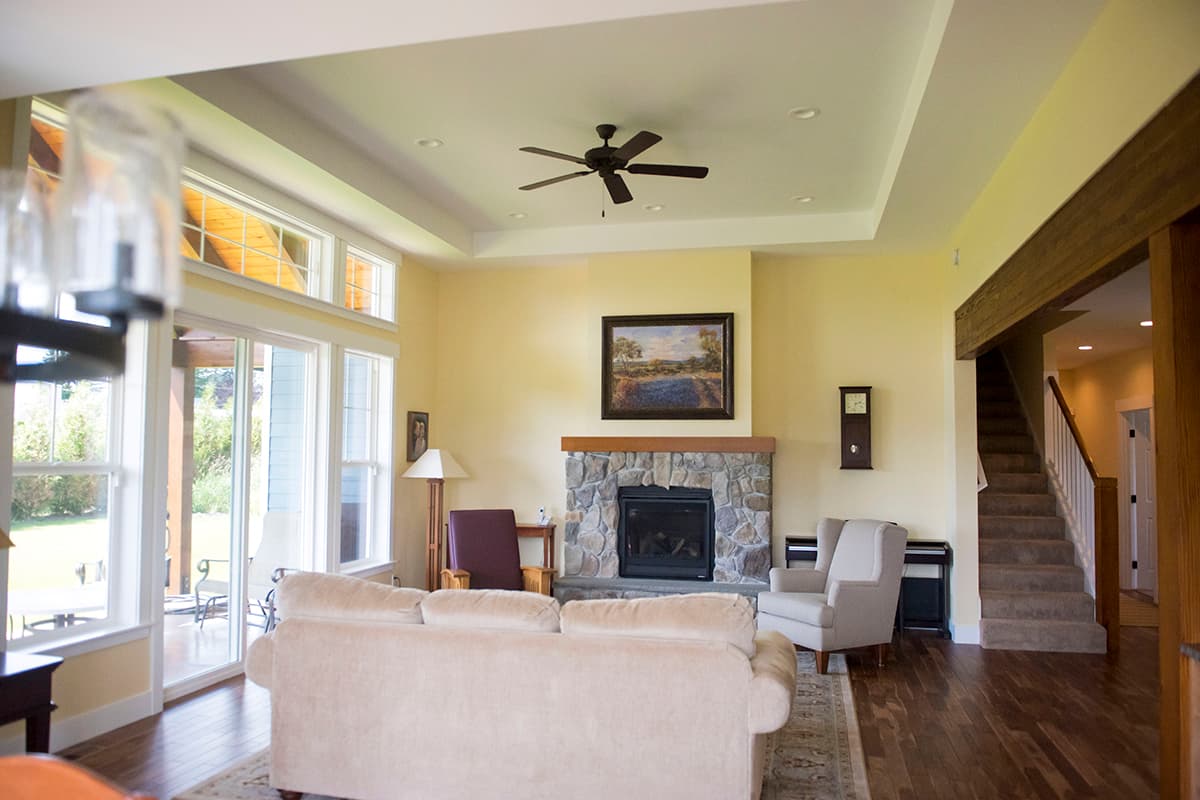

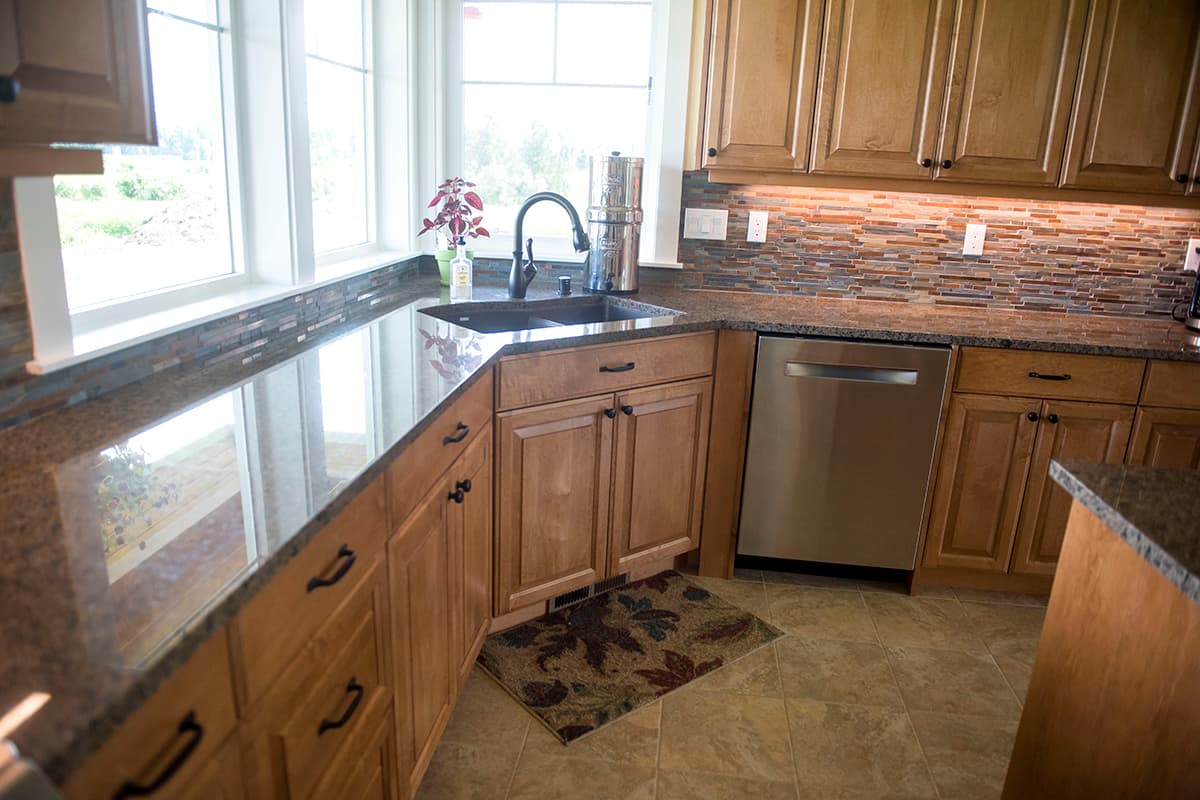

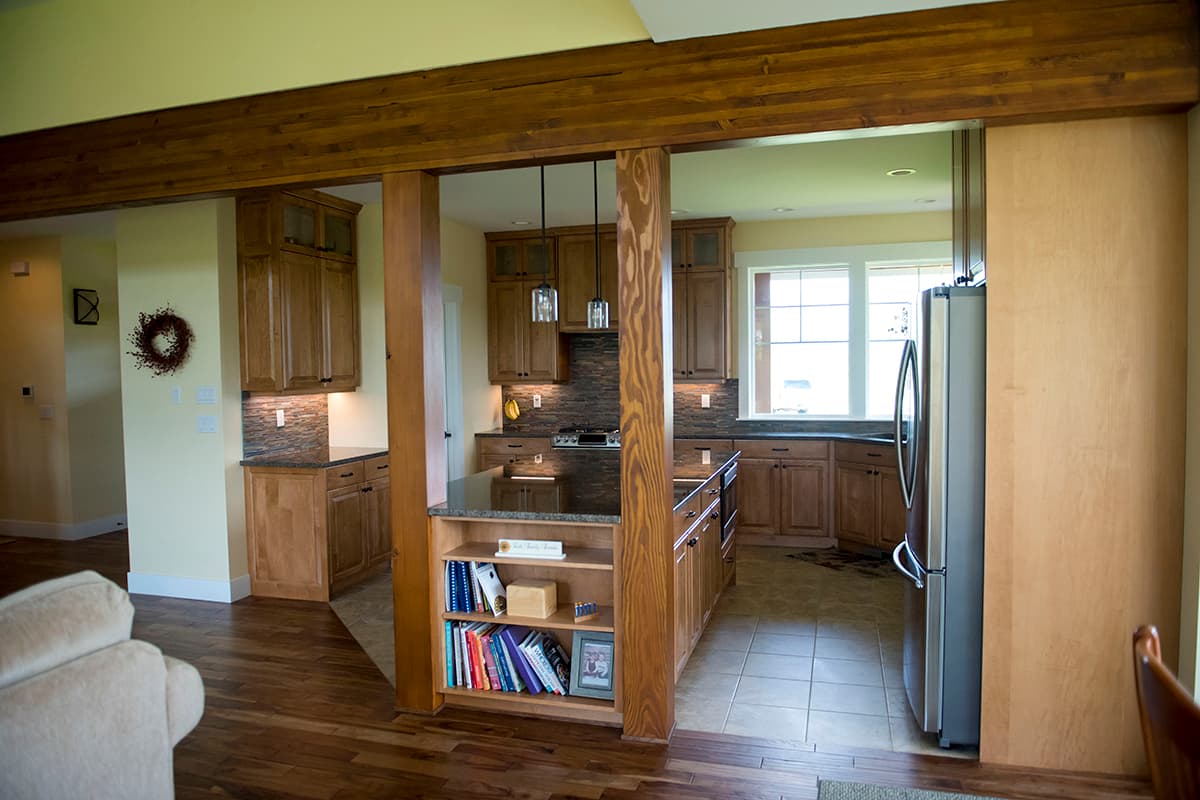

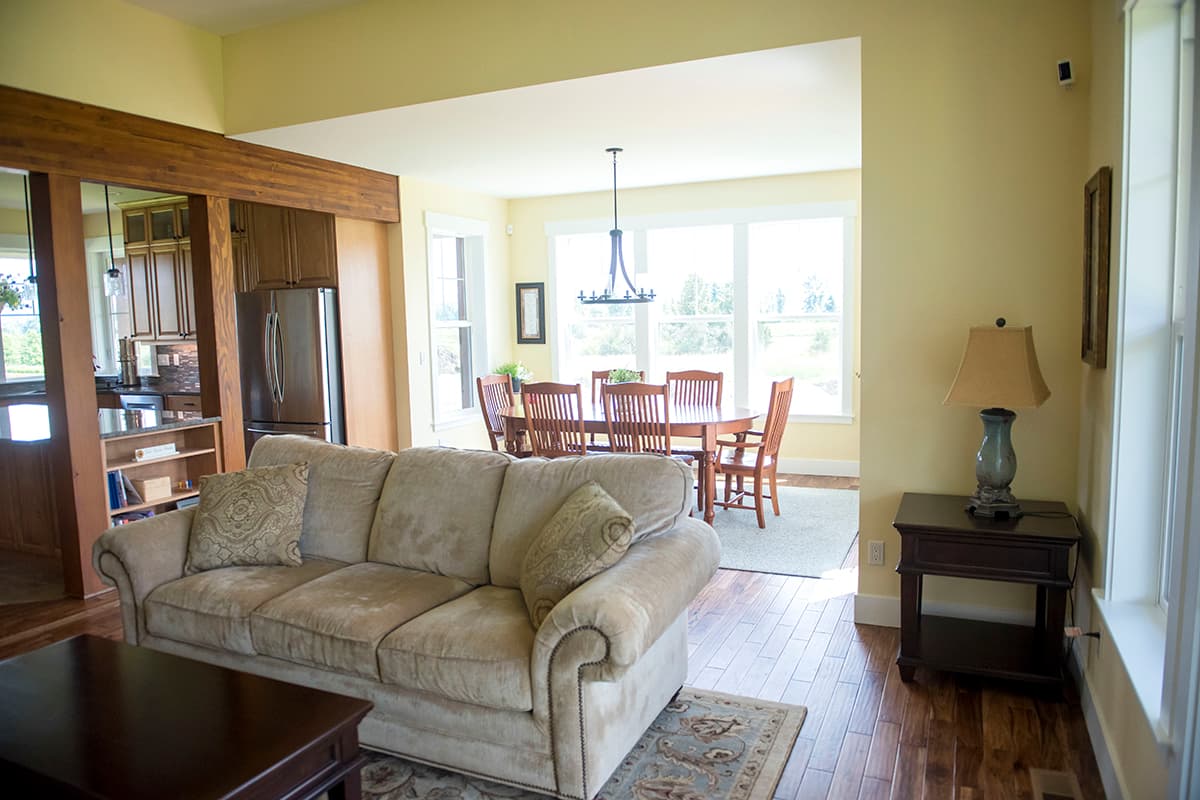

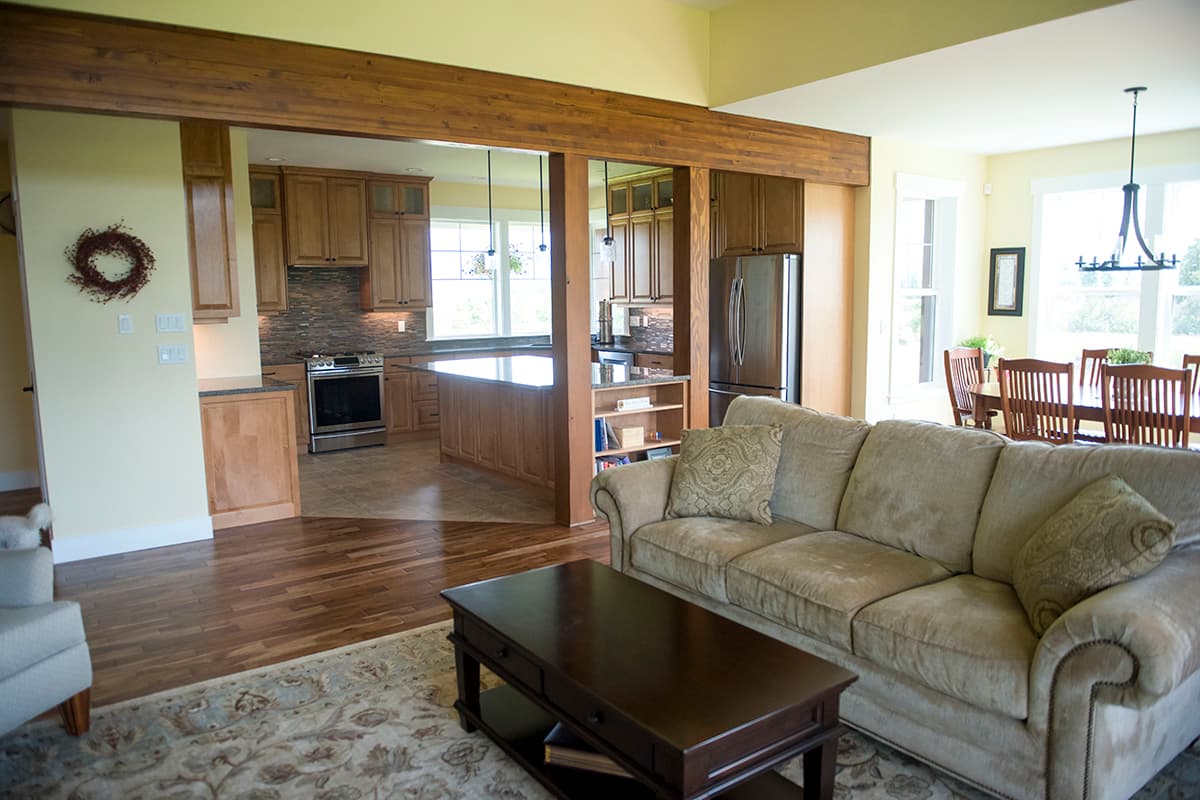

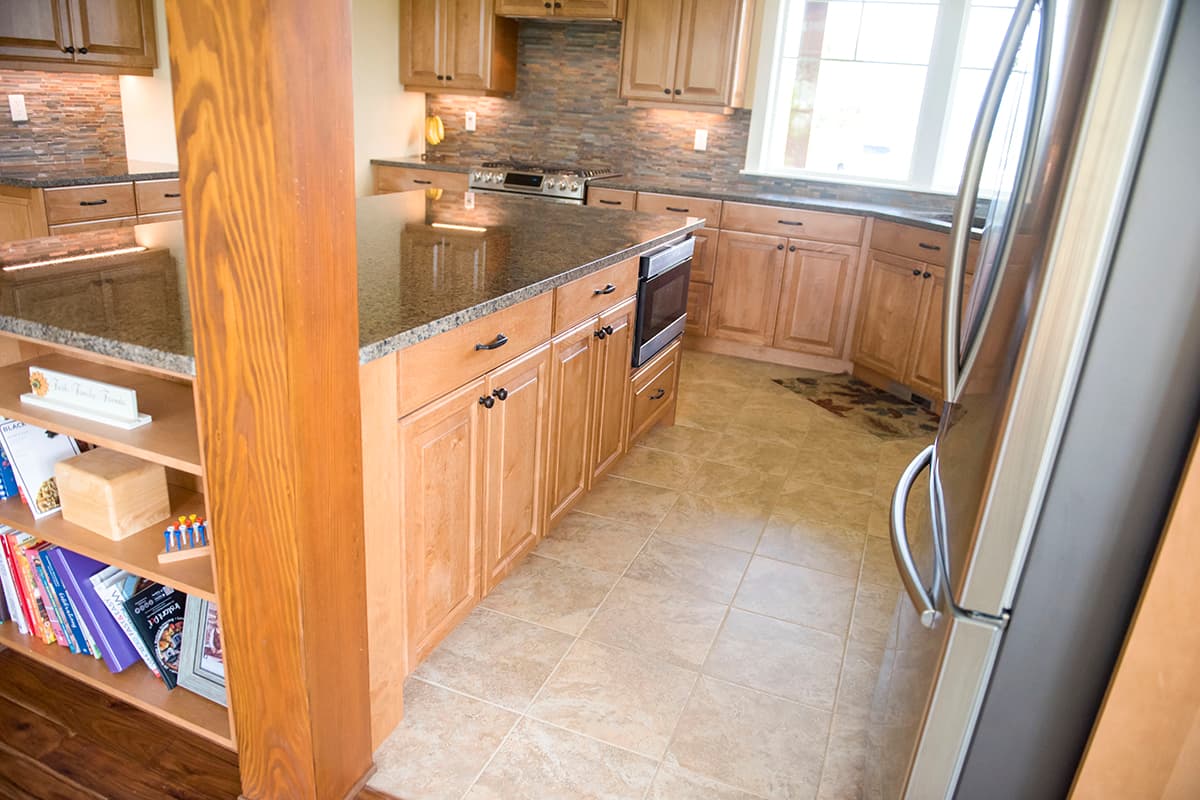

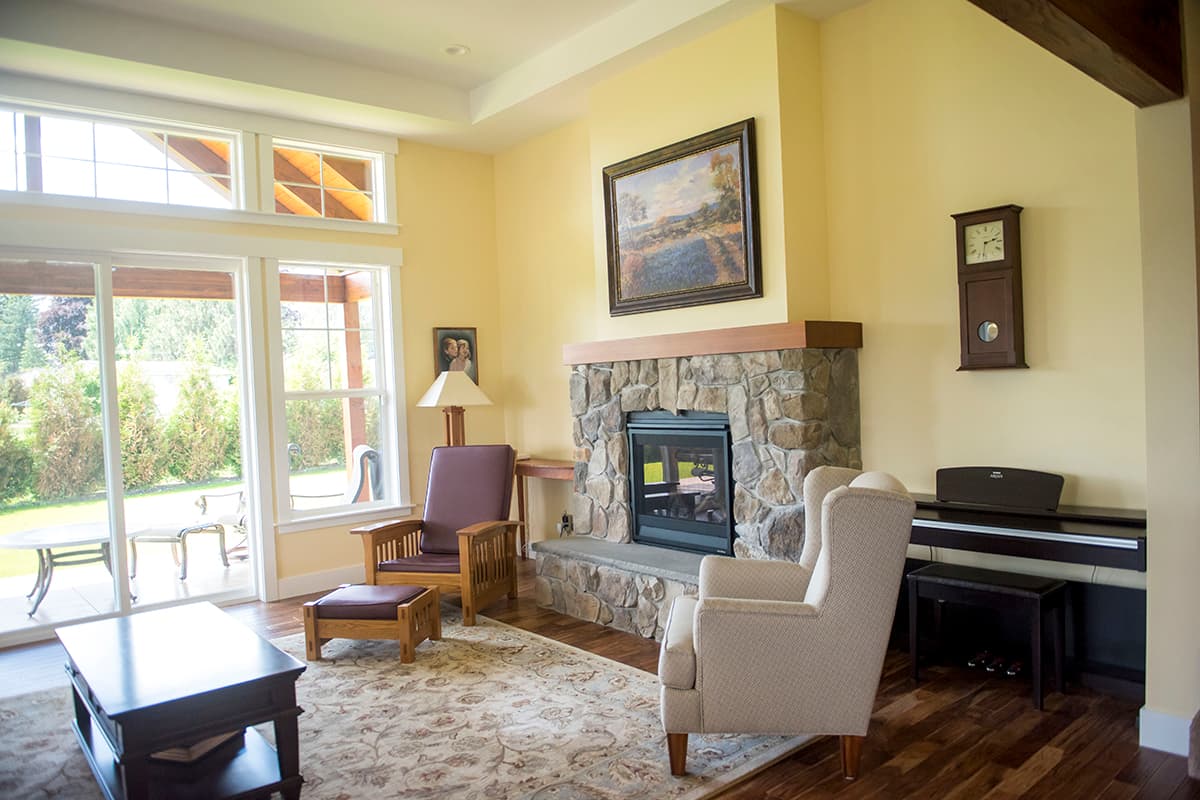

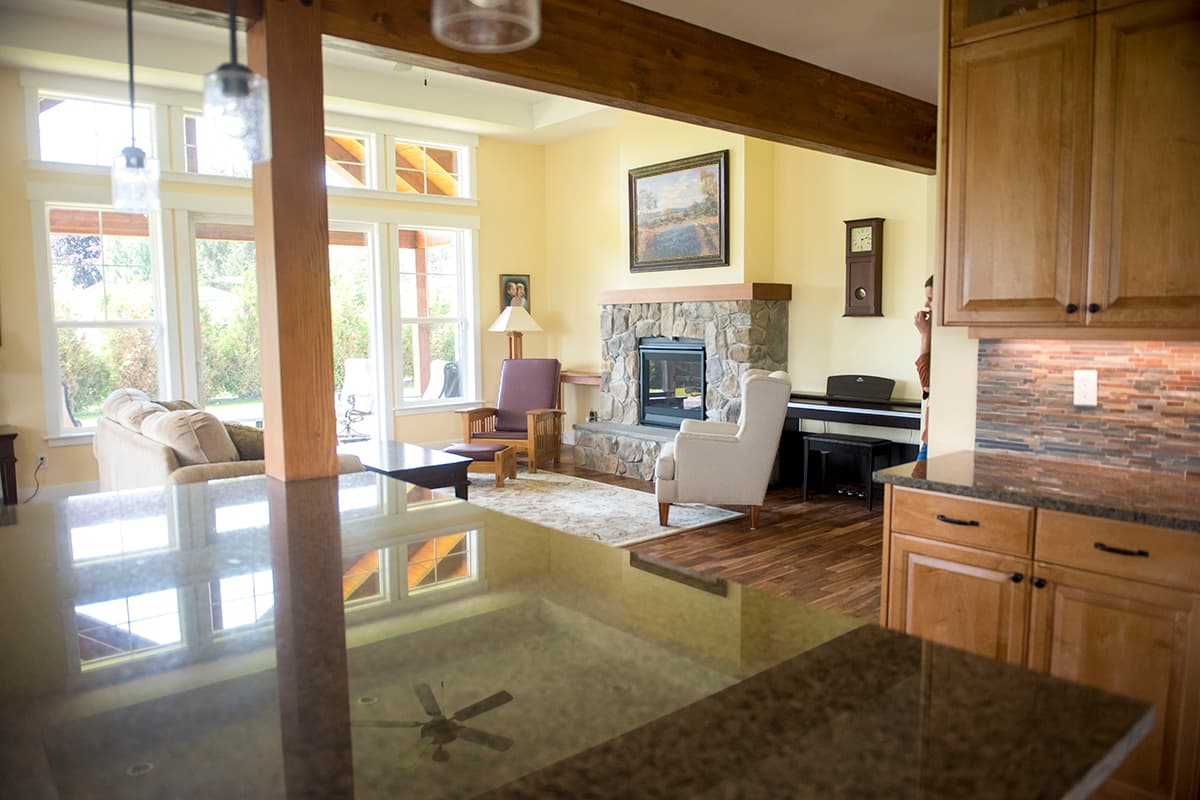

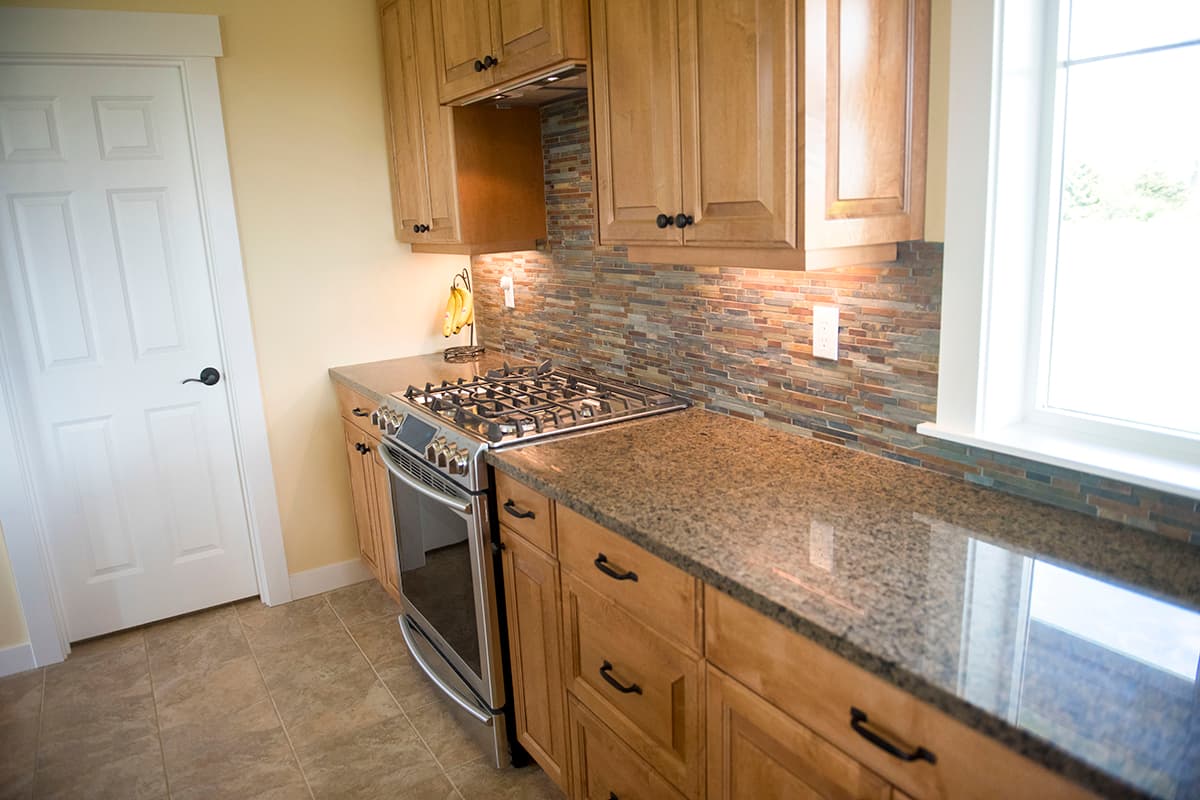

  • An elegant tray ceiling rests above the great room with a fireplace serving as the focal point, and the open kitchen features an oversized island and roomy walk-in pantry. The attached dining room provides access to both the front and back porch.

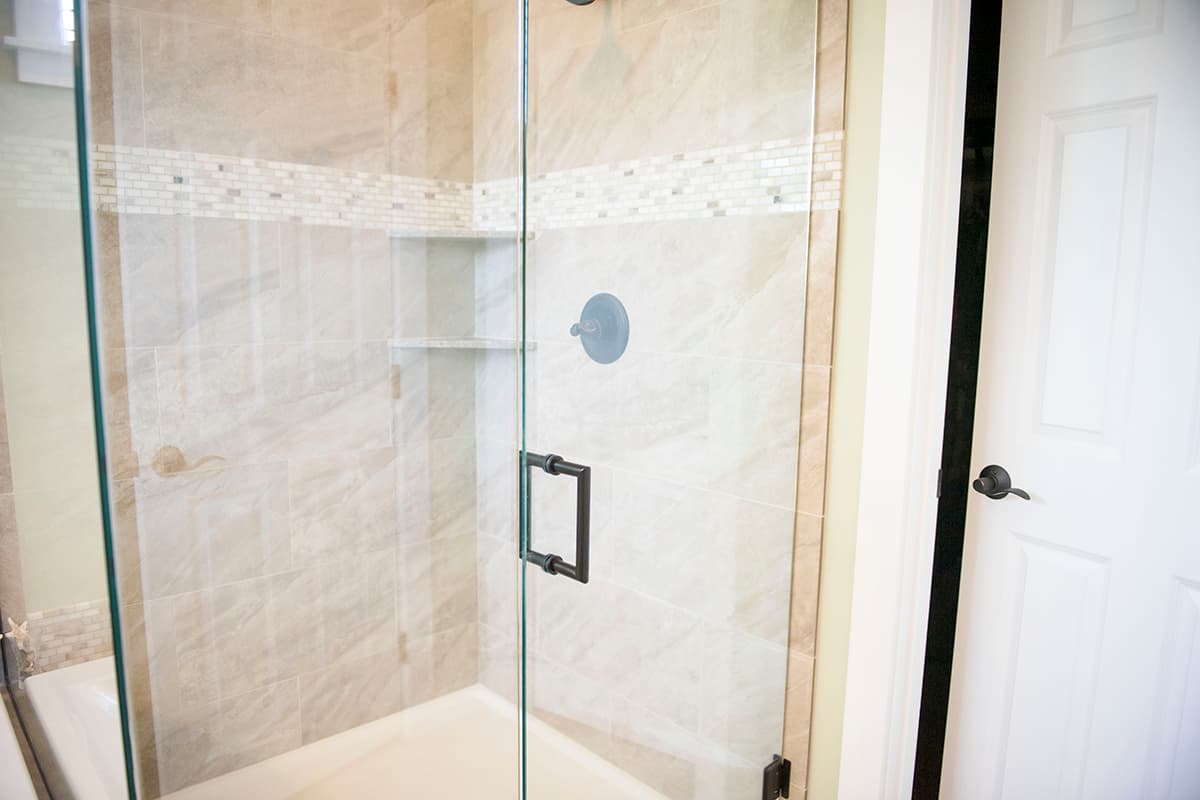

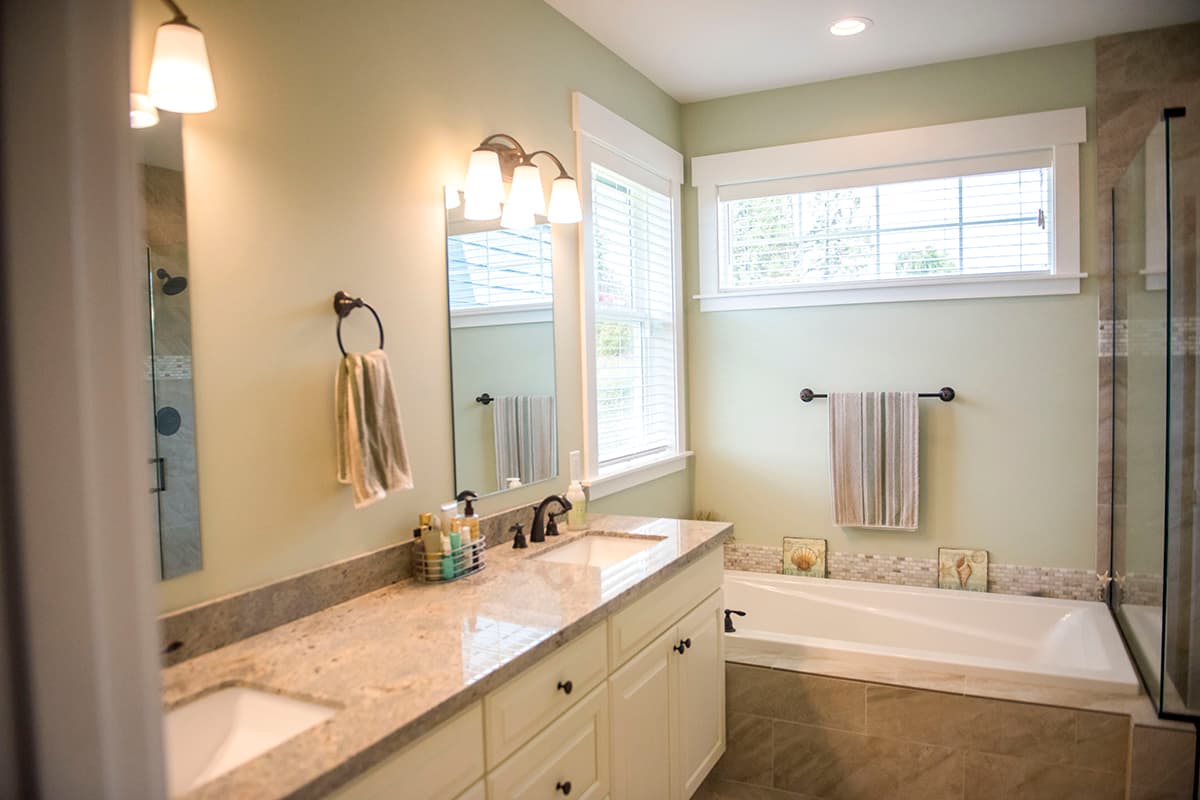

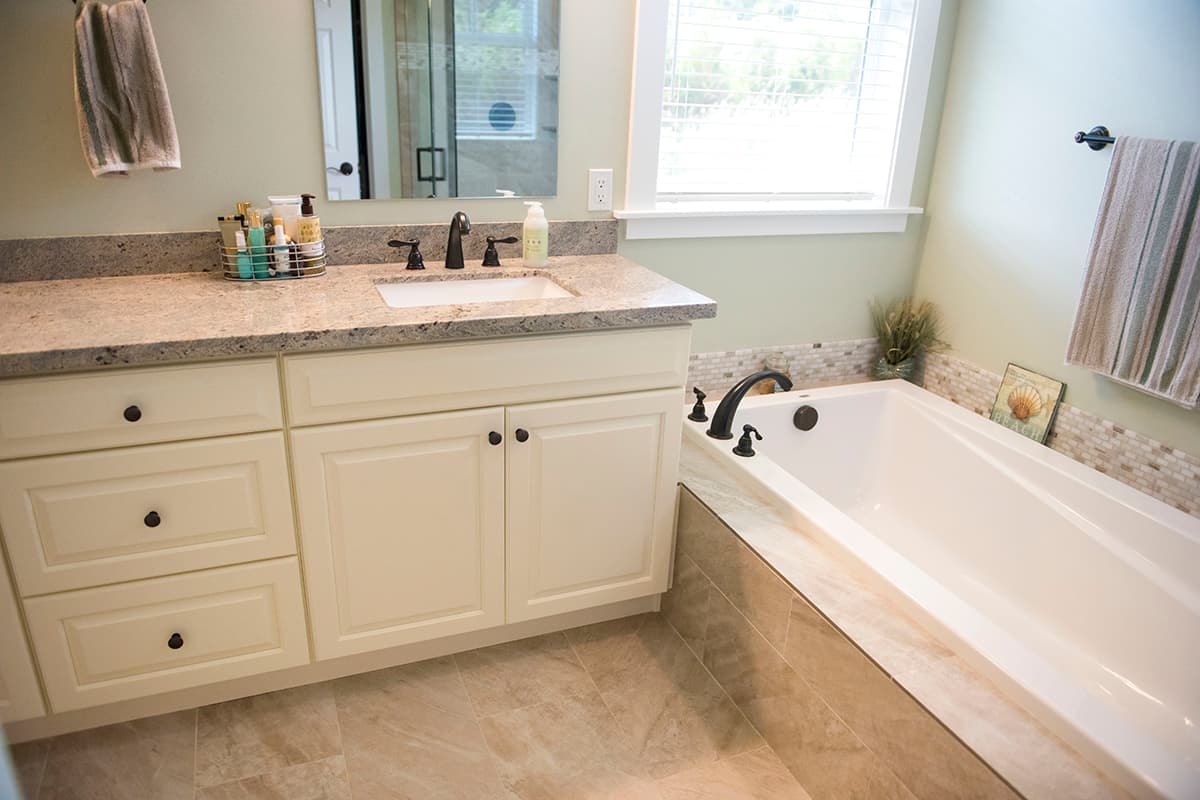

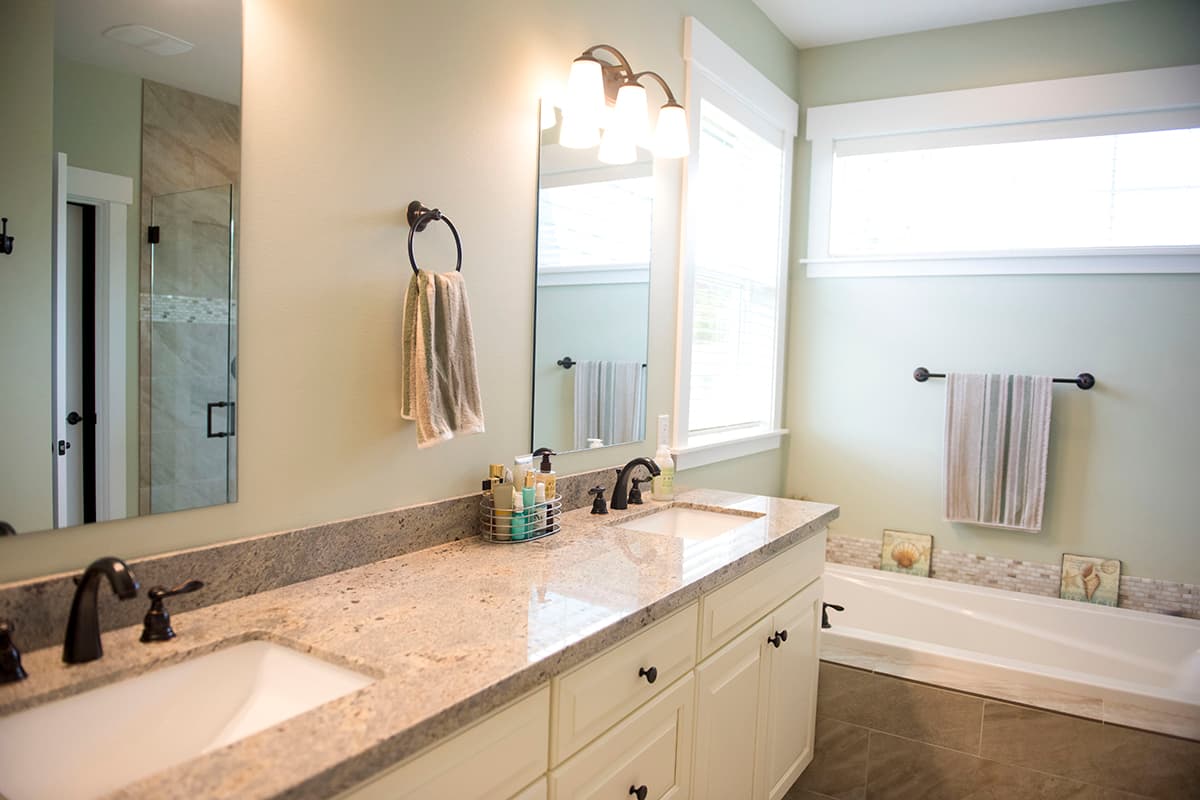

  • The master bedroom is located on the main floor for quick and easy access, and includes a 5-fixture bath with dual vanities, a private commode room, and a walk-in closet. A second bedroom, or den, resides across the hall.
  • Upstairs, discover two additional bedrooms, which share a full bath. A library nook provides built-in shelves, and leads to an optional bonus room above the garage.

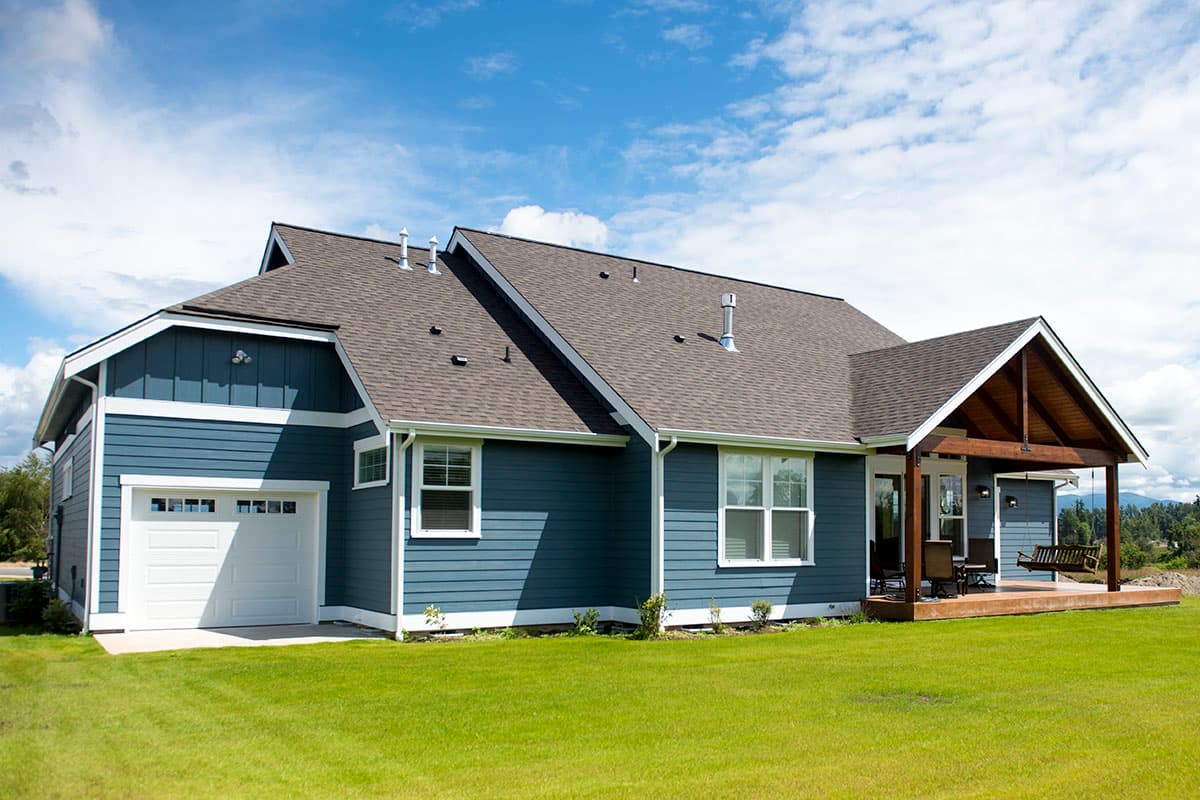

  • The 2-car garage includes space for storage or lawn equipment, with a rear-facing door providing easy access to the backyard.
  • IMPORTANT NOTE:  The total heated square footage includes the bonus room.
What's Included

  • Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split Bed New American Home with Open-Concept Floor Plan

  • 2,912

    Heated s.f.

  • 3-4

    Beds

  • 3.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

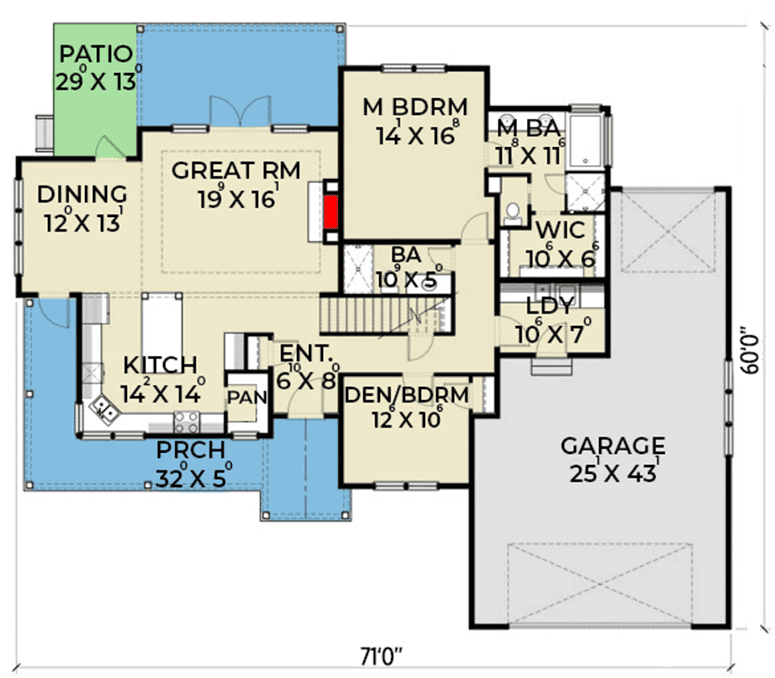

  • Main Level

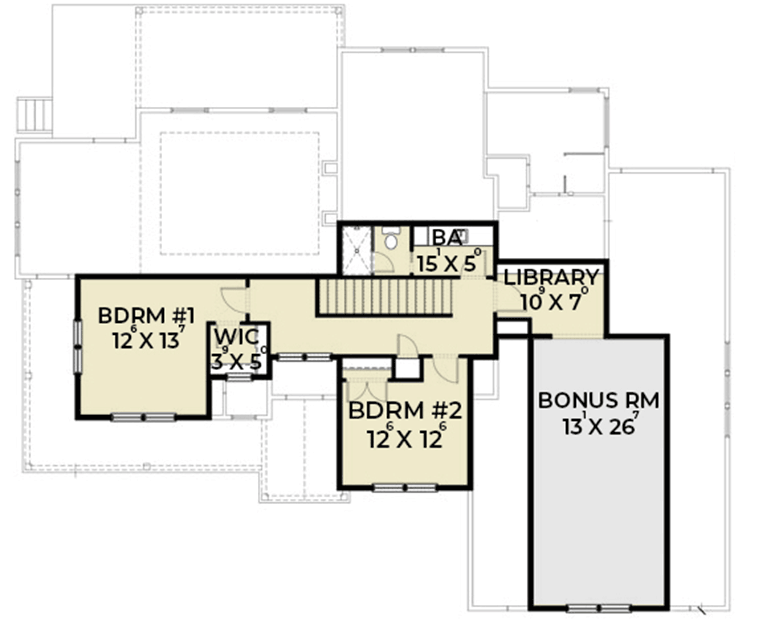

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,912 sq. ft.
  • 1st Floor: 1,784 sq. ft.
  • 2nd Floor: 747 sq. ft.

Dimensions

  • Width: 71' 0"
  • Depth: 60' 0"
  • Max ridge height: 26' 10"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 885 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
