Plan 15667GE
Split Bedroom Craftsman Home Plan
Heated S.F.
2,305
Beds
3-5
Baths
2.5 - 4.5
Stories
1
Cars
2
What's Included
Plan Details

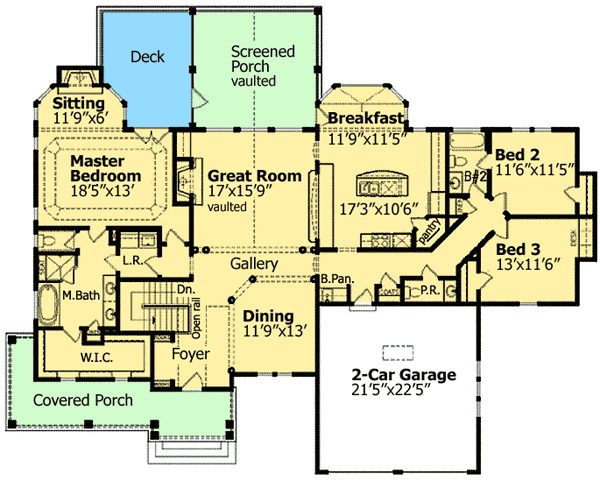

  • Split bedrooms in this attractive Craftsman home plan separate the master from the guest or family bedrooms for privacy.
  • Covered porchs both front and back combine with an open deck to encourage outdoor living.
  • Both the dining room and great room are open to each other, making the space seem huge. The great room is vaulted and has views out the vaulted screened porch.
  • The kitchen has views of the great room and fireplace. Counter seating and a pantry are nice features as is the bayed breakfast nook.
  • A romantic master bedroom includes a sitting area with fireplace, tray ceilings and spacious master bath with access to the laundry room.
  • Two bedrooms on the opposite side of the house share a hall bath.

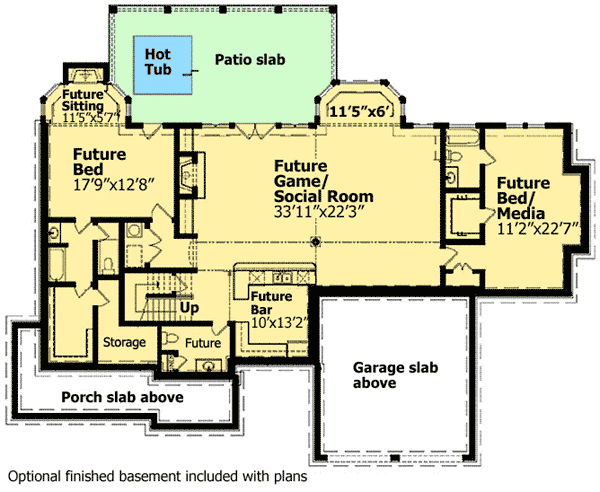

  • Added Bonus: Plans come complete with a designs for a finished lower level giving you two more bedrooms, storage, open space plus a patio.
What's Included

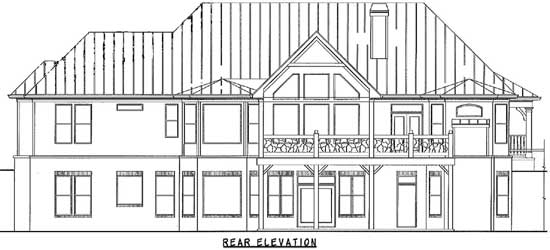

  • Exterior elevations: Included are front, rear, left and right side views of the exterior of the house. Exterior materials, construction details and measurements are also noted.
  • Foundation Plan: Includes layout of foundation support walls, plus excavated and unexcavated areas, if applicable.
  • Detailed Floor Plans: These plans show the layout of each floor of the house, including room dimensions, window and doors sizes and keys for cross section details provided later in the plans. Engineered floor joist, ceiling joist and roof plans are not included in some plans. Local engineers or manufacturing engineers are widely available to supply the services that apply to local geographic conditions.
  • Interior Details: These drawings show the specific details and design of special interior features.
  • Roof Plan: Includes the overall layout for roof construction. If trusses are used, we recommend using a local truss manufacturer to ensure compliance with local codes and regulations.
  • Cross Section Detail: Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Exterior details such as railing and banding may also be shown.
  • Electrical: Electrical floor plan schematics for 1st and 2nd floors.
  • Plans include wall and cornice sections, general foundation sections and details.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Framing plans
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
