Plan 36073DK
Split Bedroom Craftsman House Plan
Heated S.F.
2,467
Beds
3-4
Baths
2.5
Stories
1-2
Cars
2
Videos
What's Included
Plan Details
  • Choose from three bedrooms and a study or four bedrooms in this Craftsman house plan.
  • A beautiful coffered ceiling tops the spacious great room that has a big fireplace at one end as the focal point.
  • You'll have lots of counter space in the kitchen, thanks to the large island.
  • A walk-in pantry lies close by for extra storage.
  • The split bedroom layout places the master suite off to one side with its elegant tray ceiling, a big walk-in closet and a roomy master bathroom.
  • Bonus space on the second floor has sloped ceilings and can be finished to suit your needs.
What's Included
  • All Elevations
  • Birds Eye Roof Plan
  • Floor plans
  • Foundation Plan
  • Suggested Electrical Layout
  • General Construction Details
  • Some plans include a Cross Section through the structure (but not all do); write us to find out if your plan has these - [email protected]

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split Bedroom Craftsman House Plan

  • 2,467

    Heated s.f.

  • 3-4

    Beds

  • 2.5

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Floor Plan

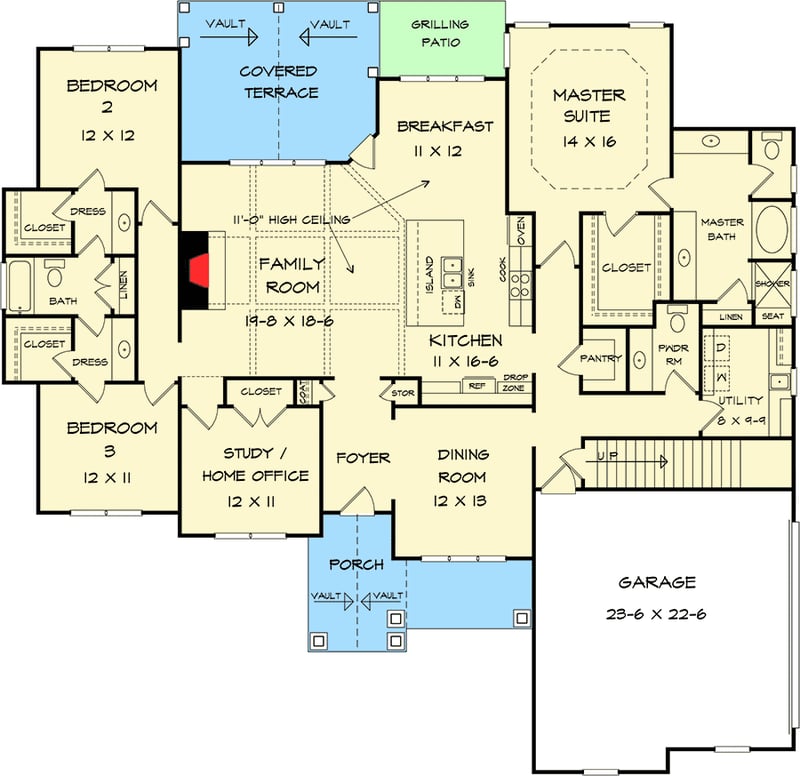

  • Main Level

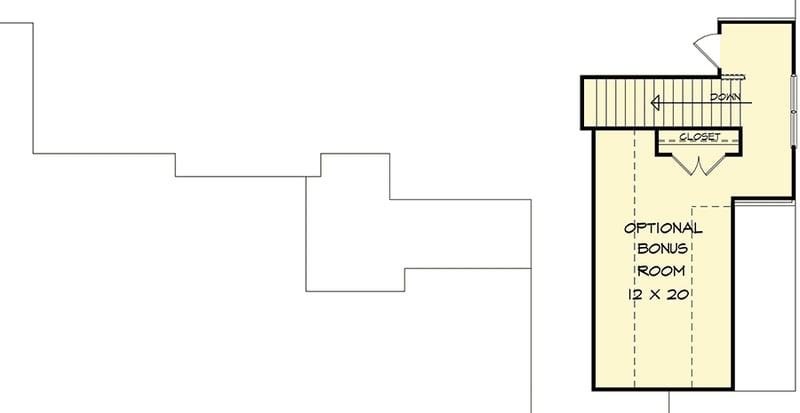

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,467 sq. ft.
  • 1st Floor: 2,467 sq. ft.

Dimensions

  • Width: 69' 4"
  • Depth: 67' 7"
  • Max ridge height: 25' 3"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 550 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick
