Split-Bedroom European Home Plan with Vaulted Great Room

Plan 60589ND

  • 2,070

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Stories

  • 2

    Cars

  • A marvelous open floor plan enhances this split bedroom European home plan.

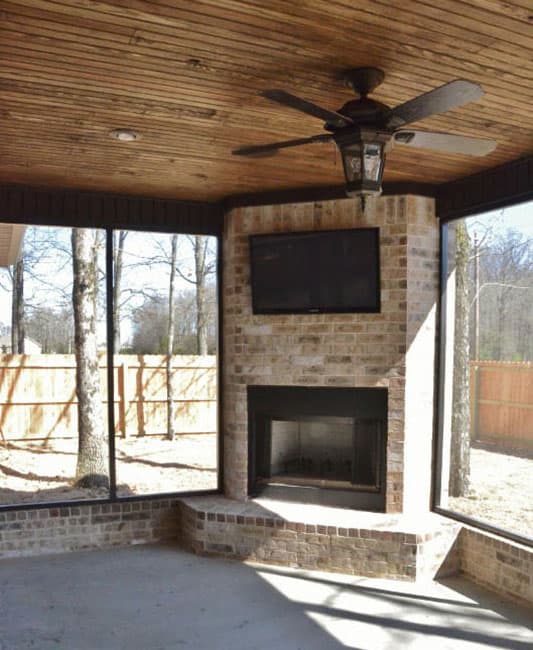

  • The sightlines extend from the foyer to the breakfast nook and screened grilling porch with fireplace in the rear.

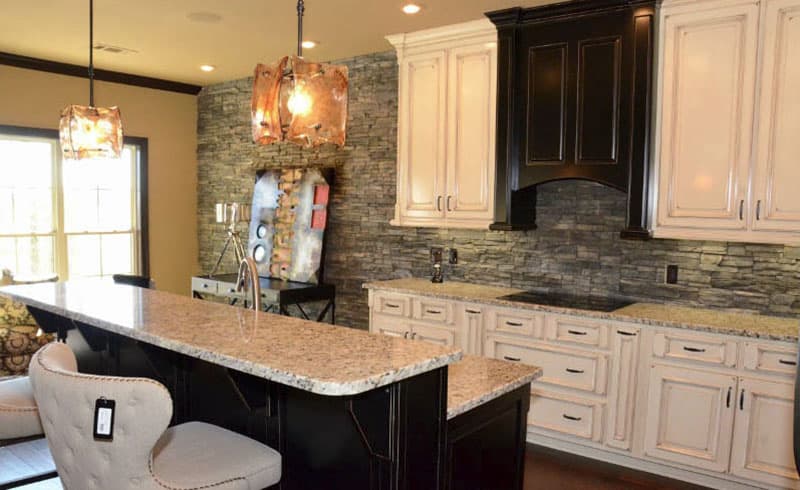

  • In the kitchen, a huge peninsula eating bar has room for 6 stools.
  • The master suite is off by itself with an enormous walk-in closet and private bath.
  • Two family bedrooms share a Jack and Jill bathroom on the opposite side of the home.
  • A big bonus room over the garage awaits your finishing touches.
  • The roof is stick framed with a 12:12 pitch.
  • Related Plans: Get alternate versions with house plans 70784MK, 60690ND and 60594ND.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a birdseye view of rooms with lights, fans to switches
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

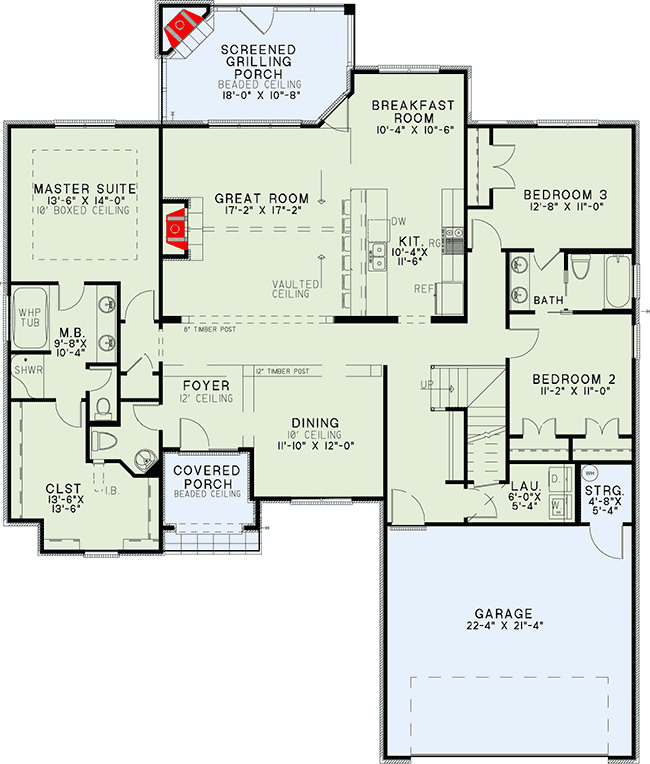

Split-Bedroom European Home Plan with Vaulted Great Room - 60589ND floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Split-Bedroom European Home Plan with Vaulted Great Room - 60589ND floor plan - Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 2,070 sq. ft.
  • 1st Floor: 2,070 sq. ft.
  • Porch, Combined: 250 sq. ft.
  • Bonus: 352 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Slab, Crawl
  • Optional Foundations: Basement, Daylight

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 57' 4"
  • Depth: 69' 0"
  • Max ridge height: 21' 9"

Garage

  • Type: Attached
  • Area: 519 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof Details

  • Primary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Split-Bedroom European Home Plan with Vaulted Great Room

  • 2,070

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,350
  • 5 Sets $1,450
  • 5 Sets + PDF $1,700
  • PDF - Unlimited Build $2,050
  • CAD Unlimited + PDF $2,700
  • View all purchase option online

About This Plan

  • A marvelous open floor plan enhances this split bedroom European home plan.
  • The sightlines extend from the foyer to the breakfast nook and screened grilling porch with fireplace in the rear.
  • In the kitchen, a huge peninsula eating bar has room for 6 stools.
  • The master suite is off by itself with an enormous walk-in closet and private bath.
  • Two family bedrooms share a Jack and Jill bathroom on the opposite side of the home.
  • A big bonus room over the garage awaits your finishing touches.
  • The roof is stick framed with a 12:12 pitch.
  • Related Plans: Get alternate versions with house plans 70784MK, 60690ND and 60594ND.
