Plan 55221BR Split Bedroom Home Plan with 3-Car Garage and Upstairs Expansion

Split Bedroom Home Plan with 3-Car Garage and Upstairs Expansion

Plan 55221BR

  • 1,938

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • This house plan comes in just under 2,000 square feet and features room sizes found in much larger homes.
  • The living room features a corner fireplace and has spacious sloped ceilings starting at 9'. The front porch and outdoor kitchen have open cathedral ceilings with exposed beams. The front bedroom, foyer, dining and master bedroom all have 10' ceilings. The upstairs expansion space has 8' ceilings.
  • Living, dining and kitchen are very open while the corner fireplace provides just the right amount of separation between spaces. The fully appointed kitchen has sloped ceilings, walk-in pantry with dual access to the full size utility.
  • The master suite has a cozy sitting area and a roomy bath. Across the home, two secondary bedrooms have private bath access and huge walk-in closets.

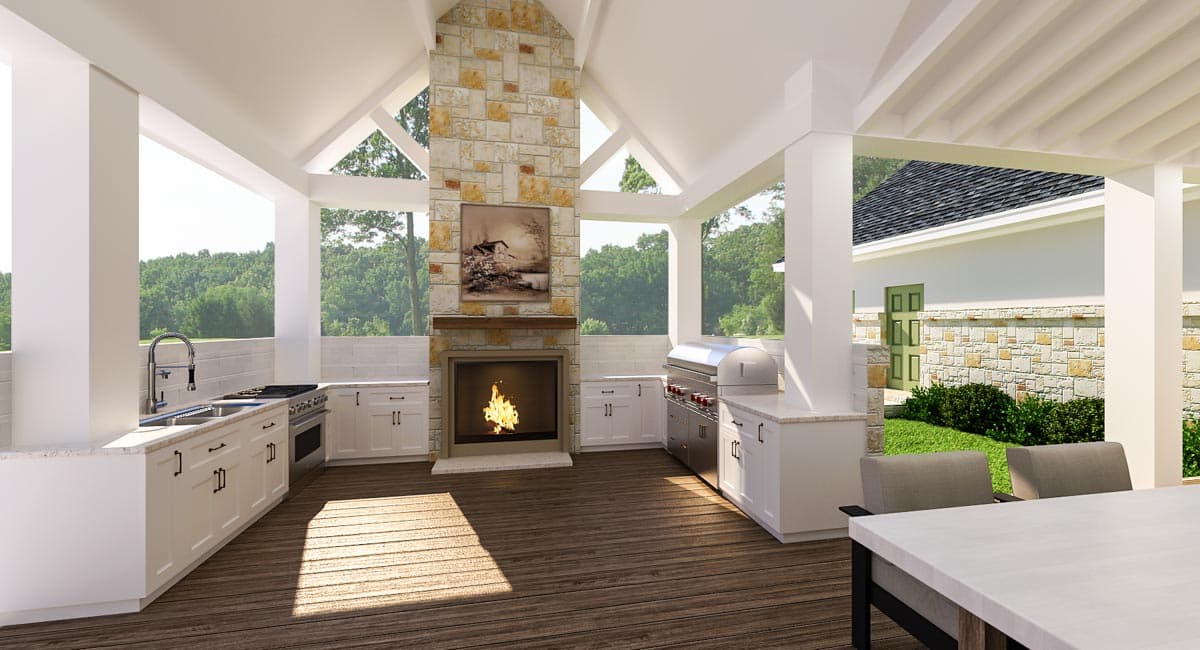

  • The rear porch includes an outdoor kitchen and fireplace, perfect for outdoor entertaining.  Stairs adjacent to the rear entry ascends to the unfinished upper level future space.
  • A 3-car garage is located at the rear of the house and has side entrance doors and a double door entrance for riding mowers or golf carts.

Plans include the following:

  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.
  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule

What is not included in the plans:

  •           Architectural or Engineering Stamp
  •           Site Plan
  •           Mechanical Drawings (location of heating and air equipment and duct work)
  •           Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  •           Energy calculations



Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

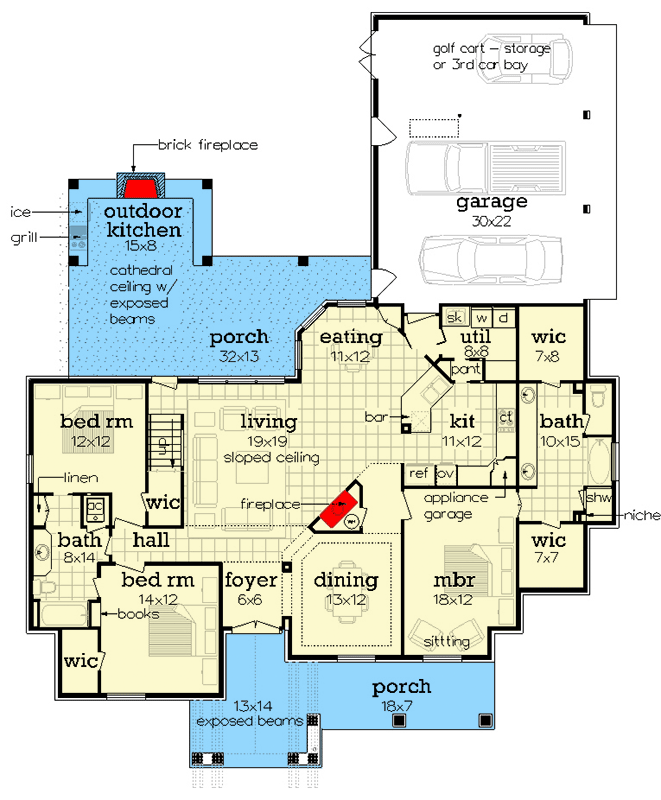

Split Bedroom Home Plan with 3-Car Garage and Upstairs Expansion - 55221BR floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

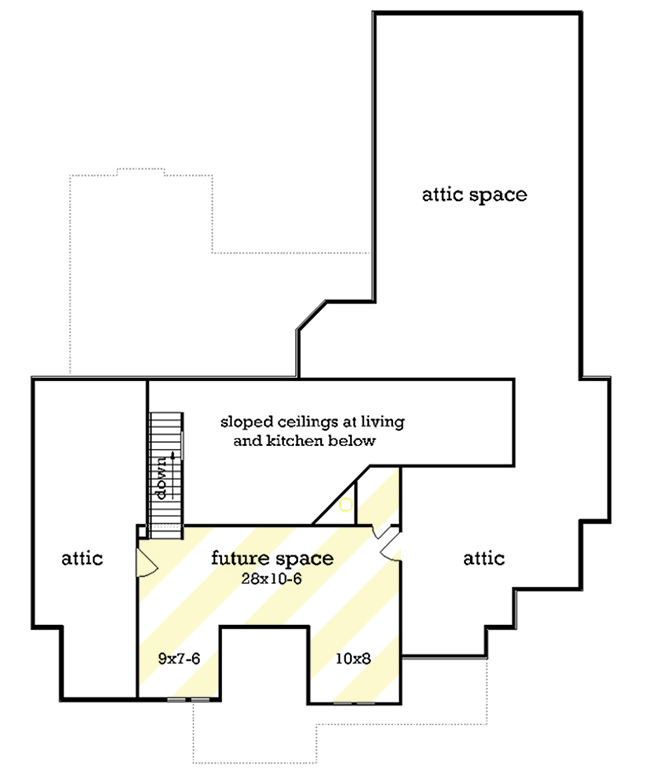

Split Bedroom Home Plan with 3-Car Garage and Upstairs Expansion - 55221BR floor plan - 2nd Floor

Plan details

Architectural Style

Split Bedroom Home Plan with 3-Car Garage and Upstairs Expansion

  • 1,938

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $900
  • 4 Sets $985
  • 5 Sets $1,030
  • 5 Sets + PDF $1,130
  • 8 Sets $1,140
  • CAD - Single-Build $1,700
  • View all purchase option online

About This Plan

  • This house plan comes in just under 2,000 square feet and features room sizes found in much larger homes.
  • The living room features a corner fireplace and has spacious sloped ceilings starting at 9'. The front porch and outdoor kitchen have open cathedral ceilings with exposed beams. The front bedroom, foyer, dining and master bedroom all have 10' ceilings. The upstairs expansion space has 8' ceilings.
  • Living, dining and kitchen are very open while the corner fireplace provides just the right amount of separation between spaces. The fully appointed kitchen has sloped ceilings, walk-in pantry with dual access to the full size utility.
  • The master suite has a cozy sitting area and a roomy bath. Across the home, two secondary bedrooms have private bath access and huge walk-in closets.
  • The rear porch includes an outdoor kitchen and fireplace, perfect for outdoor entertaining.  Stairs adjacent to the rear entry ascends to the unfinished upper level future space.
  • A 3-car garage is located at the rear of the house and has side entrance doors and a double door entrance for riding mowers or golf carts.

Floor Plans

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,938 sq. ft.
  • 1st Floor: 1,938 sq. ft.
  • Porch, Combined: 634 sq. ft.
  • Bonus: 476 sq. ft.
  • Outdoor Kitchen: 120 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 61' 0"
  • Depth: 78' 0"
  • Max ridge height: 30' 0"

Garage

  • Type: Attached
  • Area: 664 sq. ft.
  • Entry Location: Side
