Plan 710162BTZ Split Bedroom House Plan with Optional Fourth Bedroom

1,779 3-4 2 - 3 1-2 2
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Split Bedroom House Plan with Optional Fourth Bedroom

Plan 710162BTZ

  • 1,779

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1-2

    Stories

  • 2

    Cars

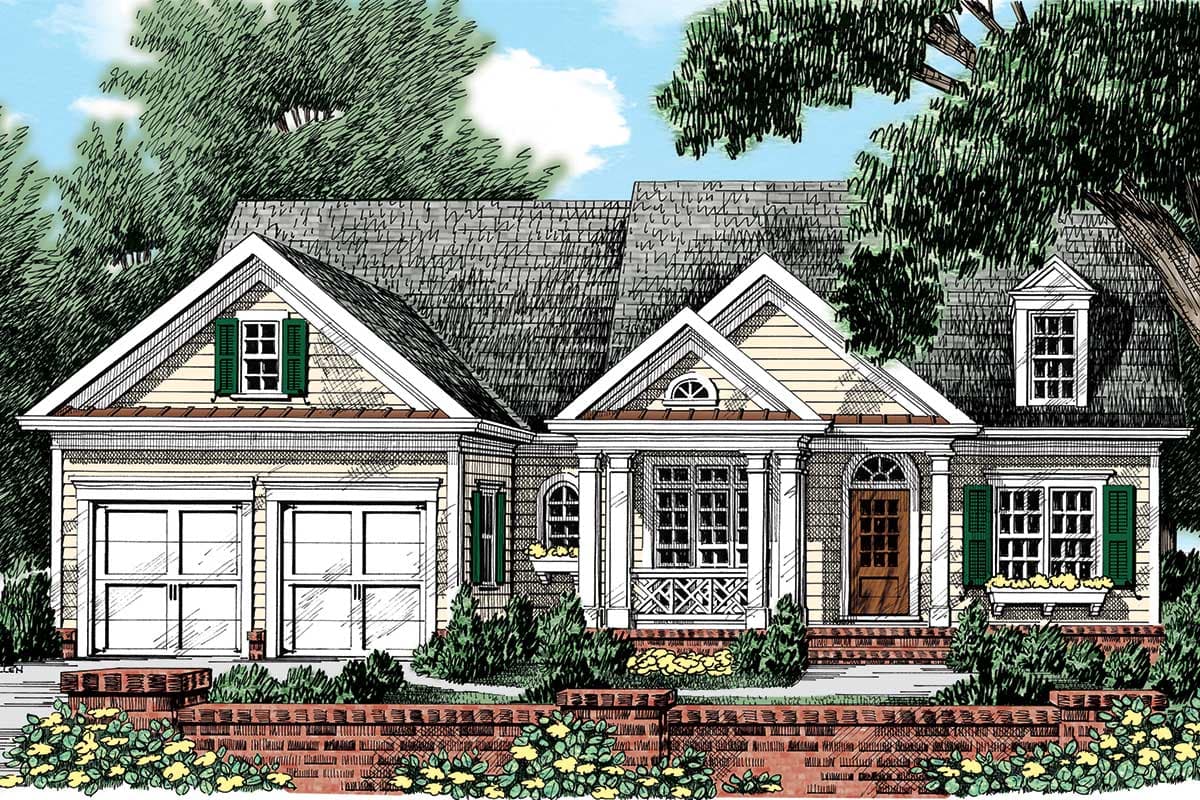

  • This charming split-bedroom house plan has traditional elements that are comforting and familiar. Its covered porch takes you for a walk down memory lane.
  • Gatherings are easily accommodated in the formal dining room that is accented with a decorative column.
  • Enjoy conversation around the fireplace.
  • The master suite has a bright and cheery window seat that makes the perfect spot to curl up with a good book.
  • A handy sink is incorporated into the laundry room for added convenience to the residents.

The plans include the following:

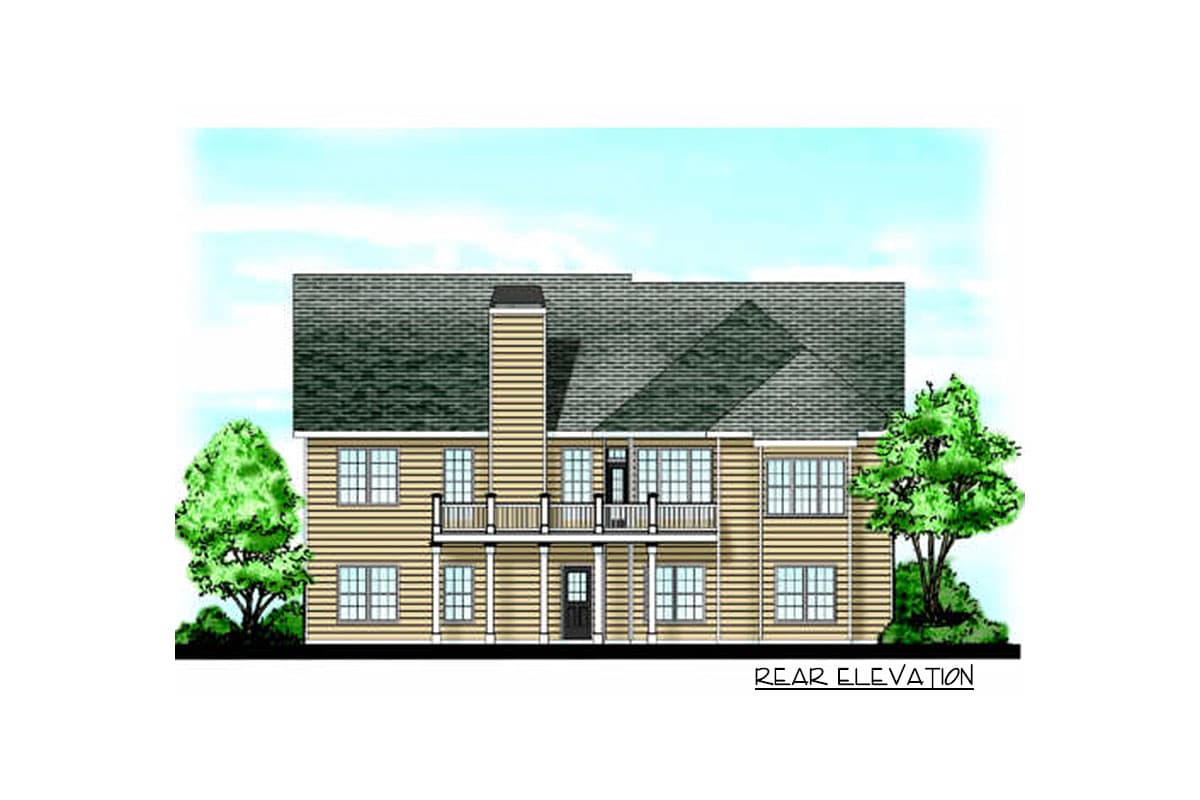

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.

What is not included in the plans:

          Architectural or Engineering Stamp
          Site Plan
          Mechanical Drawings (location of heating and air equipment and duct work)
          Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
          Energy calculations

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

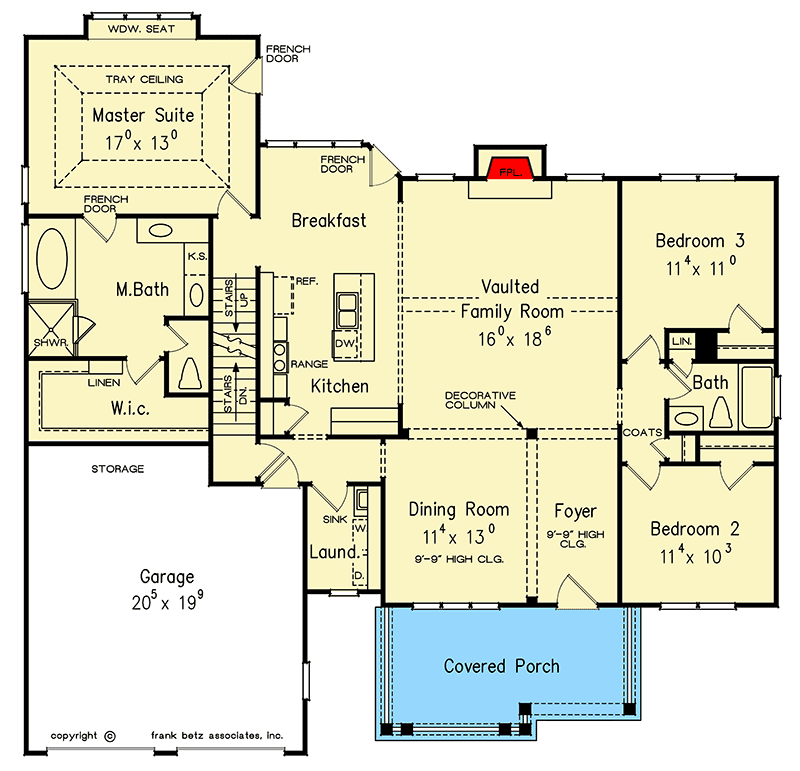

Split Bedroom House Plan with Optional Fourth Bedroom - 710162BTZ floor plan - Main Level

Bonus Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

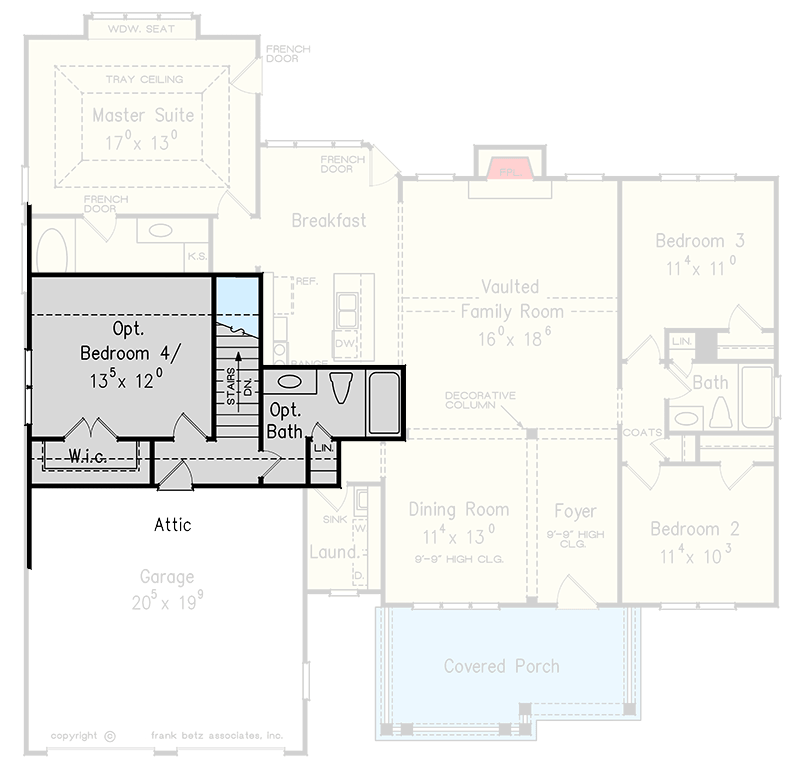

Split Bedroom House Plan with Optional Fourth Bedroom - 710162BTZ floor plan - Bonus Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,779 sq. ft.
  • 1st Floor: 1,779 sq. ft.
  • Bonus: 319 sq. ft.
  • Basement Unfinished: 1,779 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 55' 0"
  • Depth: 55' 0"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

Special features

Split Bedroom House Plan with Optional Fourth Bedroom

  • 1,779

    Heated s.f.

  • 3-4

    Beds

  • 2 - 3

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,295
  • 5 Sets + PDF $1,575
  • PDF - Unlimited Build $1,595
  • PDF - Unlimited Build + 5-Sets $1,875
  • CAD - Unlimited Build $2,195
  • View all purchase option online

About This Plan

  • This charming split-bedroom house plan has traditional elements that are comforting and familiar. Its covered porch takes you for a walk down memory lane.
  • Gatherings are easily accommodated in the formal dining room that is accented with a decorative column.
  • Enjoy conversation around the fireplace.
  • The master suite has a bright and cheery window seat that makes the perfect spot to curl up with a good book.
  • A handy sink is incorporated into the laundry room for added convenience to the residents.

Floor Plans

  • Main Level

  • Bonus Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,779 sq. ft.
  • 1st Floor: 1,779 sq. ft.
  • Bonus: 319 sq. ft.
  • Basement Unfinished: 1,779 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3

Foundation Type

    • Standard Foundations: Slab, Crawl, Walkout

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 55' 0"
  • Depth: 55' 0"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 462 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
