Plan 40898DB
Split Bedroom House Plan with Options - 2083 Sq Ft
Heated S.F.
2,083
Beds
2-4
Baths
2.5 - 3.5
Stories
1
Cars
3
Floor Plan

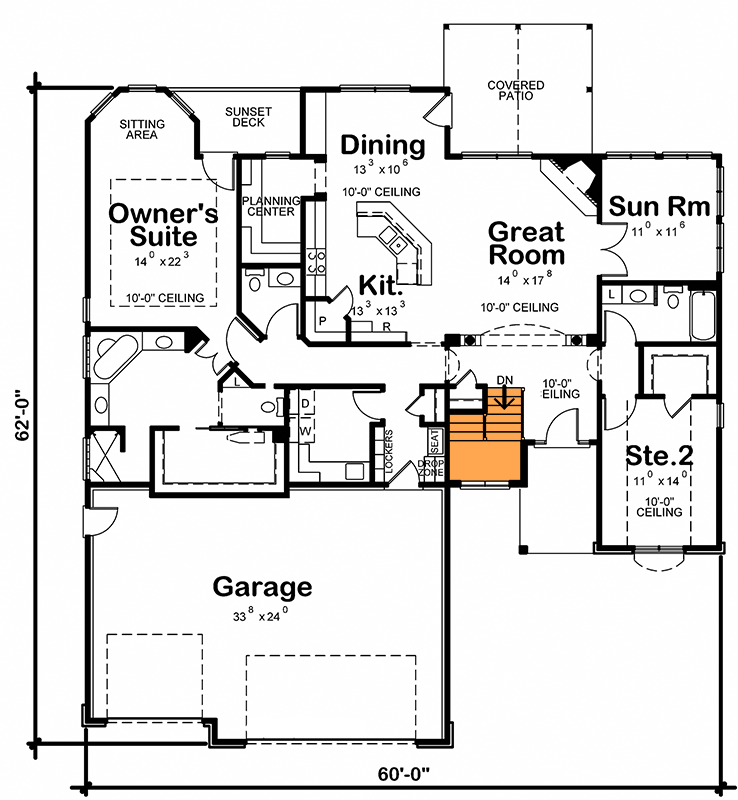

Main Level Basement Stairs
Reverse Floor Plan
Split Bedroom House Plan with Options - 2083 Sq Ft - 40898DB floor plan - Main Level Basement Stairs

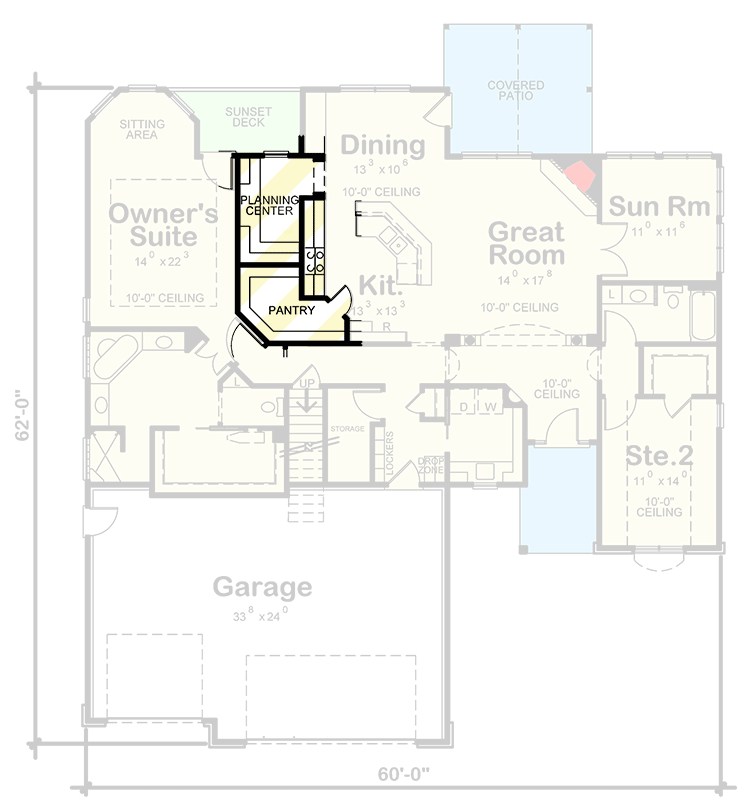

Optional Pantry Layout
Reverse Floor Plan
Split Bedroom House Plan with Options - 2083 Sq Ft - 40898DB floor plan - Optional Pantry Layout

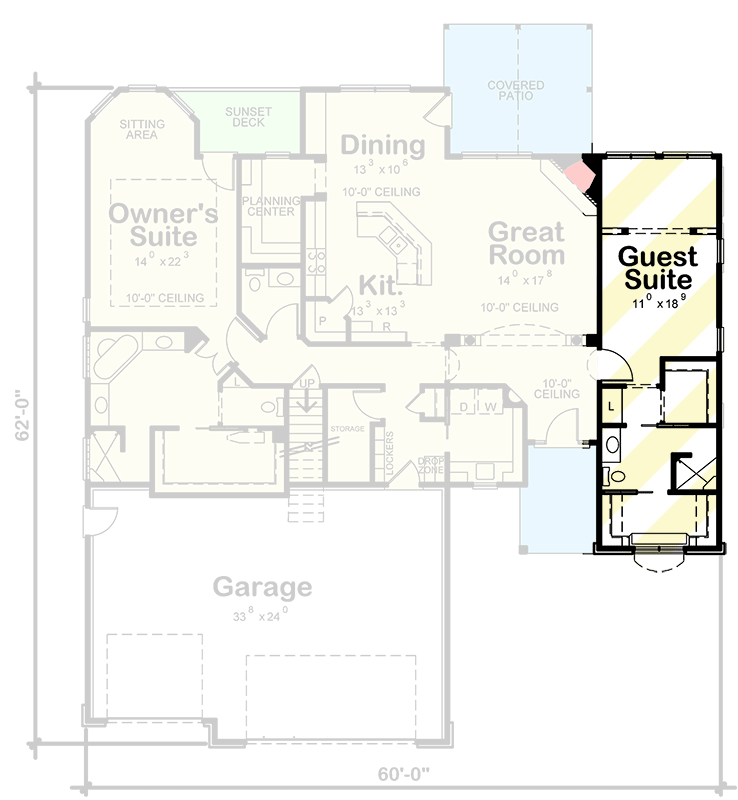

Optional Guest Suite
Reverse Floor Plan
Split Bedroom House Plan with Options - 2083 Sq Ft - 40898DB floor plan - Optional Guest Suite
Plan Details

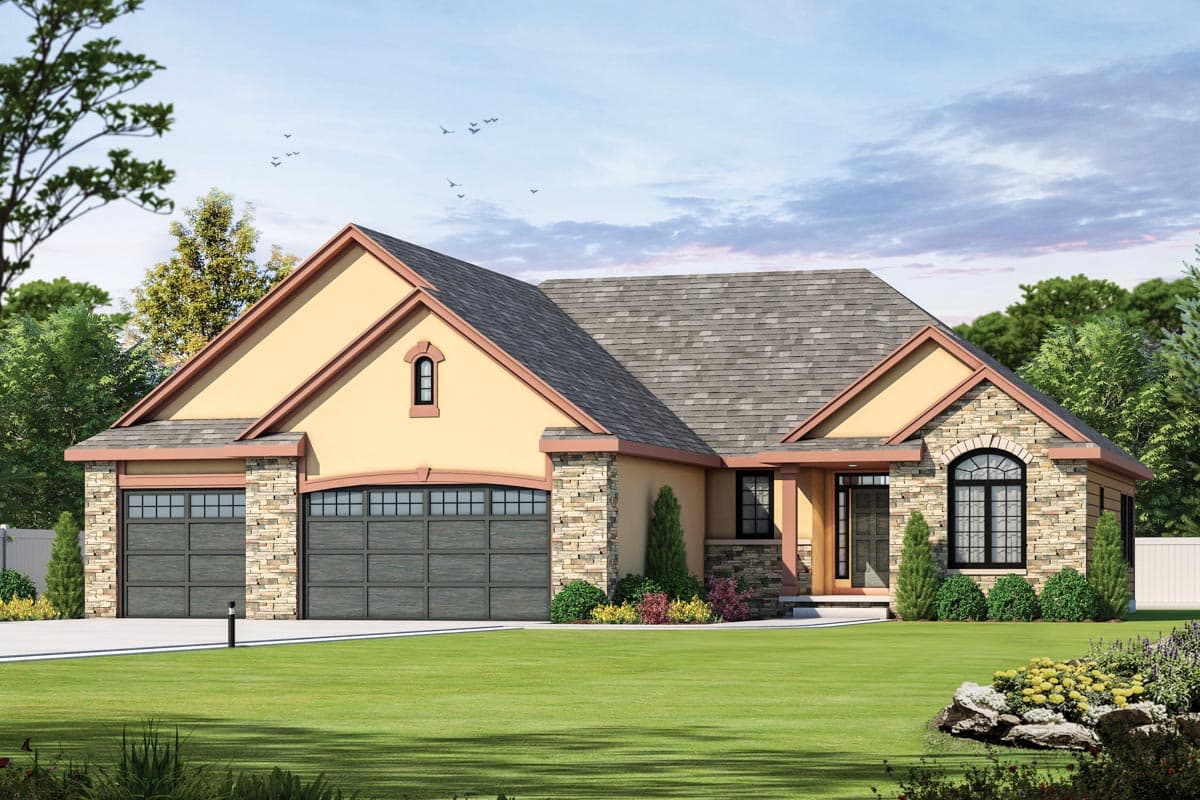

  • A mixed material exterior brings a bit of vareiety to this 2 bedroom house plan with options.
  • The house plans include an optional pantry and planning center layout, an optional rear foyer for and guest suite layout. You decide which combination you want to build. We'll give you details for all of them.
  • The sun room off the great room is a light-filled space and a great place to enjoy a read or a snooze.
  • The kitchen has views extending in two directions and enjoys a corner walk-in pantry.
  • The master suite has a sitting area and a sunset deck, a nice touch.

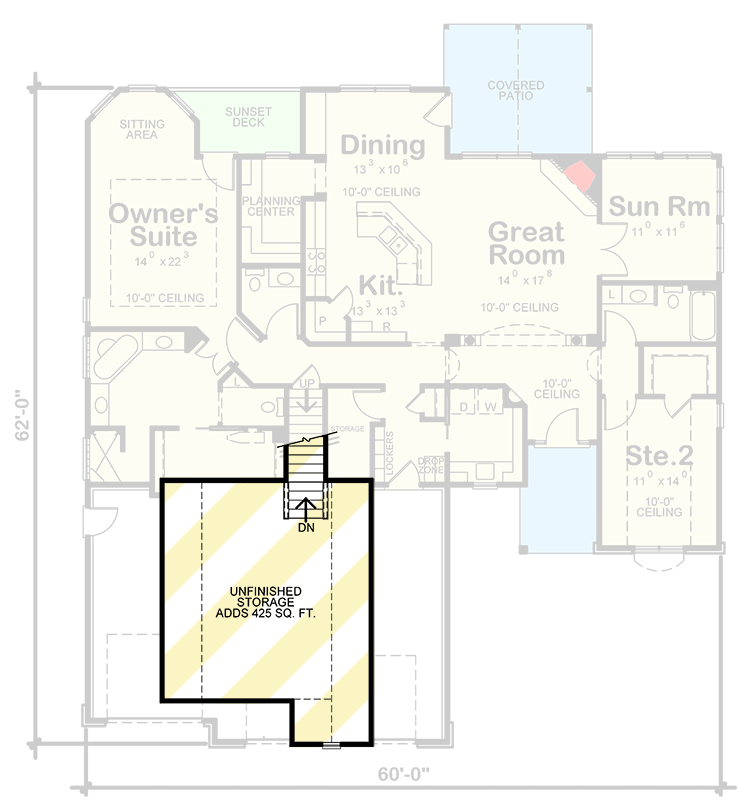

  • Stairs lead to a bonus room where you can expand when the budget frees up.
  • An optional guest suite layout is available.
  • NOTE: If this plan is to be built on the optional basement foundation, the upper level bonus room cannot be built.
  • Related Plans: Get alternate layouts with house plan 40613DB and 42562DB. Get alternate exteriors with house plans 42535DB, 42537DB42536DB and 42538DB.
What's Included
  • General Notes

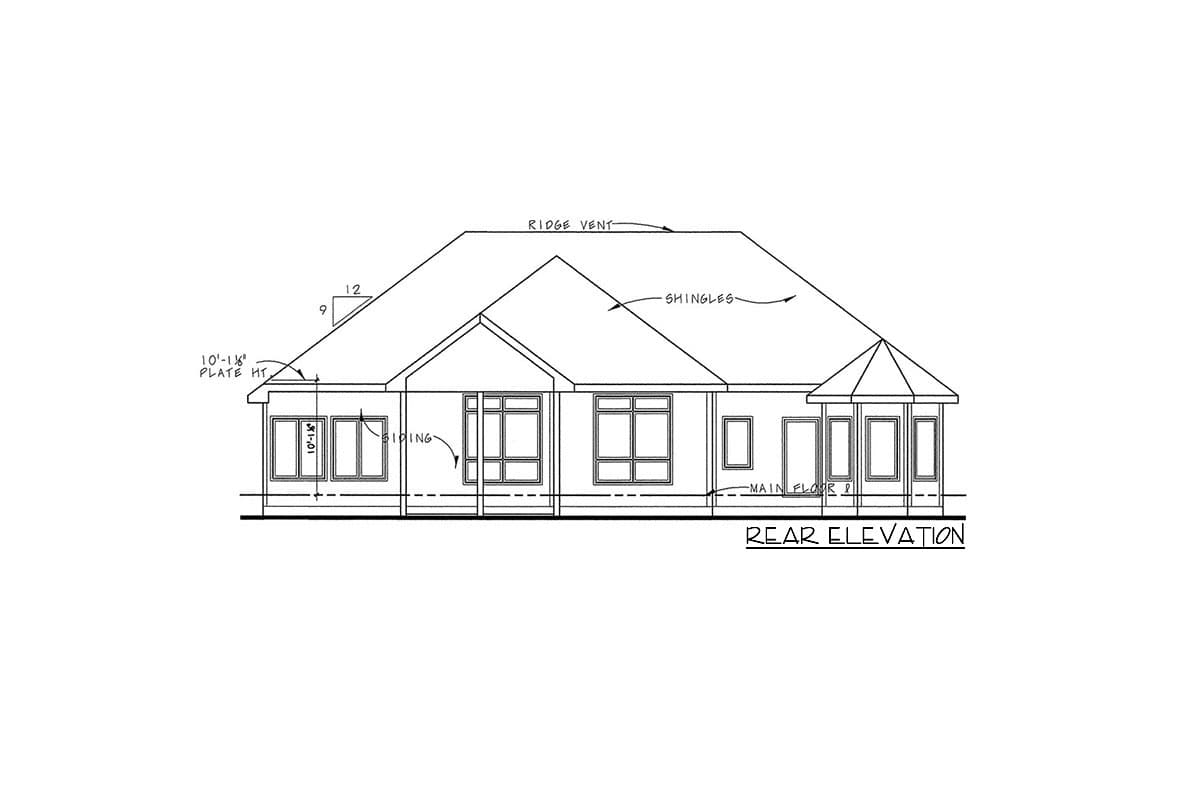

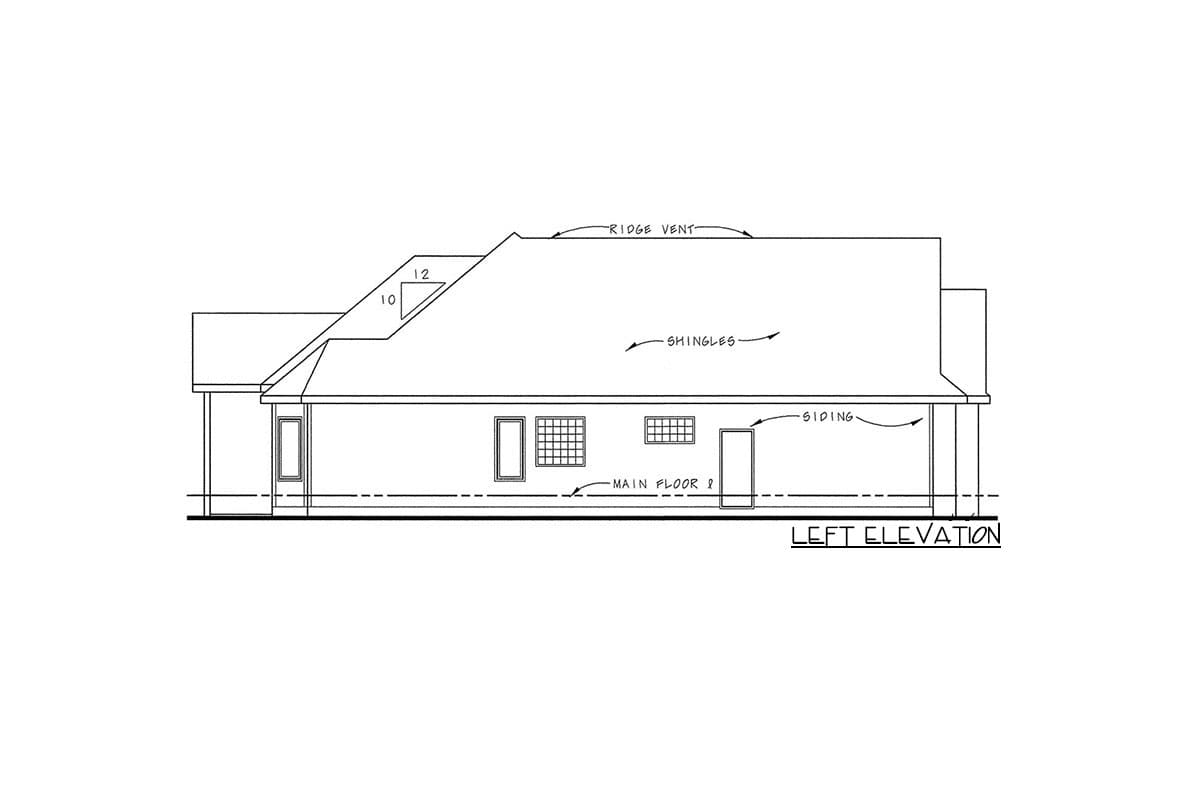

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split Bedroom House Plan with Options - 2083 Sq Ft

  • 2,083

    Heated s.f.

  • 2-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 3

    Car garage

Floor Plan

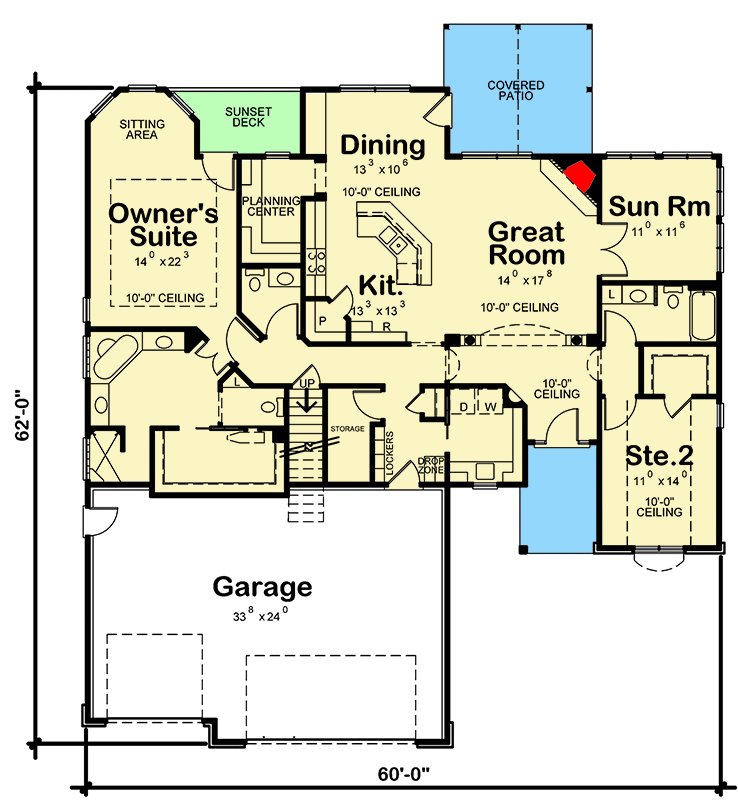

  • Main Level

  • Bonus Level

  • Main Level Basement Stairs

  • Optional Pantry Layout

  • Optional Guest Suite

Plan Details

Square Footage Breakdown

  • Total: 2,083 sq. ft.
  • 1st Floor: 2,083 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 62' 0"
  • Max ridge height: 22' 0"

Beds/Baths

  • Bedrooms: 2, 3, or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 798 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Walkout, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"
