Plan 62124V Split Bedroom House Plan with Side-Entry Garage

1,984 3 2 1-2 2
Print
Compare
...

Split Bedroom House Plan with Side-Entry Garage

Plan 62124V

  • 1,984

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Stories

  • 2

    Cars

  • An 8'9"-deep front porch graces the front of this 3-bed house plan with a side-entry garage.
  • A study is tucked away behind french doors off the foyer, and the family room is ahead as you enter the home.
  • French doors in the family room open to the covered porch in back. A fireplace is on the right wall and the space is open to the dining room.
  • The kitchen has a snack bar for casual eating and is open to the dining room.
  • The bedrooms are split maximizing your privacy. The master suite has two walk-in closets and the kids' bedrooms share a bath.

Plan sets include the following:

  • Covers sheet with construction notes
  • All elevations
  • Foundation
  • Fully dimensioned floor plan
  • Detail and section page
  • Cabinet elevations
  • Roof plan
  • Electrical plan
These items are NOT included:
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

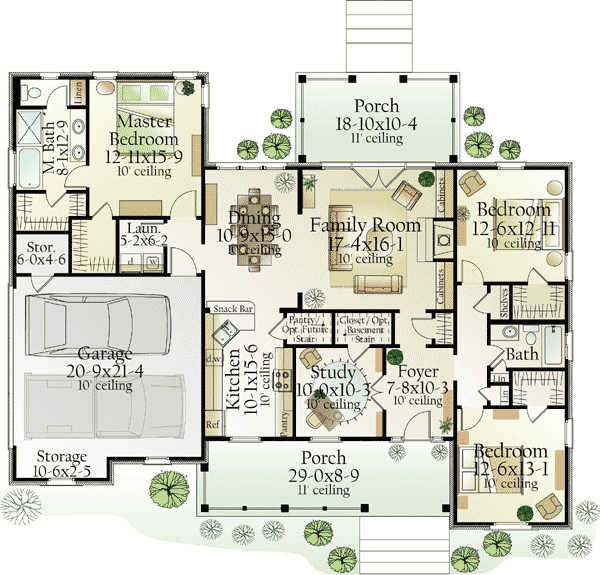

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Split Bedroom House Plan with Side-Entry Garage - 62124V floor plan - Main Level

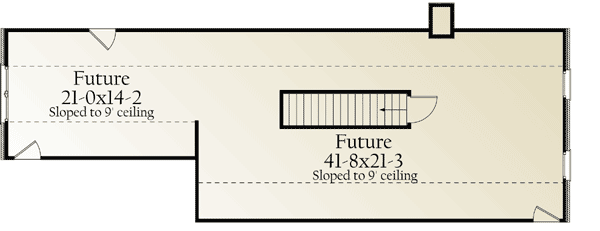

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Split Bedroom House Plan with Side-Entry Garage - 62124V floor plan - Bonus

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,984 sq. ft.
  • 1st Floor: 1,984 sq. ft.
  • Bonus: 1,192 sq. ft.
  • Porch, Front: 254 sq. ft.
  • Porch, Rear: 165 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 64' 6"
  • Depth: 52' 4"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 535 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof Details

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick

Architectural Style

Special features



Split Bedroom House Plan with Side-Entry Garage

  • 1,984

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1-2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - Single-Build $1,050
  • 5 Sets $1,115
  • CAD - Single-Build $1,950
  • View all purchase option online

About This Plan

  • An 8'9"-deep front porch graces the front of this 3-bed house plan with a side-entry garage.
  • A study is tucked away behind french doors off the foyer, and the family room is ahead as you enter the home.
  • French doors in the family room open to the covered porch in back. A fireplace is on the right wall and the space is open to the dining room.
  • The kitchen has a snack bar for casual eating and is open to the dining room.
  • The bedrooms are split maximizing your privacy. The master suite has two walk-in closets and the kids' bedrooms share a bath.

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 1,984 sq. ft.
  • 1st Floor: 1,984 sq. ft.
  • Bonus: 1,192 sq. ft.
  • Porch, Front: 254 sq. ft.
  • Porch, Rear: 165 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Basement, Crawl, Slab

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 64' 6"
  • Depth: 52' 4"
  • Max ridge height: 26' 0"

Garage

  • Type: Attached
  • Area: 535 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
