Plan 83896JW

Split Bedroom House Plan with Three Gables

Heated S.F.
1,998
Beds
3
Baths
2.5
Stories
1
Cars
2

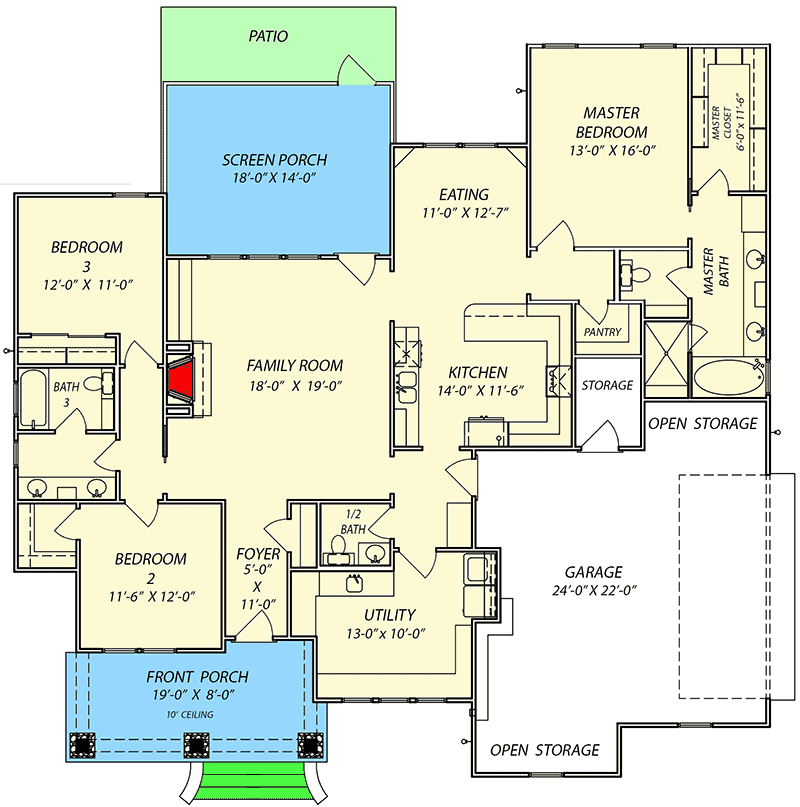

Floor Plan

Plan 83896JW

Main Level
Main Level

Plan 83896JW

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 83896JW: Split Bedroom House Plan with Three Gables - Floor Plan - Main Level - Craftsman, Northwest

Plan Details

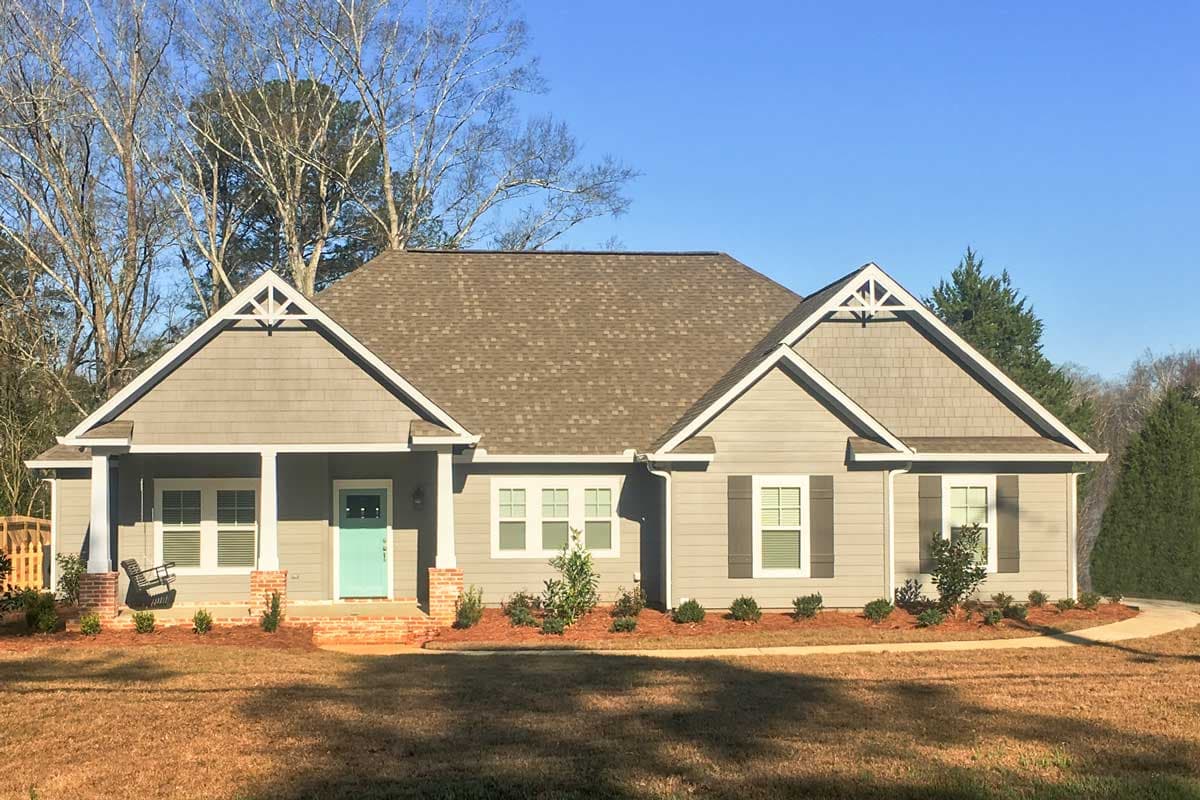

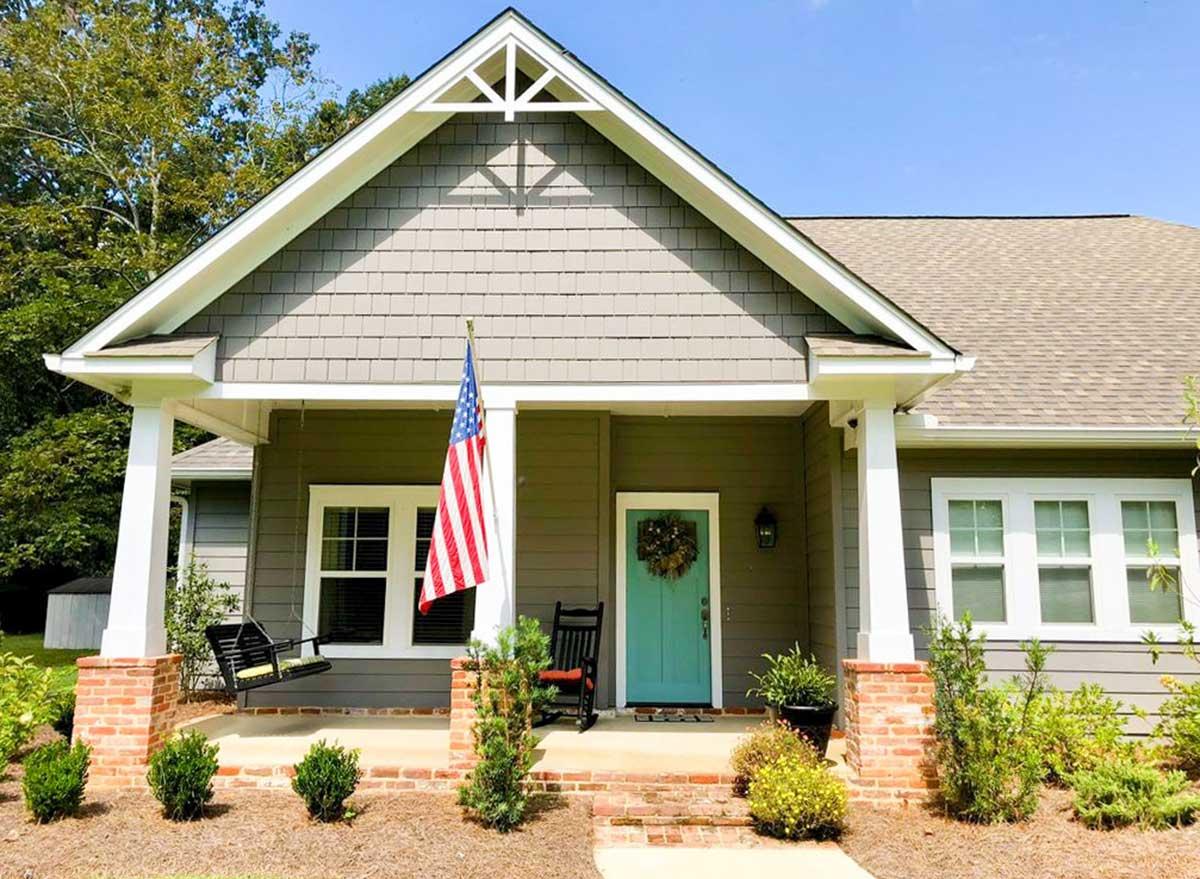

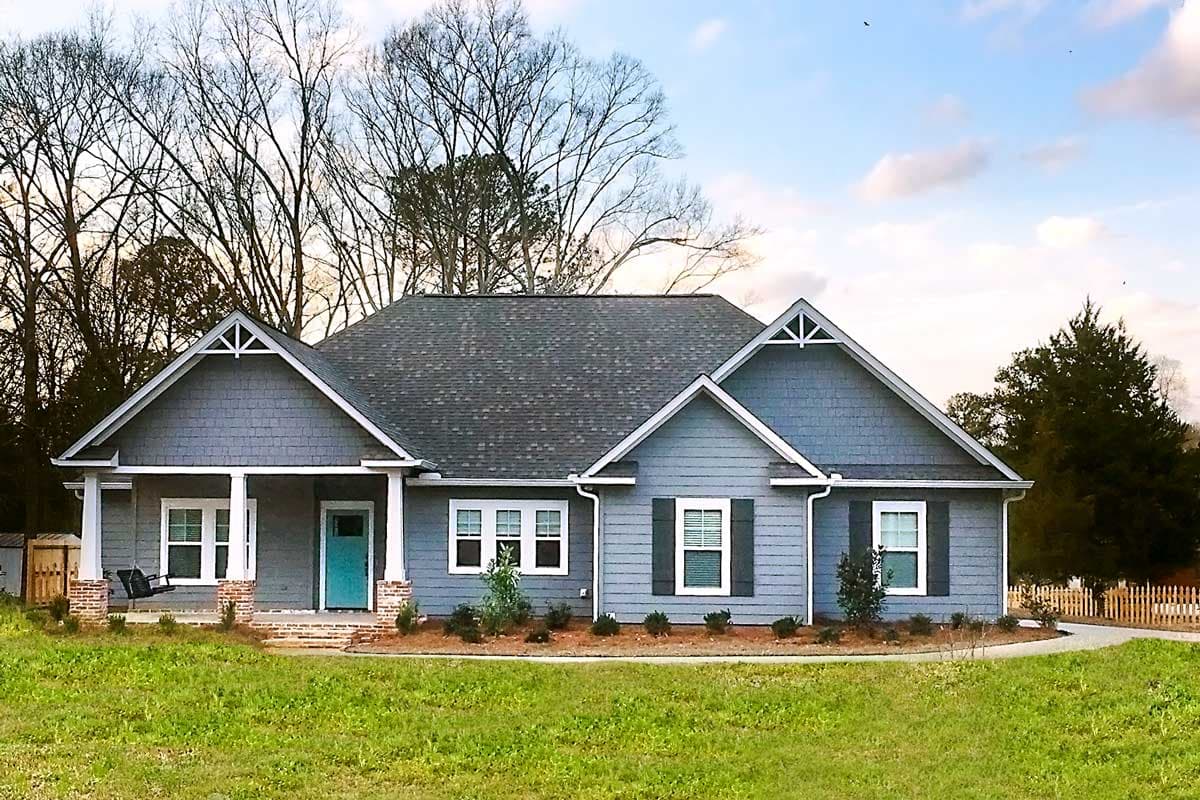

  • Decorative wood trim on two gables plus a lovely hip roof line add up to an eye-catching 3-bed home.

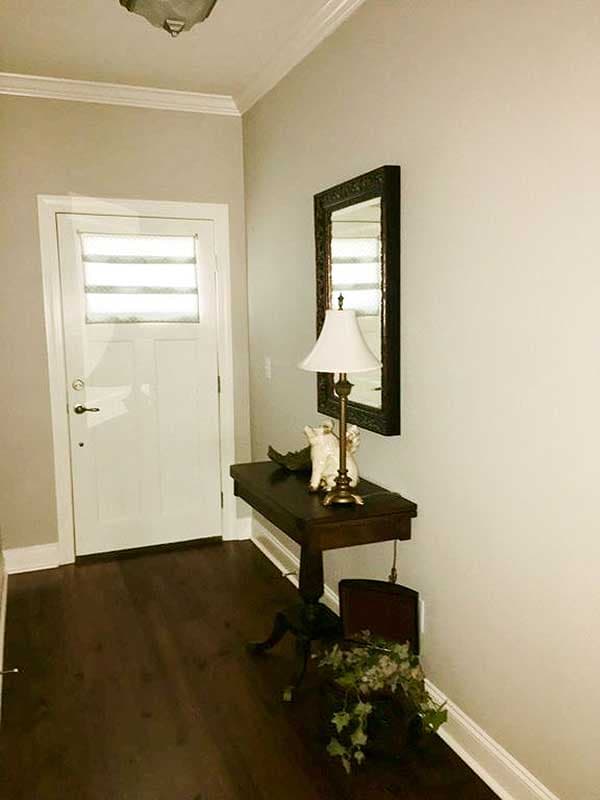

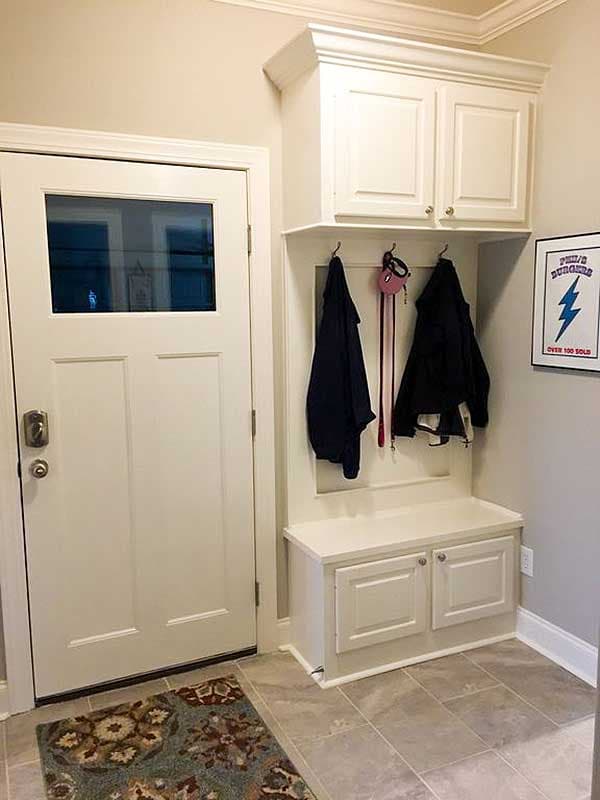

  • A large closet in the foyer is just right for coats and boots.

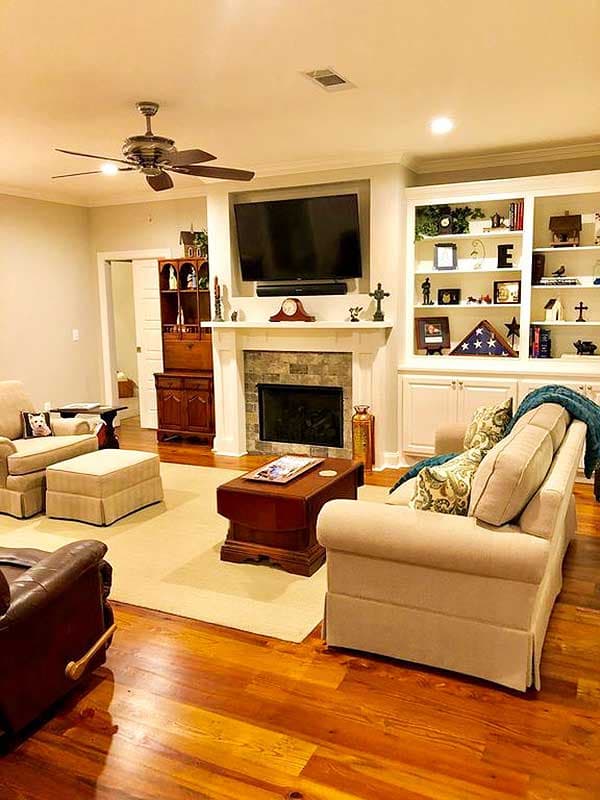

  • In the family room, a big fireplace is the main focal point with a built-in cabinet to one side.

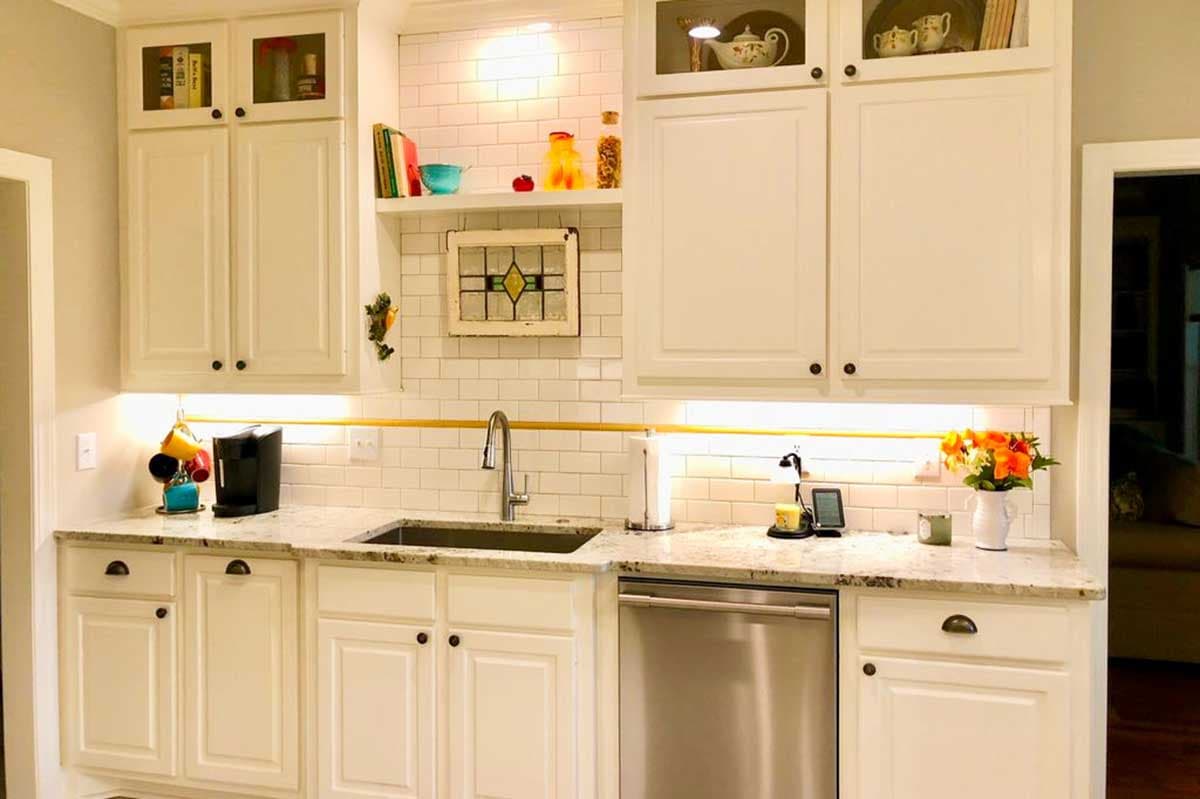

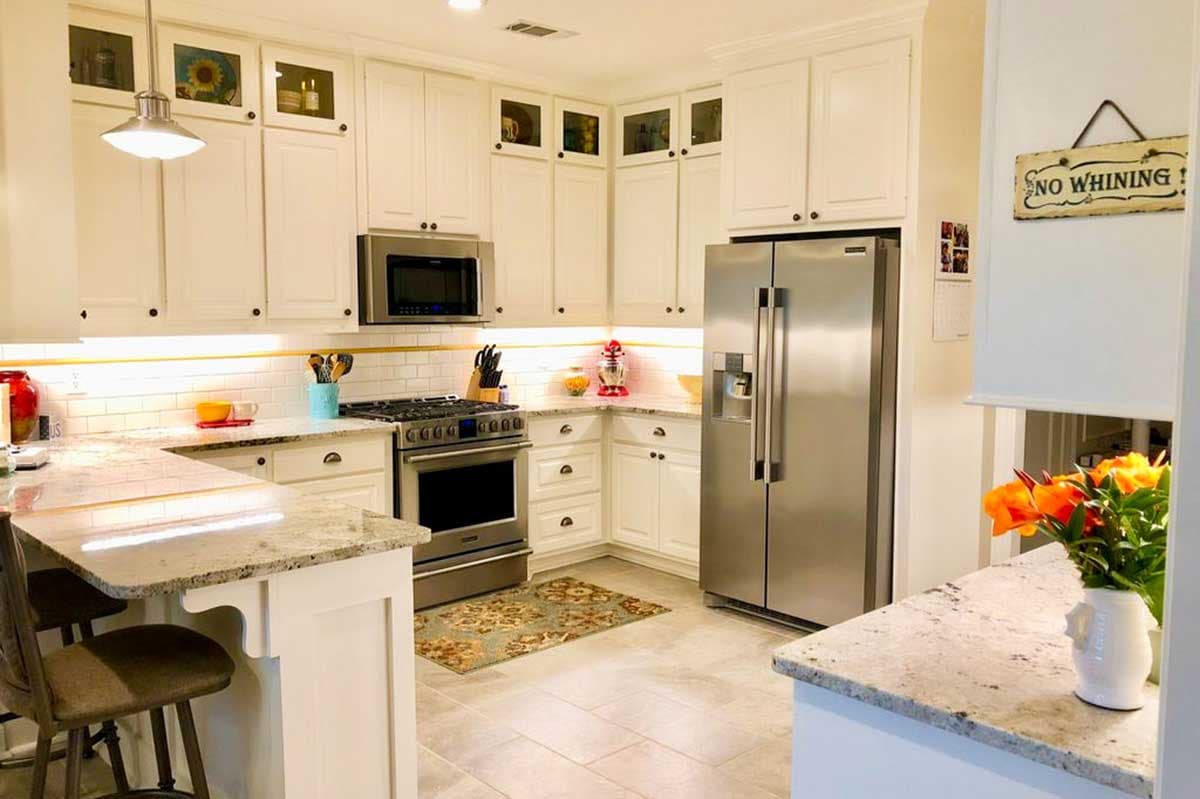

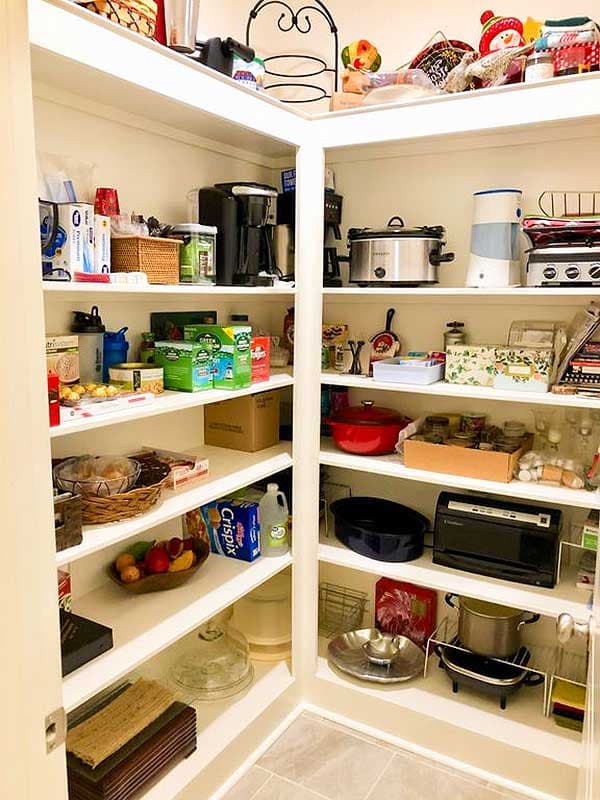

  • The kitchen has a large walk-in pantry and there's plenty of storage space in the garage, both open and closed.

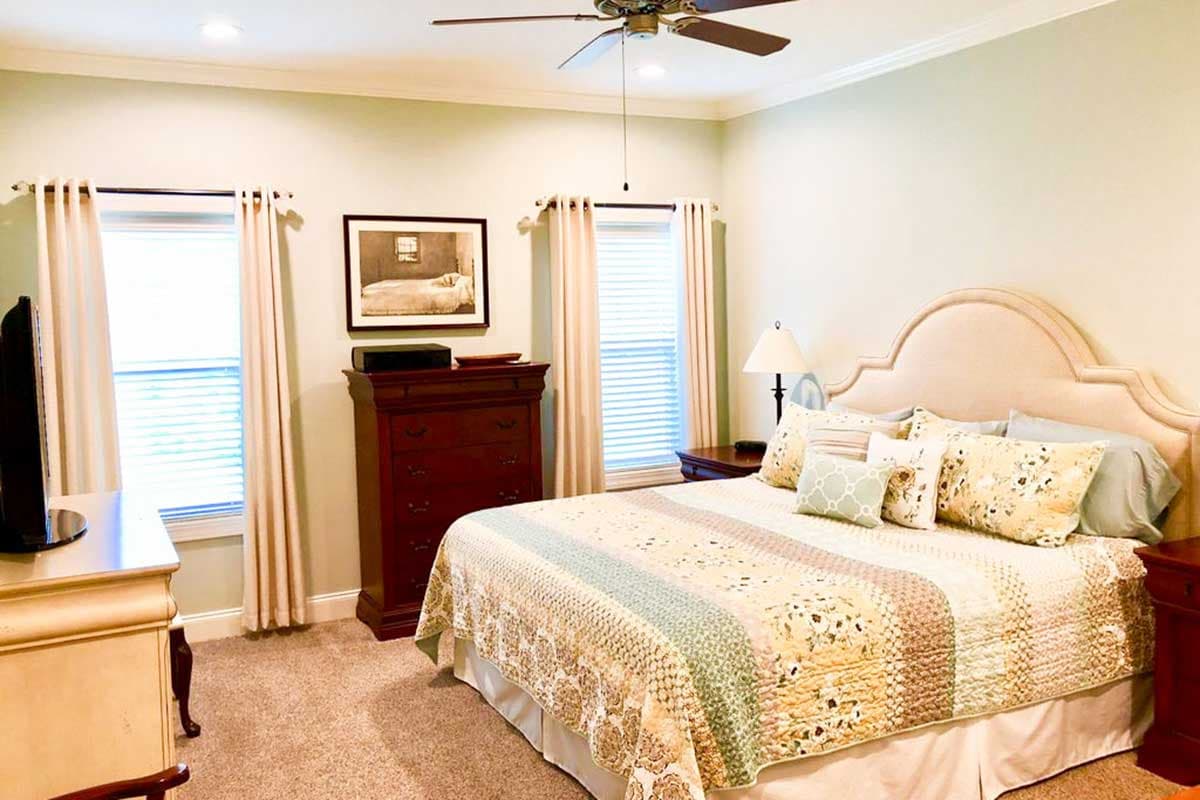

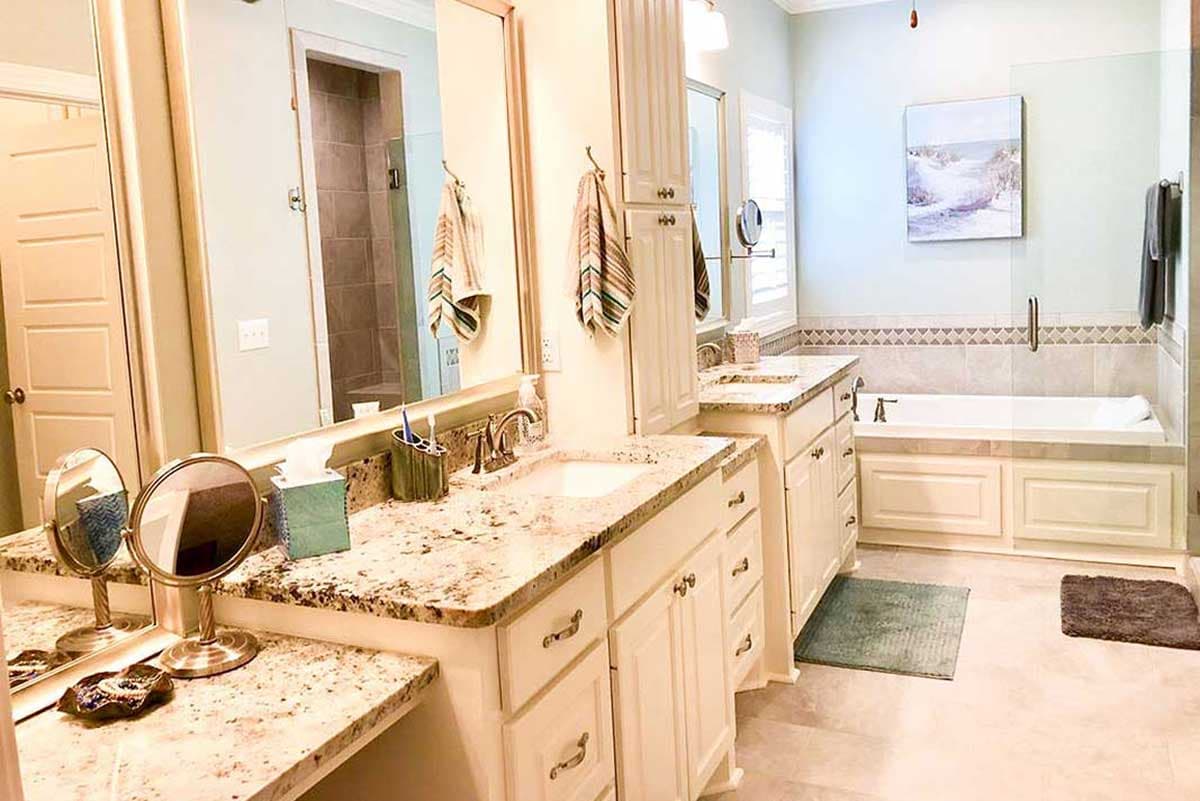

  • The master suite is set off by itself on the right side of the home.

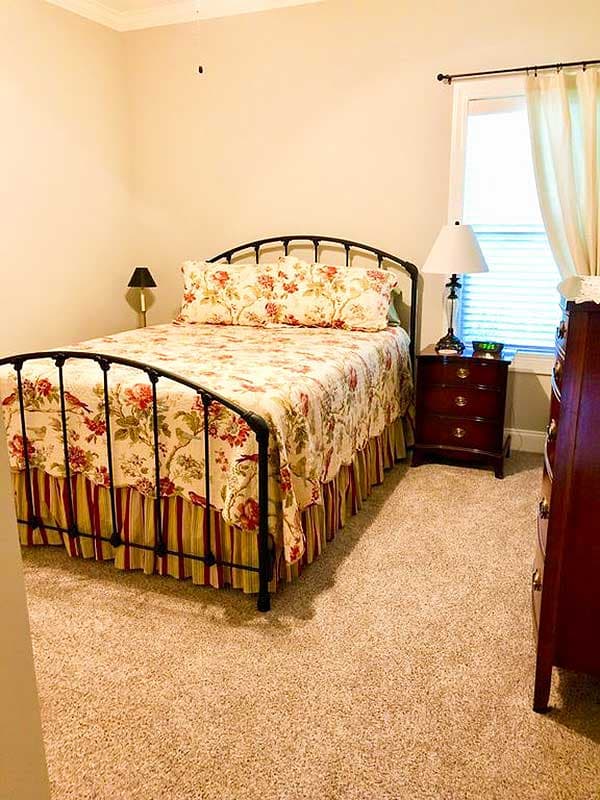

  • Two family bedroom are all the way across the house.
  • The whole family will enjoy the spacious screened in porch.

What's Included

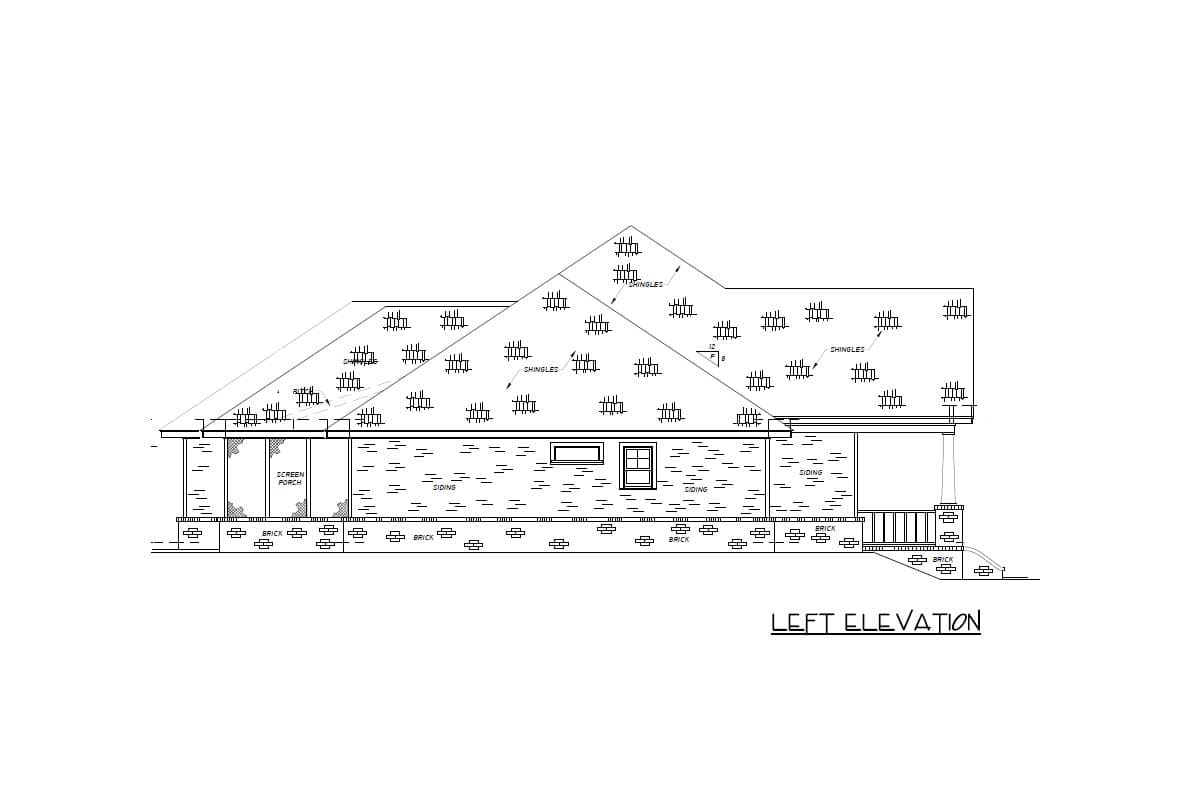

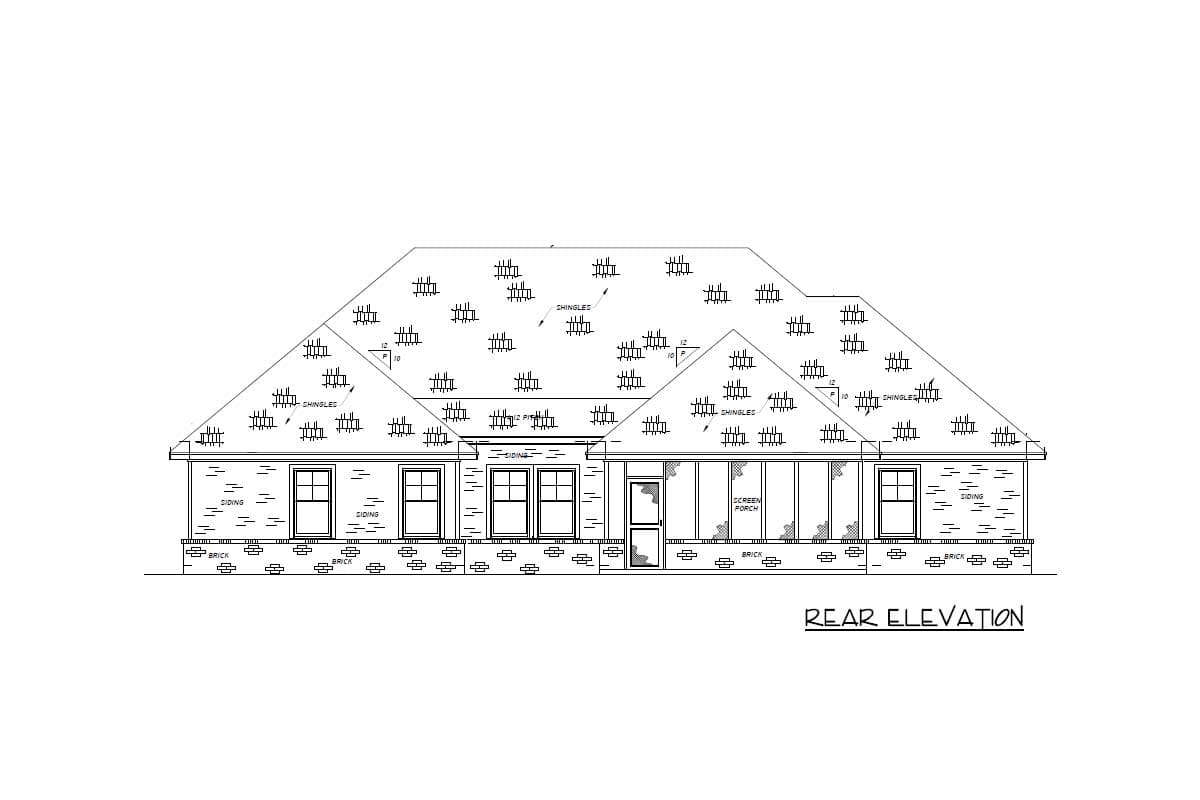

  • Elevations - Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan - Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc
  • Second Floor Plan (if any) - Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan - Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan - Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Section - Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan - A schematic layout of all lighting, switches and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Starting at

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

1,998 sq. ft.

1st Floor

1,998 sq. ft.

Porch, Front

166 sq. ft.

Screened Porch

252 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Monolithic Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

61' 0"

Depth

59' 0"

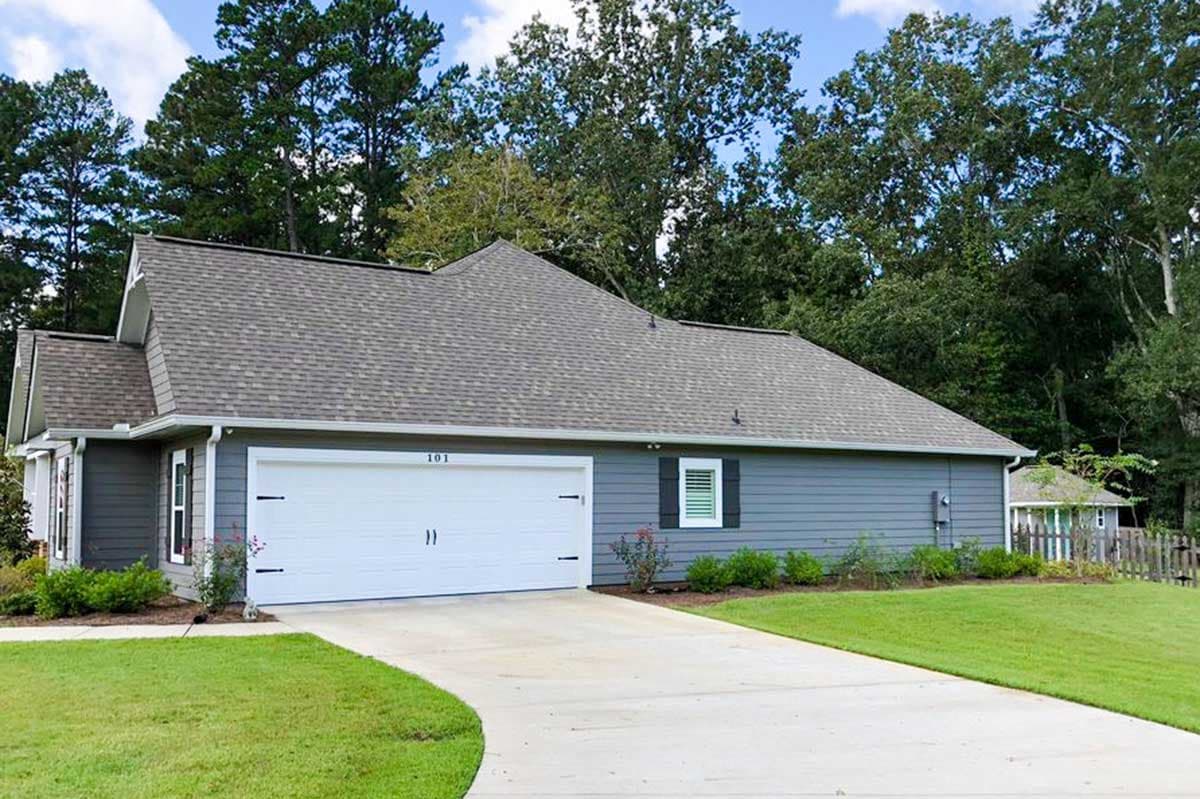

Garage

Type

Attached

Area

645 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

8 on 12

Secondary Pitch

10 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Split

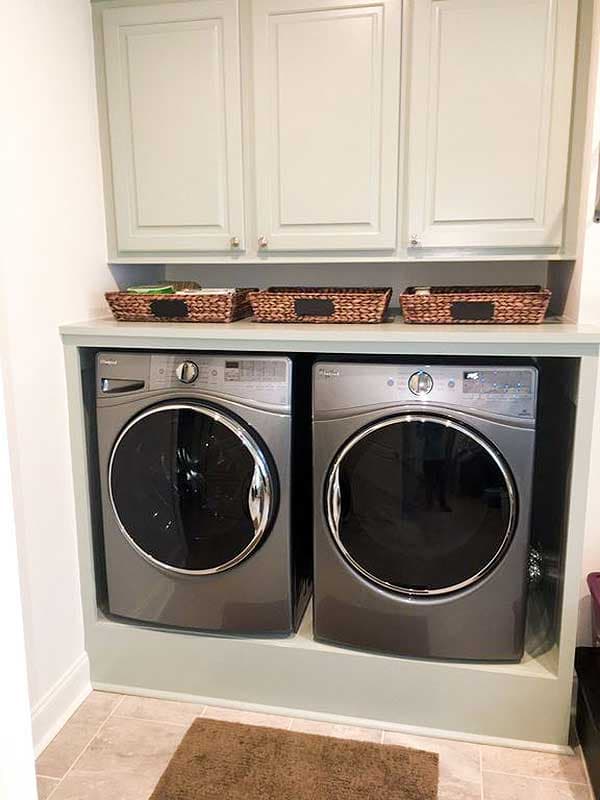

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Plan Collections
