Plan 710015BTZ
Split Bedroom House Plan with Upstairs Expansion - 2073 Sq Ft
Heated S.F.
2,073
Beds
3-4
Baths
2.5 - 3.5
Stories
1
Cars
2
Floor Plan
Optional Second Floor
Reverse Floor Plan

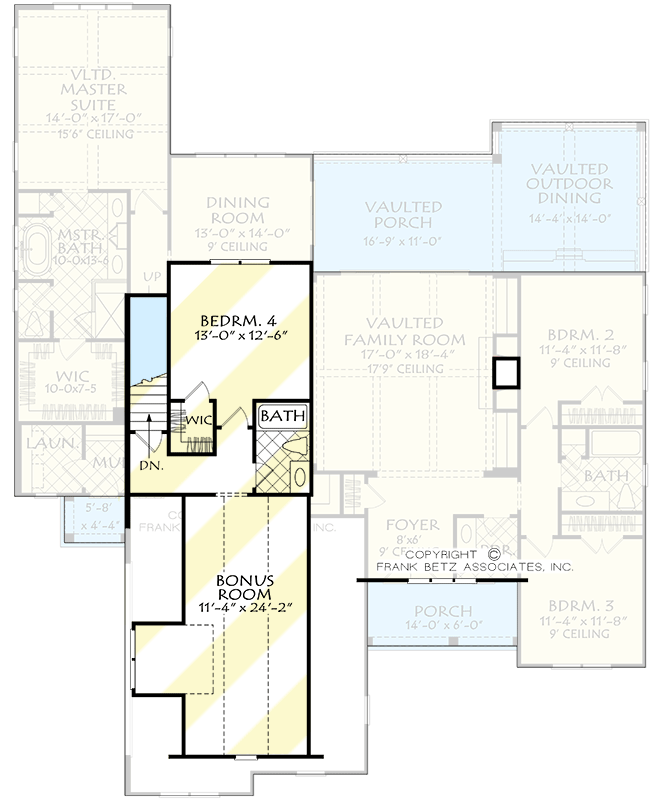

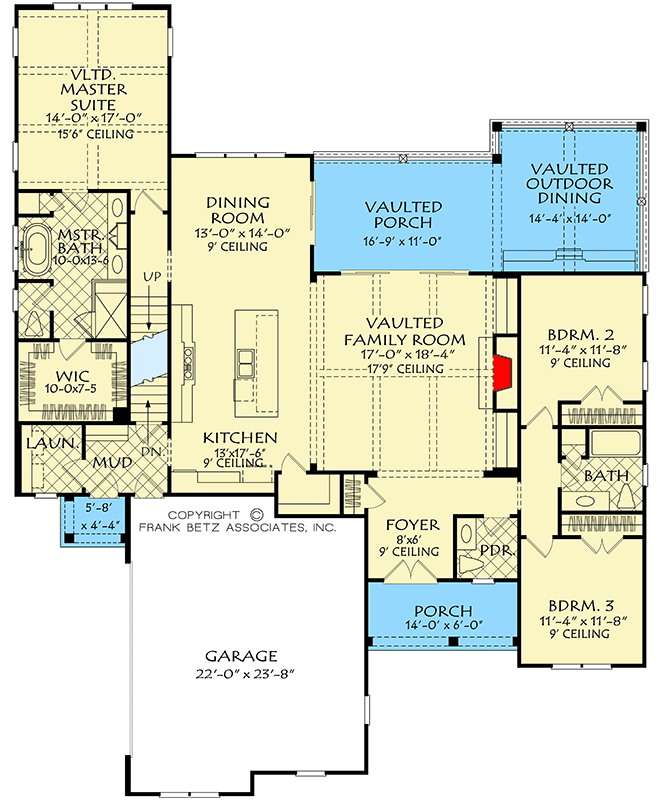

Split Bedroom House Plan with Upstairs Expansion - 2073 Sq Ft - 710015BTZ floor plan - Optional Second Floor
Plan Details
  • This split bedroom house plan has a great exterior combining brick, clapboard and board and batten. Wood accents by each entry add to the curb appeal.
  • Inside, sleeping quarters are separated by the living spaces leaving the middle portion of the home for entertaining.

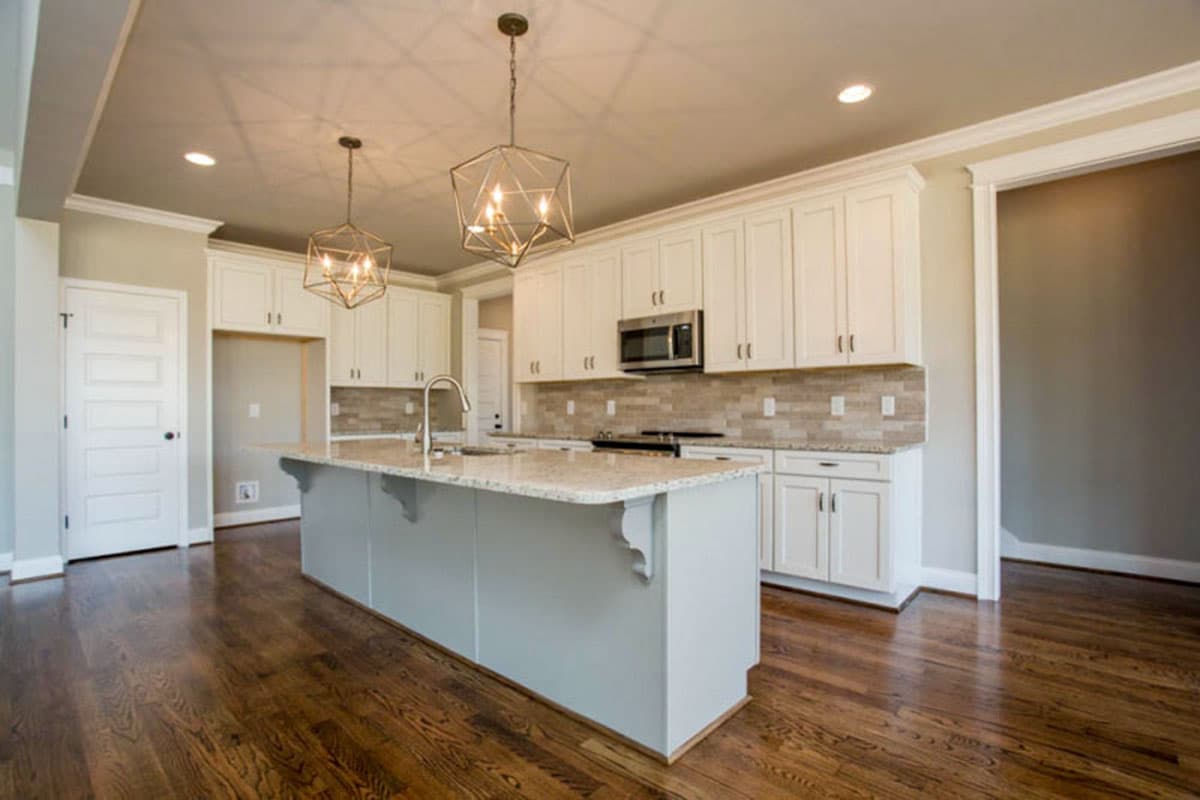

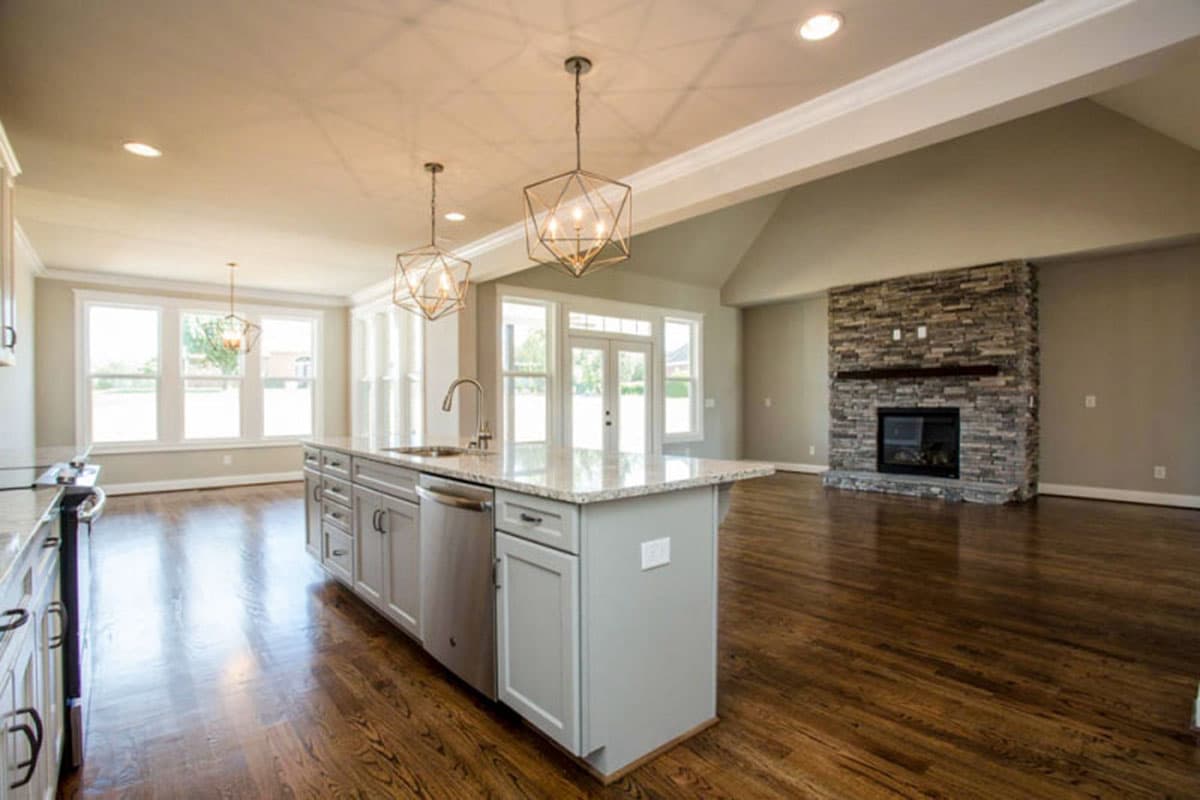

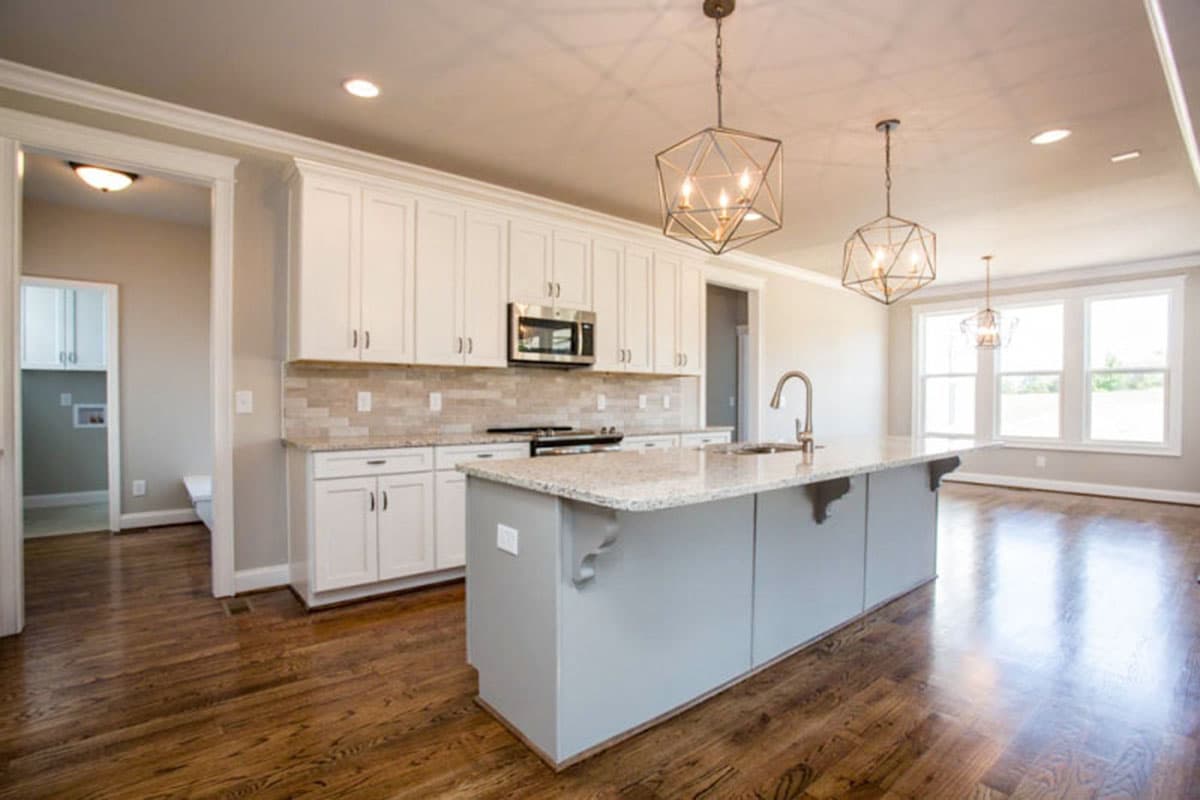

  • The island kitchen is the hub of all activities and anchors the common spaces. The dining area has been located to the rear and sufficiently handles all meals – large family gatherings or small snacks.
  • Covered outdoor spaces provide extra living areas to take advantage of nice weather and great views. A friend's entrance is perfectly located to welcome back door guests or the kids arriving after school.
  • The upper level can be finished for an additional bedroom and an all-purpose bonus room.
  • Related Plan: Get an alternate exterior with house plans 710058BTZ, 710118BTZ and 710418BTZ.
What's Included

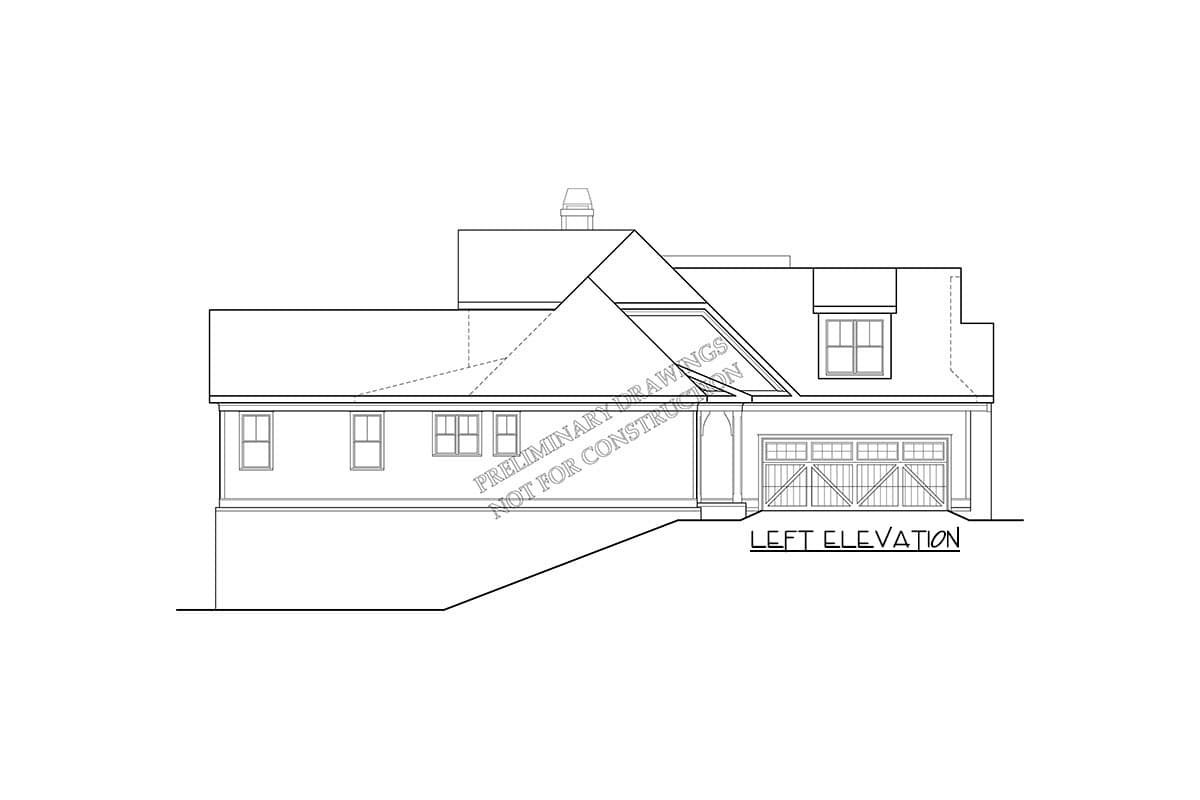

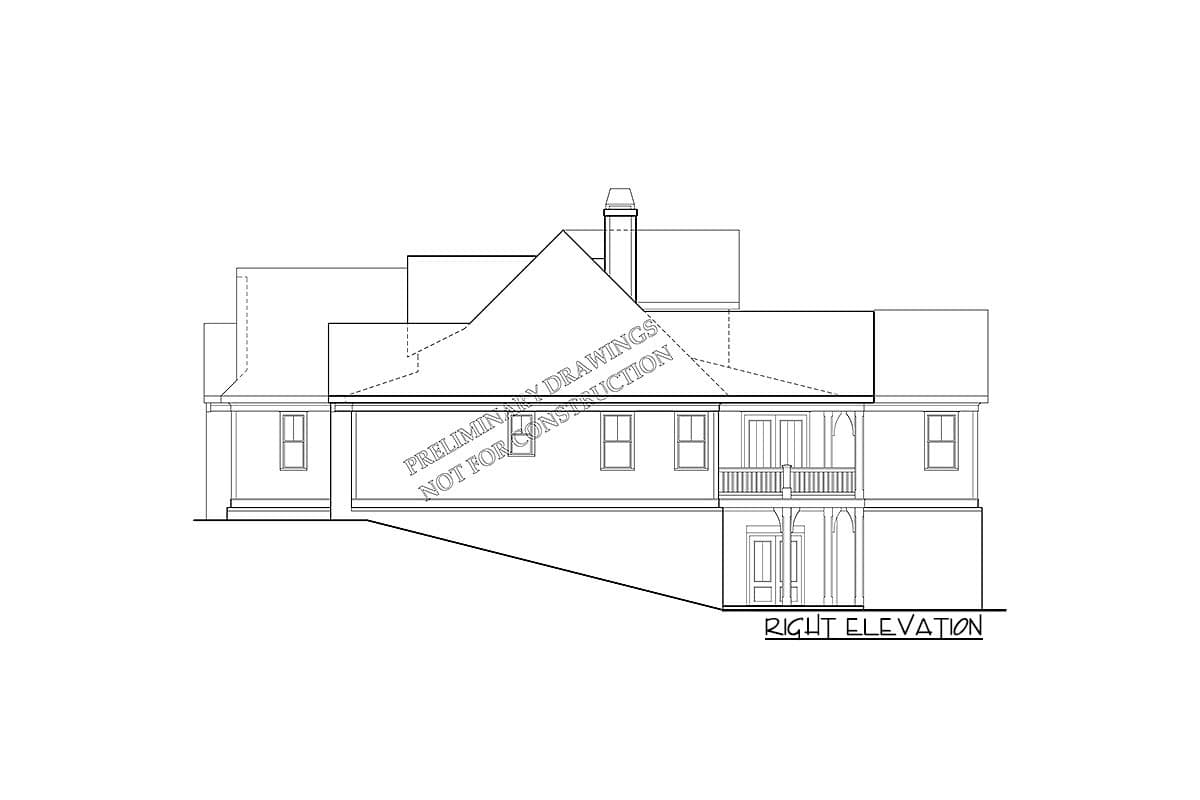

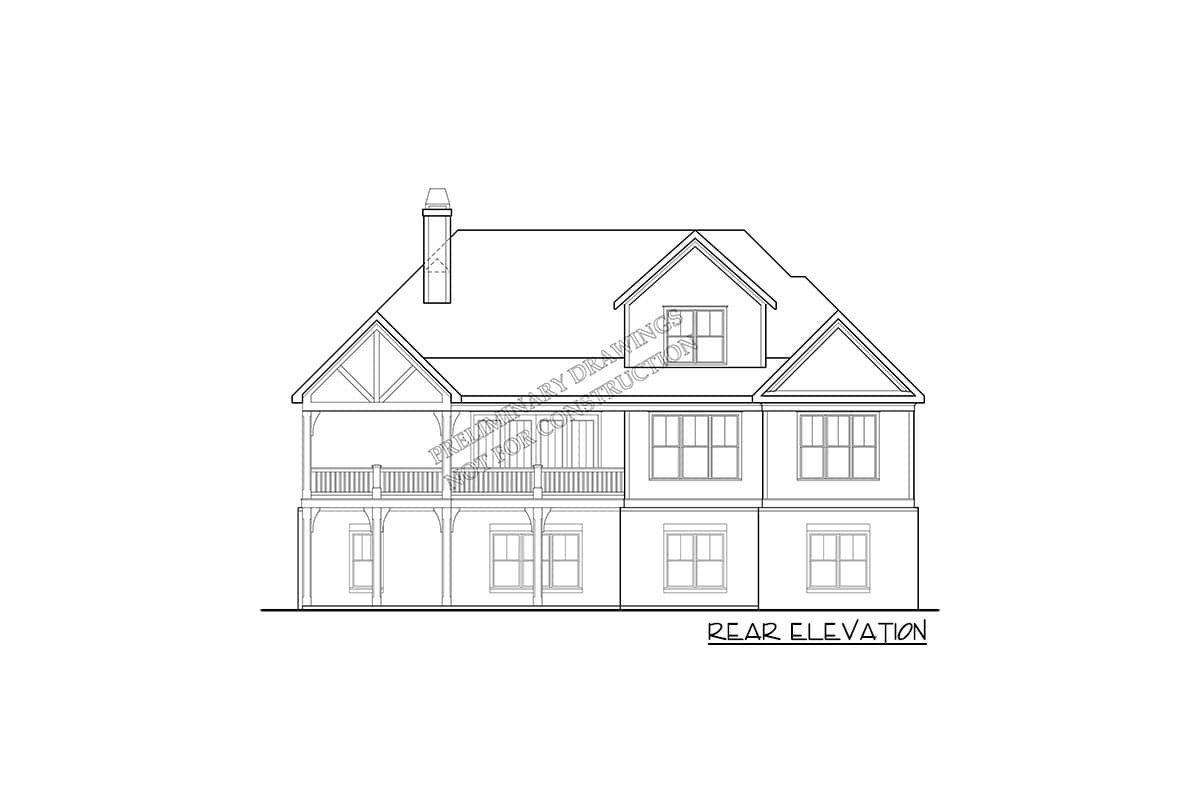

  • Elevations -  at 1/4" or 3/16" and the side and rear elevations at 1/8" scale. The elevations show and note the exterior finished materials of the house.
  • Foundation - every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors).  The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls.  These plans are completed with dimensions, door/window sizes.  Crawlspace and/or slab on grade foundations are available for some plans.
  • Floor plan - each plan consists of 1/4" or 3/16" scale layouts showing the location of 2 x 4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
  • Building sections - Take vertical cuts throughout the house and the stairs showing floor, ceiling and roof height information.
  • Floor framing - if included it shows each floor joist indicating the size, spacing and length.  All beams are sized and labeled.  Each framing plan sheet includes any framing details that are needed (tray details, connections details, etc. All framing is designed using conventional 2 x 10 floor joist or wood I-joist, depending on the span conditions of each home. FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Ceiling framing - if included, it shows each ceiling joist indicating the size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Roof framing - if included, shows each rafter, valley, hip and ridge indicating size, spacing and length.  All beams are sized and labeled.  All of the joists are counted and coordinated with the material list.  FRAMING PLANS ARE NOT AVAILABLE for all home so please follow up with us for availability.
  • Details sheets - shows foundation details, typical wall section and other framing details.  Also included are miscellaneous interior trim and fireplace details that can be used to customize the home.
What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations
  • Windows and Doors Schedules

* Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split Bedroom House Plan with Upstairs Expansion - 2073 Sq Ft

  • 2,073

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Optional Second Floor

Plan Details

Square Footage Breakdown

  • Total: 2,073 sq. ft.
  • 1st Floor: 2,073 sq. ft.

Dimensions

  • Width: 59' 0"
  • Depth: 74' 0"
  • Max ridge height: 26' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 594 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab, Walkout, Crawl

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Framing Type: Stick
All house plans are copyright ©2024 by the architects and designers represented on our web site
