Plan 51798HZ Split Bedroom House Plan with Vaulted Great Room

1,745 3 2 1 2
Print
Compare HIDE
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Split Bedroom House Plan with Vaulted Great Room

Plan 51798HZ

  • 1,745

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Stories

  • 2

    Cars

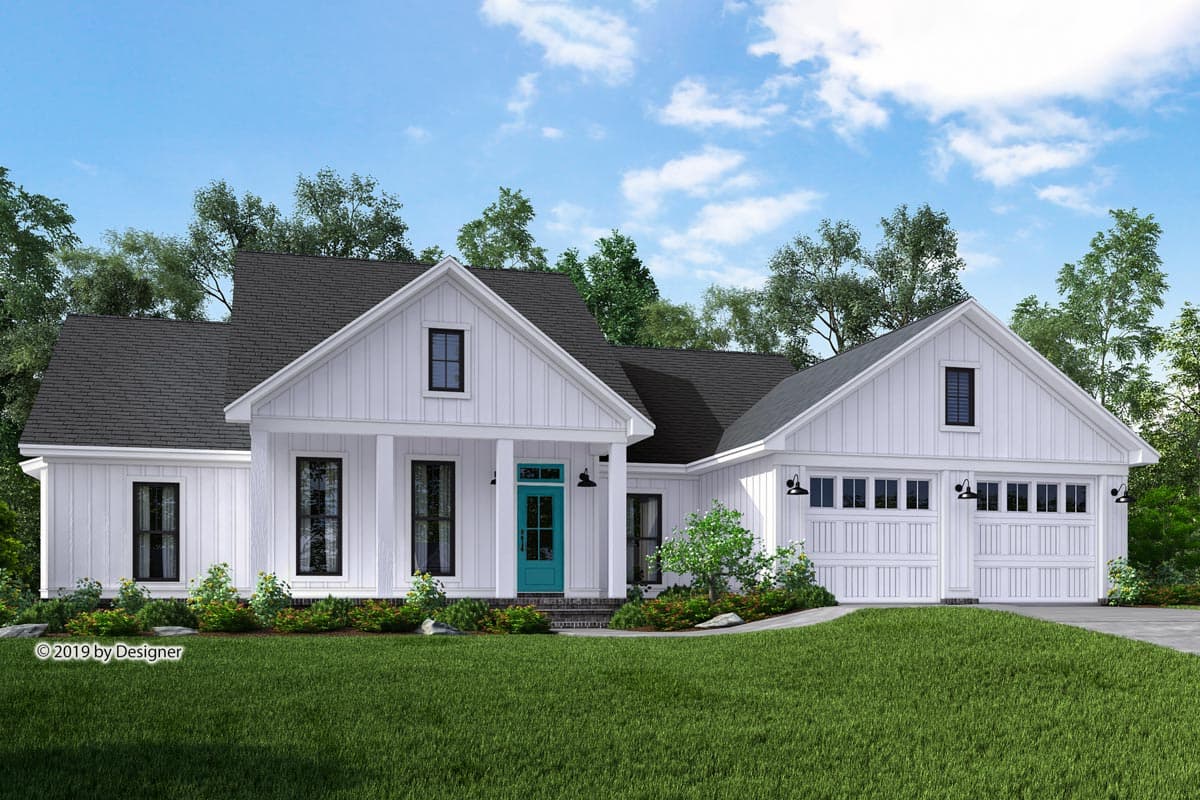

  • A gabled front porch graces the front of this 3-bed house plan with board and batten siding. A front-load 2-car garage completes the front of the home.
  • Inside, an open concept layout awaits with the vaulted great room open to the kitchen and dining room.
  • Sliding doors open connecting the dining room to the rear porch. Extend your outdoor enjoyment to include an optional patio and entertain outside.
  • The bedrooms are arranged in a split layout maximizing your privacy. The kids rooms are on the left and share a bath. The master suite occupies the entire right side of the home. The master bedroom has a tray ceiling and the master bath has dual vanities, an over-sized walk-in shower and a roomy walk-in closet.
  • There are lockers just inside the garage entry and a closet to help reduce clutter.

This house plan has 8 pages as follows:
Page 1  Cover Sheet with abbreviations, rendering, sheet index
Page 2  Foundation Plan and Details
Page 3  Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

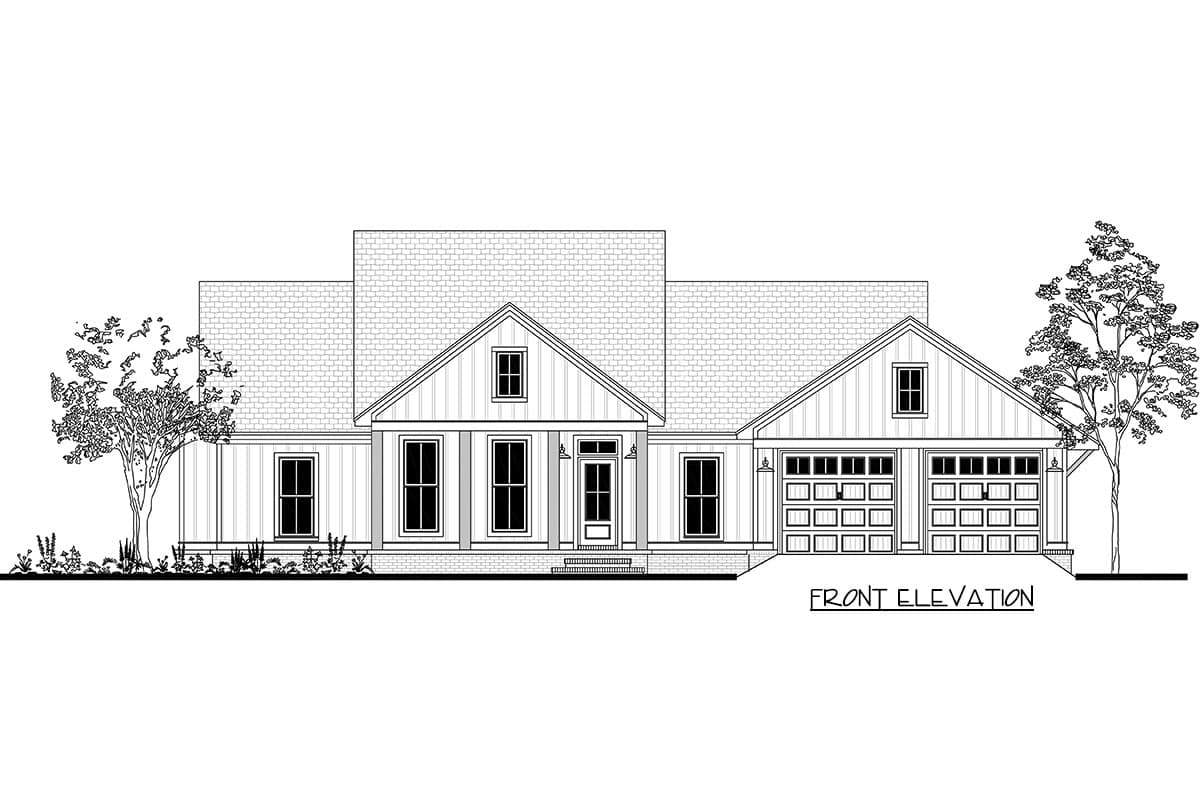

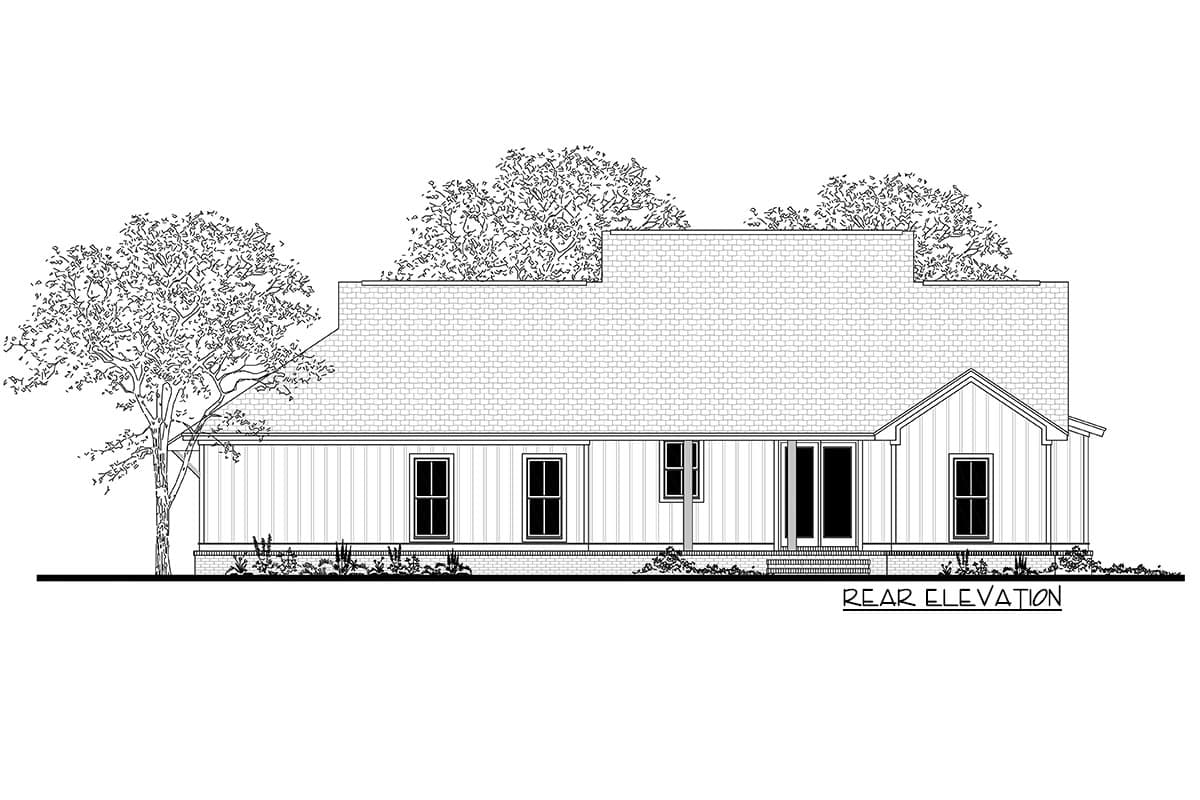

Page 4  Front and rear exterior views with notes

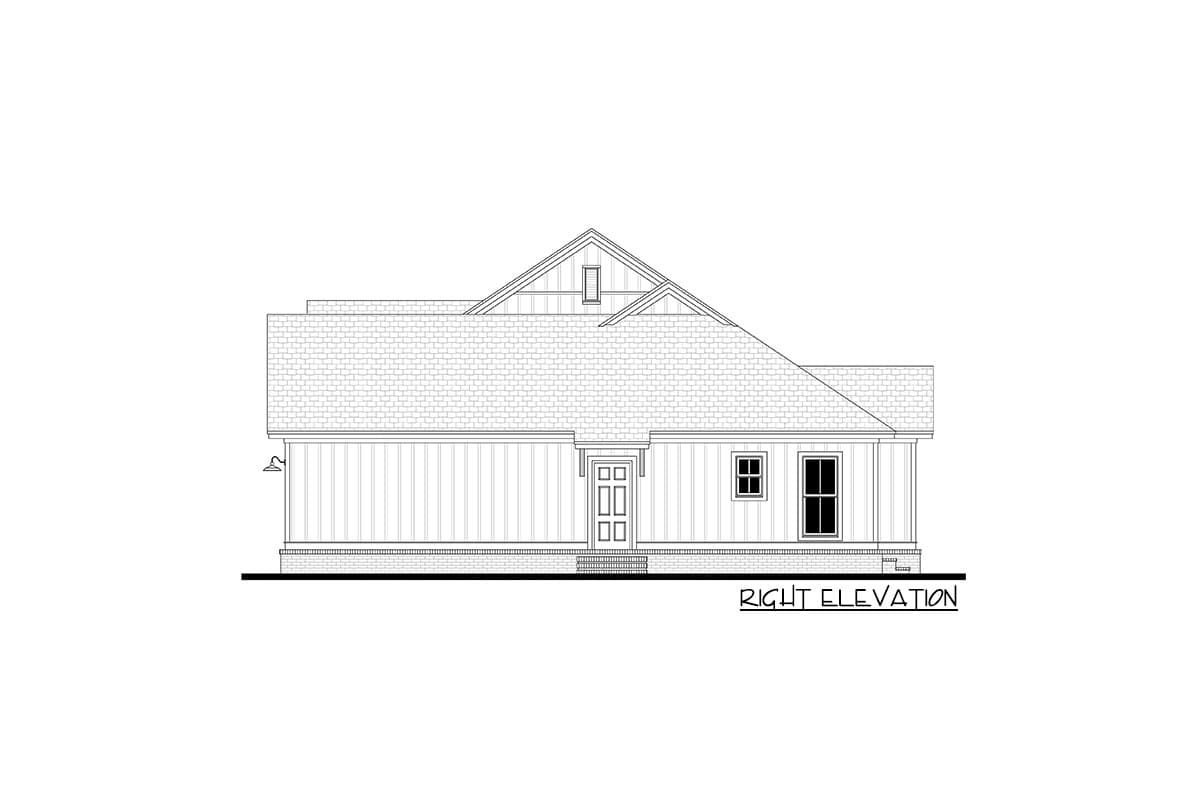

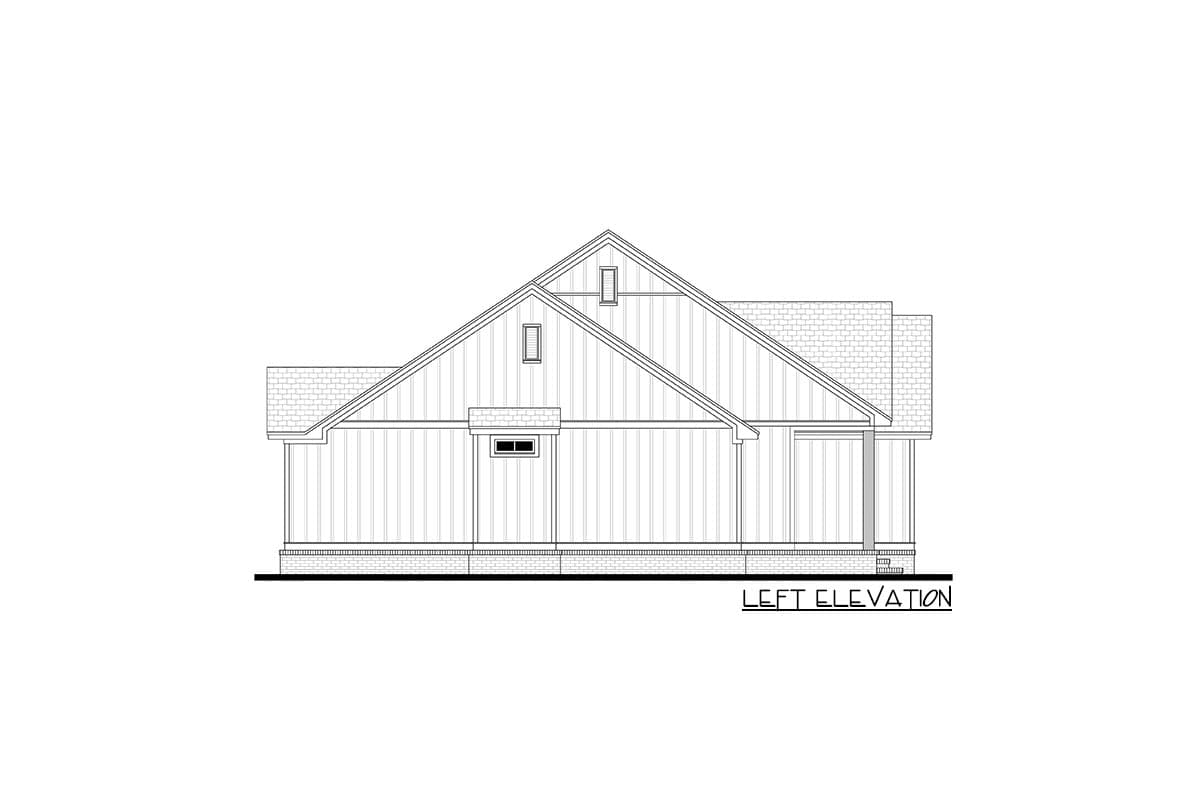

Page 5  Right and left exterior views with notes and wall sections
Page 6  Cross Section & kitchen cabinet views
Page 7  Roof plan & span charts
Page 8  Electrical plans & notes/ legend

Sample Plan

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

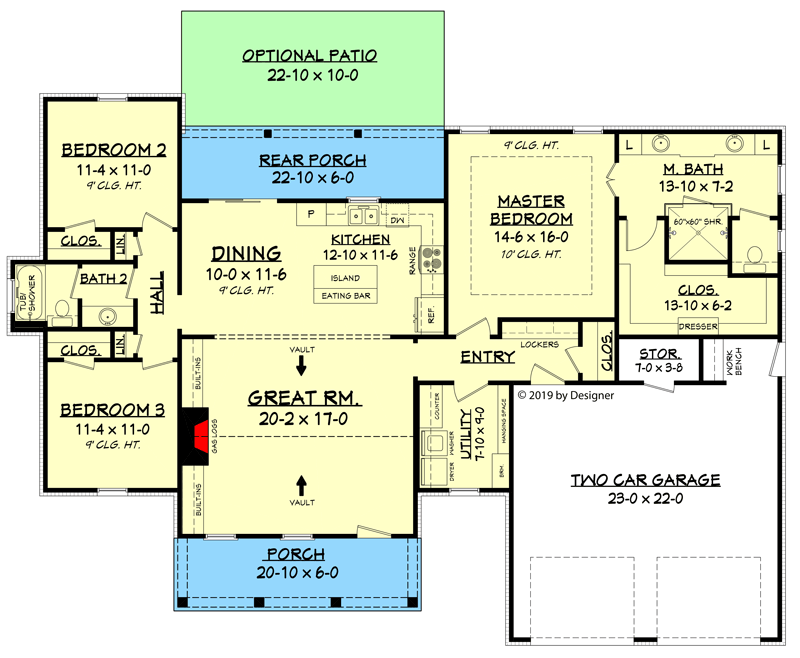

Split Bedroom House Plan with Vaulted Great Room - 51798HZ floor plan - Main Level

Main Level - Basement Stair Location

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

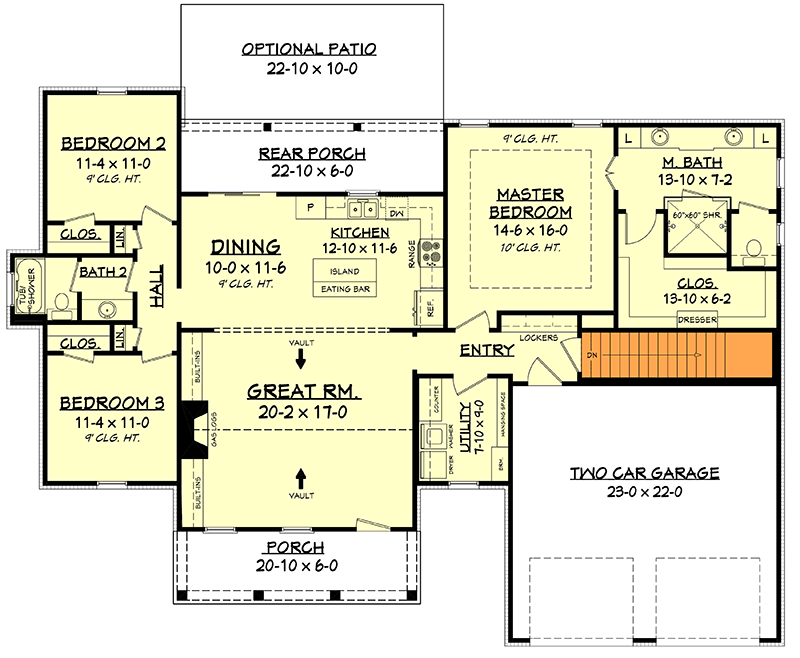

Split Bedroom House Plan with Vaulted Great Room - 51798HZ floor plan - Main Level - Basement Stair Location

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,745 sq. ft.
  • 1st Floor: 1,745 sq. ft.
  • Porch, Rear: 137 sq. ft.
  • Porch, Front: 125 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Foundation Type

  • Standard Foundations: Crawl, Slab
  • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 67' 0"
  • Depth: 47' 4"
  • Max ridge height: 24' 0"

Garage

  • Type: Attached
  • Area: 554 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"
Room Details Ceiling Type Width Depth Height
Great Room Vaulted

Roof Details

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 9 On 12; 4 on 12
  • Framing Type: Stick

Architectural Style

Special features

Plan Collections

Split Bedroom House Plan with Vaulted Great Room

  • 1,745

    Heated s.f.

  • 3

    Beds

  • 2

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Main Level - Basement Stair Location

Plan Details

Square Footage Breakdown

  • Total: 1,745 sq. ft.
  • 1st Floor: 1,745 sq. ft.

Dimensions

  • Width: 67' 0"
  • Depth: 47' 4"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 554 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Crawl, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 4" First Floor / 9' 0"

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 9 On 12; 4 on 12
  • Framing Type: Stick
