Plan 89799AH

Split Bedroom Layout

Heated S.F.
2,065
Beds
3
Baths
2.5
Stories
1
Cars
3

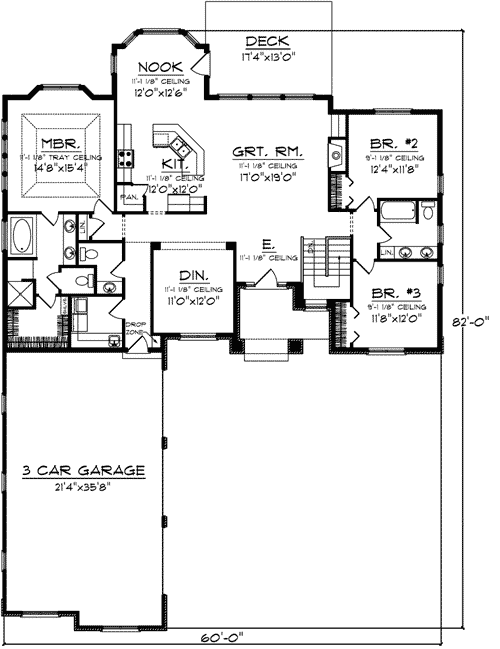

Floor Plan

Plan 89799AH

Main Level
Main Level

Plan 89799AH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

Plan 89799AH: Split Bedroom Layout - Floor Plan - Main Level - Craftsman, Northwest, Traditional

Plan Details

  • The traditional one level home planfeatures shingle siding, stone accents and a porch framed by two wood columns to create a curb appeal that will sell.
  • As you enter the home, you'll love all of the natural lighting pouring in through the wall of windows in the great room directly ahead.
  • The kitchen overlooks both the great room and nook with an island breakfast bar where seating is abundant.
  • The master lies to the left of the home behind the garage and pampers with a tray ceiling, walk in closet, Jacuzzi tub, and direct access to the laundry room.
  • Two additional bedrooms lie on the opposite side of the home for maximum privacy.
  • A three-stall, side load garage completes this ranch home plan.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.

What's Included

  • General Notes
  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally, or use our structural engineering service if required
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Price Guarantee

Explore the costs

Discover the cost to build & furnish this home.

Need a modified version?

Get a free quote within 3 business days.

Square Footage Breakdown

Total Heated Area

2,065 sq. ft.

1st Floor

2,065 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

82' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

816 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Master Suite - 1st Floor

Walk-in Pantry

Square Footage Breakdown

Total Heated Area

2,065 sq. ft.

1st Floor

2,065 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 0"

Depth

82' 0"

Max Ridge Height

27' 0"

Garage

Type

Attached

Area

816 sq. ft.

Count

3 Cars

Entry Location

Courtyard

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

10 on 12

Secondary Pitch

12 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Traditional

Special Features

Bedrooms - Split

Breakfast Nook

Master Suite - 1st Floor

Walk-in Pantry
