Plan 510224WDY
Split Bedroom New American Farmhouse with 8'-deep Front Porch
Heated S.F.
2,127
Beds
3
Baths
2.5
Stories
1
Cars
2
Flyer
What's Included
Plan Details
  • The split-bedroom layout of this New American home plan offers the homeowner some additional privacy, while the rear, screened porch and 8'-deep, front porch encourages outdoor living.
  • A grand fireplace surrounded by builtins anchors the great room, and an oversized opening connects it with the kitchen and dining area.
  • The large kitchen island increases prep space and a closet pantry is located nearby.
  • The master suite enjoys a spa-like bathroom with natural light in the walk-in closet. Bedrooms 2 and 3 share a Jack-and-Jill bathroom and reside across from the laundry room.
  • Access the double garage from the right side of the home, complete with a dedicated storage room for lawn equipment and supplies.
What's Included
  • Cover Sheet
  • Dimensioned Floor Plans w/ Notes & Details (if more than single level, dimensioned floor plan sheets are included for each level)
  • Exterior Elevations w/ Details
  • Building Section and Roof Plan w/ Trim Details
  • Additional Building Notes and Details
  • Electrical Layout
  • Foundation Plan
  • Foundation Details and Notes
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Split Bedroom New American Farmhouse with 8'-deep Front Porch

  • 2,127

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

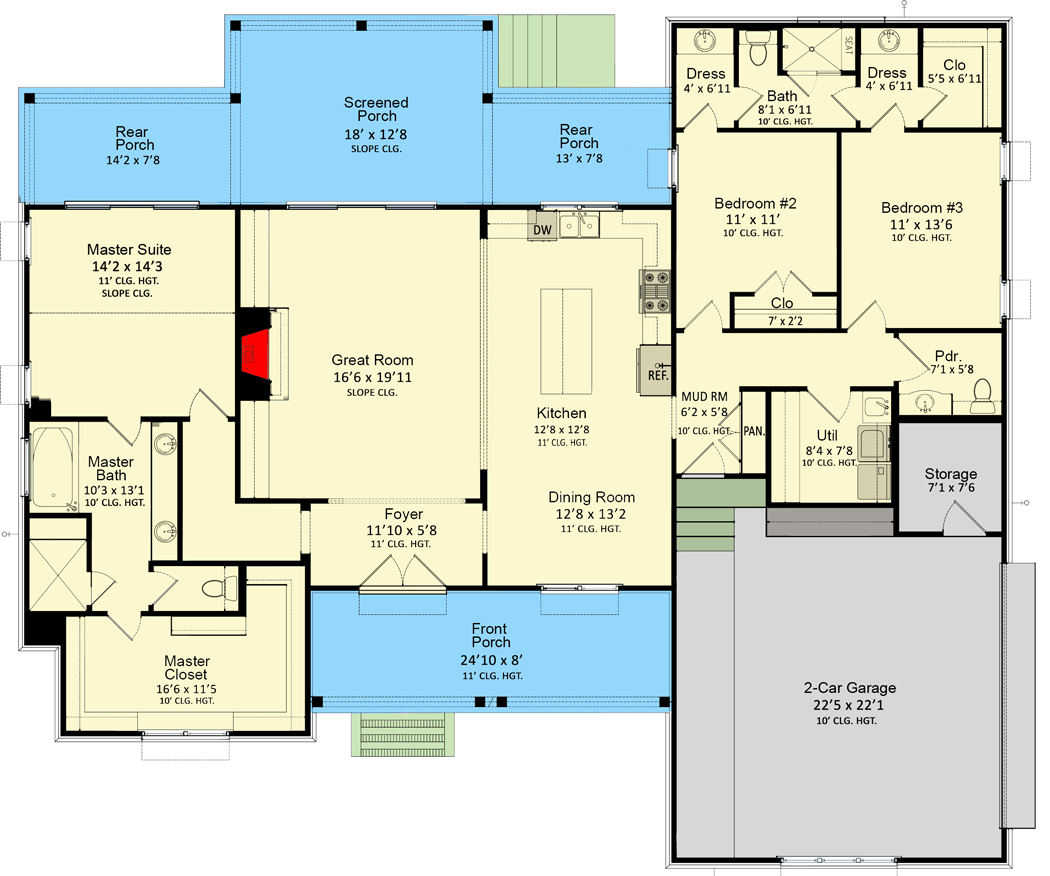

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,127 sq. ft.
  • 1st Floor: 2,127 sq. ft.

Dimensions

  • Width: 68' 4"
  • Depth: 58' 7"
  • Max ridge height: 29' 10"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 616 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 10' 0"

Roof

  • Primary Pitch: 10 on 12
  • Framing Type: Stick
