Plan 12731MA

Split Level House Plan with Optional Solar

Heated S.F.
1,540
Beds
4
Baths
2
Stories
2
Cars
3

Floor Plan

Plan 12731MA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 12731MA

M-F 9am-5pm EST |

1-203-761-8500

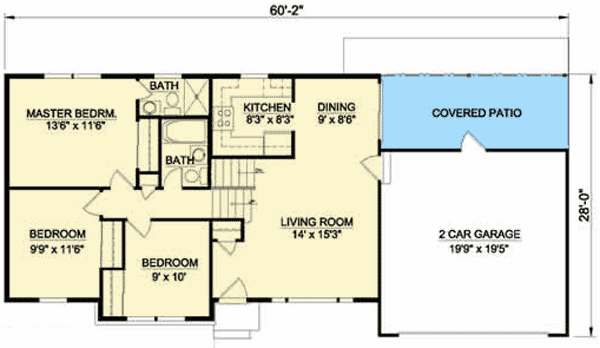

Main Level

Plan 12731MA: Split Level House Plan with Optional Solar - Floor Plan - Main Level

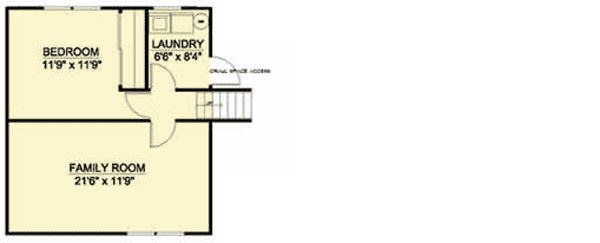

2nd Floor

Plan 12731MA: Split Level House Plan with Optional Solar - Floor Plan - 2nd Floor

Plan Details

  • This attractive split level house plan features four bedrooms and attached two car garage
  • Plan includes optional active solar details.
  • The tiled entry foyer opens into a spacious living room which connects with a dining area
  • An efficient "U" shaped kitchen is located next to the dining area
  • The master suite located on the upper level includes a private bath with a step-in shower
  • Two additional bedrooms share a full hall bath
  • The lower level includes a large family room and a fourth bedroom

What's Included

  • Cover Sheet
  • IRC Notes
  • Floor Plan
  • Exterior Elevations
  • Building Sections
  • Foundation
  • Details
  • Air Barrier Details
  • Optional Solar Details
  • Framing Plan
  • Electrical Floor Plan
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally if required
  • Mechanical Drawings (Drawings for HVAC duct sizes/locations) Typically provided by your HVAC subcontractor
  • Plumbing Drawings (Drawings for plumbing pipe sizes/locations) Typically provided by your Plumbing Subcontractor
  • Energy Calculations (Property specific energy efficiency calculations) Typically provided by local Energy Consultant
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,540 sq. ft.

Lower Level

540 sq. ft.

1st Floor

1,000 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 2"

Depth

28' 0"

Garage

Type

Attached

Area

383 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Special Features

Master Suite - 1st Floor

Split Level

Square Footage Breakdown

Total Heated Area

1,540 sq. ft.

Lower Level

540 sq. ft.

1st Floor

1,000 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

2

Foundation Type

Standard Foundations

Basement

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

60' 2"

Depth

28' 0"

Garage

Type

Attached

Area

383 sq. ft.

Count

3 Cars

Entry Location

Front

Roof Details

Framing Type

Truss

Special Features

Master Suite - 1st Floor

Split Level
