Split-Level House with Optional Family Room

Plan 62632DJ

This plan plants 3 trees

1,096
Heated s.f.
3
Beds
2
Baths
1
Stories
2
Cars

A combination of vertical and horizontal siding plus a touch of brick gives this split-level house plan great style.
The garage level takes you to a lower foyer with the laundry room and optional family room close by.
The front door opens to a foyer where you can choose to go up to the living area or down to the garage floor.
A cathedral ceiling makes the central living area feel spacious.
Sliding glass doors lead to a deck where you can soak up the sun.
Down the hall, the bedrooms are all grouped together with the master bedroom having a tray ceiling and private bathroom.

Each plan set includes:

Cover Sheet: Shows the front elevation and typical notes and requirements.
Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
Roof Plan
Typical wall section
Typical Stair section
Cabinets are shown on all plans.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

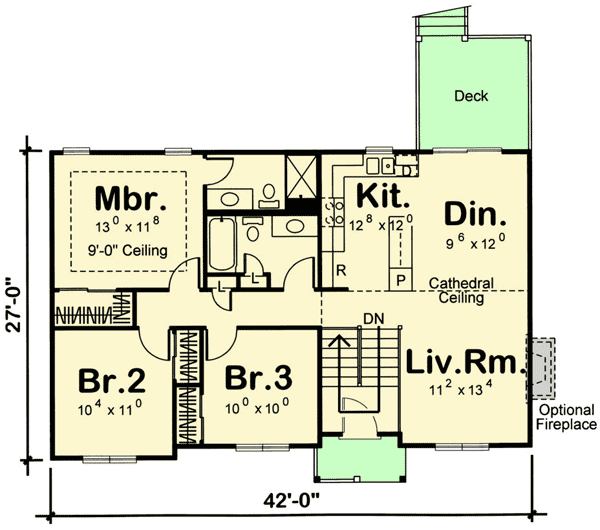

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Split-Level House with Optional Family Room - 62632DJ floor plan - Main Level

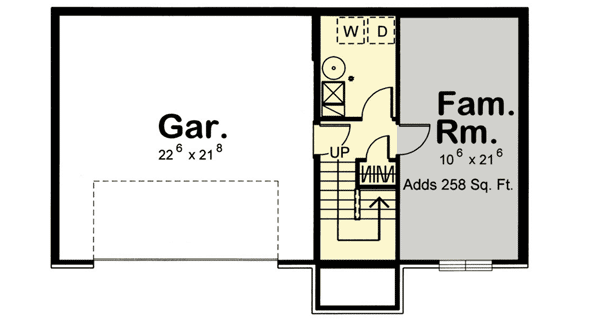

Basement

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

Split-Level House with Optional Family Room - 62632DJ floor plan - Basement

Plan details

Square Footage Breakdown

Total Heated Area: 1,096 sq. ft.
1st Floor: 1,096 sq. ft.

Bonus: 258 sq. ft.
Basement Unfinished: 369 sq. ft.

Beds/Baths

Bedrooms: 3

Full bathrooms: 2

Foundation Type

Standard Foundations: Basement

Optional Foundations: Walkout, Slab, Crawl

Need A Different Foundation? Request A Modification Quote

Exterior Walls

Standard Type(s): 2x4

Optional Type(s): 2x6

Dimensions

Width: 42' 0"
Depth: 27' 0"
Max ridge height: 19' 0"

Garage

Type: Drive Under
Area: 469 sq. ft.
Count: 2 Cars
Entry Location: Front

Ceiling Heights

Floor / Height: Lower Level / 9' 0" First Floor / 8' 0"

Roof Details

Primary Pitch: 8 on 12
Secondary Pitch: 10 on 12

Architectural Style

Special features
