Sprawling Country Craftsman Home Plan with Screened Porch

Plan 444006GDN

  • 3,360

    Heated s.f.

  • 4-5

    Beds

  • 4

    Baths

  • 1

    Stories

  • 3

    Cars

  • This sprawling Country Craftsman home plan features generous walk-in closets, skylights, and elegant ceilings throughout.

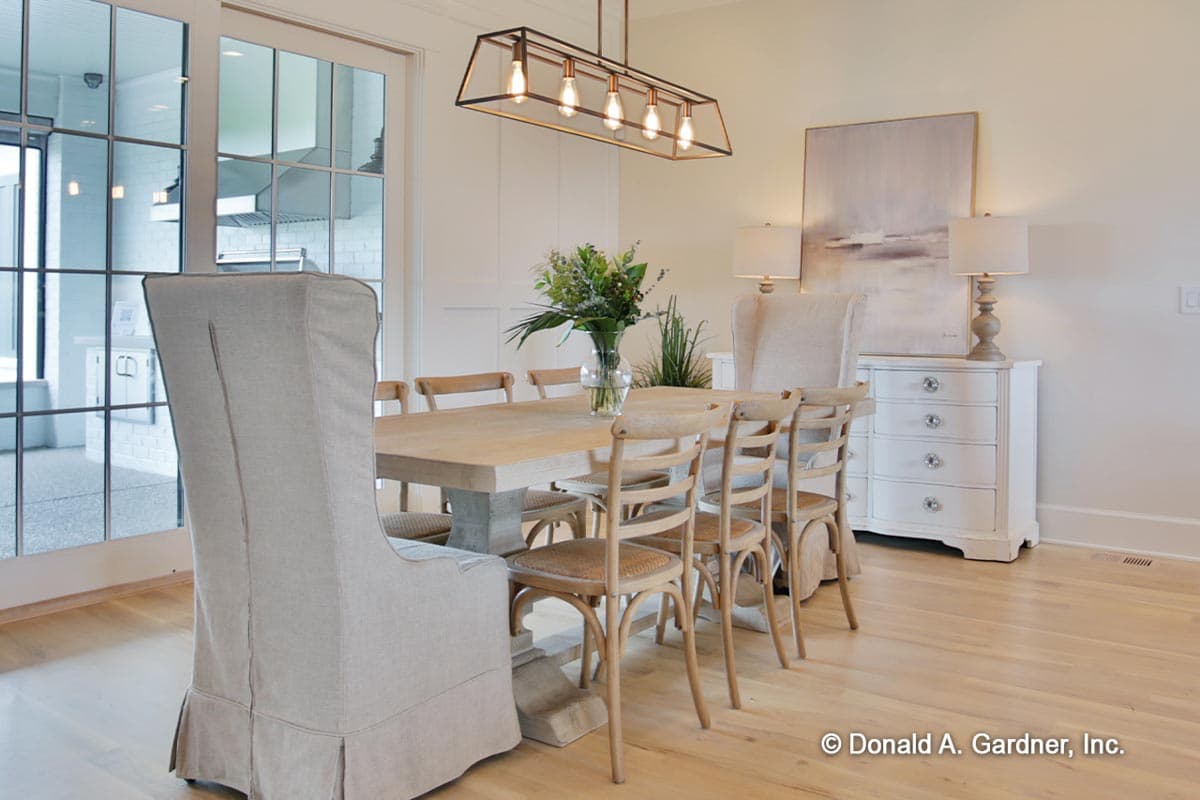

  • Columns and a tray ceiling define the dining room, while a massive serving bar brings the entire living space together by the kitchen.

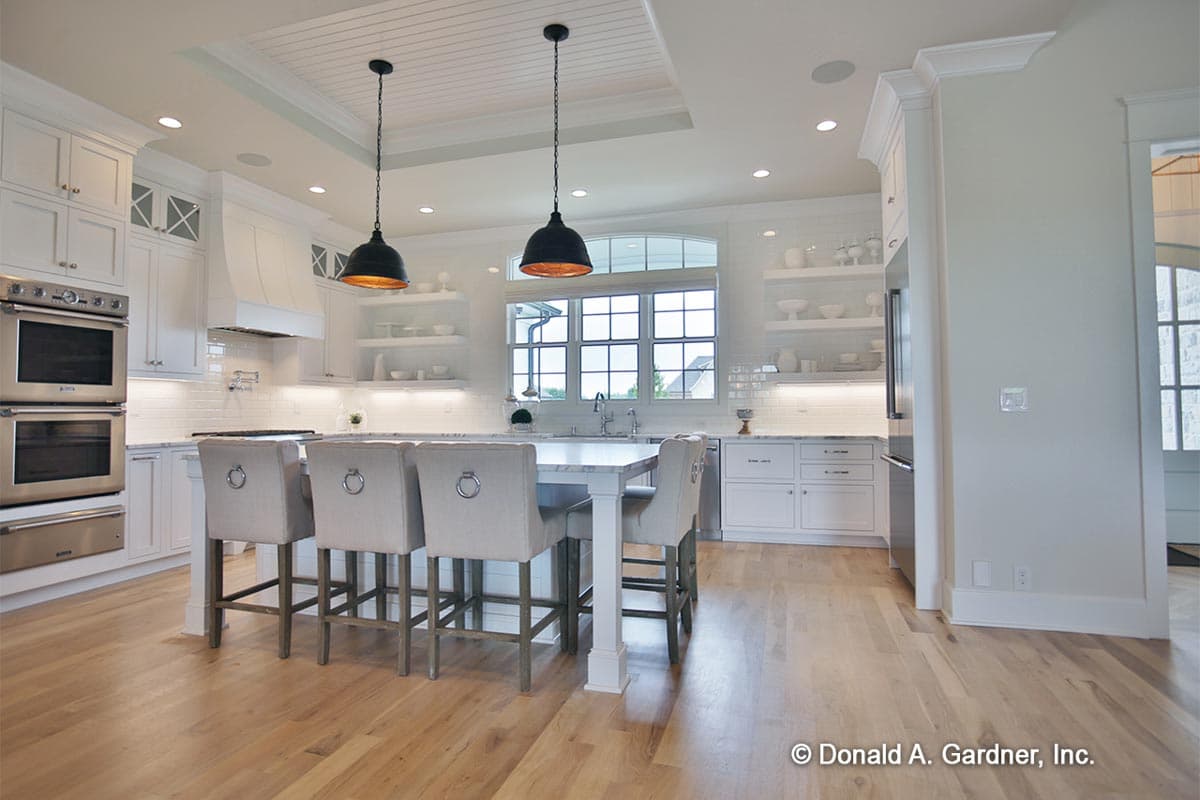

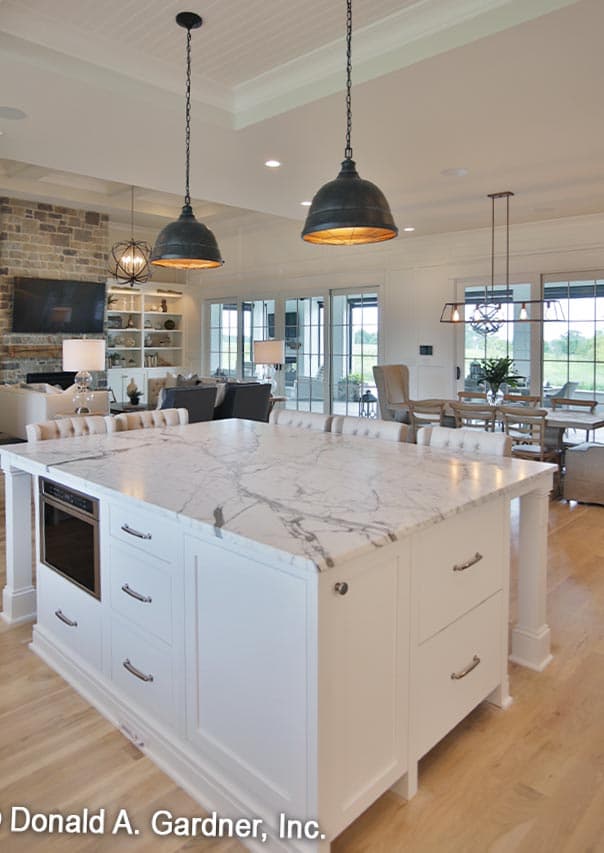

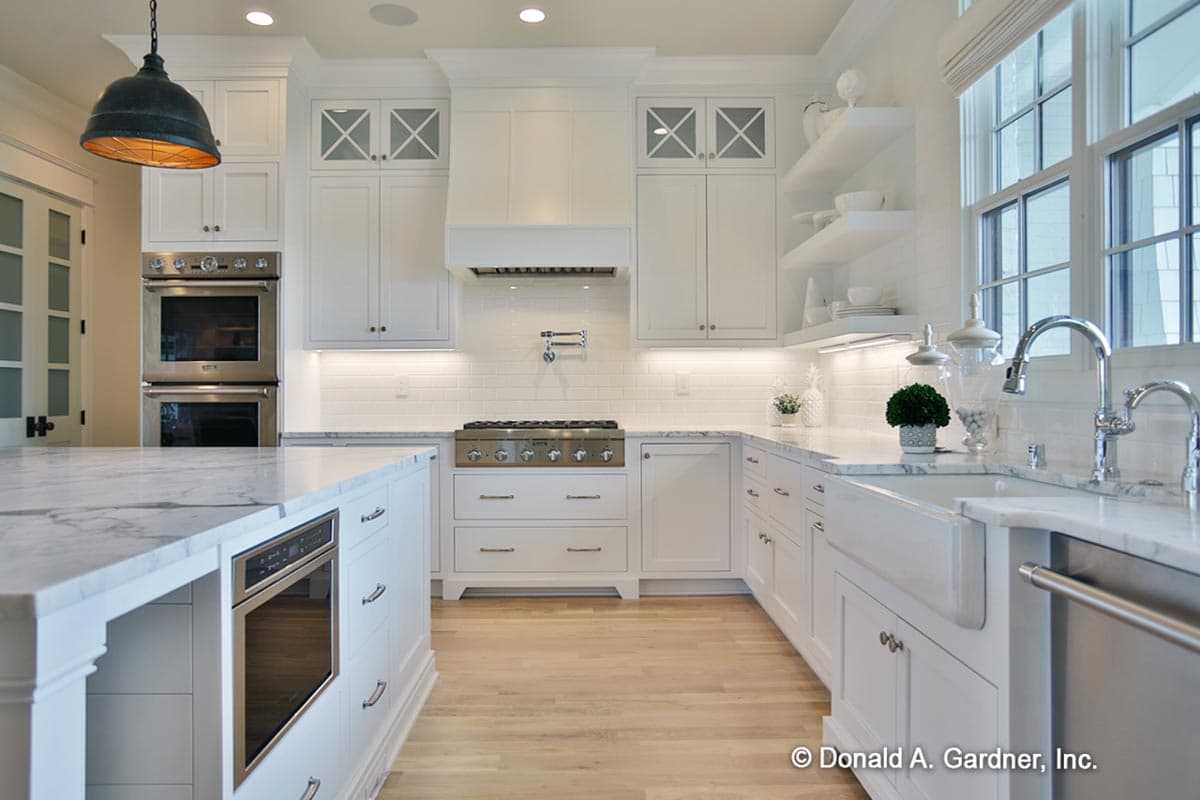

  • With its cooktop island, nearby pantry, and large front-facing window, the kitchen has an exceptionally open feel.

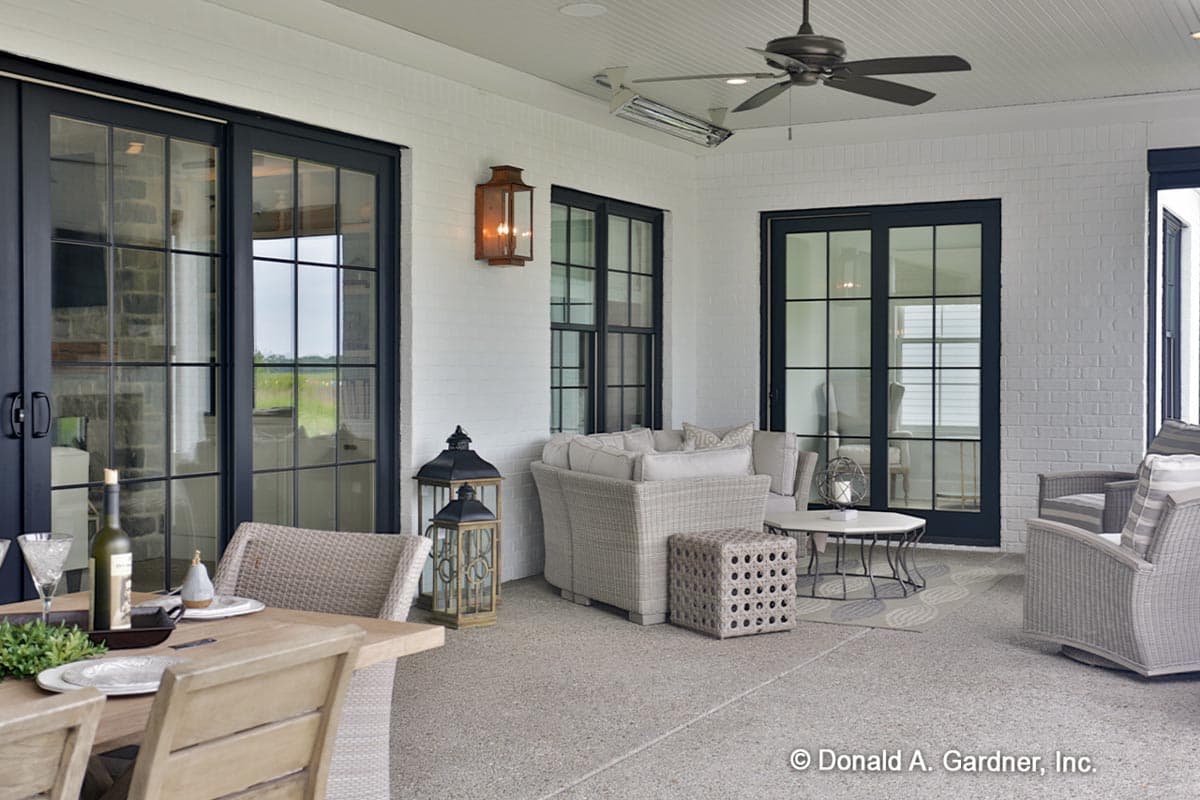

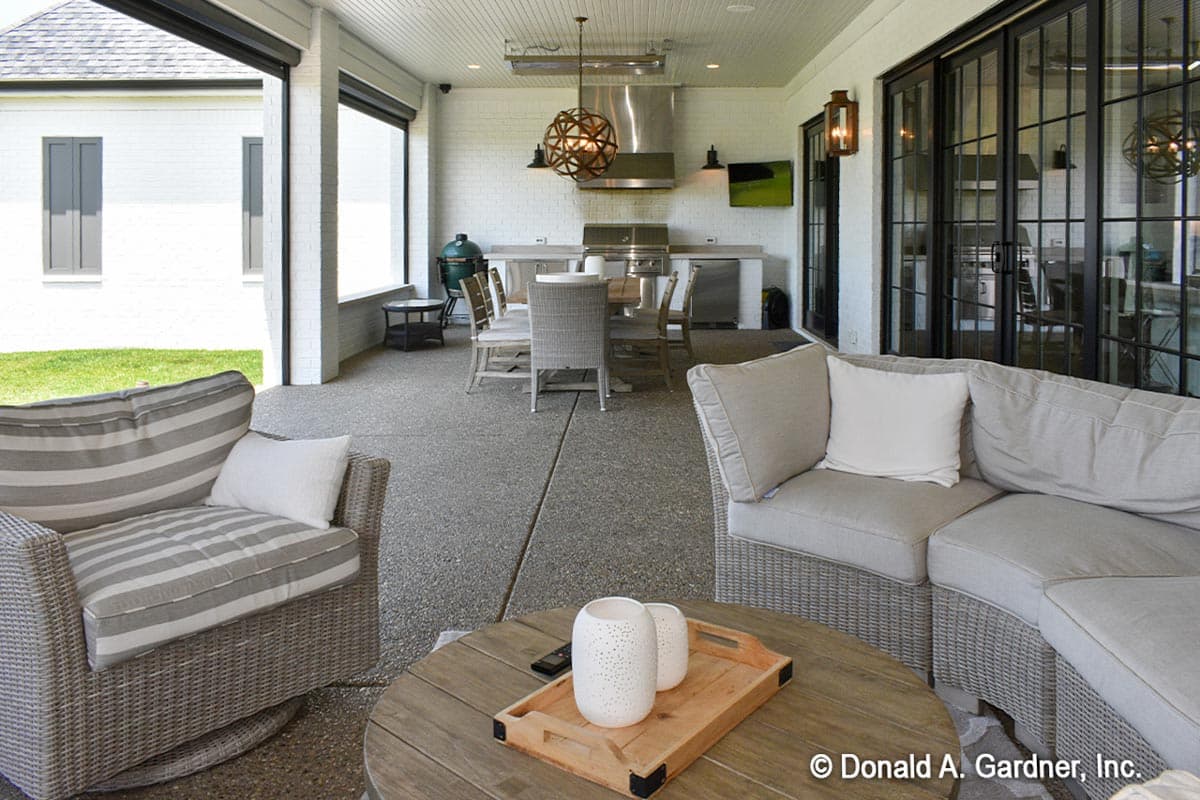

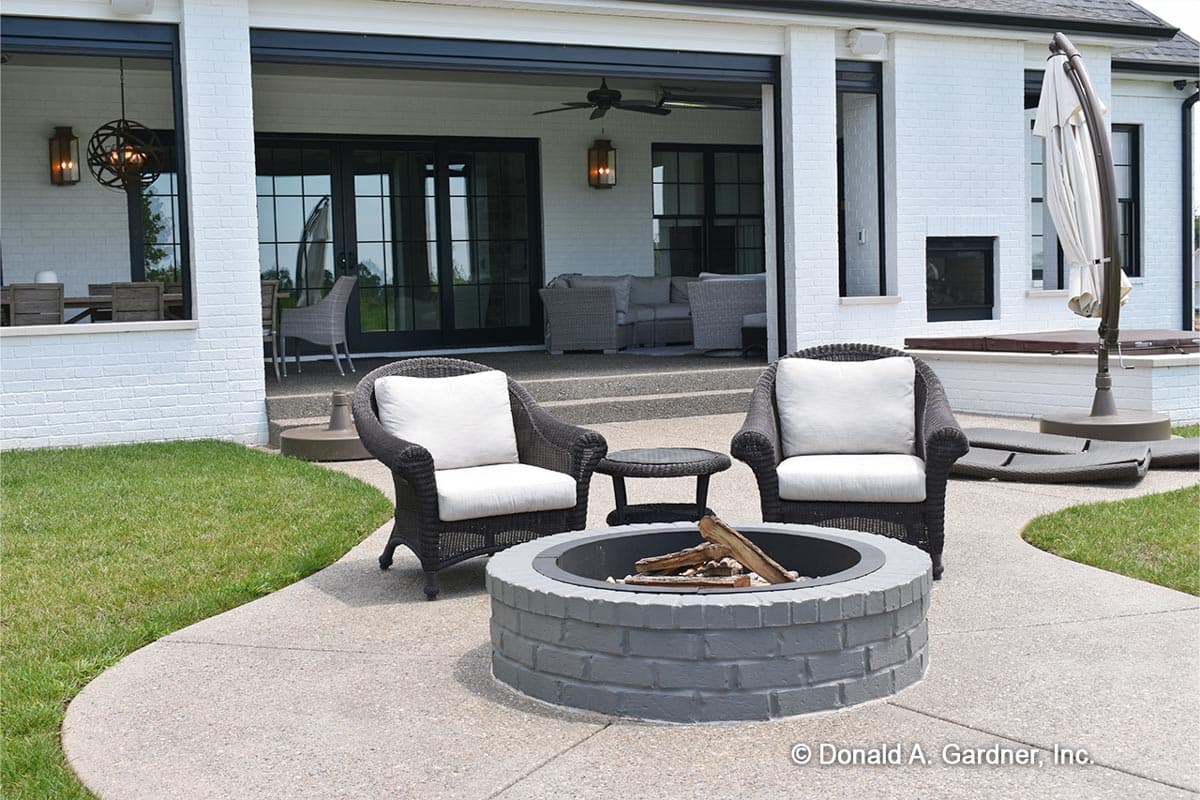

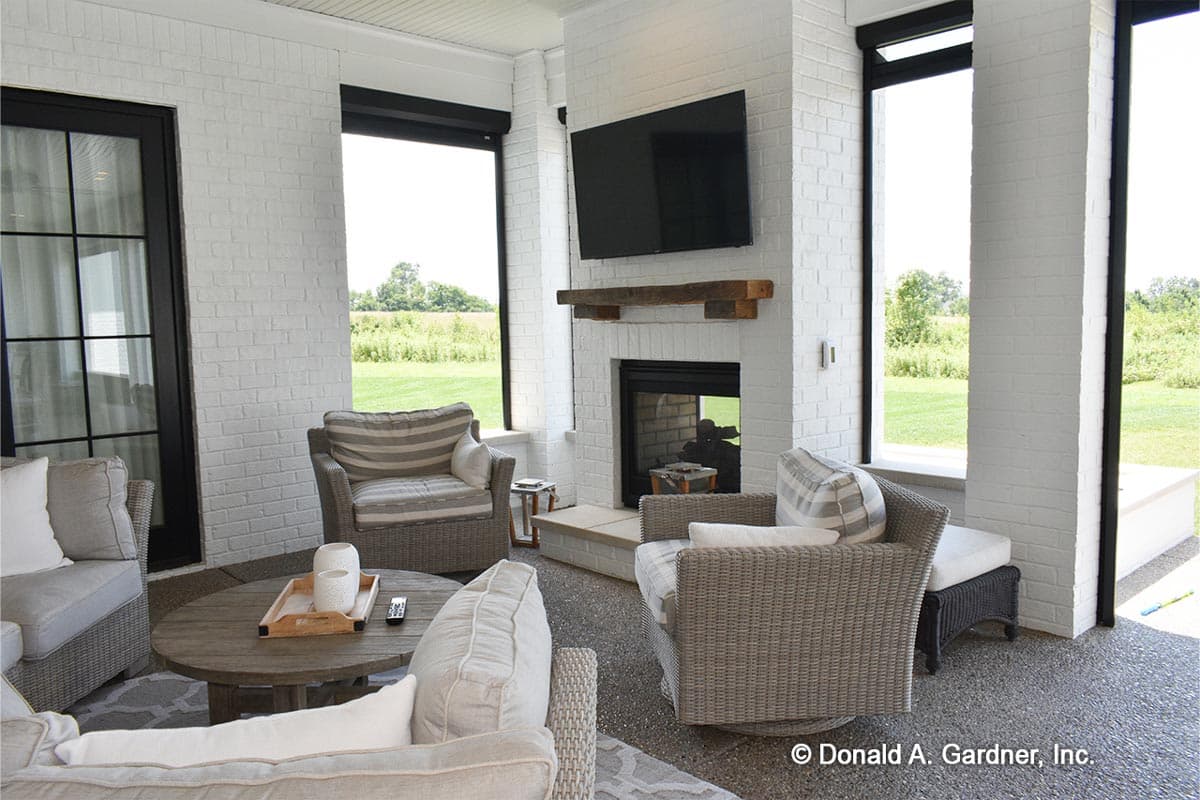

  • Enjoy entertaining outdoors on the generous porch that connects to a patio, or the adjacent screened porch, complete with a fireplace.

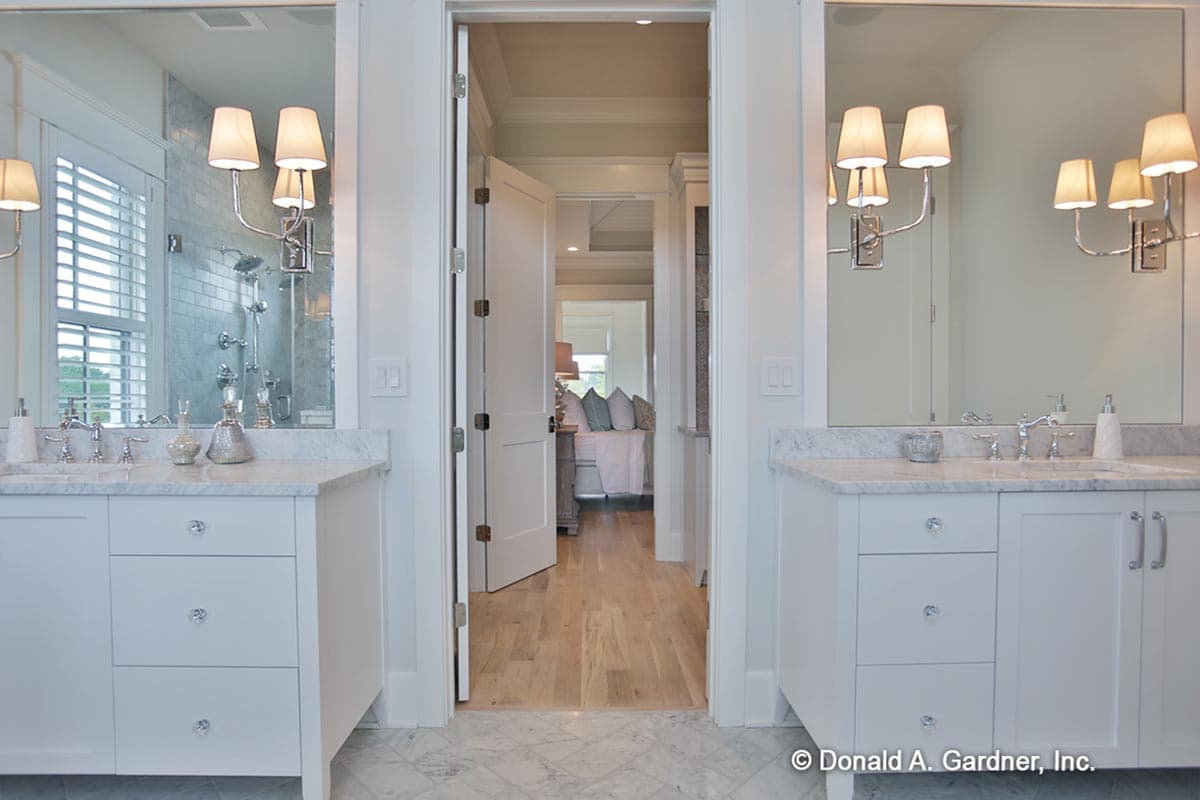

  • The master suite is set apart from the secondary bedrooms and offers a sitting room with porch access, as well as a deluxe ensuite with two walk-in closets.

1. Cover Sheet
An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped

2. Foundation Plan
This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.

3. Detailed Floor Plans
These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.

4. Interior Elevations
The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.

5. Roof Plan
The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.

6. Exterior Elevations
Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.

7. Cross-Section / Wall Section Details
Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.

8. Structural Plan
Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.

These items are NOT included:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
Energy calculations - handled locally when required

Floor Plan

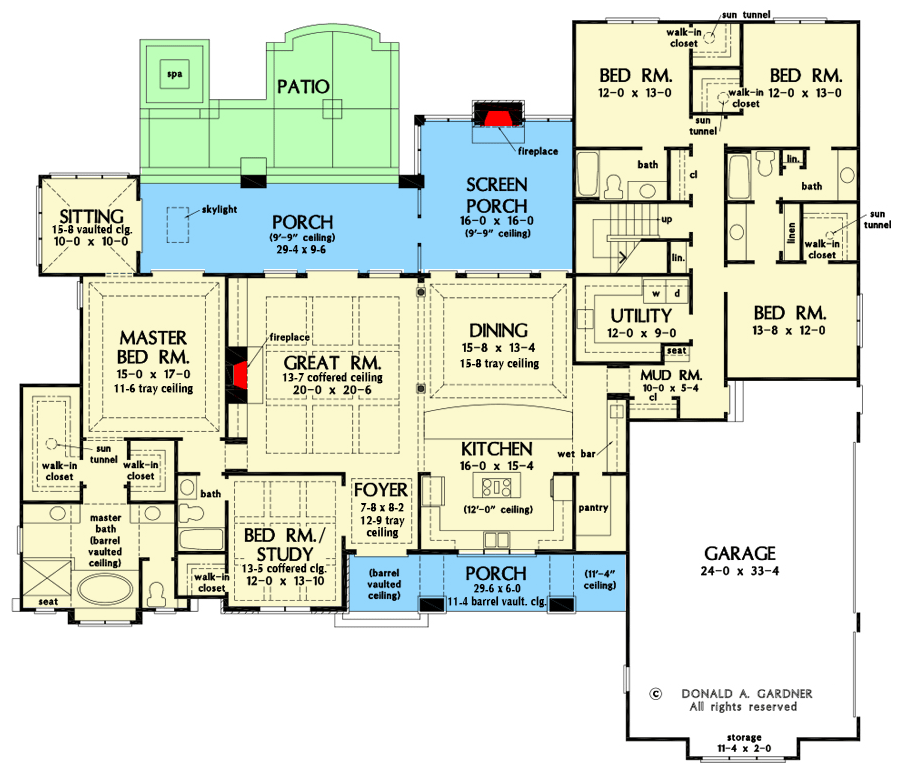

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Sprawling Country Craftsman Home Plan with Screened Porch - 444006GDN floor plan - Main Level

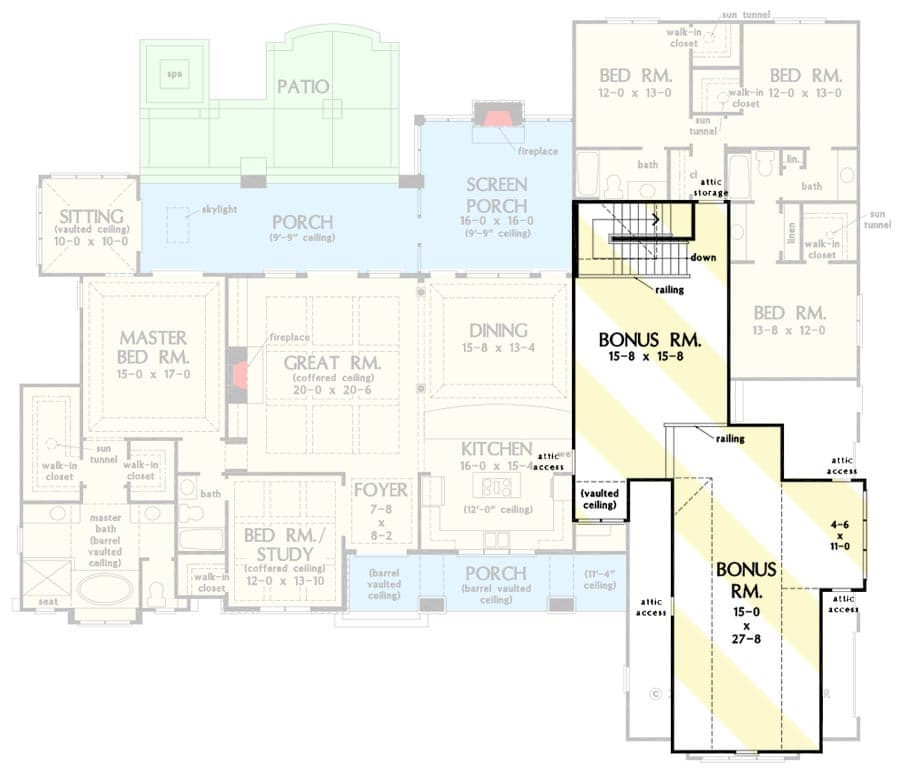

Bonus Room

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Sprawling Country Craftsman Home Plan with Screened Porch - 444006GDN floor plan - Bonus Room

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,360 sq. ft.
  • 1st Floor: 3,360 sq. ft.
  • Covered Patio: 381 sq. ft.
  • Screened Porch: 284 sq. ft.
  • Porch, Rear: 279 sq. ft.
  • Porch, Front: 177 sq. ft.
  • Bonus: 1,018 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 89' 6"
  • Depth: 78' 0"
  • Max ridge height: 32' 4"

Garage

  • Type: Attached
  • Area: 910 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side
