Sprawling Mountain House Plan with Split Beds

Plan 95068RW

3,526
Heated s.f.
2-5
Beds
2.5 - 4.5
Baths
1
Stories
3
Cars

This sprawling, mountain home plan has an updated, modern twist with its arched roof atop the front porch and corresponding back porch, stone accents, and an interior open layout.
A spacious foyer leads you directly into the heart of the home with views through the great room and beyond to the covered deck. Large, sliding doors retract to bring the outdoors in, and a grand fireplace serves as a focal point.
The oversized, angled island connects the shared living spaces and the chef in the house will delight in the amount of workspace and storage.
To the right of the home, french doors give way to a luxurious master bedroom, featuring a private deck and spacious ensuite with a garden tub, oversized shower, and massive walk-in closet with an island dresser.
A guest suite is situated on the opposite side of the home and includes a full bath and a walk-in closet.
Should you need additional living space, a lower level design boasts a sizable recreation room with a wet bar and three bedrooms; two share a Jack-and-Jill bath, and 1 with access to a full bath. A walk-out patio extends the living space outside.
An angled, 3-stall garage juts out from the home, adding dimension to the front elevation.

The following details are included with this house plan:

Cover Page

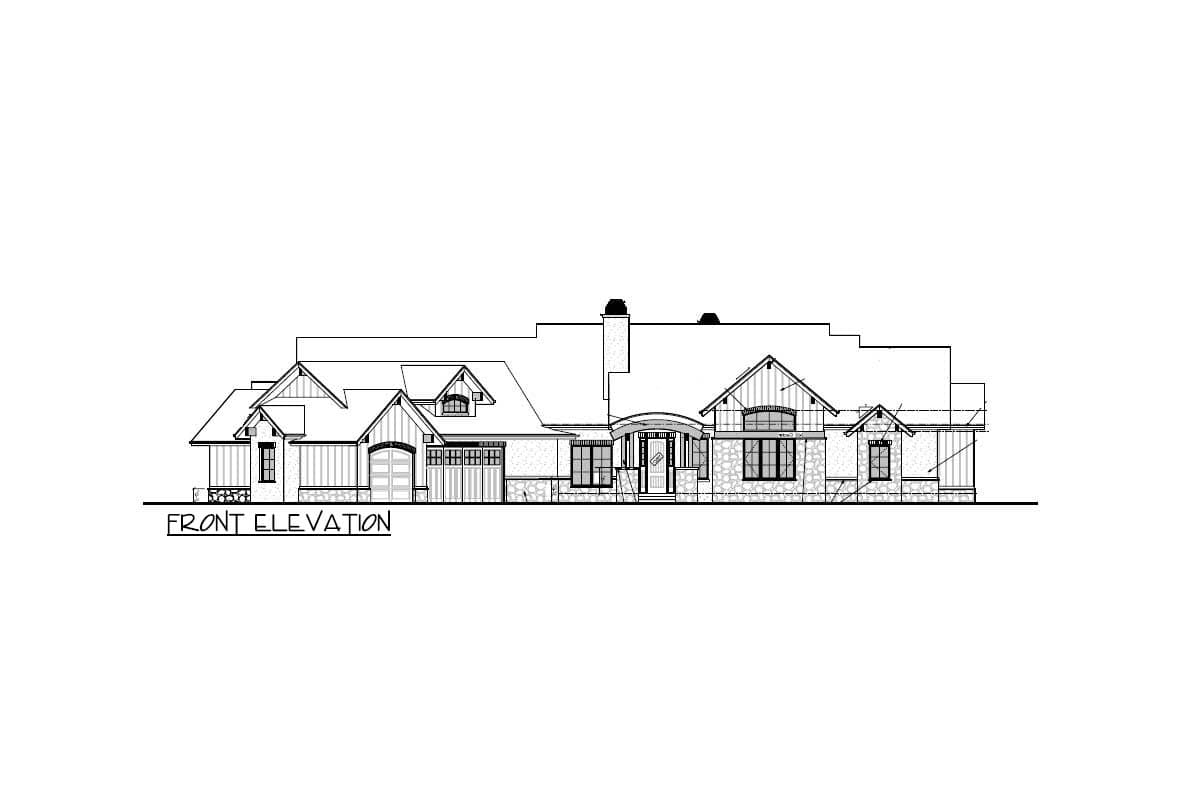

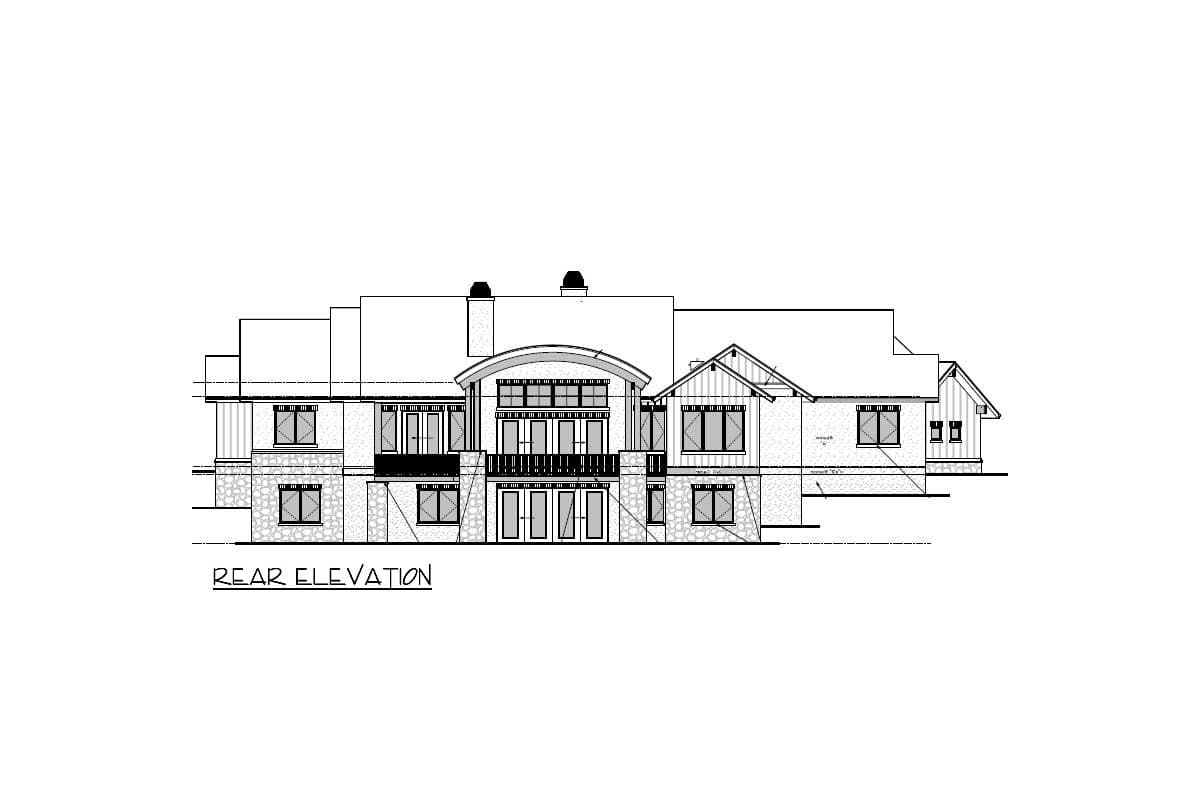

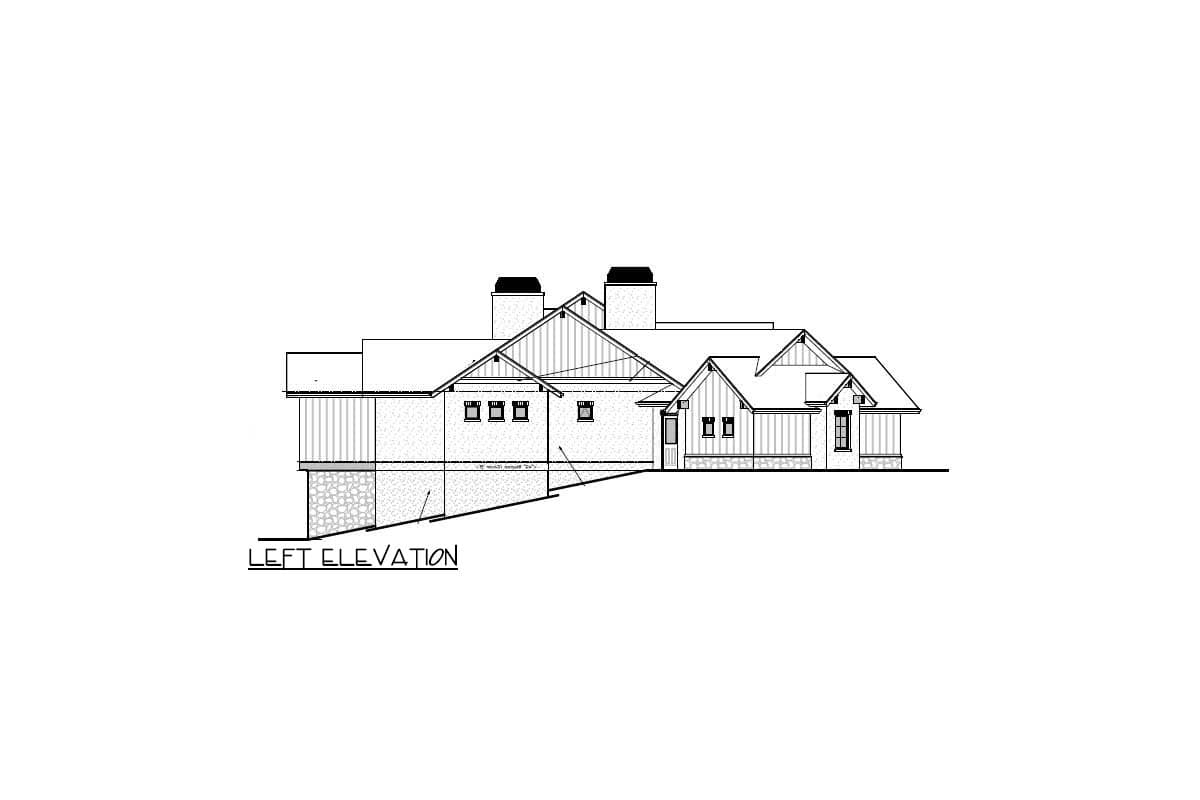

4 elevations
Floorplans
Foundation plan (with no specifications of structural elements)
Roof plan (with no specifications of structural elements)
Typical wall sections
Electrical plan

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may requires

Floor Plan

Main Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

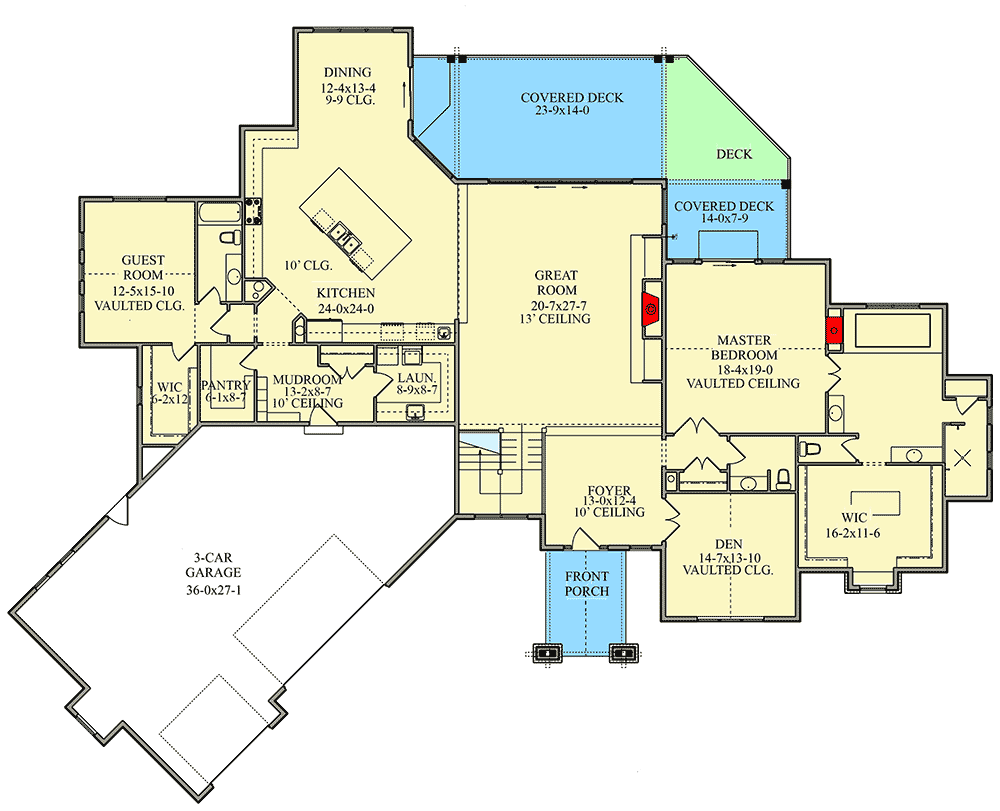

Sprawling Mountain House Plan with Split Beds - 95068RW floor plan - Main Level

Optional Finished Lower Level

Reverse Floor Plan

NOTE:

If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

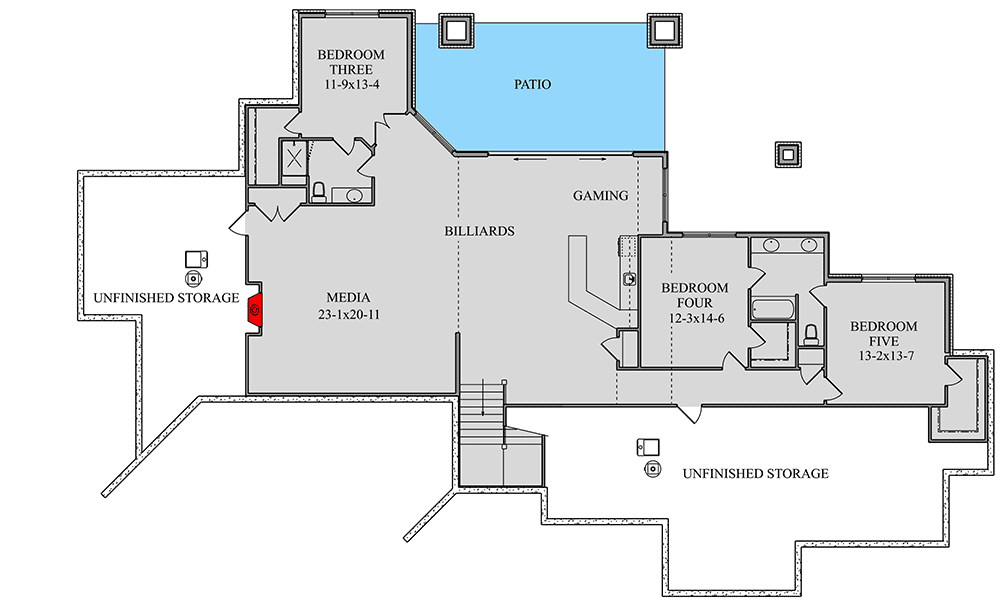

Sprawling Mountain House Plan with Split Beds - 95068RW floor plan - Optional Finished Lower Level

Plan details

Square Footage Breakdown

Total Heated Area: 3,526 sq. ft.
1st Floor: 3,526 sq. ft.

Porch, Combined: 759 sq. ft.
Optional Lower Level: 2,175 sq. ft.
Basement Unfinished: 1,351 sq. ft.

Beds/Baths

Bedrooms: 2, 3, 4, or 5

Full bathrooms: 2, 3, or 4
Half bathrooms: 1

Foundation Type

Standard Foundations: Basement, Daylight, Walkout

Exterior Walls

Standard Type(s): 2x6

Dimensions

Width: 110' 3"
Depth: 86' 10"
Max ridge height: 24' 6"

Garage

Type: Attached
Area: 1222 sq. ft.
Count: 3 Cars
Entry Location: Courtyard

Ceiling Heights

Floor / Height: Lower Level / 10' 0" First Floor / 10' 0"

Roof Details

Primary Pitch: 8 on 12
Secondary Pitch: 10 on 12

Framing Type: Truss
