Plan 62599DJ
Sprawling One Bed House Plan with Interesting Angles
Heated S.F.
2,127
Beds
1
Baths
1.5
Stories
1
Cars
4
What's Included
Plan Details
  • Designed for retiring couples - or those who enjoy their privacy and lots of space - this one bed house plan is elegantly styled with the perfect blend of contemporary and rustic elements to create a charming home.
  • The home features open living spaces, with large windows for great views and daylighting. The master bedroom and dining room spaces have vaulted tower ceilings that give these spaces presence.
  • Entertaining is made more dramatic with two covered decks enabling your party to flow outside.
  • The oversized master suite features both a large whirlpool tub and custom walk-in tile shower. The walk-in closet is enormous.
What's Included
  • Cover Sheet: Shows the front elevation and typical notes and requirements.
  • Exterior Elevations: Shows the front, rear and sides of the home including exterior materials, details and measurement
  • Floor Plans: Shows the placement of walls and the dimensions for rooms, doors, windows, stairways, etc. for each floor
  • Electrical Plans: Shows the location of outlets, fixtures and switches. They are shown as a separate sheet to make the floor plans more legible.
  • Foundation Plans: will include a basement, crawlspace or slab depending on what is available for that home plan. (Please refer to the home plan's details sheet to see what foundation options are available for a specific home plan.) The foundation plan details the layout and construction of the foundation.
  • Roof Plan
  • Typical Wall Section
  • Typical Stair Section
  • Cabinets Elevations
Sample Plan
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Sprawling One Bed House Plan with Interesting Angles

  • 2,127

    Heated s.f.

  • 1

    Beds

  • 1.5

    Baths

  • 1

    Floors

  • 4

    Car garage

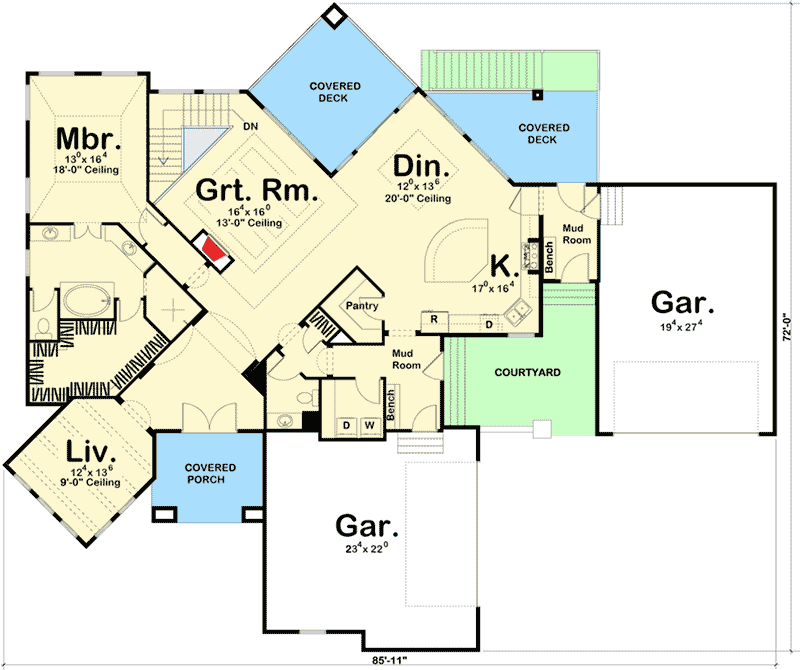

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,127 sq. ft.
  • 1st Floor: 2,127 sq. ft.

Dimensions

  • Width: 86' 0"
  • Depth: 72' 0"
  • Max ridge height: 25' 0"

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 1120 sq. ft.
  • Count: 4 Cars
  • Entry Location: Front, Courtyard

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Walkout, Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Roof

  • Primary Pitch: 6 on 12
