Plan 89923AH
Sprawling Ranch House Plan
Heated S.F.
2,719
Beds
3
Baths
2.5
Stories
1
Cars
3
Videos
What's Included
Plan Details
  • A combination of stone and siding create a modern look for this sprawling ranch house plan.
  • The traditional floor plan design features a spacious kitchen with center island, breakfast bar that overlooks the nook.
  • The formal dining room, defined by a decorative column, lies to the right of the foyer while the great room is found directly ahead.
  • A curve top window that provides plenty of natural light defines this room, and a fireplace flanked by built-in cabinets.
  • The bedrooms all lie to the left of the home and include a spacious master with large walk-in closet, dual sinks and Jacuzzi tub. Each of the other two bedrooms has access to the full bath just off the hall outside.
  • A three-stall side-load garage completes this home.
  • ADDED BONUS: See this house plan from every angle in this YouTube video.
What's Included
  • General Notes

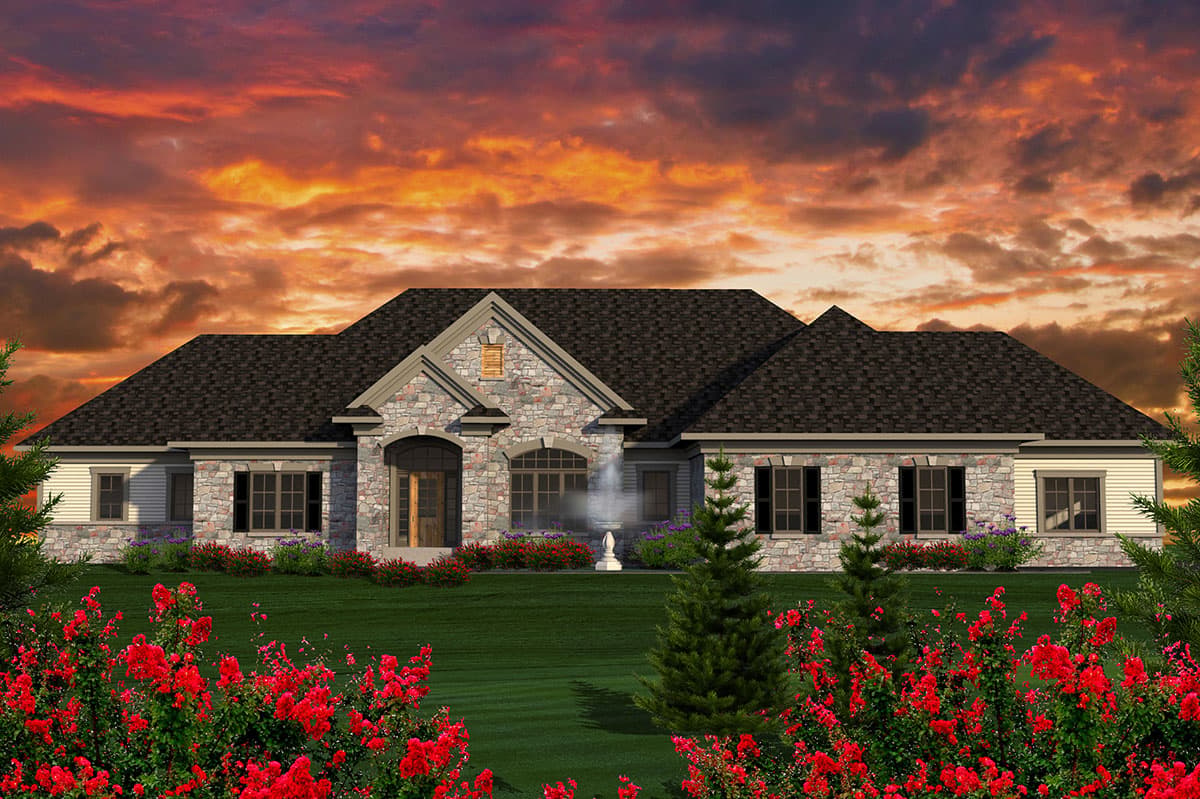

  • Rendering
  • Elevations
  • Fully dimensioned floor plans
  • Foundation
  • Typical wall section & stair section
  • Cross section
  • Cabinet elevations
  • Electrical Plan
  • Roof plan

What's Not Included
  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Framing layouts with beam sizes and locations
  • Energy calculations
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Sprawling Ranch House Plan

  • 2,719

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 3

    Car garage

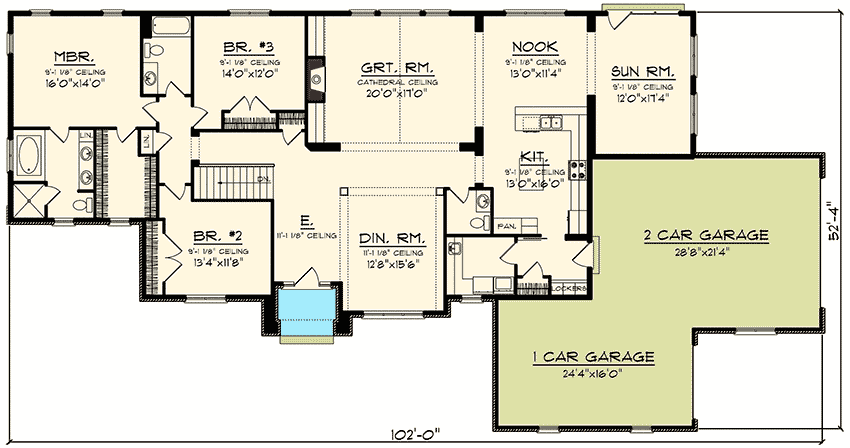

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,719 sq. ft.
  • 1st Floor: 2,719 sq. ft.

Dimensions

  • Width: 102' 0"
  • Depth: 52' 4"
  • Max ridge height: 26' 4"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 990 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Slab, Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Truss
