Plan 52056HZ

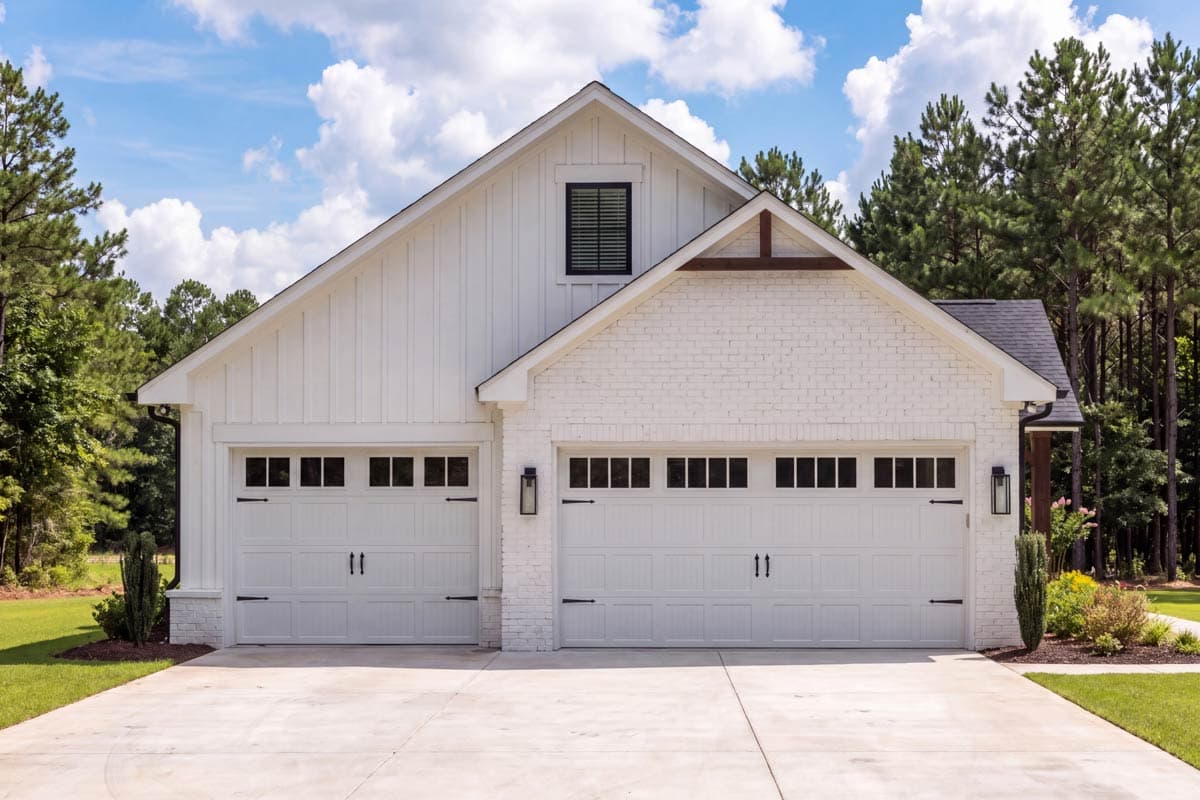

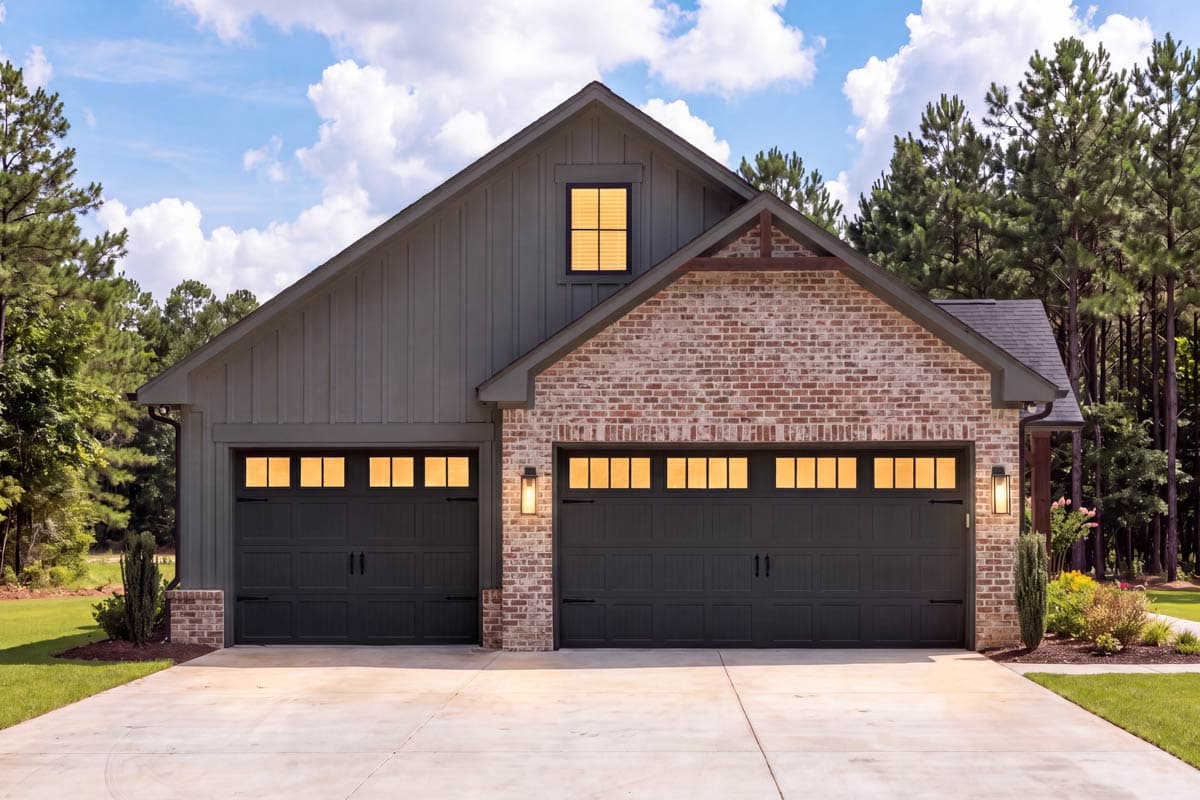

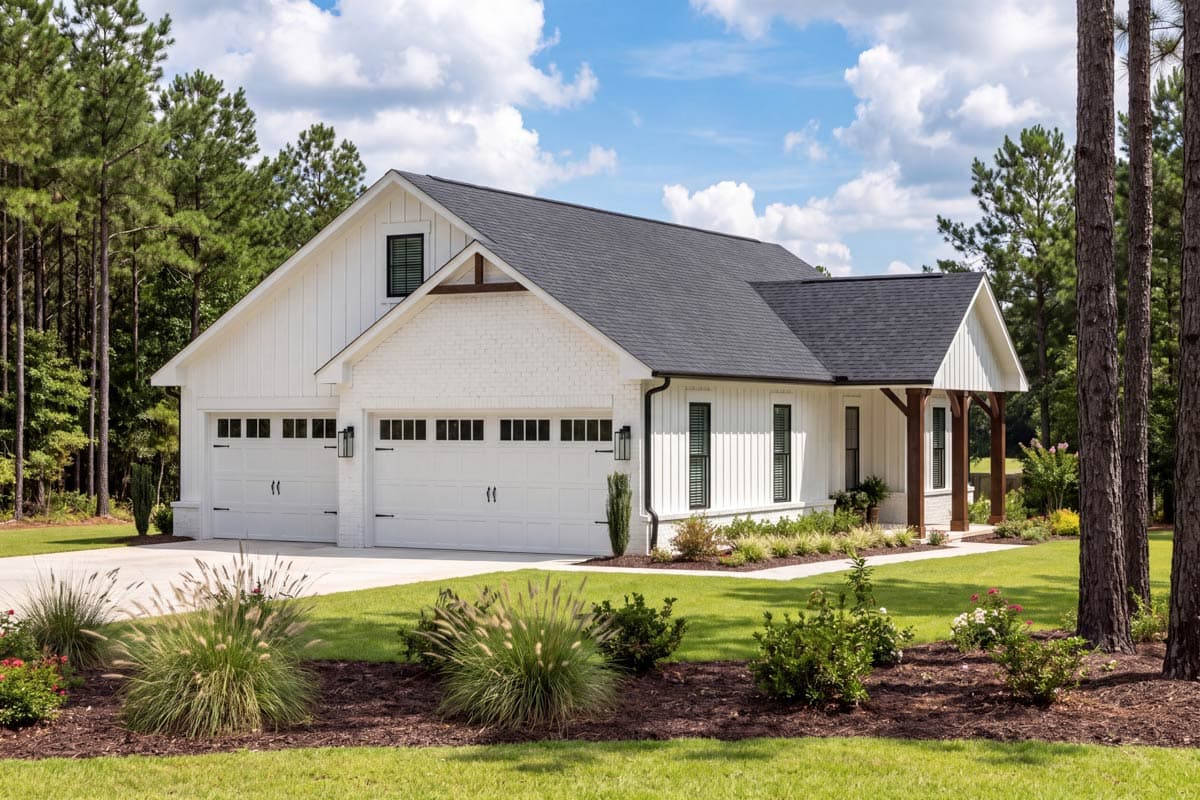

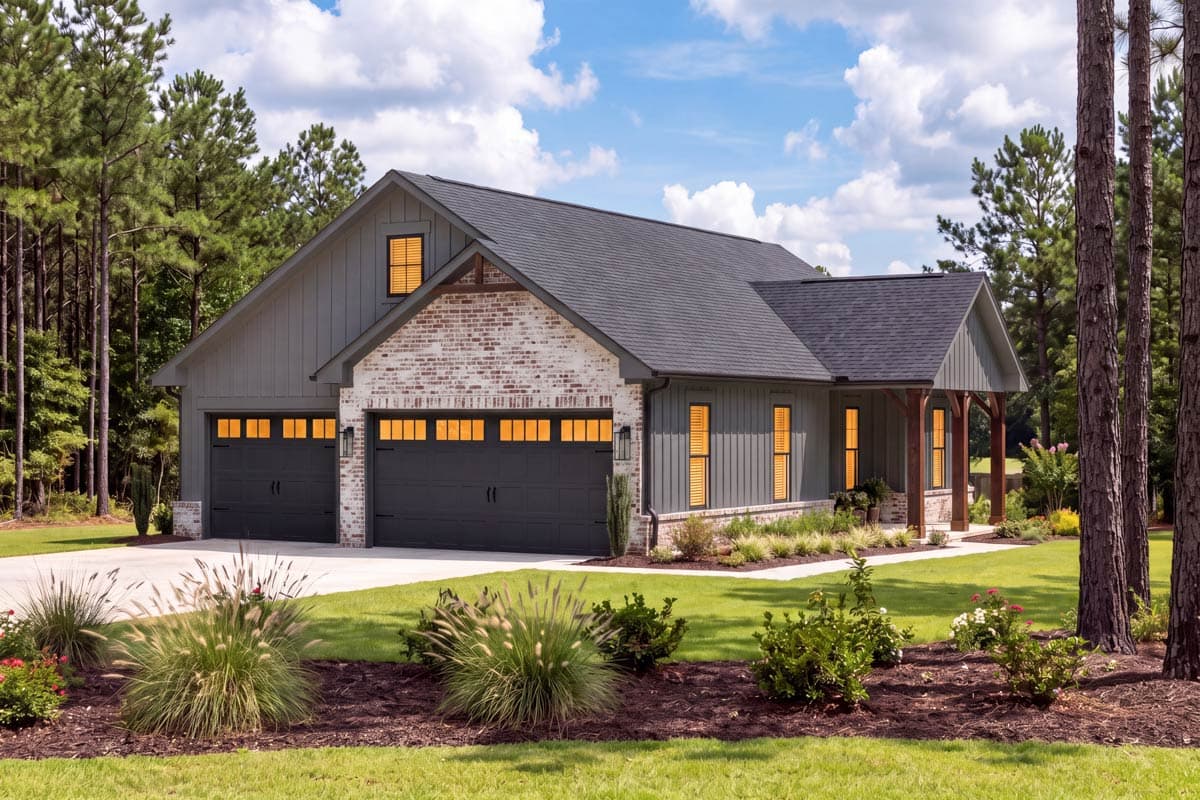

Stand-Alone 3-Car Garage Carriage House ADU Plan with 1-Bed Apartment in the Back

Heated S.F.
900
Beds
1
Baths
1
Stories
1
Cars
3

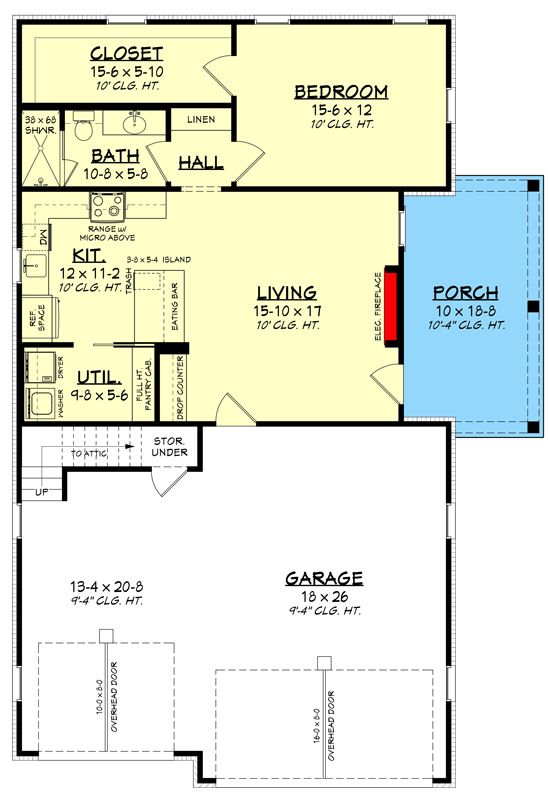

Floor Plan

Plan 52056HZ

Floor Plan 1

Plan 52056HZ

M-F 9am-5pm EST |

1-203-761-8500

Plan 52056HZ: Stand-Alone 3-Car Garage Carriage House ADU Plan with 1-Bed Apartment in the Back - Floor Plan - - Carriage, Country, Modern Farmhouse, New American, Traditional

Plan Details

  • This thoughtfully designed 900-square-foot garage apartment offers comfortable living in a compact, efficient layout.
  • The one-bedroom plan features an open kitchen and living area, a spacious walk-in closet, full bath, utility room, and a welcoming covered porch.
  • A generous garage with walk-up storage provides plenty of room for vehicles, storage, or recreational equipment.
  • It’s an ideal solution for a guest house, rental apartment, in-law suite, or private retreat.

What's Included

  • Cover Sheet with abbreviations, rendering, sheet index
  • Foundation plan with details
  • Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)

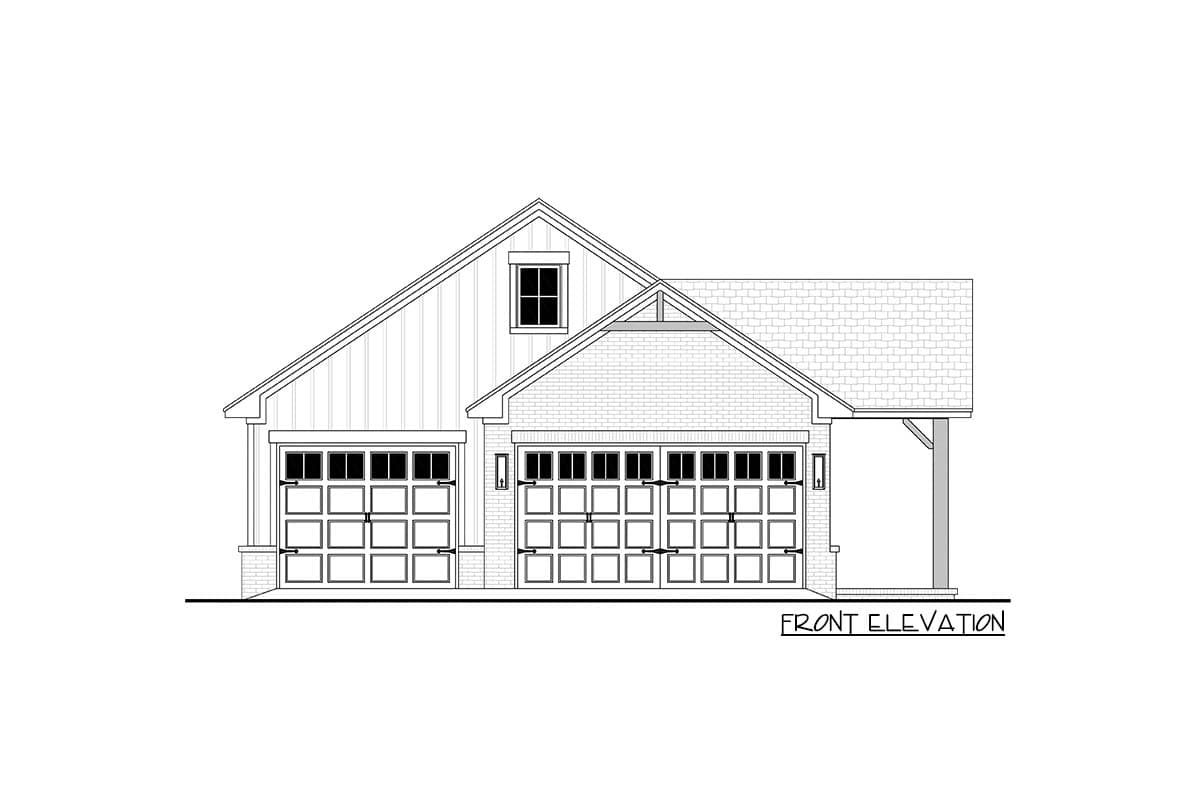

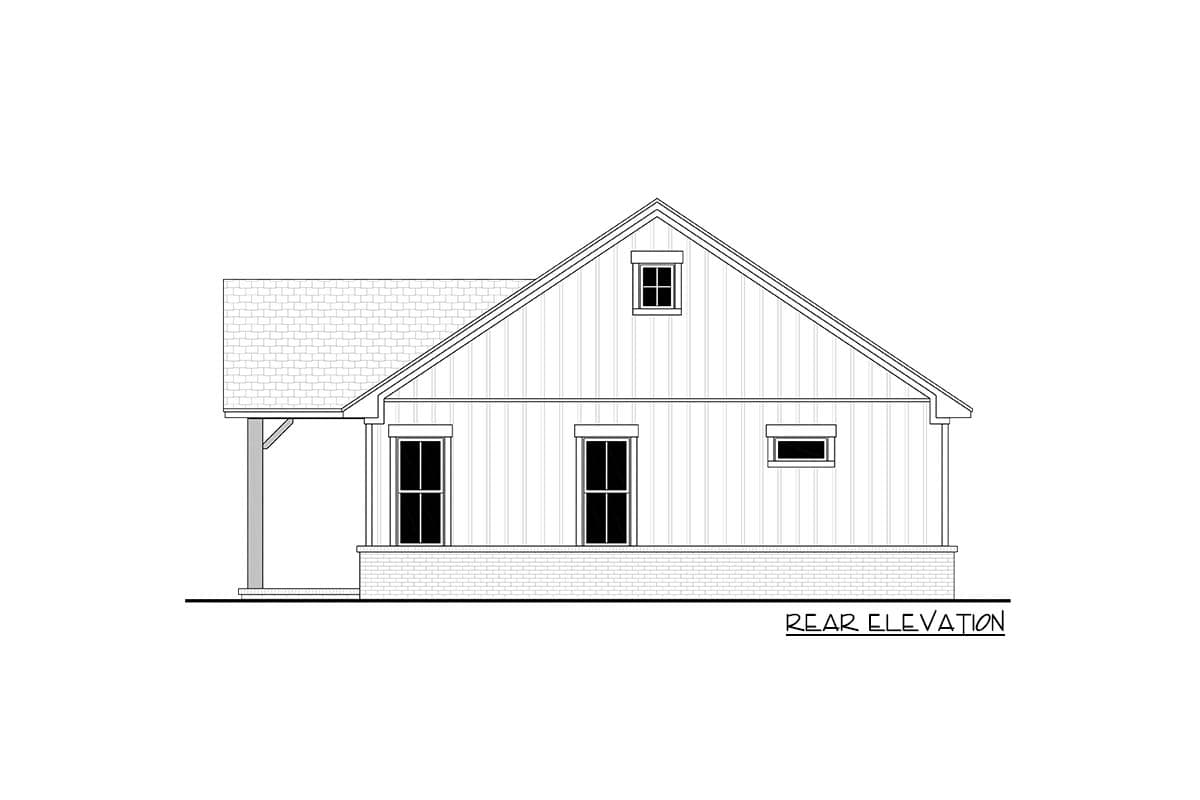

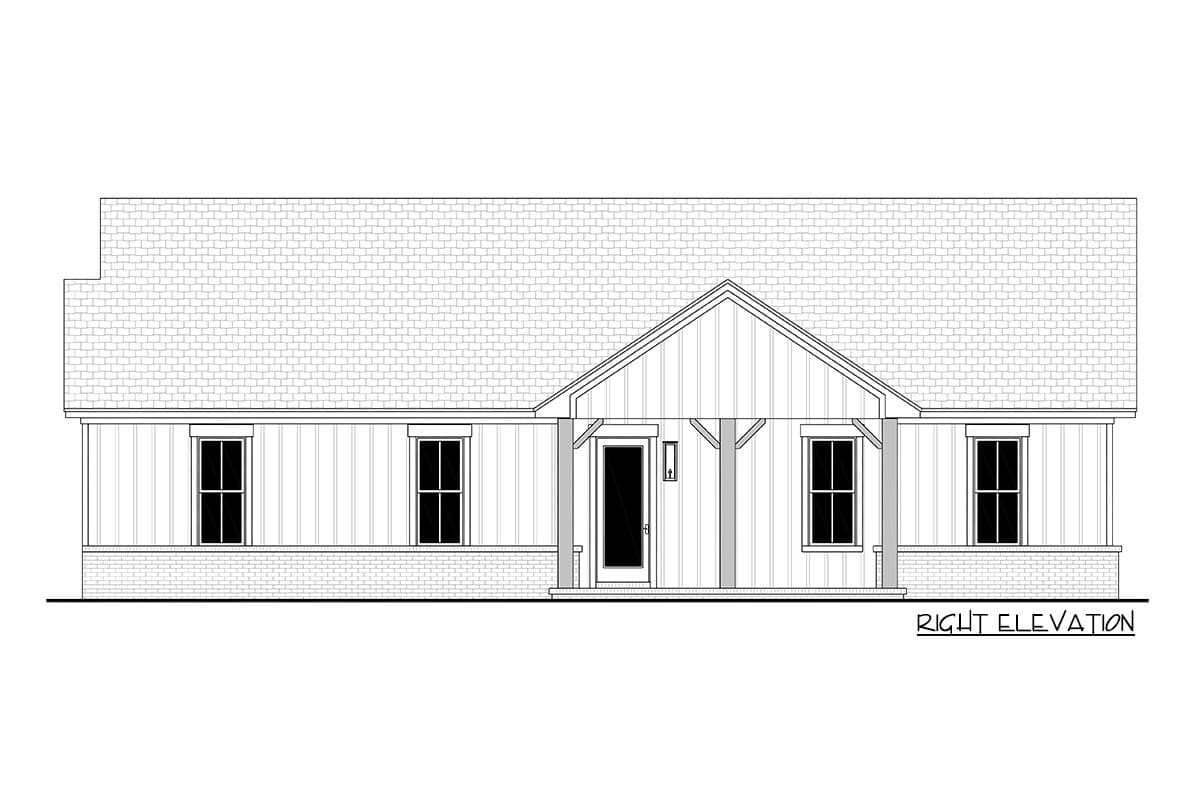

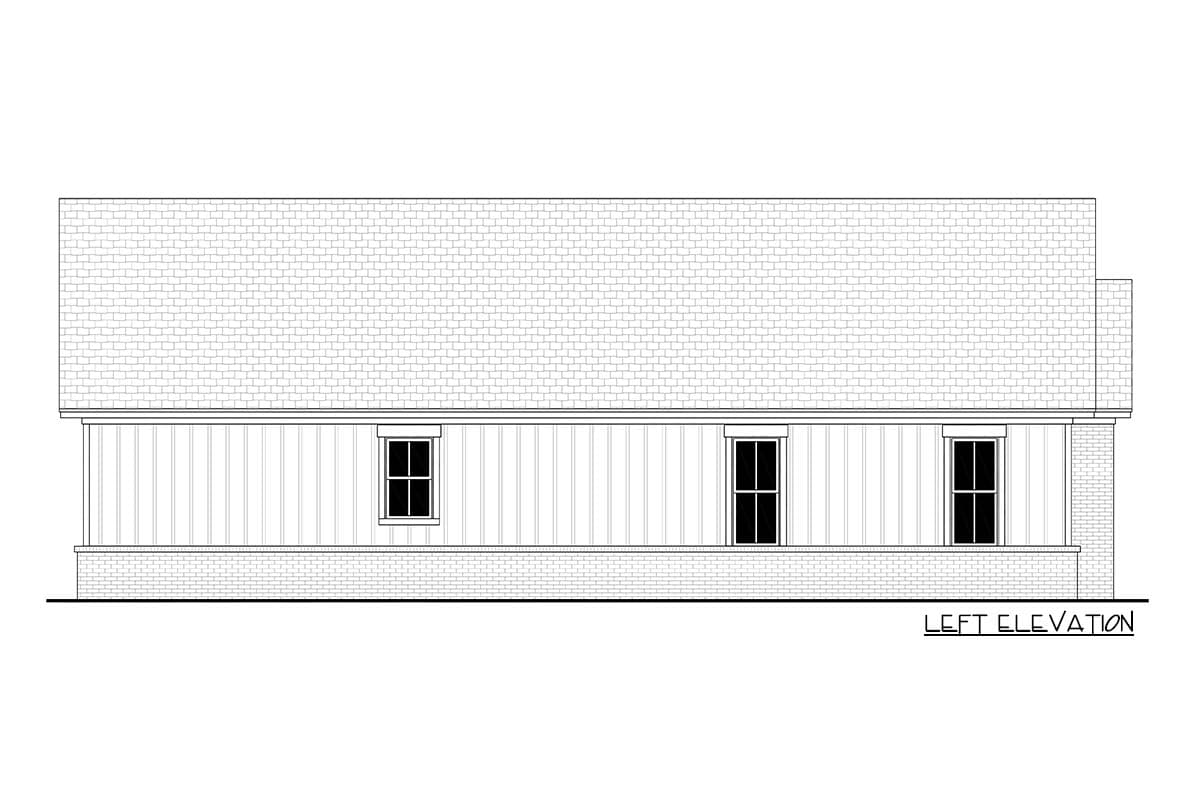

  • Four exterior views (front, rear, right, left)
  • Roof plan (birds eye view of roof)
  • Building section
  • Kitchen cabinet views
  • Electrical plan
  • Span charts and other misc details

View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may require

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

900 sq. ft.

1st Floor

900 sq. ft.

Porch, Front

181 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 6"

Depth

56' 4"

Max Ridge Height

21' 2"

Garage

Type

Detached

Area

817 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Garage

Flat

9' 4''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Carriage

Country

Modern Farmhouse

New American

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Unlimited Build License

Square Footage Breakdown

Total Heated Area

900 sq. ft.

1st Floor

900 sq. ft.

Porch, Front

181 sq. ft.

Beds/Baths

Bedrooms

1

Full bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

38' 6"

Depth

56' 4"

Max Ridge Height

21' 2"

Garage

Type

Detached

Area

817 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

10'

Room

Ceiling Type

Height

Garage

Flat

9' 4''

Roof Details

Primary Pitch

8 on 12

Framing Type

Stick

Architectural Style

Carriage

Country

Modern Farmhouse

New American

Traditional

Special Features

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

ADU

Unlimited Build License
