Plan 4185DB
Stately Design
Heated S.F.
2,237
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • This stately design offers a raised study with a 13' ceiling, accessed by an arched opening midway up the U-shaped staircase.

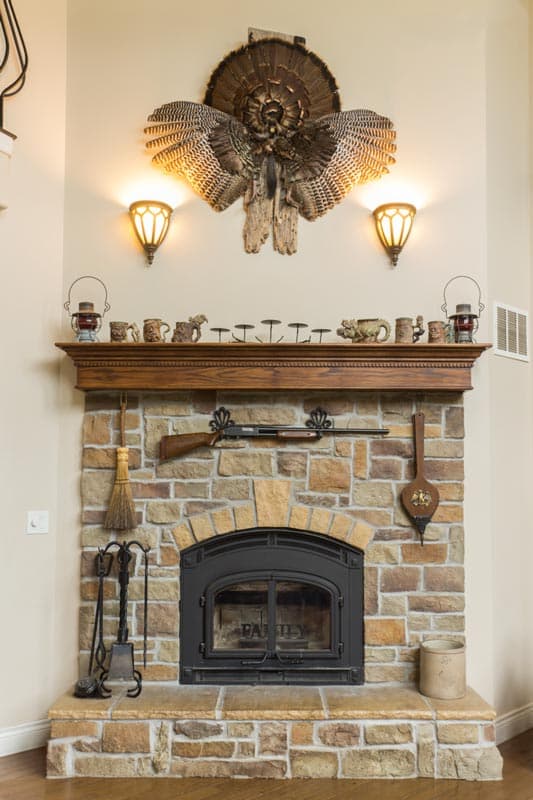

  • In the two-story living room, a corner fireplace is paired with built-in entertainment shelves, and backyard views are visible through the large bay window.
  • The kitchen is well-placed between the breakfast room and the formal dining room.
  • The spectacular master bath with its garden tub opens to a walk-in closet.
  • Upstairs, a bridge overlooks both the living room and the entry. Two family bedrooms share the other full bath. Bonus space over the master bath awaits future expansion.
  • Ceilings: 9' first floor; 8' second floor.
What's Included
  • General Notes

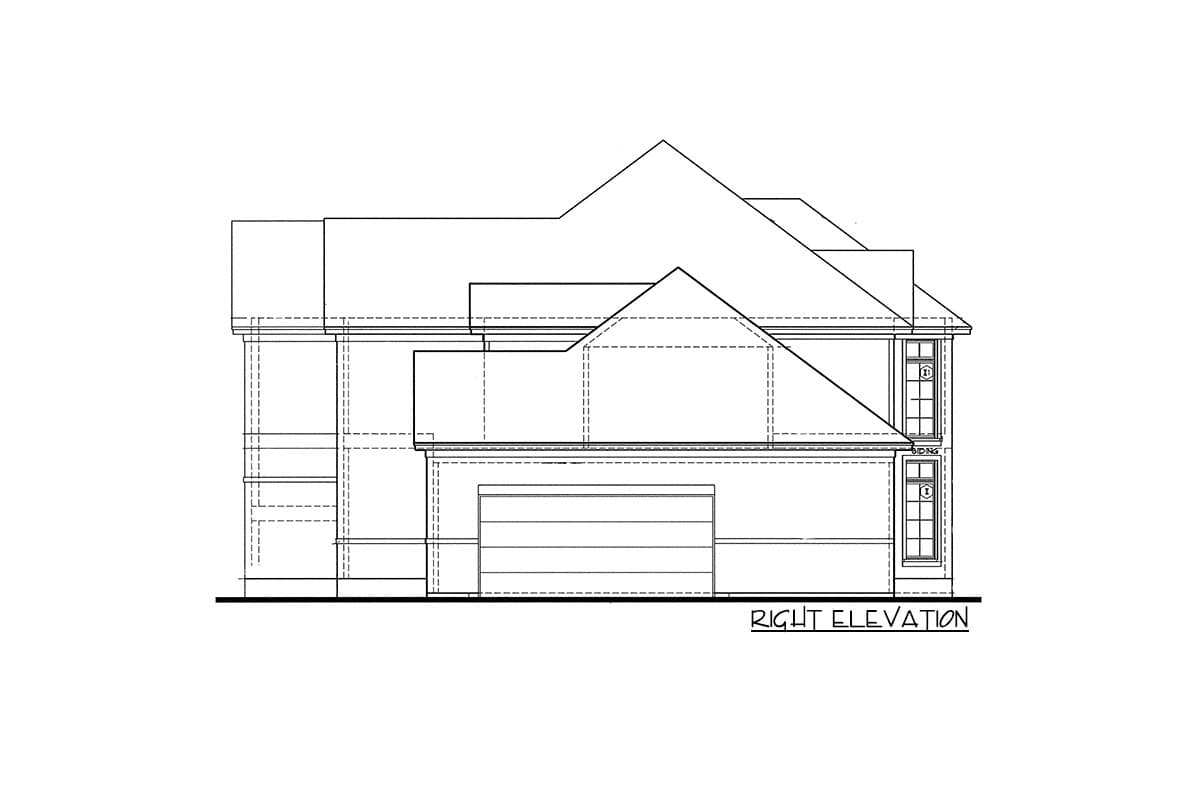

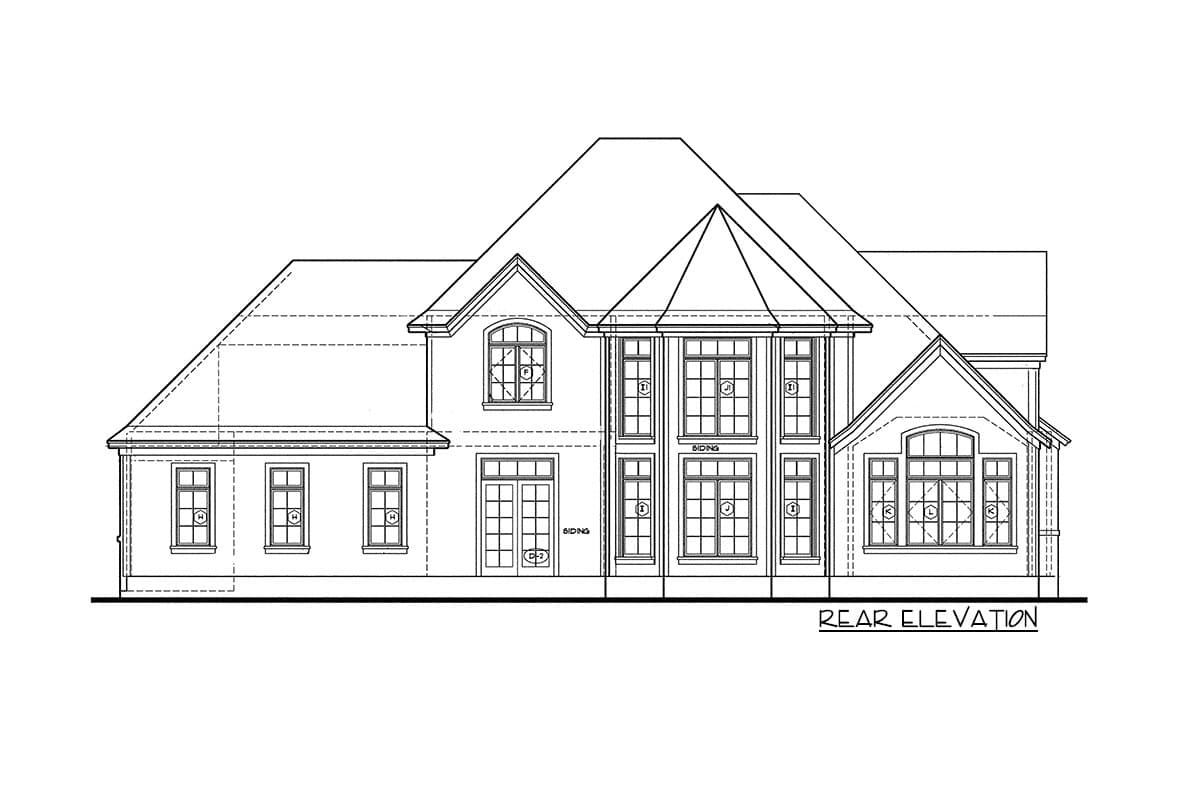

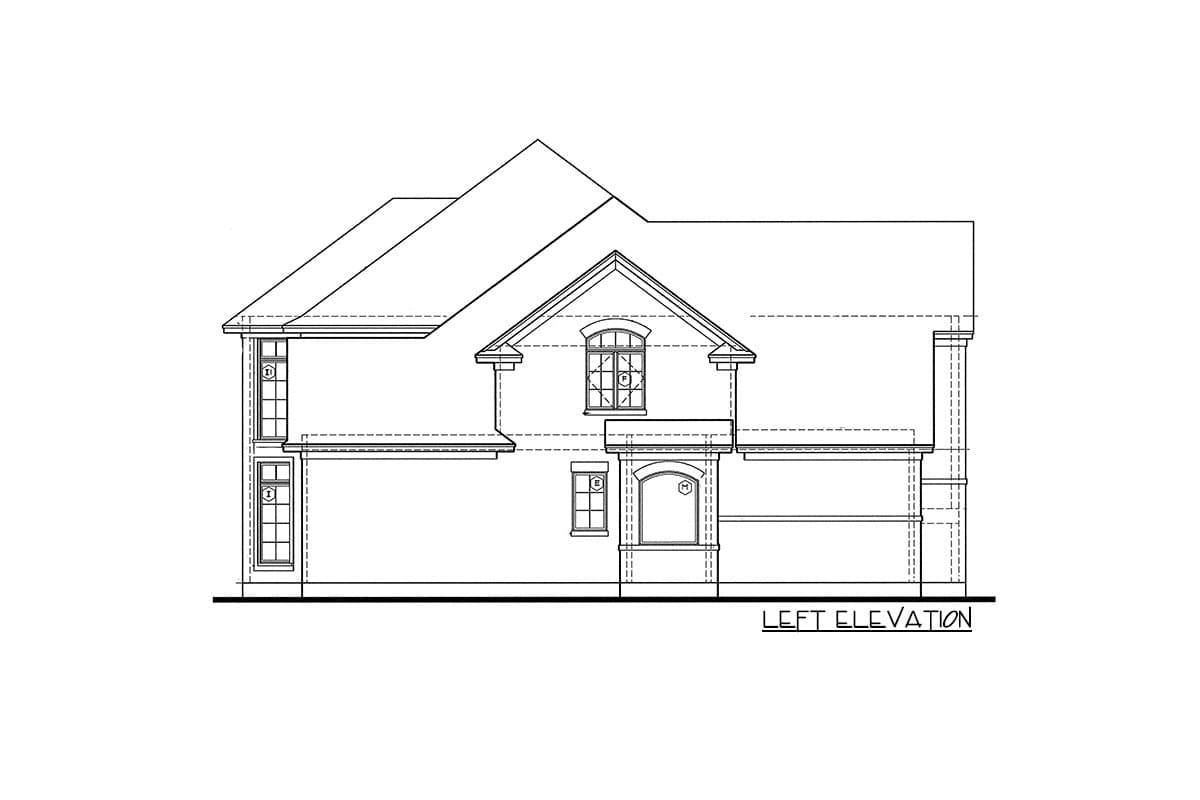

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Stately Design

  • 2,237

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 2,237 sq. ft.
  • 1st Floor: 1,776 sq. ft.
  • 2nd Floor: 461 sq. ft.

Dimensions

  • Width: 63' 3"
  • Depth: 48' 7"
  • Max ridge height: 30' 5"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 531 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
