Plan 4059DB
Stately Design With Lots of Glass
Heated S.F.
1,984
Beds
3
Baths
2.5
Stories
2
Cars
2
What's Included
Plan Details
  • With its hipped roof lines, arched windows and stone and stucco facade, this design projects stateliness, particularly for a home this size. The impressive entry includes lots of glass, shedding light into the 18-foot-high foyer.
  • The front-facing formal dining room is located to one side of the foyer. Straight back, the spacious living room is made special by its 18-foot ceiling, corner fireplace and light-filled bay window. The adjacent breakfast room is open to the kitchen with its pantry closet and angled eating bar.
  • The super-luxurious master suite features a tray ceiling in the bedroom. A good-sized walk-in closet is accessed from the master bath with its commode closet, twin sinks separated by knee space, walk-in shower with seat and garden tub in a bay.
  • Upstairs, a balcony overlooks the living room below. Bedrooms two and three, both with special ceiling treatments, share a four-fixture bath in the hall. Ample room for expansion is found in two bonus spaces, one of which is 248 sq.ft.
  • Foundation options: basement or slab.
What's Included
  • General Notes

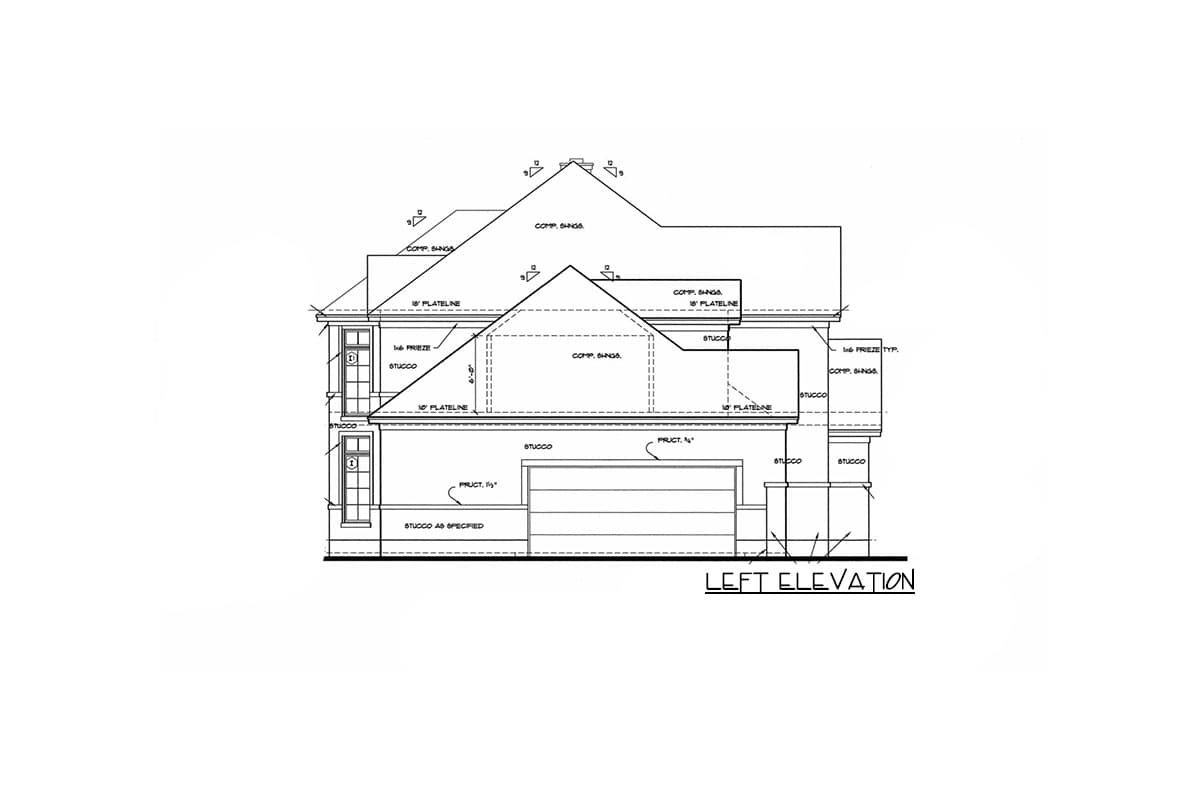

  • Front, Rear, Left, Right Elevations
  • Roof Plan - Birds Eye View
  • Foundation plan, Wall Section, Stair Section
  • Main Level Floor Plan
  • Second Level Floor Plan (if applicable)
  • Electrical Plan (showing fixtures, switches, outlets)
  • *Some plans include cabinet elevations. Please contact us for more information.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Stately Design With Lots of Glass

  • 1,984

    Heated s.f.

  • 3

    Beds

  • 2.5

    Baths

  • 2

    Floors

  • 2

    Car garage

Floor Plan

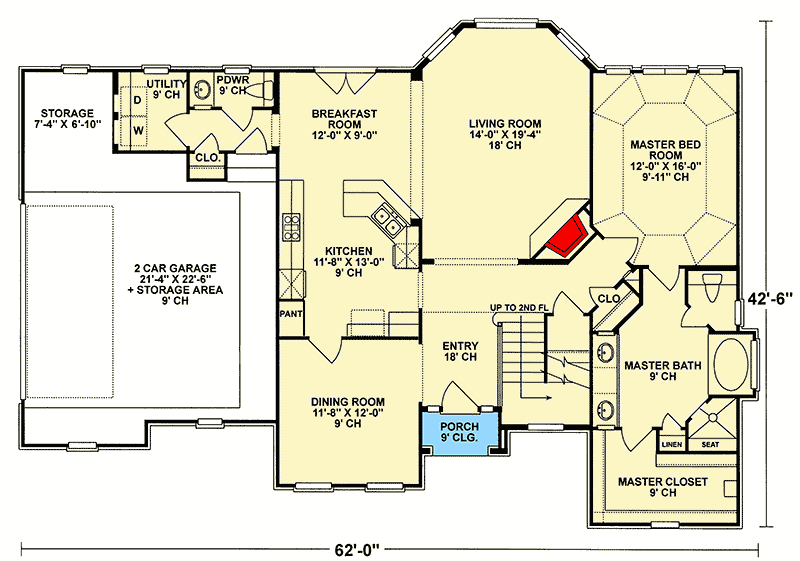

  • Main Level

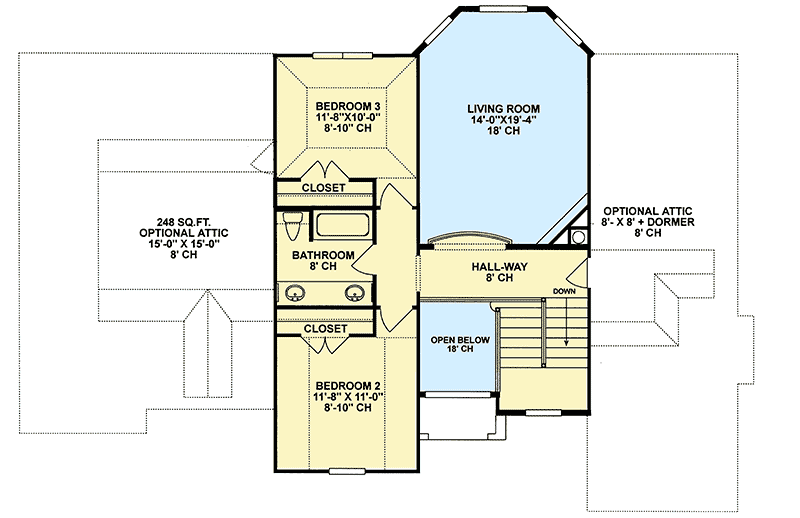

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total: 1,984 sq. ft.
  • 1st Floor: 1,487 sq. ft.
  • 2nd Floor: 497 sq. ft.

Dimensions

  • Width: 62' 0"
  • Depth: 42' 6"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 584 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Slab
    • Optional Foundations: Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Secondary Pitch: 12 on 12
  • Framing Type: Stick
