Plan 59519ND

Stately Elegance

Heated S.F.
3,818
Beds
3 - 5
Baths
4.5
Stories
2
Cars
2

Floor Plan

Plan 59519ND

Main Level
Main Level
2nd Floor
2nd Floor

Plan 59519ND

M-F 9am-5pm EST |

1-203-761-8500

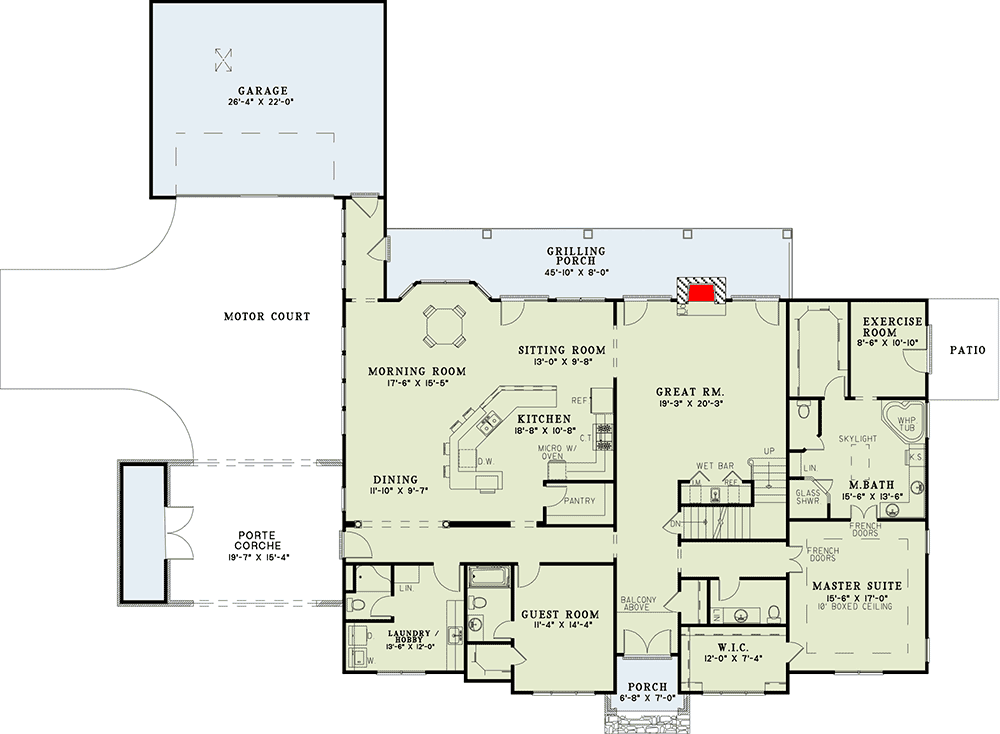

Main Level

Plan 59519ND: Stately Elegance - Floor Plan - Main Level - Traditional

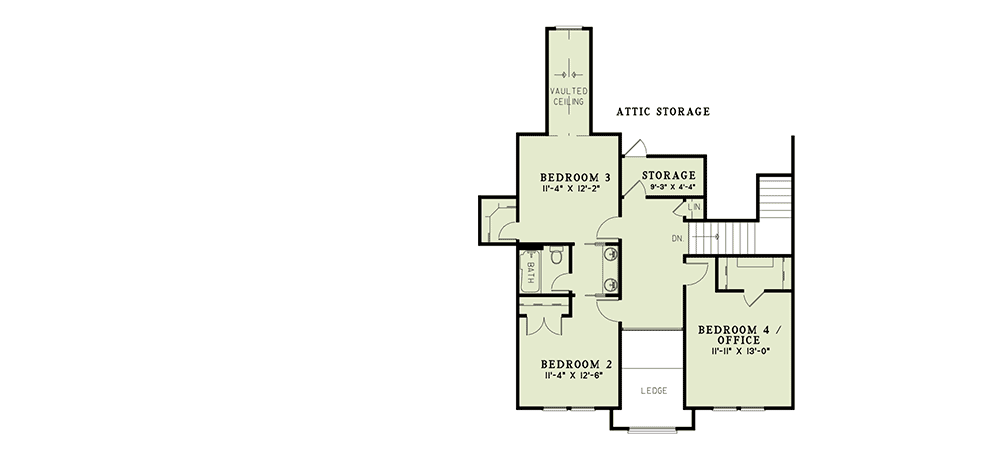

2nd Floor

Plan 59519ND: Stately Elegance - Floor Plan - 2nd Floor - Traditional

Plan Details

  • From the traditional porte corchere and motor court to the eloquent and modern master suite, no detail has been overlooked in this splendid house plan.
  • The great room harbors a majestic fireplace tucked between two stylish entries to the expansive grilling porch.
  • The functional kitchen features a large walk-in pantry and easily serves the adjoining sitting room, bright morning room with a beautiful bay window and formal dining room.
  • Behind two lovely sets of French doors, the sky-lit master suite offers an exercise room and private patio in addition to the spacious bath.

What's Included

  • Foundation Plan (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • Roof plan (bird's eye view of roof showing pitches, ridges and valleys
  • An electrical diagram showing a bird's-eye view of rooms with lights, fans to switches
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,818 sq. ft.

1st Floor

2,967 sq. ft.

2nd Floor

851 sq. ft.

Porch, Combined

432 sq. ft.

Beds/Baths

Bedrooms

3, 4, or 5

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl, Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

88' 8"

Depth

81' 4"

Max Ridge Height

32' 9"

Garage

Type

Attached

Area

990 sq. ft.

Count

2 Cars

Entry Location

Rear

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

12 on 12

Secondary Pitch

12 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Formal Dining

Jack & Jill Bath

Master Suite - 1st Floor

Porte Cochere
