Plan 59113ND

  • 2,784

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Stories

  • 3

    Cars

  • The stately exterior of this home plan opens to a spacious and well-organized interior.
  • The foyer, highlighted by graceful columns, separate the formal living and dining areas. Build-in bookshelves and media center surround the great room's elegant fireplace. Stylish Atrium doors provide access to the grilling porch.
  • Privacy is not an issue as all three secondary bedrooms offer walk-in closets and private bath entrances.
  • The master suite features a sumptuous bath with corner whirlpool tub and separate shower.

Each plan set includes the following:

  • Foundation Plan** (1/4″ or 1/2″ = 1′)
  • Floor Plans (1/4″= 1′)
  • Set of Elevations (1/4″= 1′)
  • Building Sections (1/4″ or 1/2″ = 1′)
  • Kitchen and Bath Elevations (1/2″ = 1′)
  • Miscellaneous Details (3/4″ = 1′)
  • An electrical diagram showing a Birdseye view of rooms with lights, fans to switches

Floor Plan

Plan details

Architectural Style



Stately Home

  • 2,784

    Heated s.f.

  • 4

    Beds

  • 3

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $640
  • 5 Sets $730
  • 8 Sets $870
  • Reproducible Set $1,340
  • PDF - single-use $1,340
  • CAD $2,065
  • View all purchase option online

About This Plan

  • The stately exterior of this home plan opens to a spacious and well-organized interior.
  • The foyer, highlighted by graceful columns, separate the formal living and dining areas. Build-in bookshelves and media center surround the great room's elegant fireplace. Stylish Atrium doors provide access to the grilling porch.
  • Privacy is not an issue as all three secondary bedrooms offer walk-in closets and private bath entrances.
  • The master suite features a sumptuous bath with corner whirlpool tub and separate shower.

Floor Plans

  • Main Level

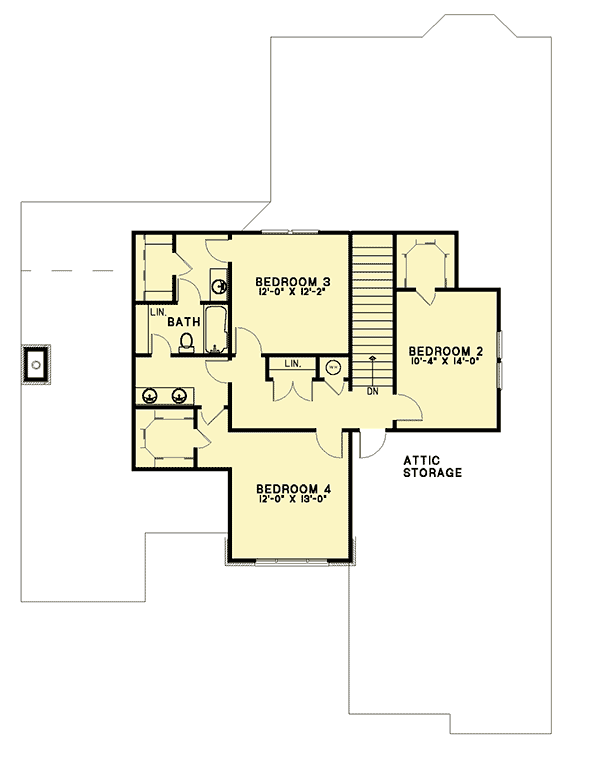

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,784 sq. ft.
  • 1st Floor: 1,895 sq. ft.
  • 2nd Floor: 889 sq. ft.
  • Porch, Rear: 255 sq. ft.
  • Entry: 48 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 2
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl, Daylight, Slab
    • Optional Foundations: Basement, Walkout

Exterior Walls

  • Standard Type(s): 2x4
  • Optional Type(s): 2x6

Dimensions

  • Width: 54' 2"
  • Depth: 73' 6"
  • Max ridge height: 28' 6"

Garage

  • Type: Attached
  • Area: 1426 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 10 on 12
  • Framing Type: Stick

Architectural Style

  • Traditional

Special features

  • 1st Floor Master Suite
  • CAD Available
