Plan 36334TX

Stately Manor Home Plan

4,171 4 4 2 2
Pageloader

Stately Manor Home Plan

Plan 36334TX

  • 4,171

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 2

    Cars

  • Just 50' wide, this stately manor home nevertheless looks as though it belongs in Europe.

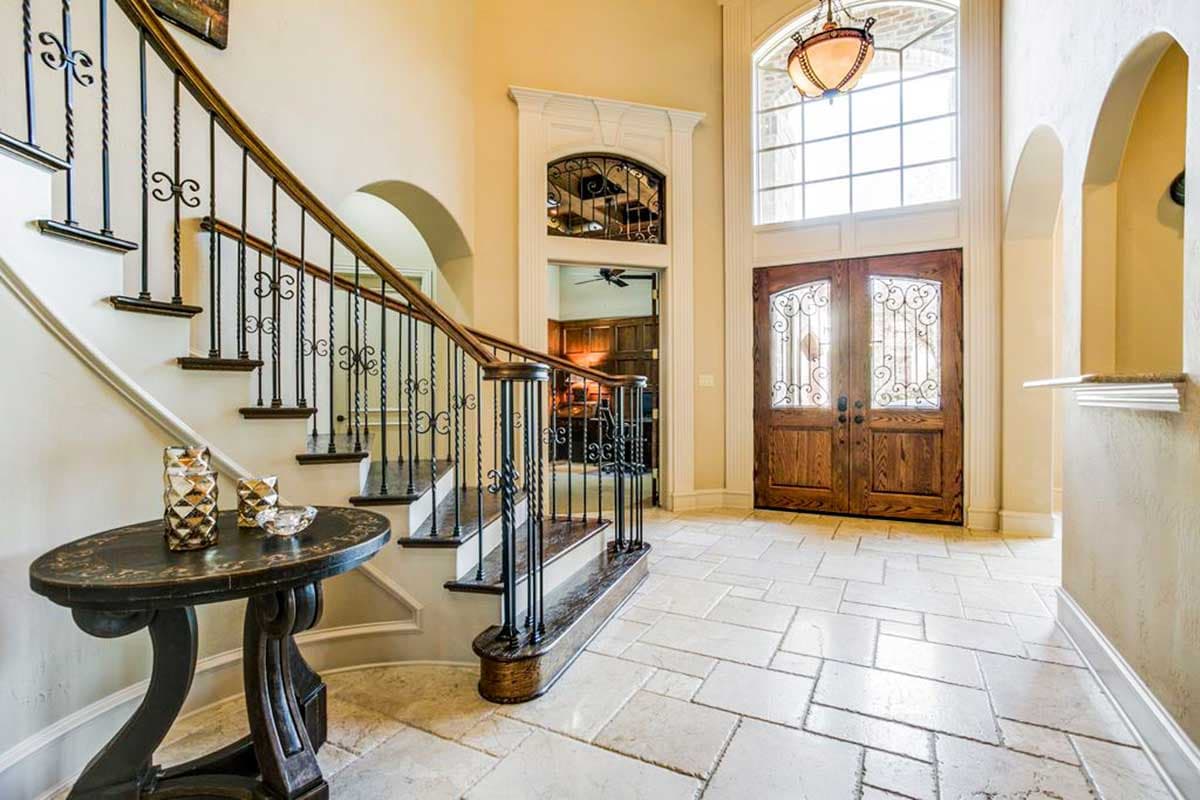

  • Inside, a 21' high ceiling in the foyer creates a dramatic first impression.

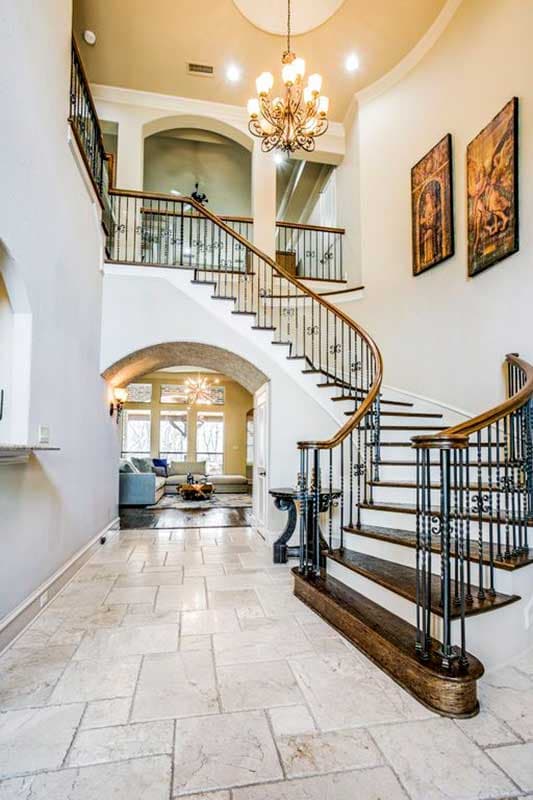

  • A sweeping staircase curves up to the second floor where you find three bedrooms and a wonderful game room with balcony access.
  • Homeowners won't have to climb stairs though to reach their fabulous retreat.

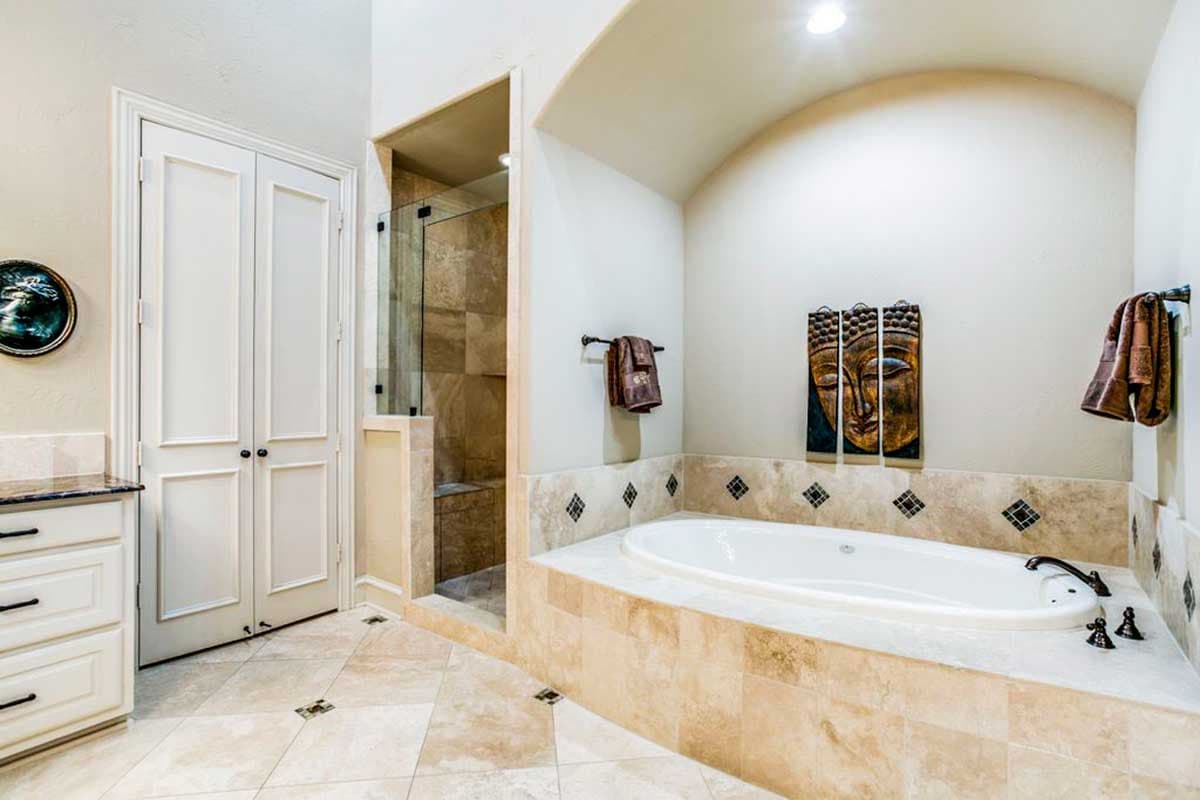

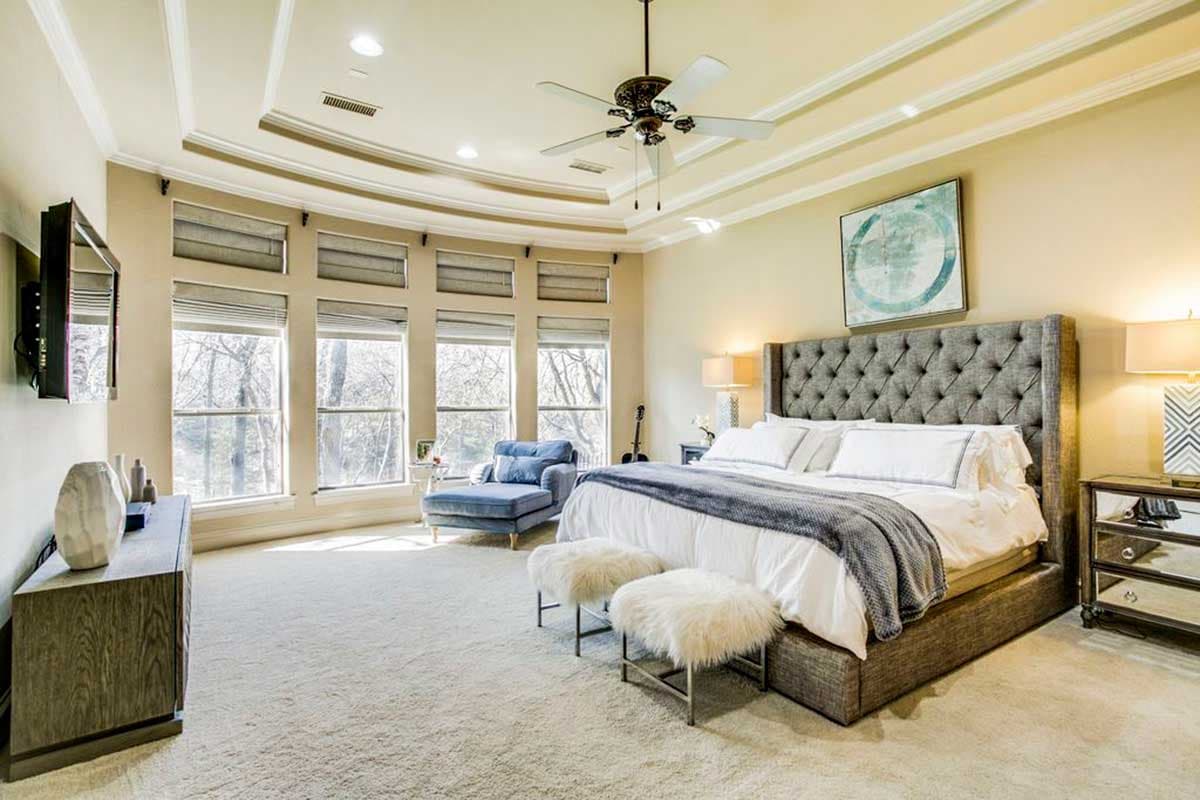

  • Located on the first floor, the master suite with tray ceiling has a massive walk-in closet that opens directly to the laundry room for the ultimate in convenience.

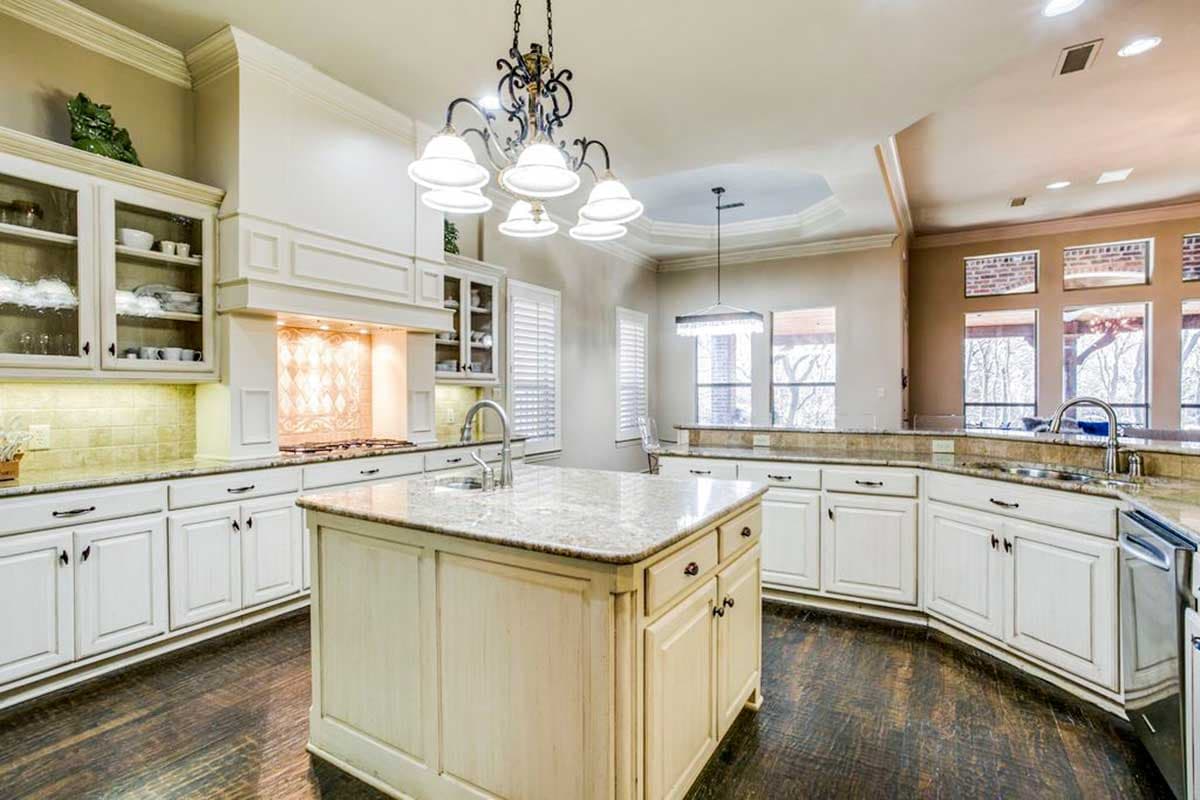

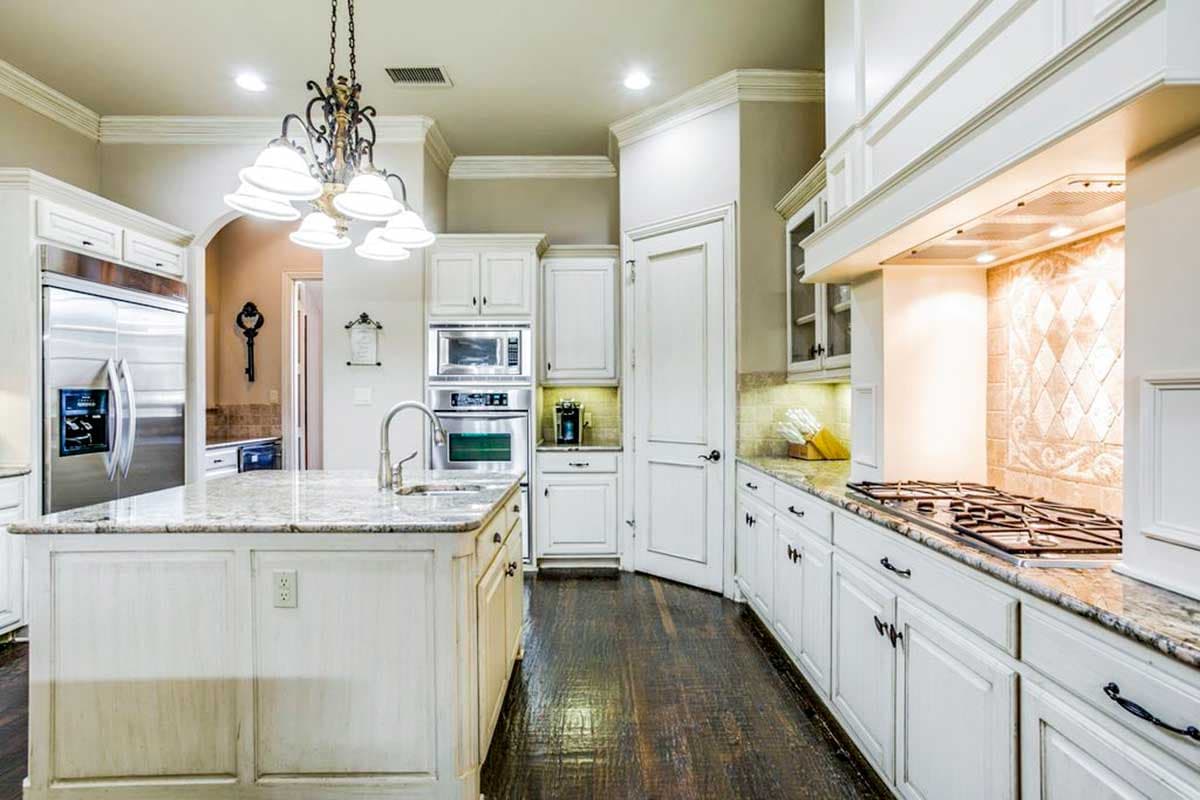

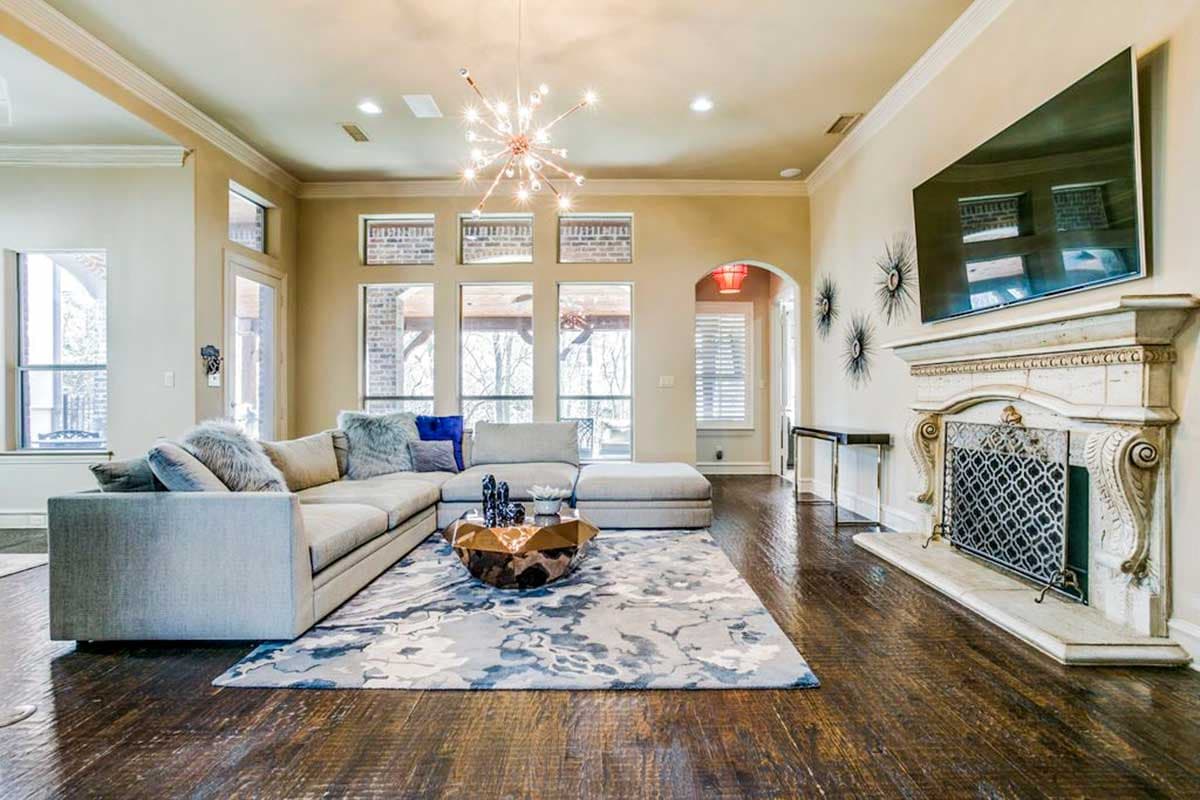

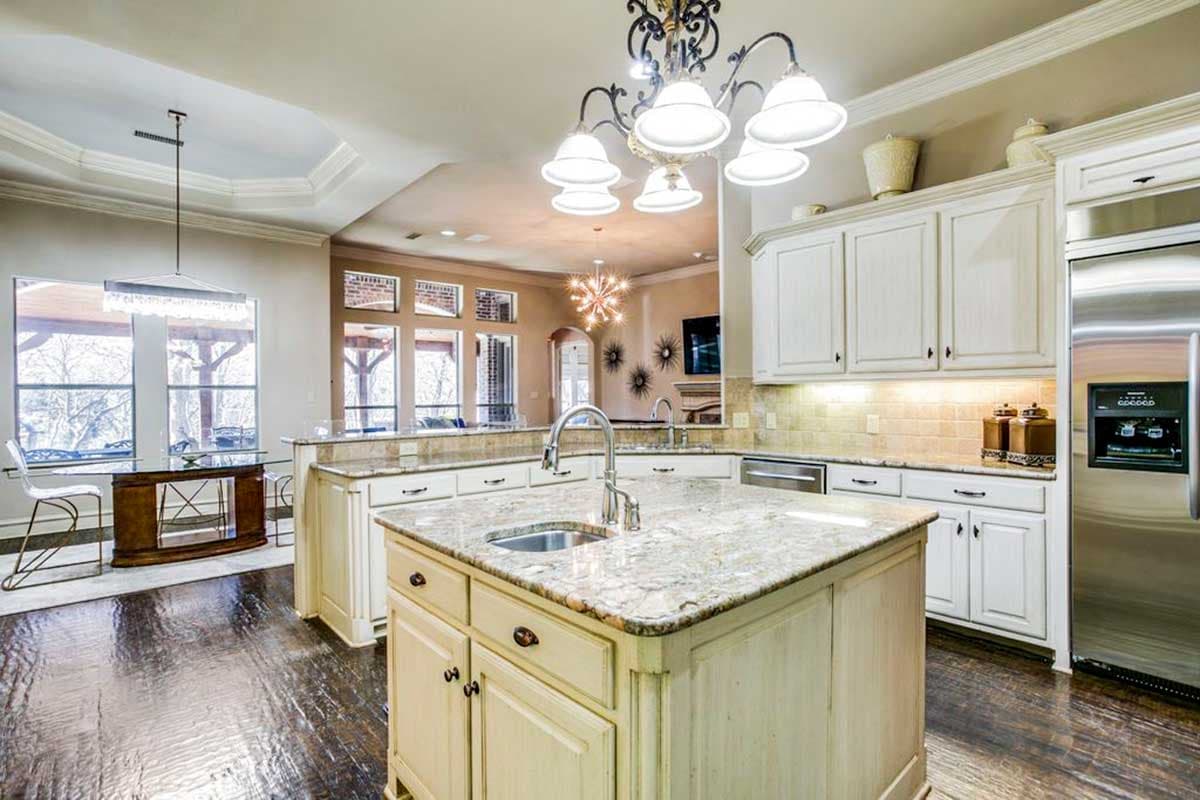

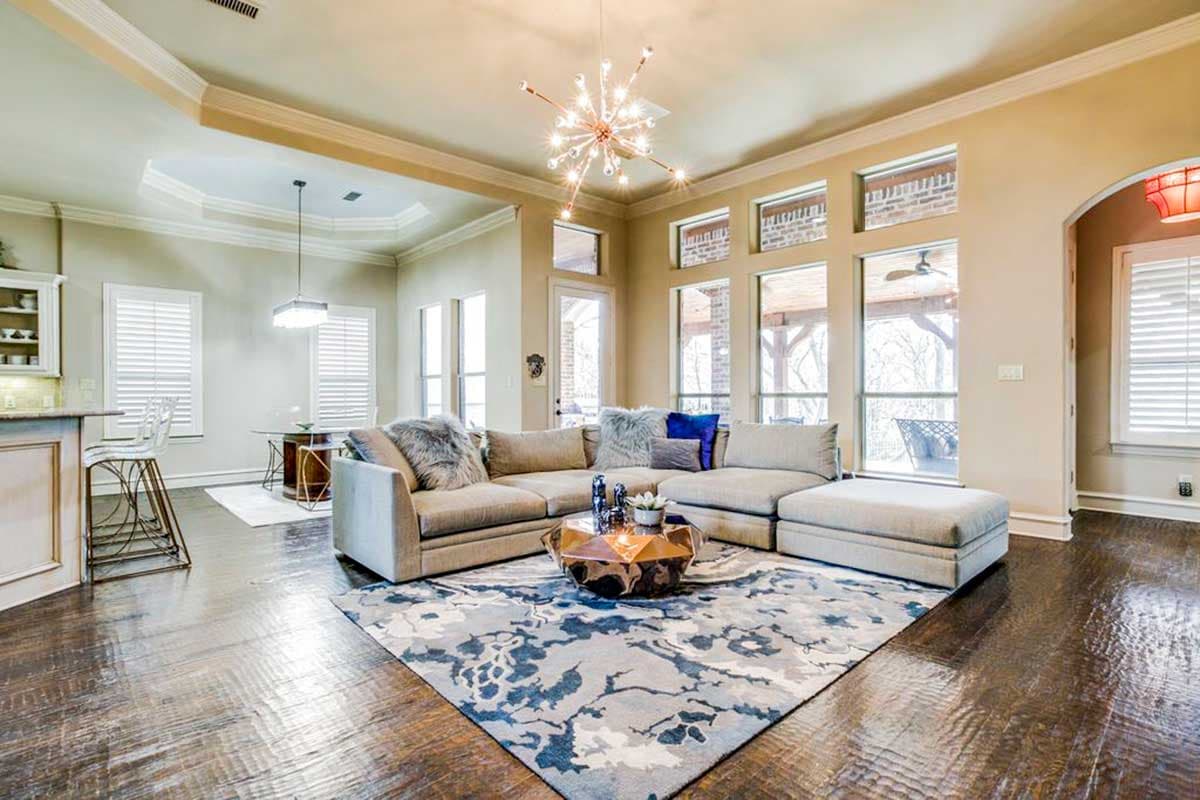

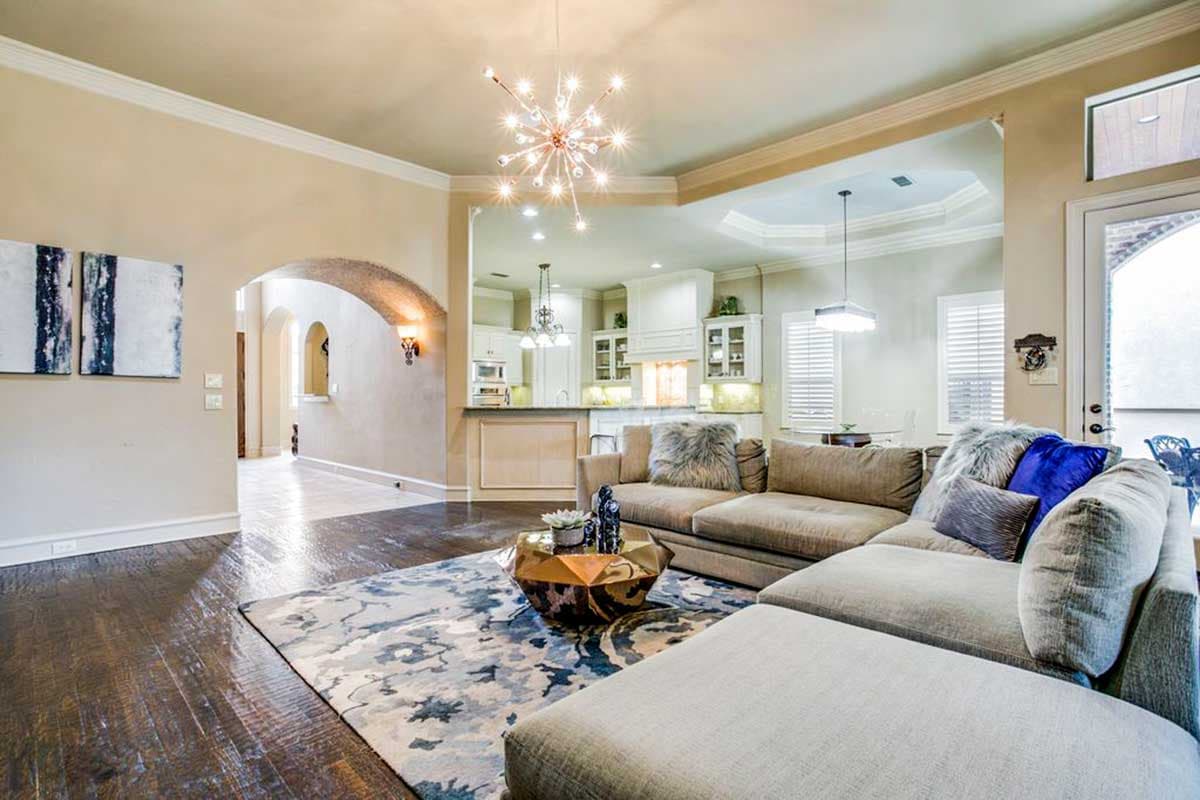

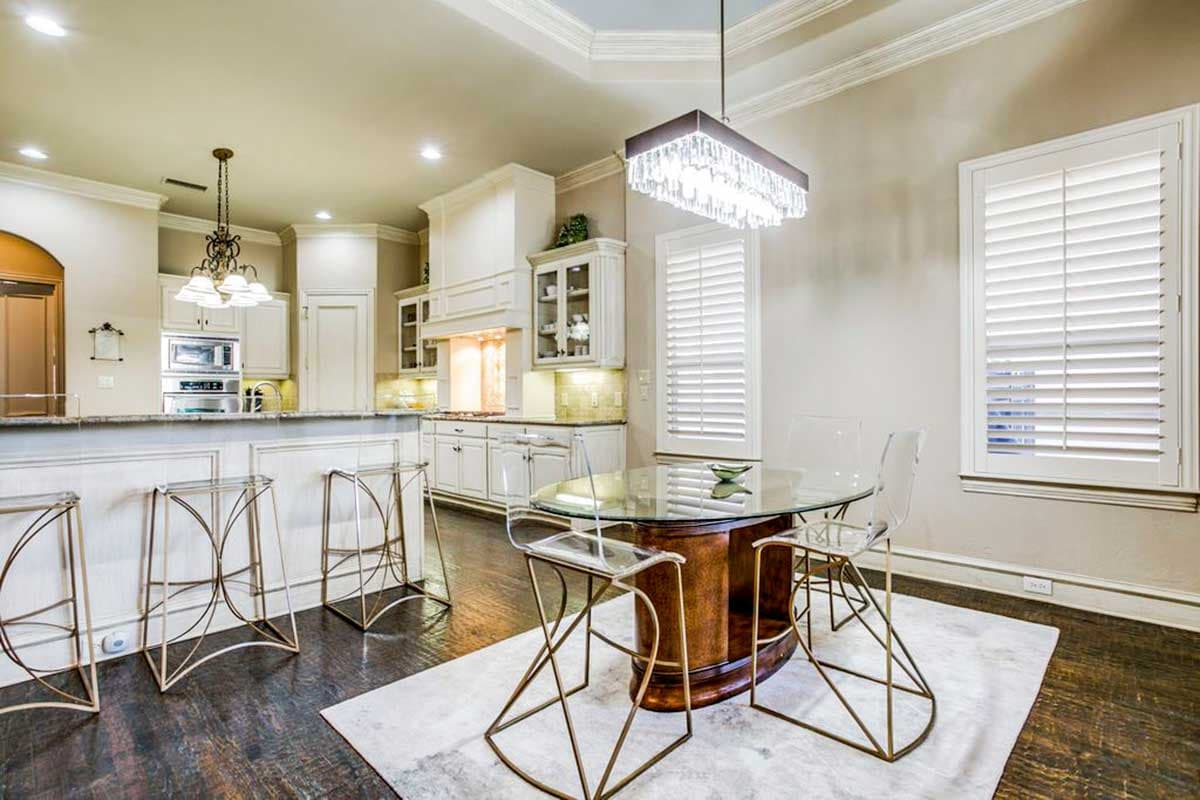

  • Your family and friends will love spending time in the informal area with the family room, Kitchen and breakfast nook all open to each.

Plan set includes the following:


1.       Cover sheet

2.       Foundation Plan

3.       First floor fully dimensioned floor plan with notes - All requisite aspects of the floor plan are precise, though the details of flooring material and non-structural aesthetics are left to the discretion of the buyer.

4.       Second floor fully dimensioned floor plan with notes - Exact flooring materials, appliance selection and non-structural aesthetics are left to the discretion of the buyer.

5.       First floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

6.       Second floor lighting and electrical plan - On this sheet you have a schematic of the lights, electrical plugs, phone locations, and code items such as smoke detectors.

7.       Front & rear elevations with notes-detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

8.       Left and right elevations with notes - detailed drawings of the left and right sides of the home along with any notes and exterior dimensions that may be required to complete construction. The elevations show the contractor's exterior materials, general architectural design intent, types of openings and other details. All of our elevations are drawn to ¼ scale.

9.       Roof plan - This sheet roof plan is an integral piece of a well-designed set of elevations. Roof cuts are shown to demonstrate how the architectural design is intended to make the elevation aesthetically pleasing to the eye.

10.   Sections page - NOT all of our house plans include sections because they may not have been required with the original design.

11.   Standard detail sheets on construction. These sheets are used to cover a broad range of many everyday situations that may occur on a construction site. The detail sheets are current and accurate to the area and time of which the house was originally designed.

Floor Plan

Plan details



Stately Manor Home Plan

  • 4,171

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 2

    Car garage

Buy This Plan
  • PDF - single-use $1,515
  • 5 Sets $1,715
  • CAD $2,275
  • View all purchase option online

About This Plan

  • Just 50' wide, this stately manor home nevertheless looks as though it belongs in Europe.
  • Inside, a 21' high ceiling in the foyer creates a dramatic first impression.
  • A sweeping staircase curves up to the second floor where you find three bedrooms and a wonderful game room with balcony access.
  • Homeowners won't have to climb stairs though to reach their fabulous retreat.
  • Located on the first floor, the master suite with tray ceiling has a massive walk-in closet that opens directly to the laundry room for the ultimate in convenience.
  • Your family and friends will love spending time in the informal area with the family room, Kitchen and breakfast nook all open to each.

Floor Plans

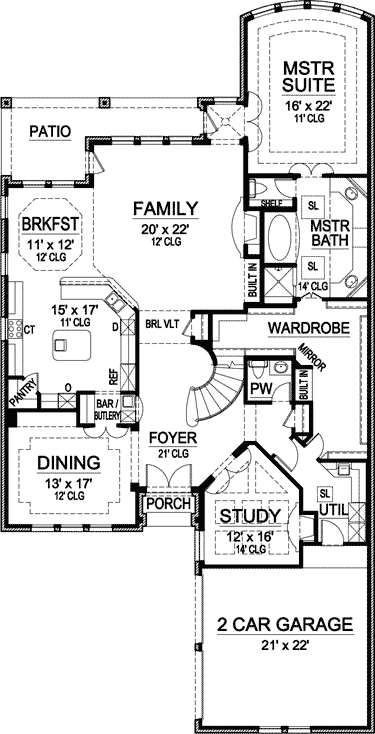

  • Main Level

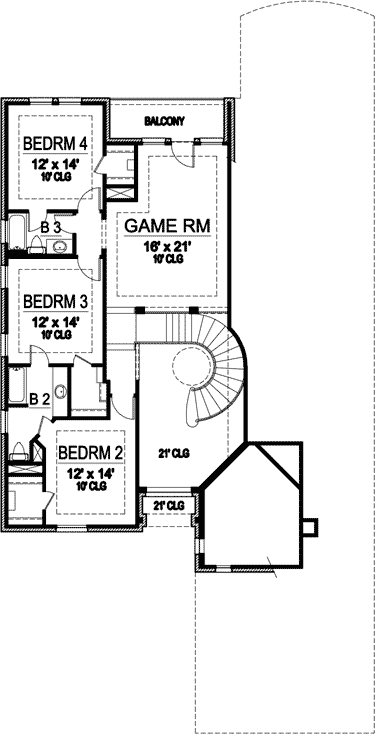

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,171 sq. ft.
  • 1st Floor: 2,890 sq. ft.
  • 2nd Floor: 1,281 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 0"
  • Depth: 97' 0"
  • Max ridge height: 35' 0"

Garage

  • Type: Attached
  • Area: 545 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 12' 0" Second Floor / 9' 0"

Architectural Style

  • European
  • French Country
  • Traditional
  • Tuscan

Special features

  • 1st Floor Master Suite
  • Butler Walk-in Pantry
  • CAD Available

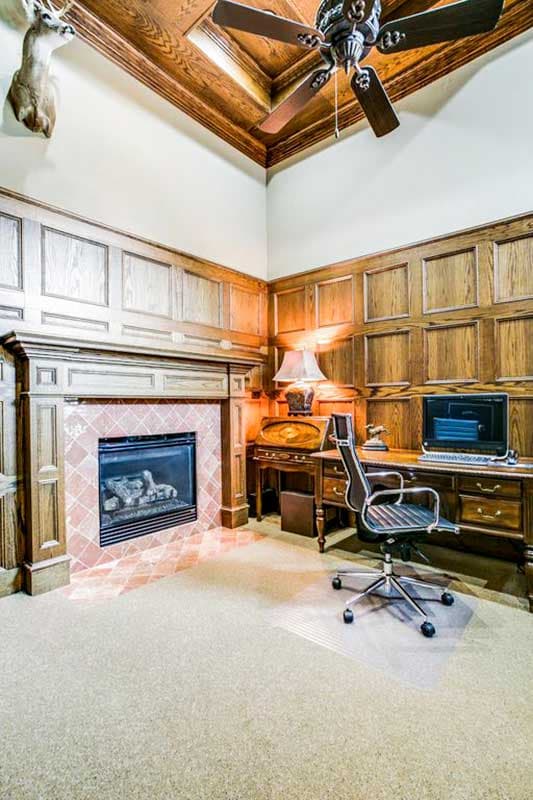

  • Den-Office-Library-Study
  • Jack & Jill Bath
  • Media-Game-Home Theater
  • PDF
