Plan 17531LV

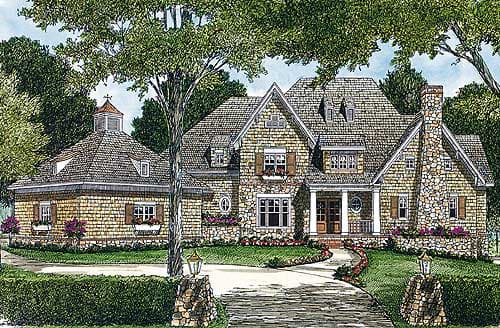

Stone Accents and Steep Gables

Heated S.F.
7,027
Beds
5
Baths
5.5+
Stories
2
Cars
3

Floor Plan

Plan 17531LV

Basement
Basement
Main Level
Main Level
2nd Floor
2nd Floor

Plan 17531LV

M-F 9am-5pm EST |

1-203-761-8500

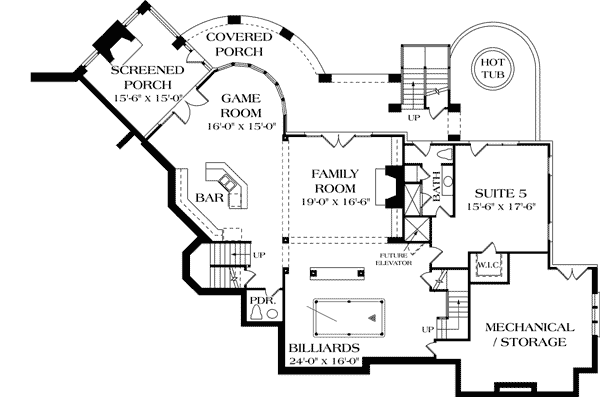

Basement

Plan 17531LV: Stone Accents and Steep Gables - Floor Plan - Basement - Craftsman, Mountain

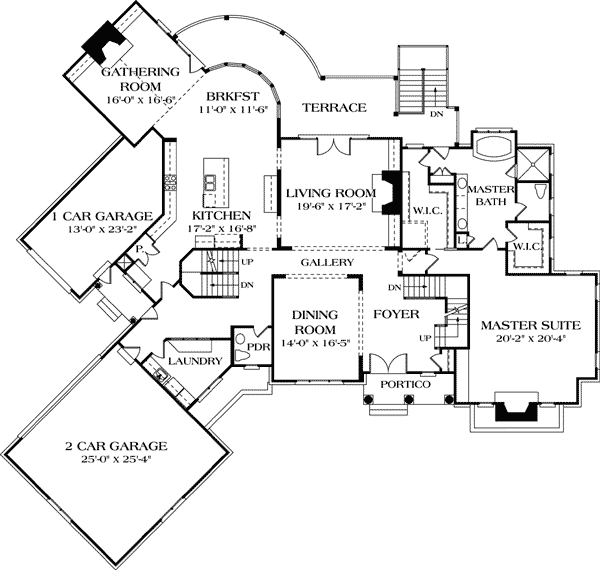

Main Level

Plan 17531LV: Stone Accents and Steep Gables - Floor Plan - Main Level - Craftsman, Mountain

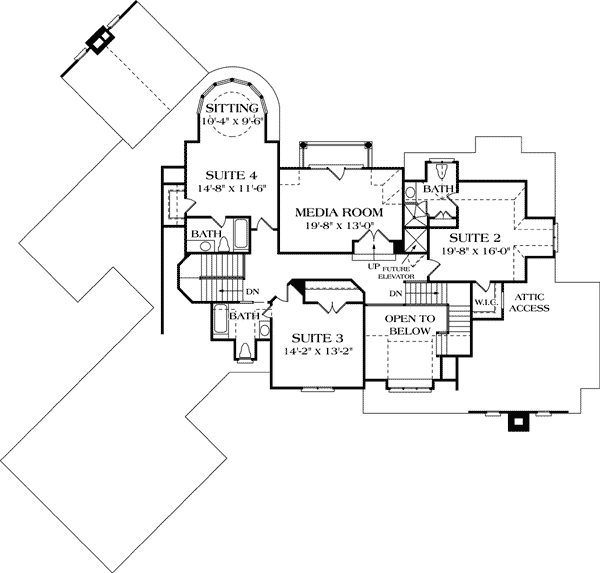

2nd Floor

Plan 17531LV: Stone Accents and Steep Gables - Floor Plan - 2nd Floor - Craftsman, Mountain

Plan Details

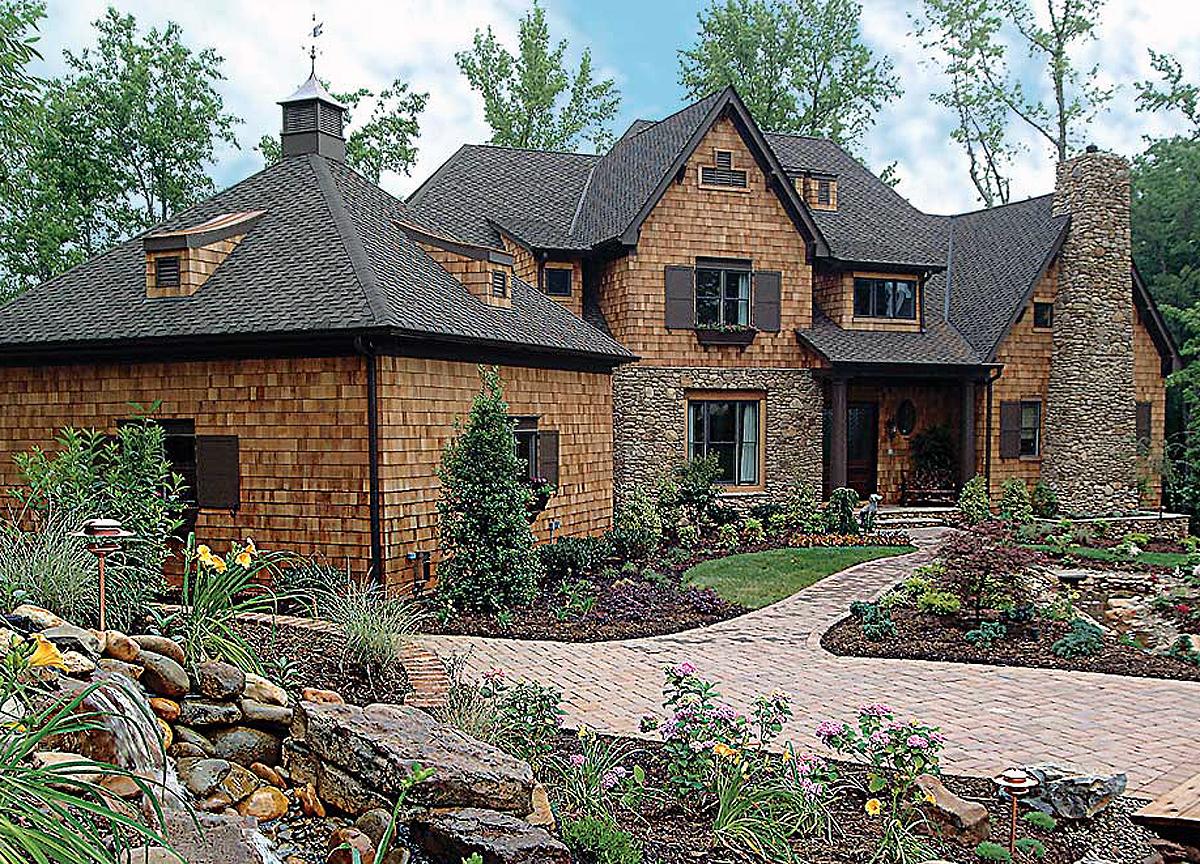

  • Stone accents and steep gables bring a distinctive curb appeal to this design.
  • This home offers formal as well as informal gathering areas for those who enjoy entertaining.
  • The basement is equipped with a large game room, lower level family room and an additional suite with access to an outdoor patio and hot tub.

What's Included

  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

7,027 sq. ft.

Lower Level

2,135 sq. ft.

1st Floor

3,203 sq. ft.

2nd Floor

1,689 sq. ft.

Beds/Baths

Bedrooms

5

Full bathrooms

5

Half bathrooms

2

Foundation Type

Standard Foundations

Walkout

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

96' 9"

Depth

91' 10"

Garage

Type

Attached

Area

978 sq. ft.

Count

3 Cars

Entry Location

Side, Rear

Ceiling Heights

First Floor

10'

Second Floor

9'

Architectural Style

Craftsman

Mountain

Special Features

Angled Garage

Game/Rec Room

In-Law Suite

Jack & Jill Bath

Master Suite - 1st Floor

Multiple Stairs

Plan Collections

Luxury

Photo Gallery

Premium Collection
