Stone-clad Bungalow with 3-Bed Basement Apartment

Plan 61394UT

  • 1,545

    Heated s.f.

  • 2-5

    Beds

  • 2 - 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • Stone and stucco adorn the exterior of this charming Bungalow that delivers 1,545 square feet of living space and an optional basement apartment with 3 bedrooms, laundry, and a full kitchen.
  • The living space on the main level is open and presents an angled island with four seats for casual meals and conversation, and sliding doors off the dining area lead to the back yard.
  • The master bedroom resides behind the double garage and is accompanied by a 5-fixture bathroom and walk-in closet.
  • A second bedroom can be found near the entryway, next to a full bathroom.
  • Above the garage, a 330 square foot bonus room offers a versatile space to update as your needs evolve.

Each plan set includes the following:


  • General notes
  • Foundation plan
  • Detailed floor plans
  • Floor framing
  • Roof framing

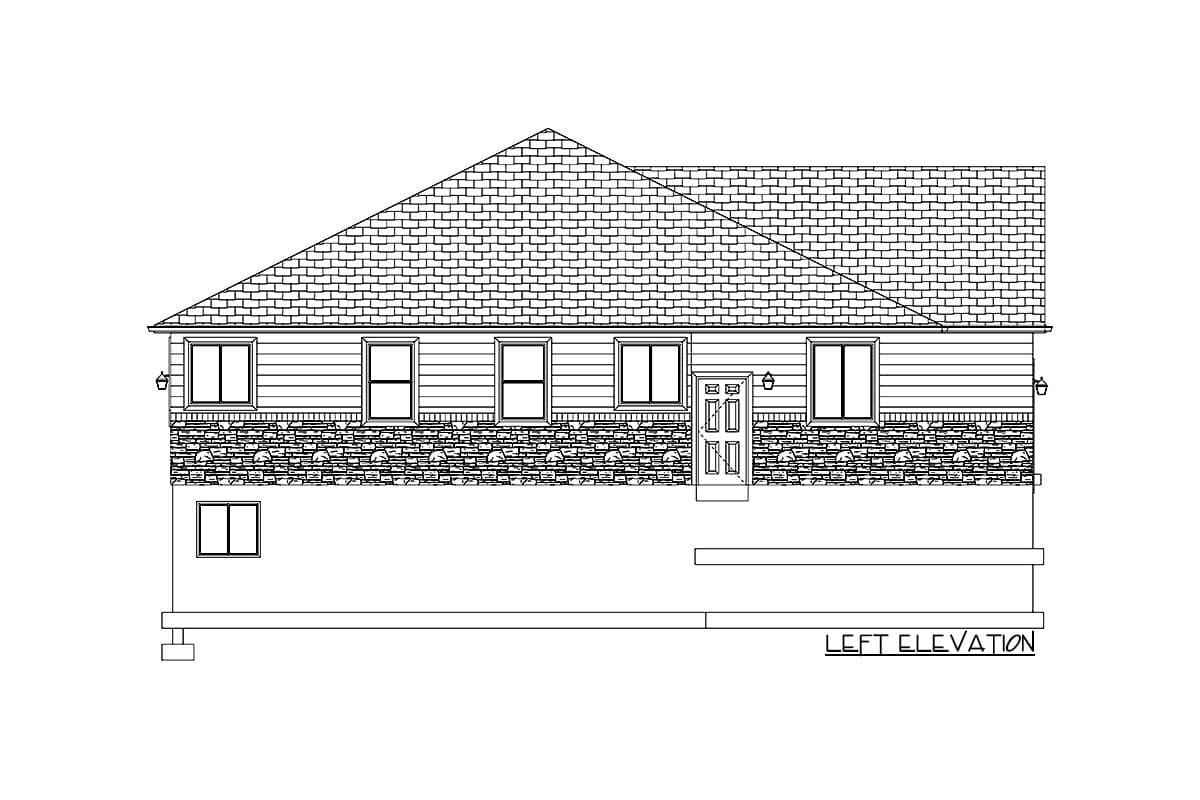

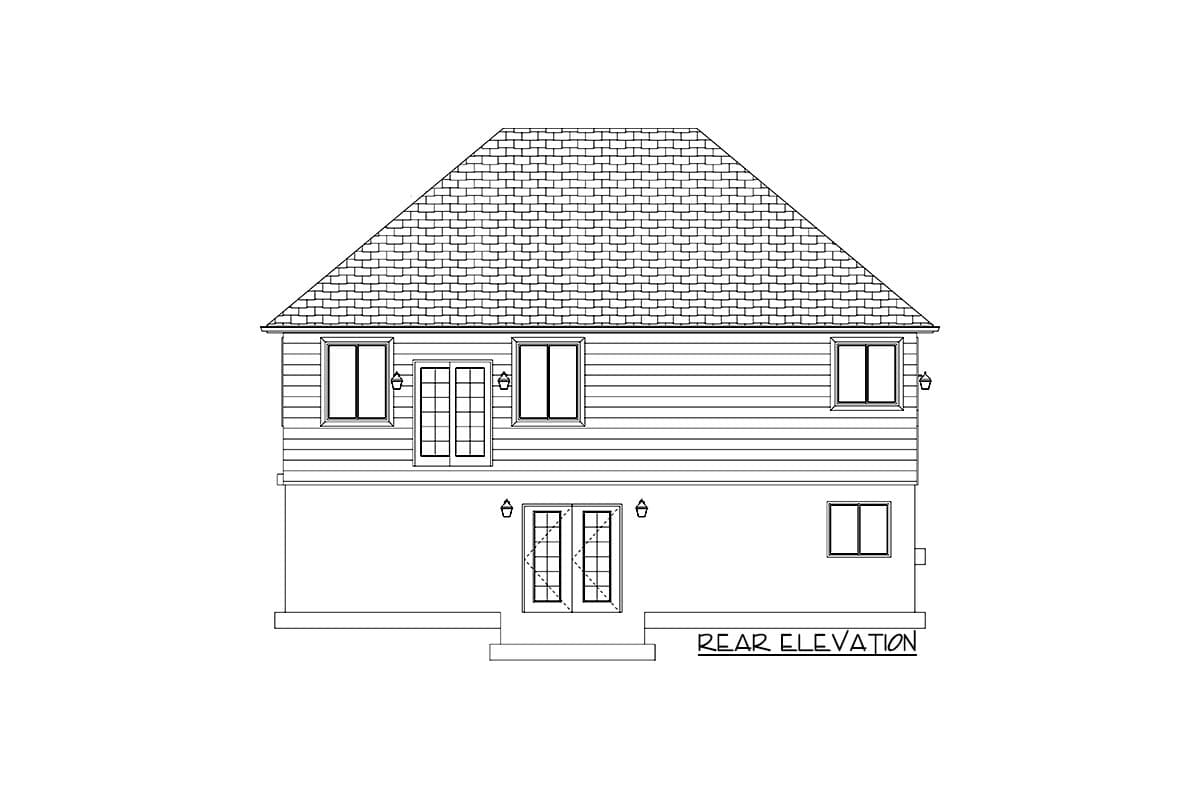

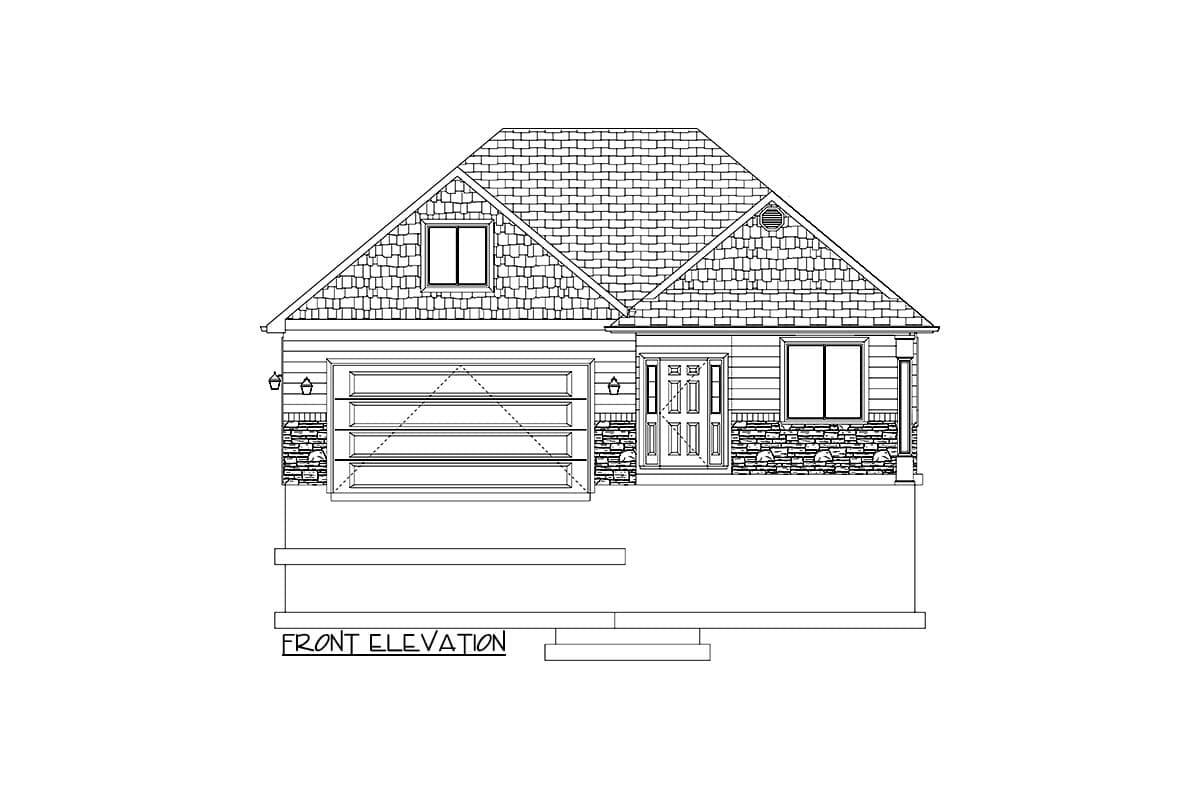

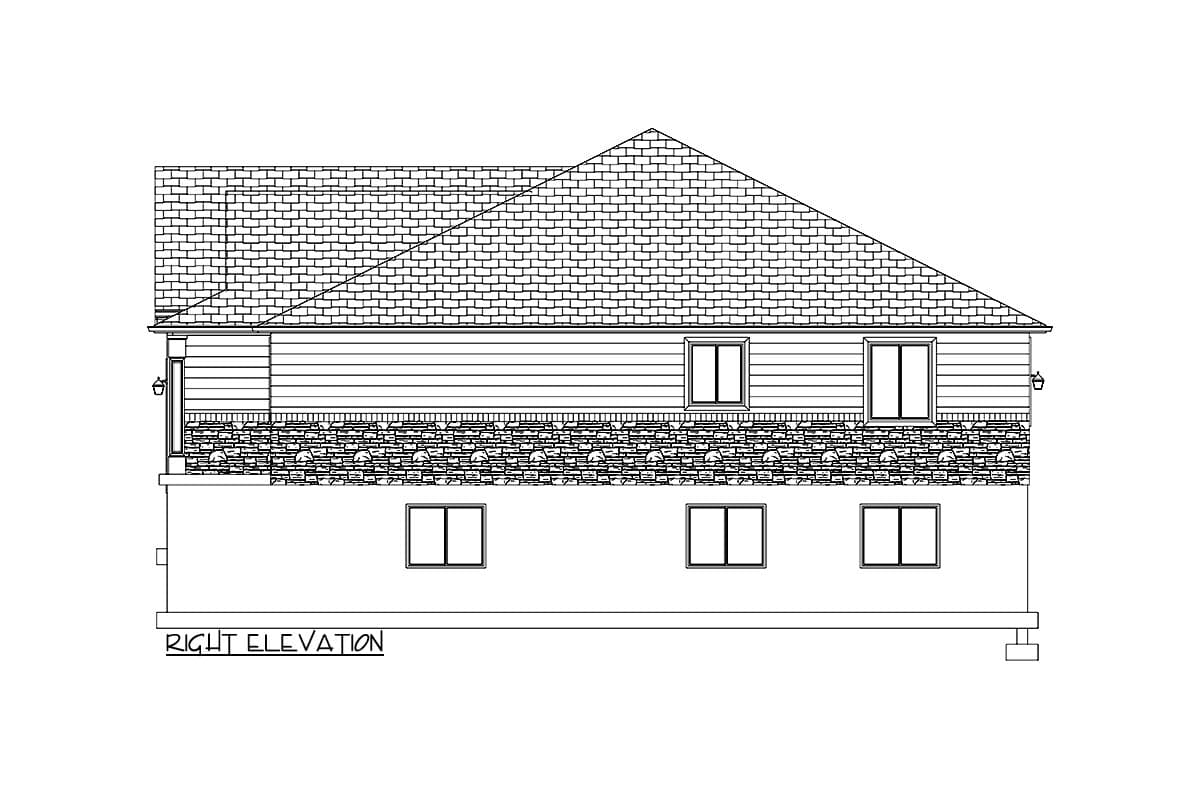

  • Elevations: front, left, rear, right
  • Cross sections
  • Electrical plans
  • General details
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

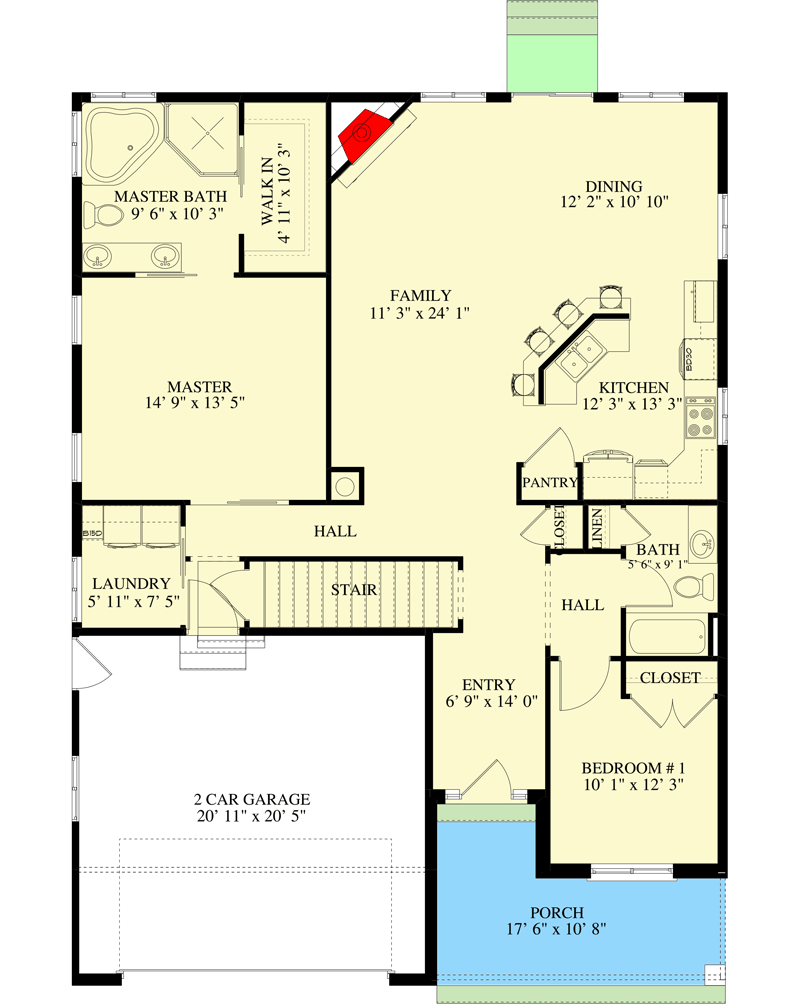

Stone-clad Bungalow with 3-Bed Basement Apartment - 61394UT floor plan - Main Level

Bonus

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

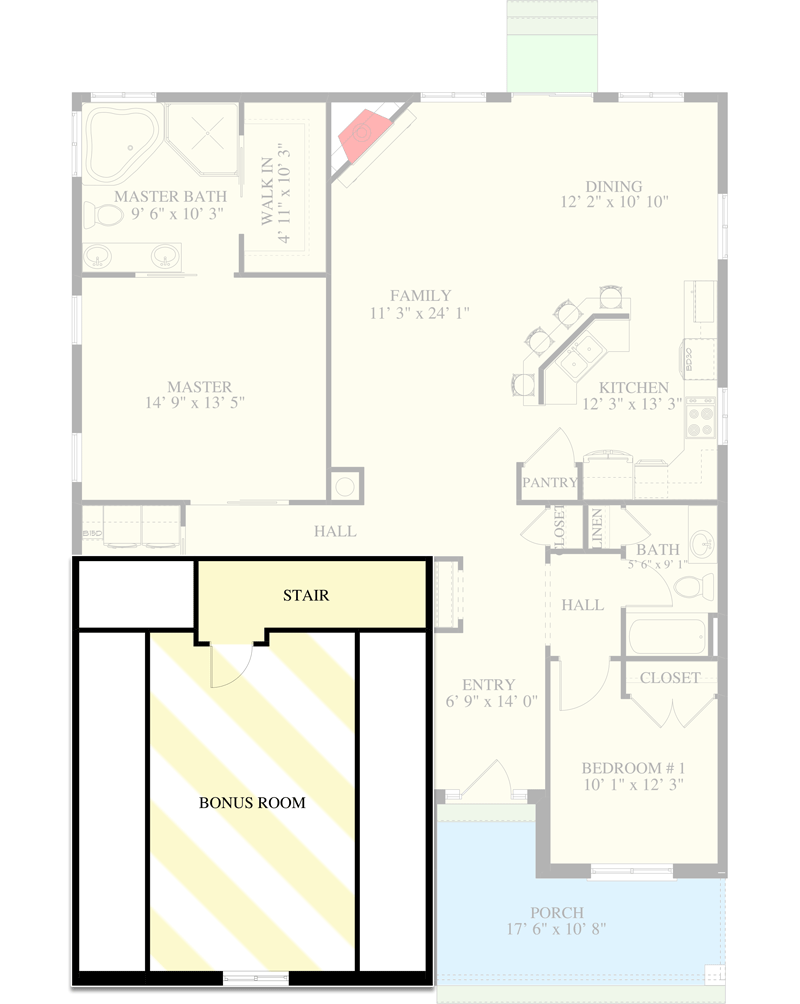

Stone-clad Bungalow with 3-Bed Basement Apartment - 61394UT floor plan - Bonus

Lower Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

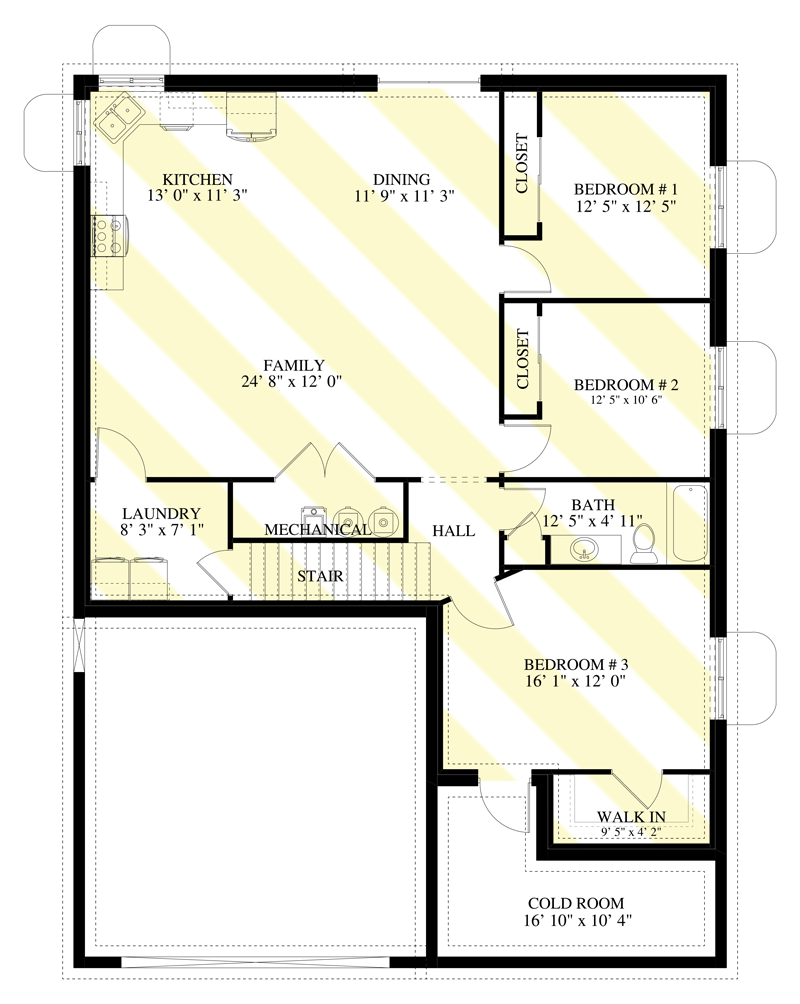

Stone-clad Bungalow with 3-Bed Basement Apartment - 61394UT floor plan - Lower Level

Plan details

Square Footage Breakdown

  • Total Heated Area: 1,545 sq. ft.
  • 1st Floor: 1,545 sq. ft.
  • Porch, Front: 135 sq. ft.
  • Bonus: 330 sq. ft.
  • Optional Lower Level: 1,680 sq. ft.

Beds/Baths

  • Bedrooms: 2, 3, 4, or 5
  • Full bathrooms: 2 or 3

Foundation Type

  • Standard Foundations: Walkout
  • Optional Foundations: Stem Wall, Monolithic Slab, Daylight, Crawl, Basement

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 39' 6"
  • Depth: 54' 0"
  • Max ridge height: 22' 5"

Garage

  • Type: Attached
  • Area: 465 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 8' 0" First Floor / 9' 0" Second Floor / 8' 0"

Roof Details

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss

Architectural Style
