Plan 280074JWD
Striking New American House Plan with Bonus Room above Garage
Heated S.F.
2,598
Beds
2-3
Baths
2.5
Stories
1
Cars
2
What's Included
Plan Details
  • Cool exterior tones set the scene for this striking, New American house plan, complete with a raised-seam metal roof.
  • Double doors part to grant access inside, where a formal dining room is located to the right. The great room and kitchen are open to one another, creating an ideal space for family and friends to gather.
  • A built-in breakfast nook boosts character, and sits across from a walk-in pantry. Retreat to the back porch for fresh air, or relax outdoors when entertaining.
  • The master bedroom is privately situated behind the double garage, and includes a 5-fixture bath and walk-in closet.
  • Bedrooms 2 and 3 share a hall bath, next to a linen closet.
What's Included

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Striking New American House Plan with Bonus Room above Garage

  • 2,598

    Heated s.f.

  • 2-3

    Beds

  • 2.5

    Baths

  • 1

    Floors

  • 2

    Car garage

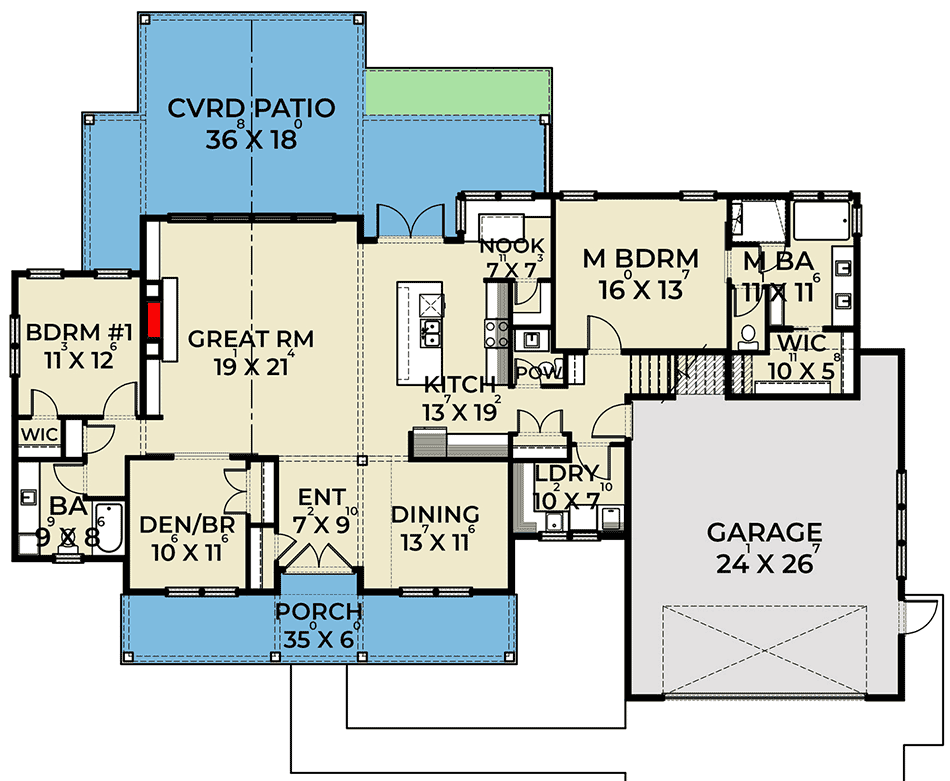

Floor Plan

  • Main Level

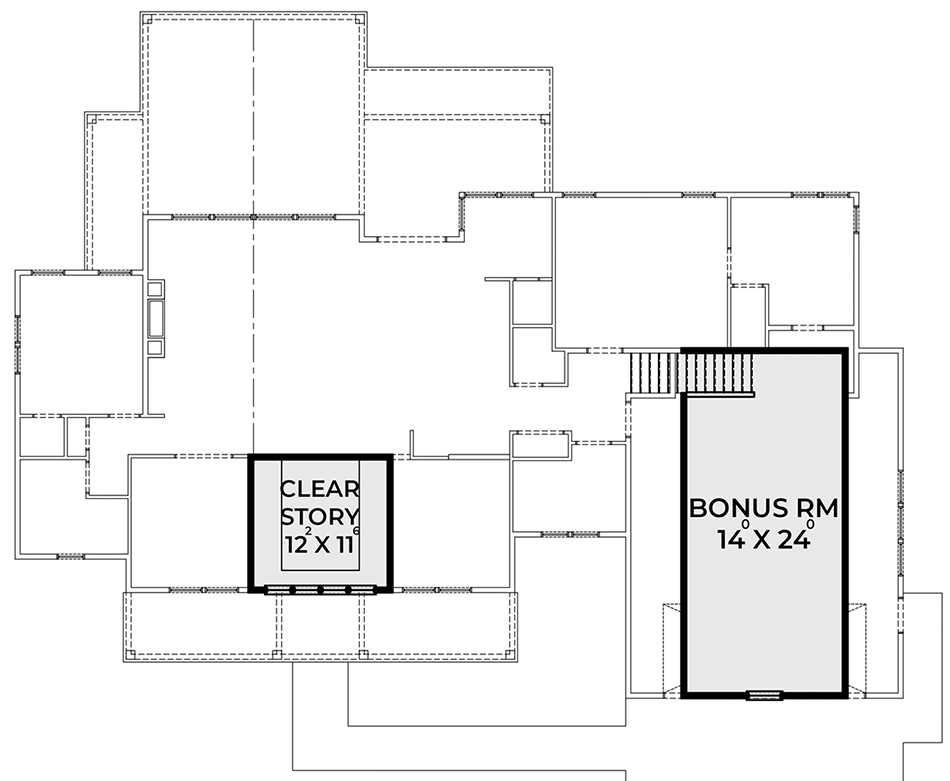

  • Bonus

Plan Details

Square Footage Breakdown

  • Total: 2,598 sq. ft.
  • 1st Floor: 2,125 sq. ft.

Dimensions

  • Width: 80' 0"
  • Depth: 45' 6"
  • Max ridge height: 24' 0"

Beds/Baths

  • Bedrooms: 2 or 3
  • Full bathrooms: 2
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 687 sq. ft.
  • Count: 2 Cars
  • Entry Location: Side

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 6 on 12
  • Framing Type: Truss
