Plan 48580FM

Striking Split-Bed Home Plan with Media Room

Pageloader

Striking Split-Bed Home Plan with Media Room

Plan 48580FM

  • 2,036

    Heated s.f.

  • 3-4

    Beds

  • 2.5 - 3.5

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • Distinctive architecture and eye-catching accents define this striking 3-bedroom house plan, which features a covered arched entry and a 3-car garage.
  • At the heart of this home, you'll find a a spacious great room with an inviting fireplace and easy access to the large covered patio. The open-concept kitchen and breakfast nook boast an oversized island with seating, ample natural light, and a spacious walk-in pantry. An enclosed media room lends convenience and versatility.
  • On one side of the home, your secluded master suite boasts a large 5-piece bath with a tile shower and generously sized walk-in closet.
  • On the opposite side, two additional bedrooms share a full bath.
  • Optional second-level bonus space gives you room to expand.

Each plan set includes the following:

  • Cover Sheet
  • Floor Plans
  • Electrical Plan
  • Foundation Plan

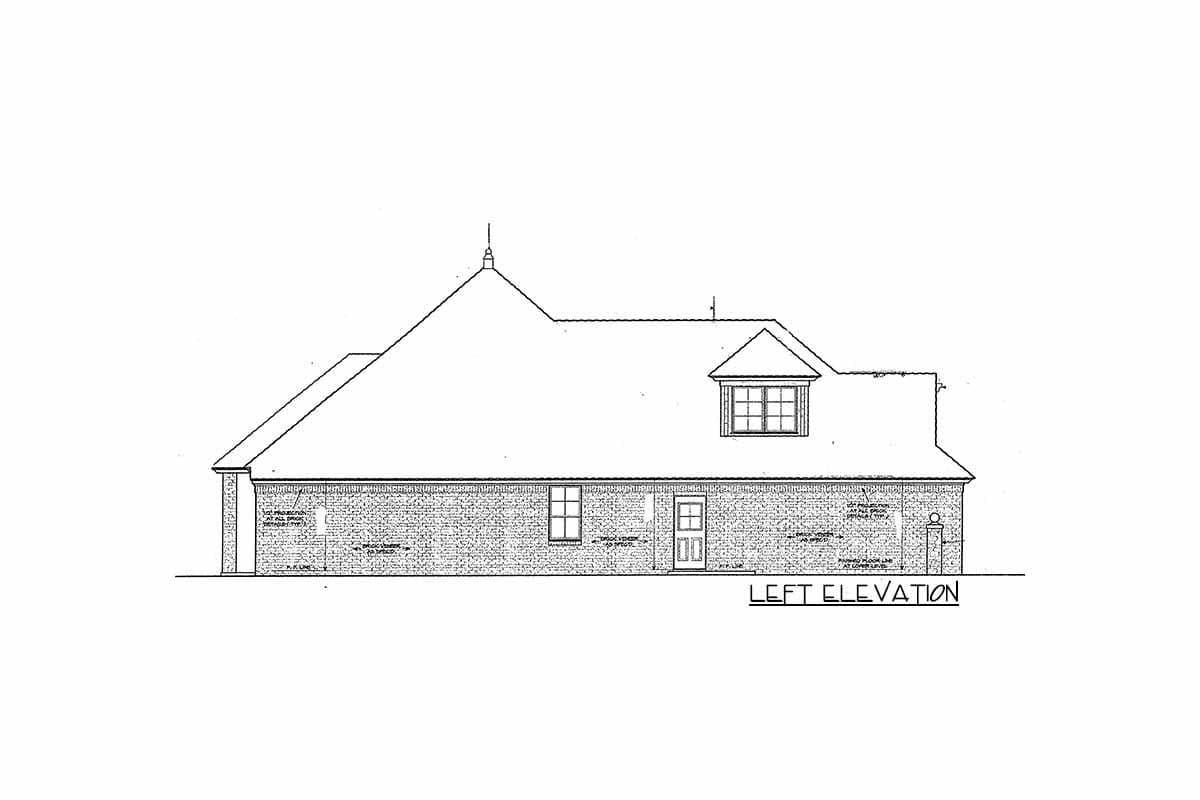

  • Front and Left Elevation

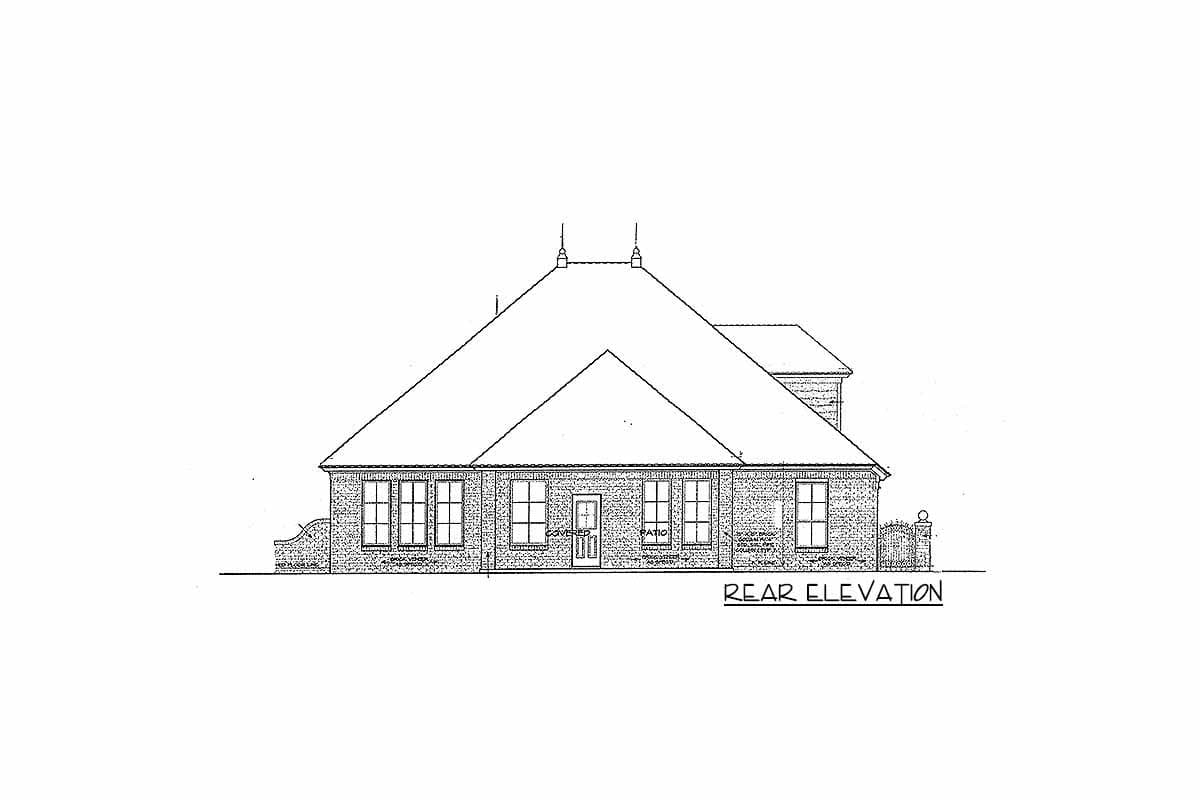

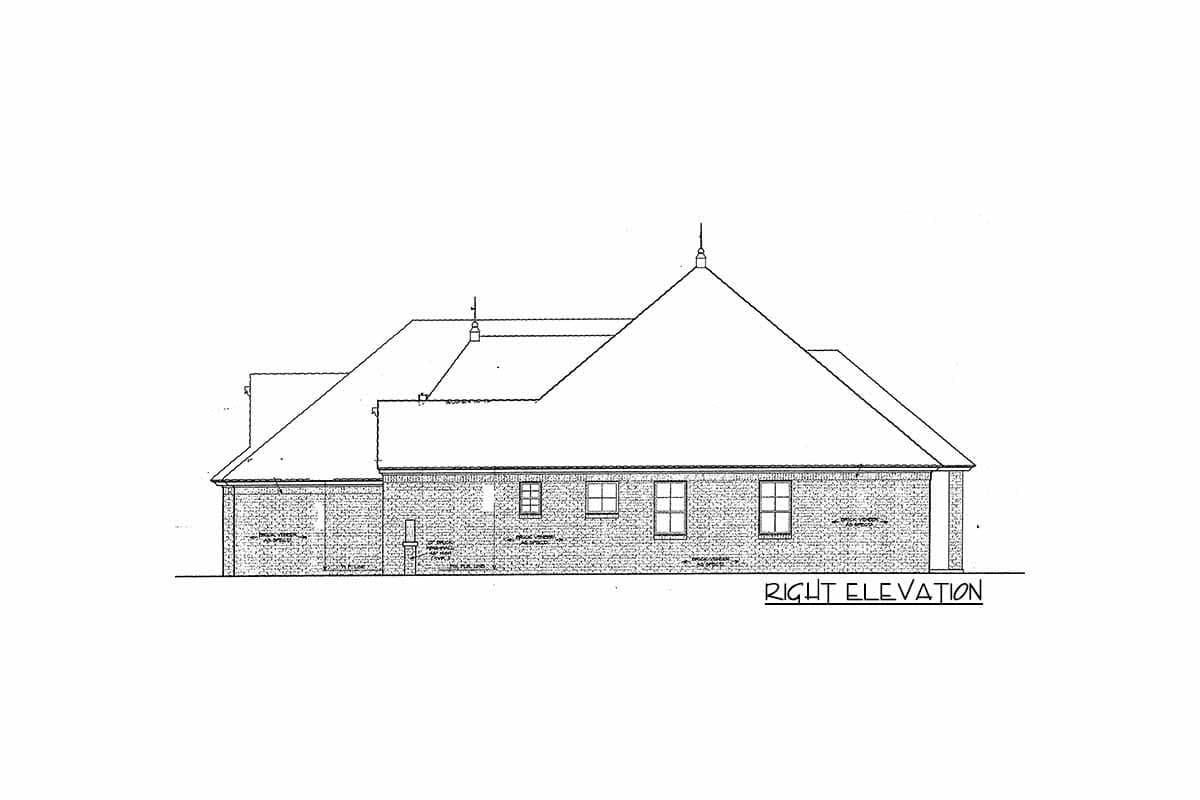

  • Rear and Right Elevation
  • Roof Plan
  • Cabinets and Section
  • Building Section


Plan details



Striking Split-Bed Home Plan with Media Room

  • 2,036

    Heated s.f.

  • 3 - 4

    Beds

  • 3 +

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • 1 Set $990
  • 5 Sets $1,045
  • 8 Sets $1,185
  • Reproducible Set $1,335
  • PDF - single-use $1,335
  • CAD $2,015
  • View all purchase option online

About This Plan

  • Distinctive architecture and eye-catching accents define this striking 3-bedroom house plan, which features a covered arched entry and a 3-car garage.
  • At the heart of this home, you'll find a a spacious great room with an inviting fireplace and easy access to the large covered patio. The open-concept kitchen and breakfast nook boast an oversized island with seating, ample natural light, and a spacious walk-in pantry. An enclosed media room lends convenience and versatility.
  • On one side of the home, your secluded master suite boasts a large 5-piece bath with a tile shower and generously sized walk-in closet.
  • On the opposite side, two additional bedrooms share a full bath.
  • Optional second-level bonus space gives you room to expand.

Floor Plans

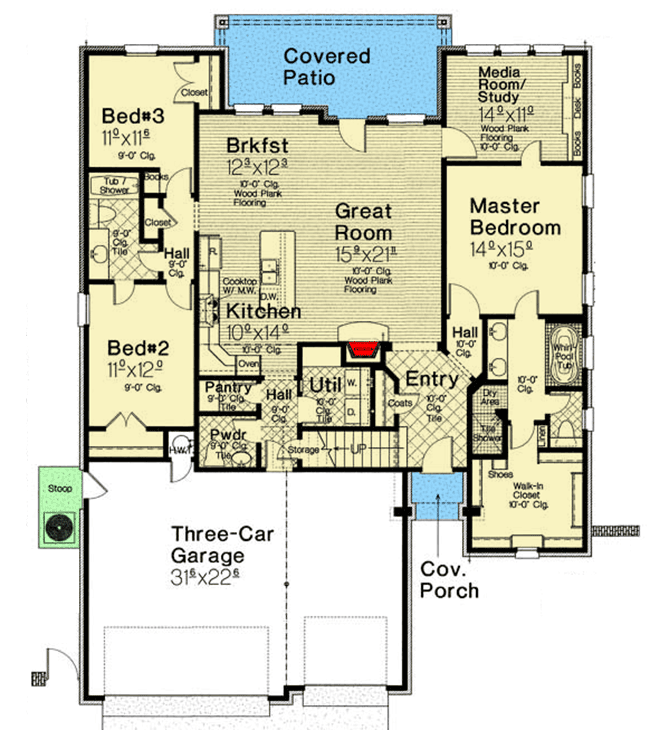

  • Main Level

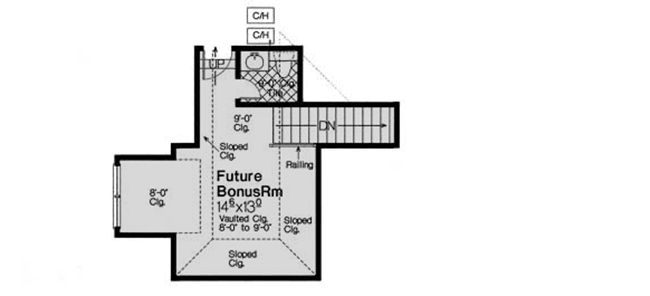

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,036 sq. ft.
  • 1st Floor: 2,036 sq. ft.
  • Covered Patio: 201 sq. ft.
  • Porch, Front: 24 sq. ft.
  • Bonus: 346 sq. ft.

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 2 or 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 50' 0"
  • Depth: 67' 6"
  • Max ridge height: 28' 0"

Garage

  • Type: Attached
  • Area: 747 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 16 on 12
