Plan 58627SV

Stunning 2-Story House Plan with Angled Garage

Heated S.F.
3,803
Beds
4
Baths
4.5
Stories
2
Cars
3

Floor Plan

Plan 58627SV

Main Level
Main Level
2nd Floor
2nd Floor

Plan 58627SV

M-F 9am-5pm EST |

1-203-761-8500

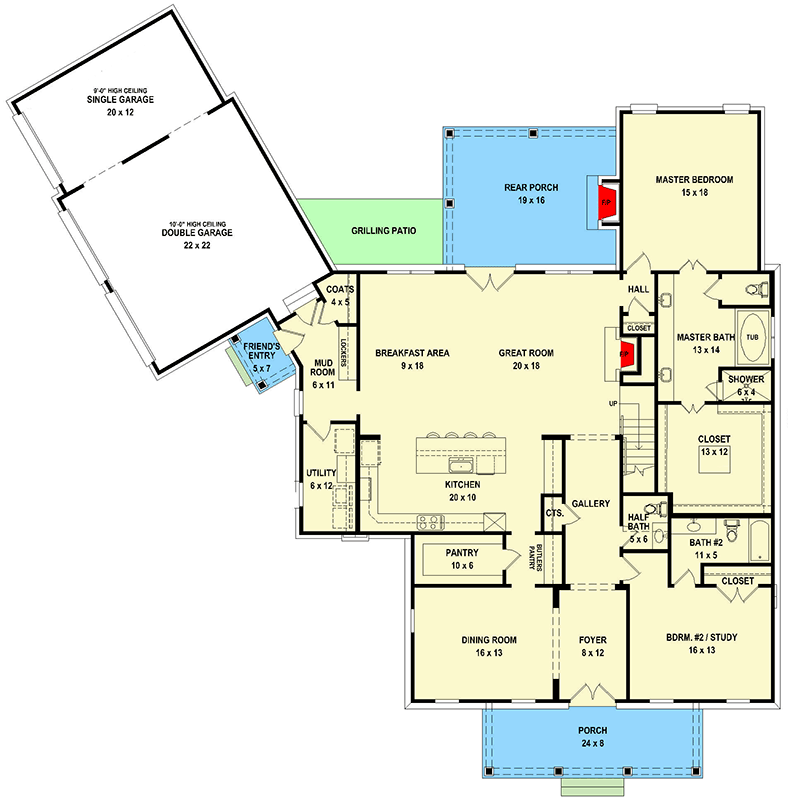

Main Level

Plan 58627SV: Stunning 2-Story House Plan with Angled Garage - Floor Plan - Main Level - Traditional

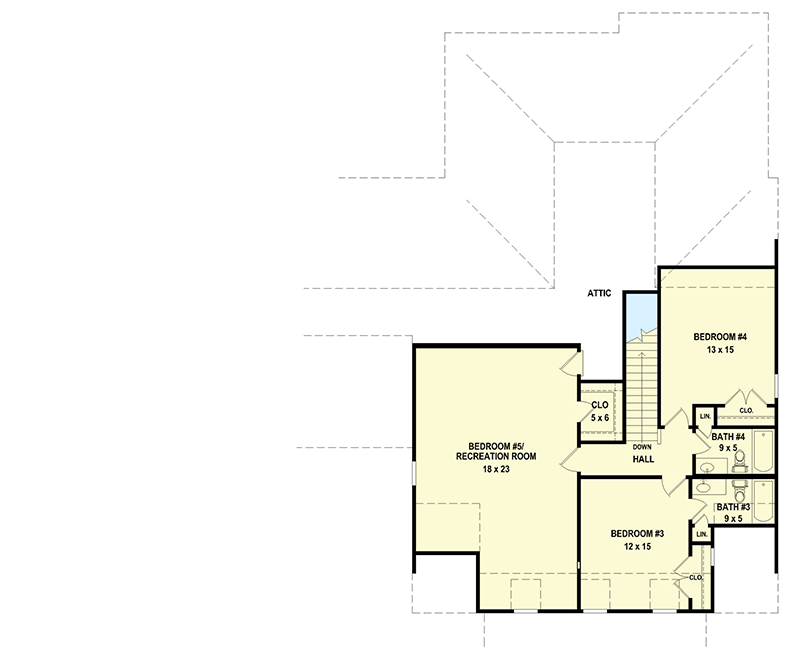

2nd Floor

Plan 58627SV: Stunning 2-Story House Plan with Angled Garage - Floor Plan - 2nd Floor - Traditional

Plan Details

  • Three shed dormers are symmetrically situated atop the front porch of this stunning, 2-story house plan, while the brick-clad garage extends at an angle from the back of the home.
  • Gather with family and friends in the great room that is open to the kitchen. A large island provides seating for four and a butler's pantry offers a shortcut to the formal dining room.
  • A friend's entrance sits next to the garage and leads into the mudroom with built-in lockers and a coat closet.
  • The master bedroom protrudes from the back of the home and boasts a sizable ensuite with 5 fixtures and a dresser island in the walk-in closet.
  • Utilize bedroom 2 on the main level as a study, while the remaining 2 bedrooms can be found upstairs, along with a generous recreation room.

What's Included

  • Foundation Sheet
  • 1st Level Floor Plan
  • 2nd & 3rd Level Floor Plans
  • Framing Section
  • Roof Plan
  • Cabinet Details
  • Stair Detail

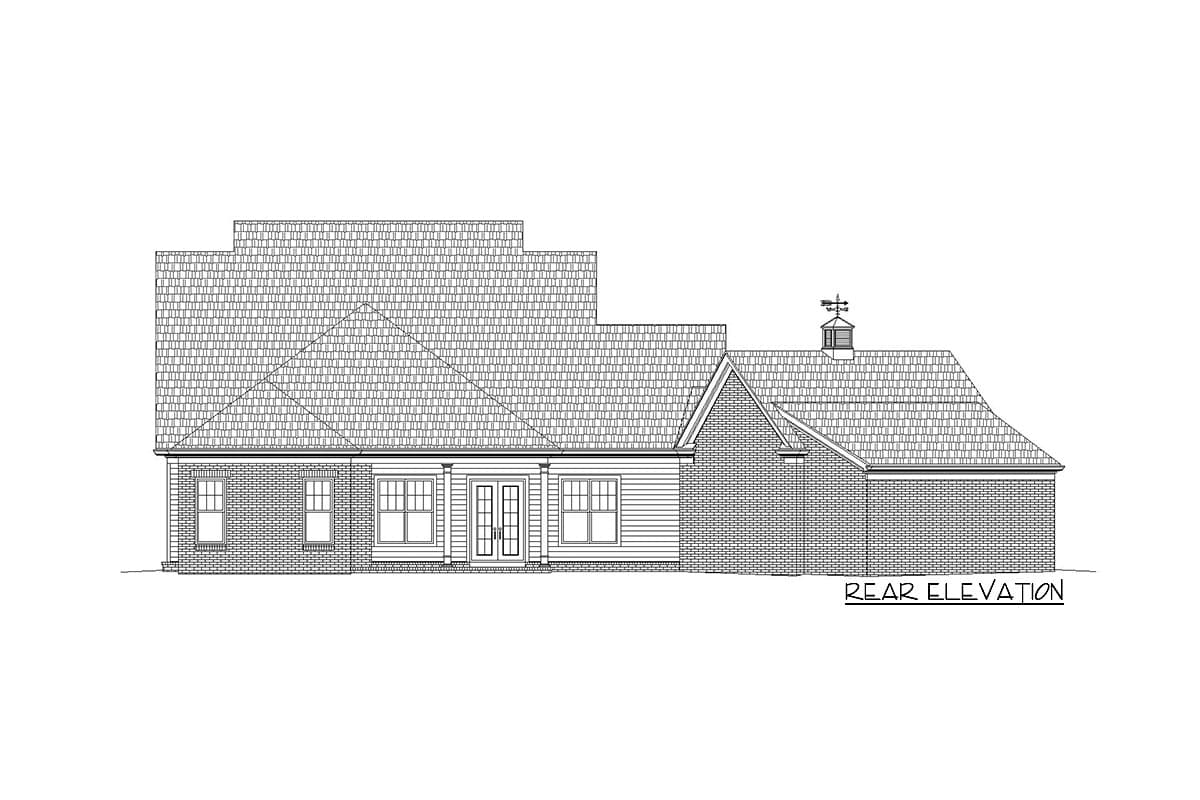

  • Front and Side Elevation
  • Rear and Side Elevations
May not apply to carports, garages, pool houses, storage bldgs, barns, ETC

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

3,803 sq. ft.

1st Floor

2,644 sq. ft.

2nd Floor

1,159 sq. ft.

Porch, Combined

518 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

85' 3"

Depth

85' 4"

Max Ridge Height

32' 10"

Garage

Type

Attached

Area

889 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Angled Garage

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom

Square Footage Breakdown

Total Heated Area

3,803 sq. ft.

1st Floor

2,644 sq. ft.

2nd Floor

1,159 sq. ft.

Porch, Combined

518 sq. ft.

Beds/Baths

Bedrooms

4

Full bathrooms

4

Half bathrooms

1

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Optional Type(s)

2x6

Dimensions

Width

85' 3"

Depth

85' 4"

Max Ridge Height

32' 10"

Garage

Type

Attached

Area

889 sq. ft.

Count

3 Cars

Entry Location

Side

Ceiling Heights

First Floor

10'

Second Floor

9'

Roof Details

Primary Pitch

9 on 12

Framing Type

Stick

Architectural Style

Traditional

Special Features

Angled Garage

Butler Walk-in Pantry

Formal Dining

Laundry - Main Level

Library/Study

Master Suite - 1st Floor

Mudroom
