Plan 42568DB

Stunning 4-Bedroom French Country House Plan with Covered Terrace and Guest Suite

Pageloader

Stunning 4-Bedroom French Country House Plan with Covered Terrace and Guest Suite

Plan 42568DB

  • 7,350

    Heated s.f.

  • 4-5

    Beds

  • 4.5+

    Baths

  • 1-2

    Stories

  • 3

    Cars

  • No attention to detail is spared with this stunning, 4-bedroom French country house plan. Stone and brick adorn the exterior of this home combined with gabled roofs and a square-based cupola.
  • Upon entering, an elliptical ceiling in the foyer provides a feeling of grandeur, and a quiet office and dining room sit on each side of the foyer. Three sets of french doors in the family room open to the expansive, covered terrace which features a centered fireplace.
  • A second great room boasts intricate, vaulted ceilings and opens to the kitchen which features an oversized island, walk-in pantry, and a butler's pantry.
  • Retreat to your first-floor, owner's suite, privately situated on one side of the home and includes a beautiful, vaulted ceiling and fireplace. The master bathroom offers barrel-vaulted ceilings, large, his and her closets, a 5-fixture bathroom with an oversized shower, and a laundry room directly located within the master bathroom.
  • The opposite side of the home offers two additional bedrooms, both with a walk-in closet and a full bathroom. Across the hall, a play room with sliding doors helps keep the toys contained.
  • A private, guest suite sits just inside the 3-car garage, along with a safe room. Unfinished storage space is available in the basement beneath the garage.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

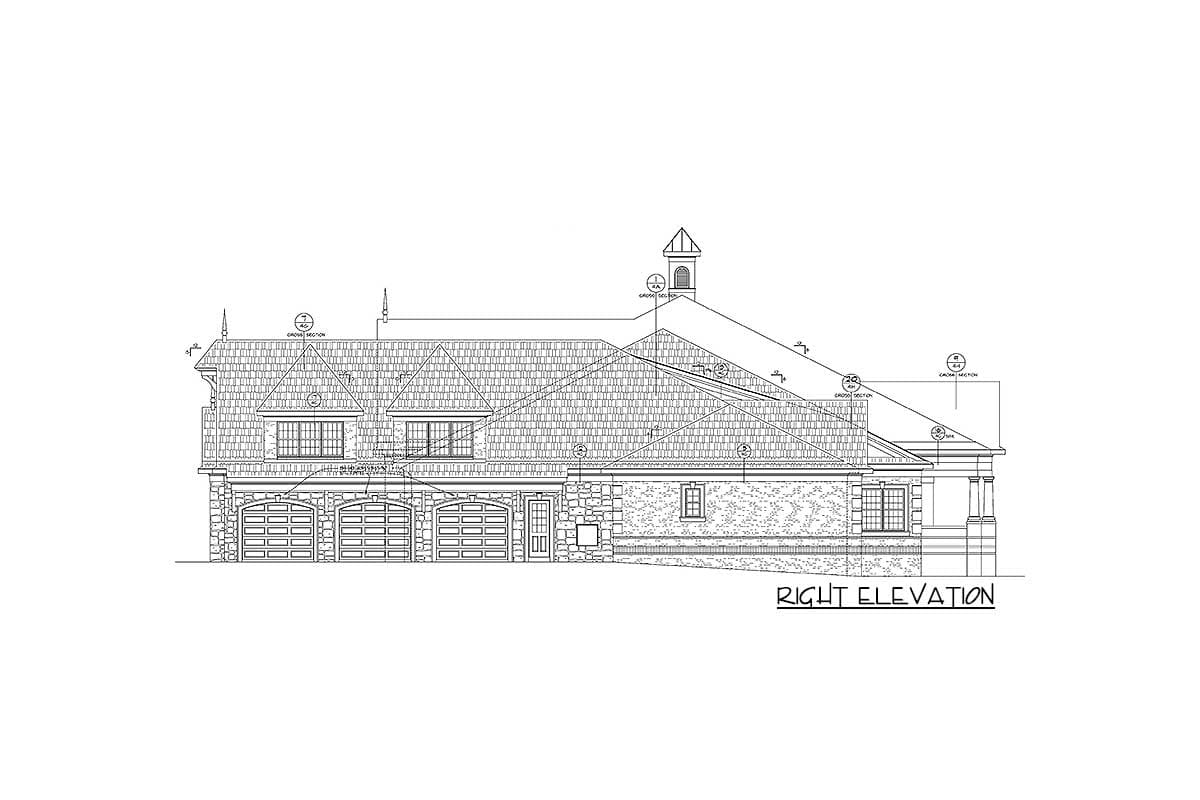

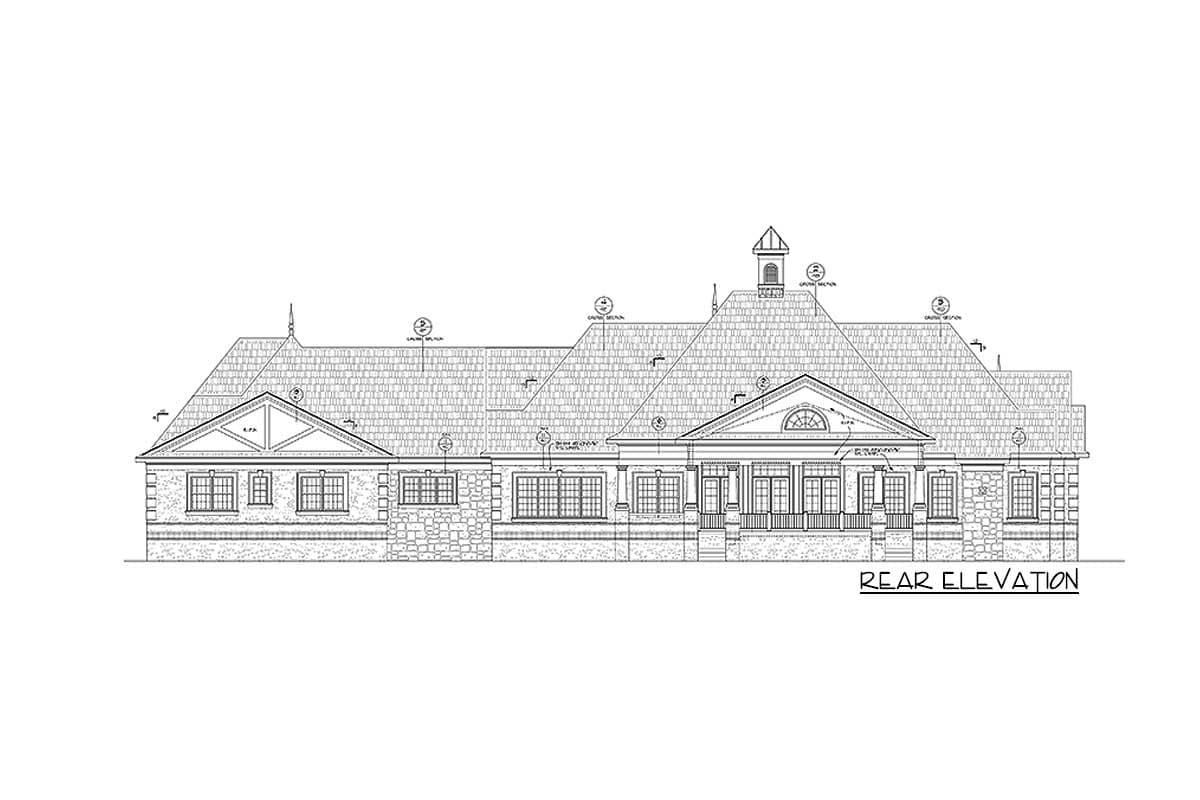

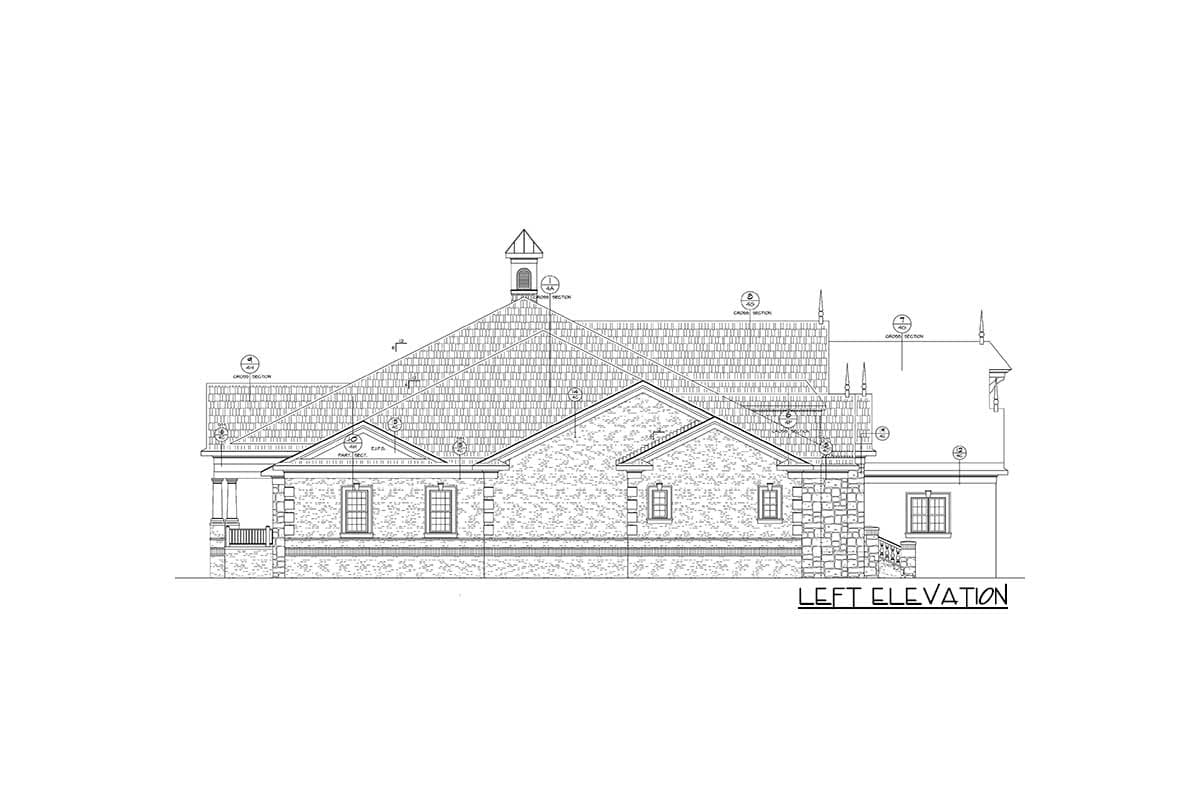

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

Plan details



Stunning 4-Bedroom French Country House Plan with Covered Terrace and Guest Suite

  • 7,350

    Heated s.f.

  • 4 - 5

    Beds

  • 7

    Baths

  • 1-2

    Floors

  • 3

    Car garage

Buy This Plan
  • Digital Study Set $2,455
  • PDF - single-use $3,730
  • 5 Sets $3,880
  • 5 Sets PLUS $3,925
  • 8 Sets $4,005
  • PDF - multi-use $4,230
  • CAD $5,595
  • CAD - multi-use $6,095
  • View all purchase option online

About This Plan

  • No attention to detail is spared with this stunning, 4-bedroom French country house plan. Stone and brick adorn the exterior of this home combined with gabled roofs and a square-based cupola.
  • Upon entering, an elliptical ceiling in the foyer provides a feeling of grandeur, and a quiet office and dining room sit on each side of the foyer. Three sets of french doors in the family room open to the expansive, covered terrace which features a centered fireplace.
  • A second great room boasts intricate, vaulted ceilings and opens to the kitchen which features an oversized island, walk-in pantry, and a butler's pantry.
  • Retreat to your first-floor, owner's suite, privately situated on one side of the home and includes a beautiful, vaulted ceiling and fireplace. The master bathroom offers barrel-vaulted ceilings, large, his and her closets, a 5-fixture bathroom with an oversized shower, and a laundry room directly located within the master bathroom.
  • The opposite side of the home offers two additional bedrooms, both with a walk-in closet and a full bathroom. Across the hall, a play room with sliding doors helps keep the toys contained.
  • A private, guest suite sits just inside the 3-car garage, along with a safe room. Unfinished storage space is available in the basement beneath the garage.

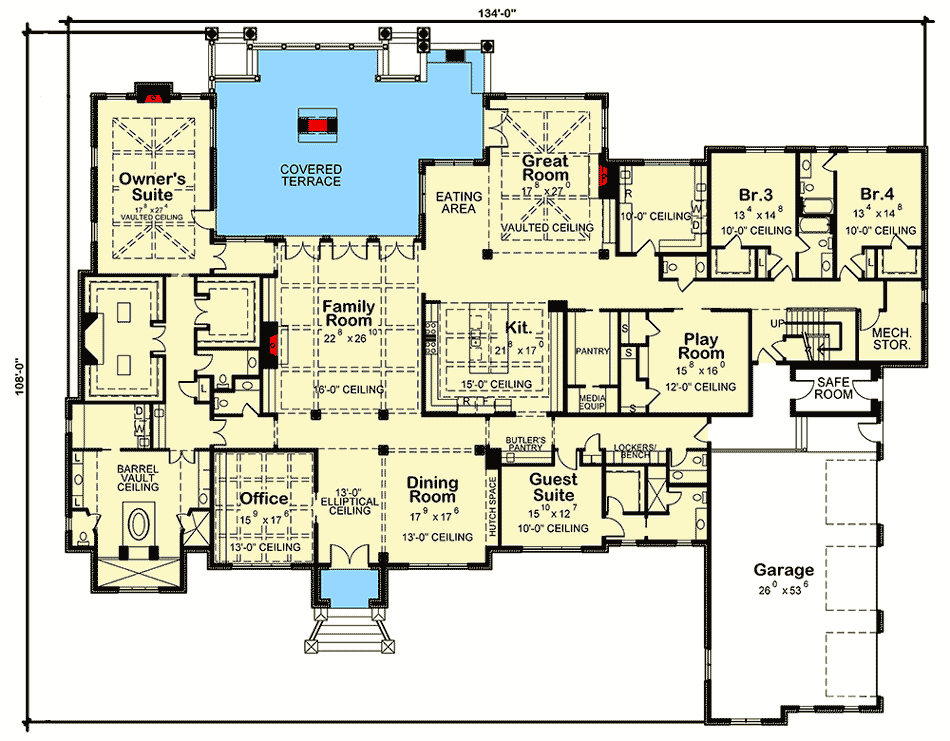

Floor Plans

  • Main Level

  • Bonus

Plan Details

Square Footage Breakdown

  • Total Heated Area: 7,350 sq. ft.
  • 1st Floor: 7,350 sq. ft.
  • Porch, Rear: 1,126 sq. ft.
  • Porch, Front: 66 sq. ft.
  • Bonus: 859 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 4
  • Half bathrooms: 3

Foundation Type

    • Standard Foundations: Crawl

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 134' 0"
  • Depth: 108' 0"
  • Max ridge height: 39' 2"

Garage

  • Type: Attached
  • Area: 1416 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 11' 2" Second Floor / 9' 2"

Roof

  • Primary Pitch: 6 on 12
  • Secondary Pitch: 15 on 12
