Stunning Mountain Home Plan

Plan 9506RW

  • 8,095

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 1

    Stories

  • 4

    Cars

  • This stunning Mountain home plan gives you interesting angles and walls of windows to let in the views.
  • The sunken great room is vaulted and has windows that rise up two stories.
  • The kitchen, hearth room and nook all form one large space with a two-sided fireplace shared with the sunken dining room.
  • A true retreat, the master suite is angled off by itself and has a vaulted ceiling, sitting room with fireplace and private veranda.
  • The T-shaped staircase leads down the the fabulous finished lower level with everything you could want and more.
  • Work out in the dedicated exercise room or watch movies in the huge raised theater room.
  • Play pool in the billiards room or poker in the gaming room with its huge wet bar.
  • This level has plenty of storage and guest quarters as well.

The following details are included with this house plan:
  • Cover Page
  • 4 elevations
  • Floorplans
  • Foundation plan (with no specifications of structural elements)
  • Roof plan (with no specifications of structural elements)
  • Typical wall sections
  • Electrical plan
The following details are NOT included in the plans:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • REScheck or other energy related calculations are NOT included.
  • Wind load or seismic calculations are NOT included.
  • Framing plans or beam sizes are NOT included.
  • Other specific drawings that your local permit office may requires

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

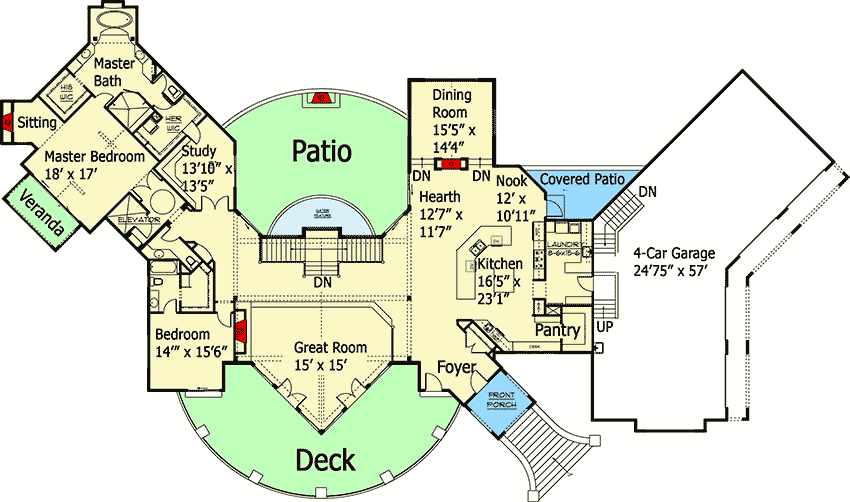

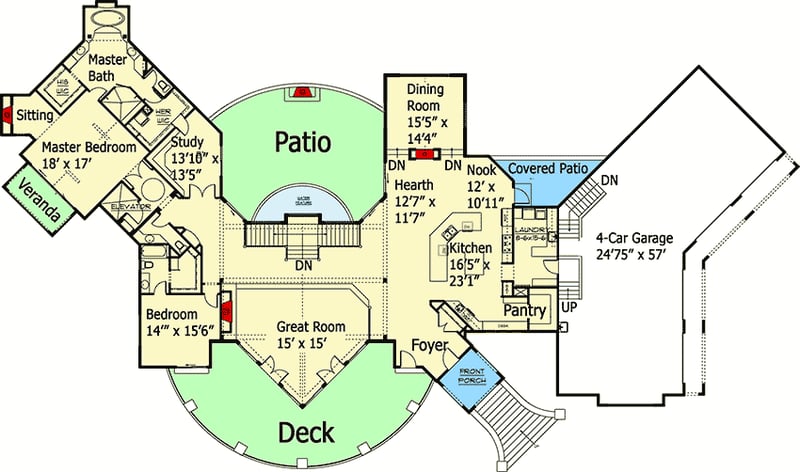

Stunning Mountain Home Plan - 9506RW floor plan - Main Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Stunning Mountain Home Plan - 9506RW floor plan - Bonus Level
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

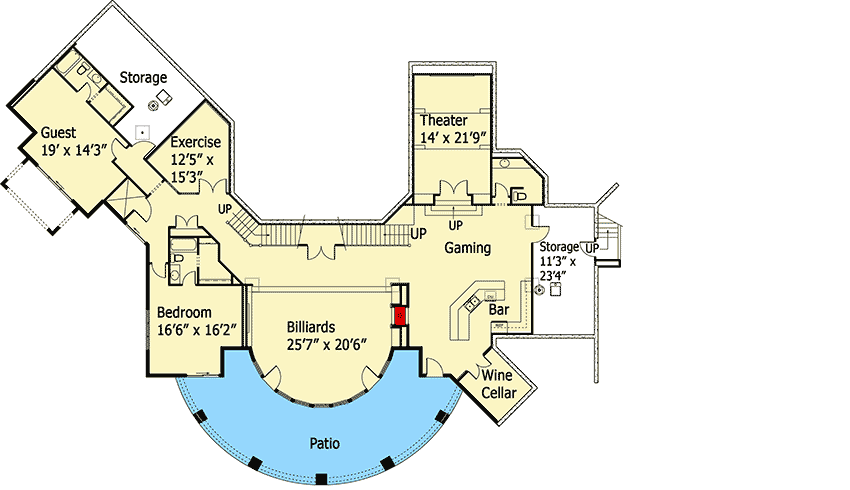

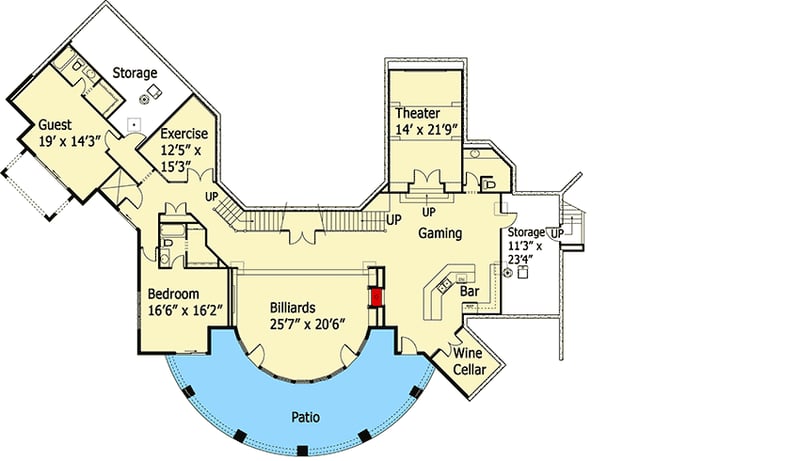

Stunning Mountain Home Plan - 9506RW floor plan - Lower Level

Stunning Mountain Home Plan

  • 8,095

    Heated s.f.

  • 4

    Beds

  • 4.5+

    Baths

  • 1

    Floors

  • 4

    Car garage

Floor Plan

  • Main Level

  • Bonus Level

  • Lower Level

Plan Details

Square Footage Breakdown

  • Total: 8,095 sq. ft.
  • Lower Level: 3,502 sq. ft.
  • 1st Floor: 4,082 sq. ft.
  • 2nd Floor: 511 sq. ft.

Dimensions

  • Width: 156' 9"
  • Depth: 91' 6"
  • Max ridge height: 35' 6"

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 4
  • Half bathrooms: 2

Garage

  • Type: Attached
  • Area: 3394 sq. ft.
  • Count: 4 Cars
  • Entry Location: Side, Courtyard

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: Lower Level / 12' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Truss
All house plans are copyright ©2024 by the architects and designers represented on our web site
