Stunning Shingle Style Home Plan

Plan 93058EL

  • 3,446

    Heated s.f.

  • 3-5

    Beds

  • 3.5 - 4.5

    Baths

  • 2

    Stories

  • 3

    Cars

  • A beautiful gambrel roof and a cupola over the garage add charm to this stunning Shingle style home plan.
  • From the moment you step into the foyer, the sightlines sweep through the main living area and out onto the terrace beyond.
  • The morning room is huge with windows on two sides to make it bright and airy.
  • With a first floor master suite, you'll have no stairs to climb and separation from the other family bedrooms on the upper floor.
  • Each of the other bedrooms has a large walk-in closet.
  • Double doors open to the spacious playroom that could easily function as a media room if desired.
  • Finish the lower level and gain an extra bedroom, bathroom and game room with wet bar.

Each plan set includes the following:

  • Cover Sheet
  • General Note Sheet
  • Foundation Sheet
  • First Floor Framing
  • First Floor Plan
  • Second Floor Framing (if applicable)
  • Second Floor Plan (if applicable)
  • Roof Framing Plan

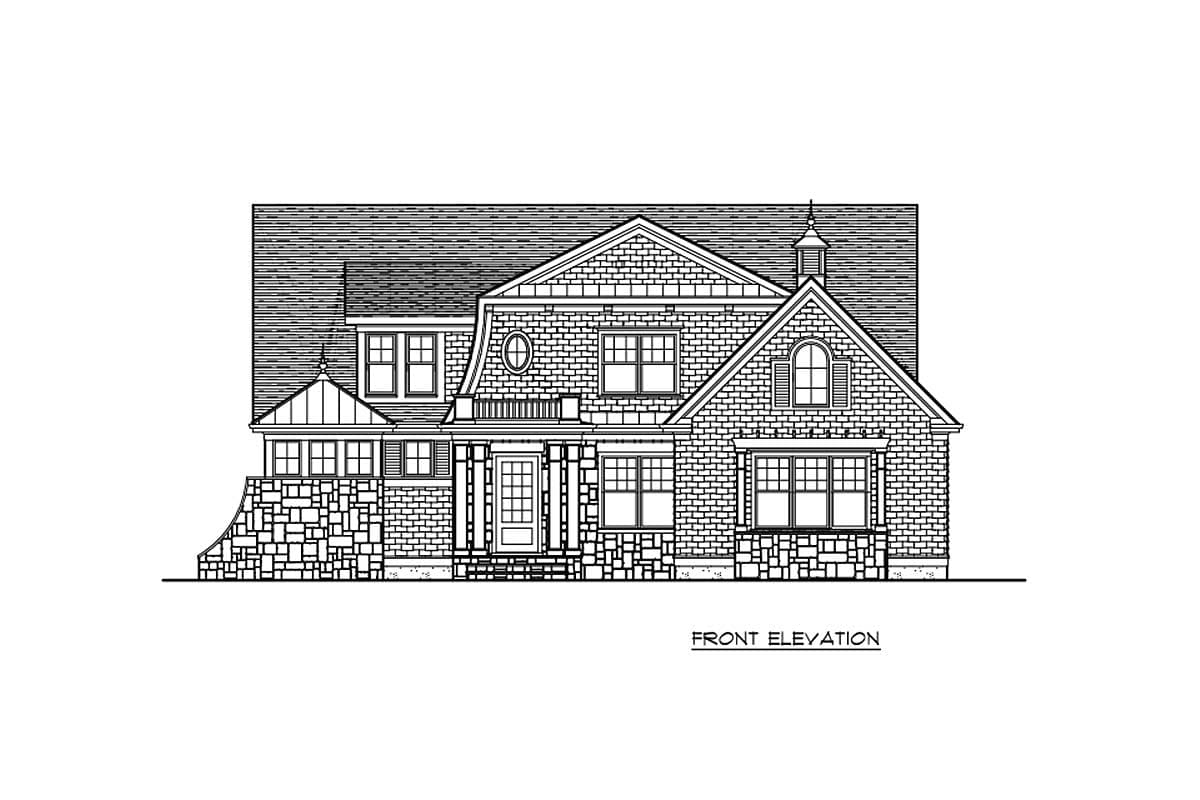

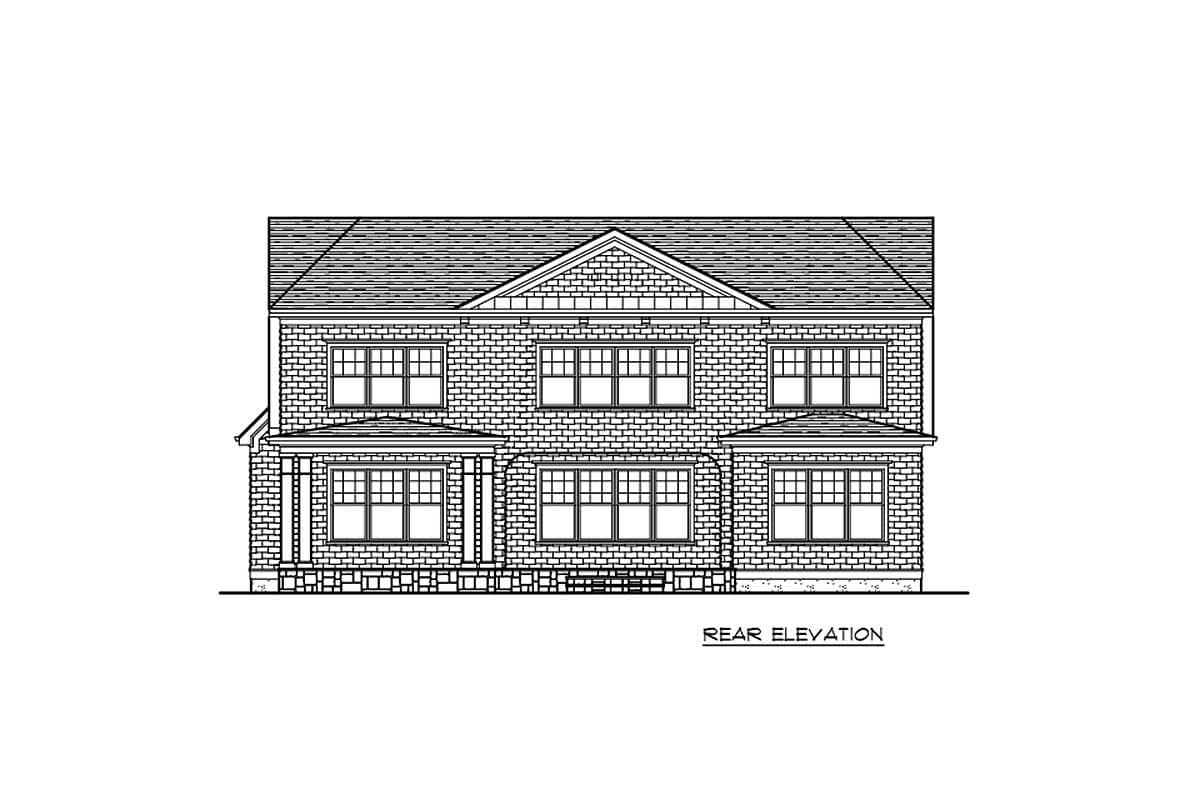

  • Front & Rear Elevation

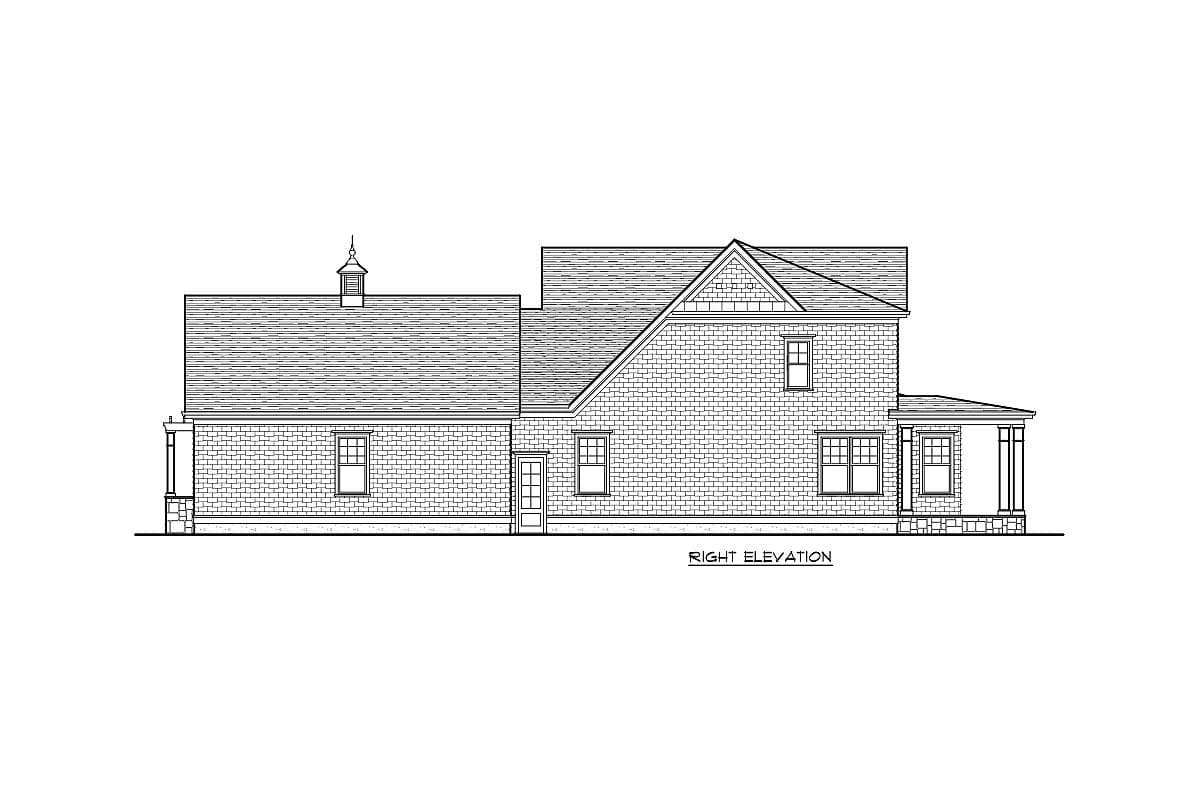

  • Left & Right Elevation
  • Openings & Sections Sheet
  • Foundation Details
  • Cornice Details
  • First Floor Electrical
  • Second Floor Electrical (if applicable)
These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

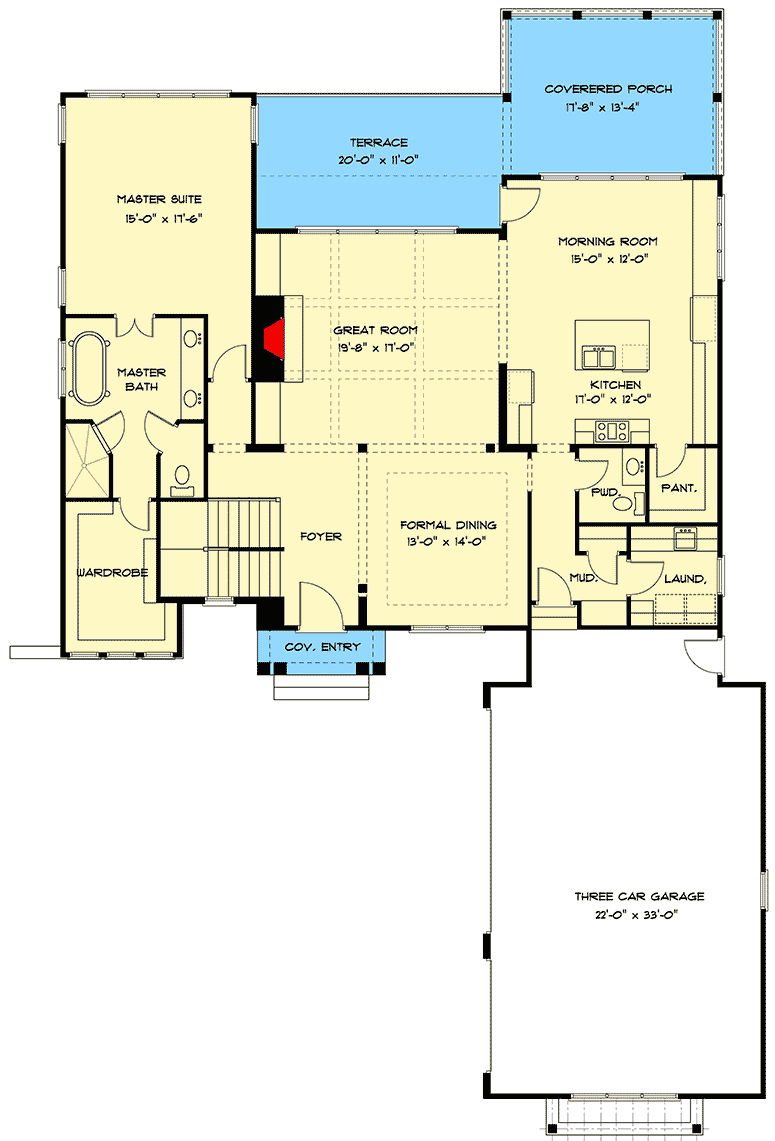

Stunning Shingle Style Home Plan - 93058EL floor plan - Main Level

2nd Floor

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

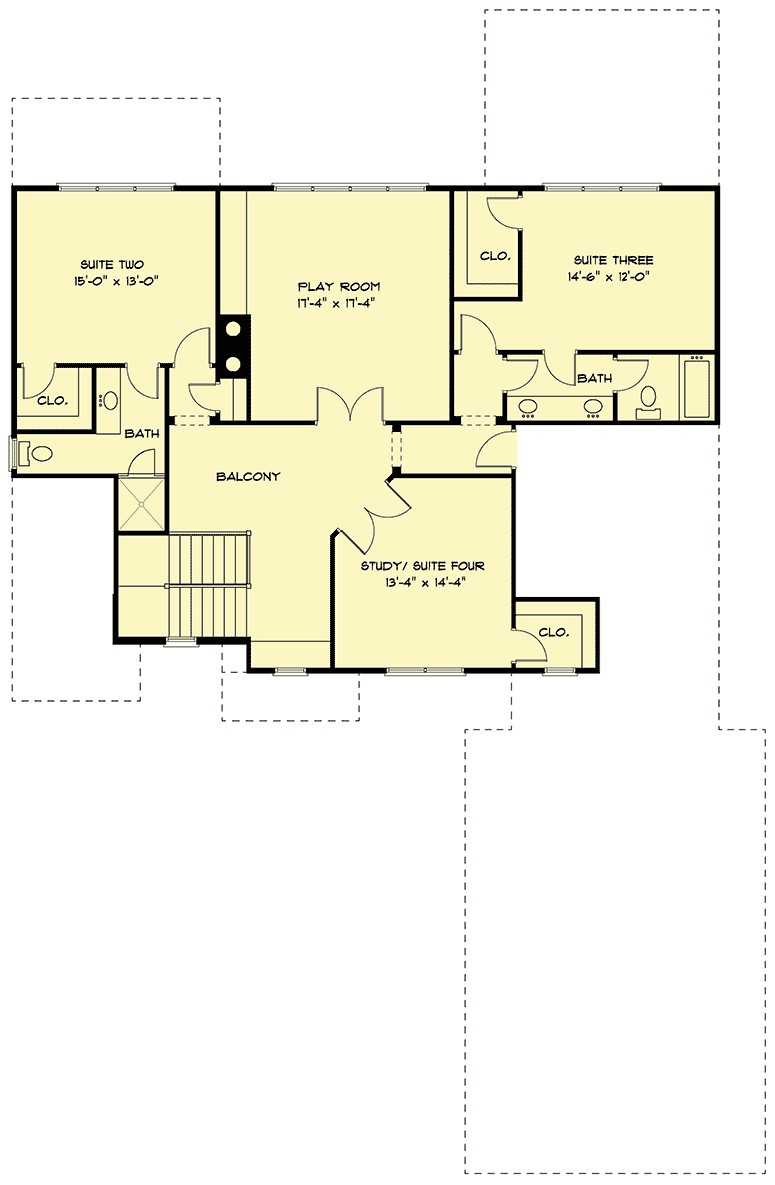

Stunning Shingle Style Home Plan - 93058EL floor plan - 2nd Floor

Basement

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

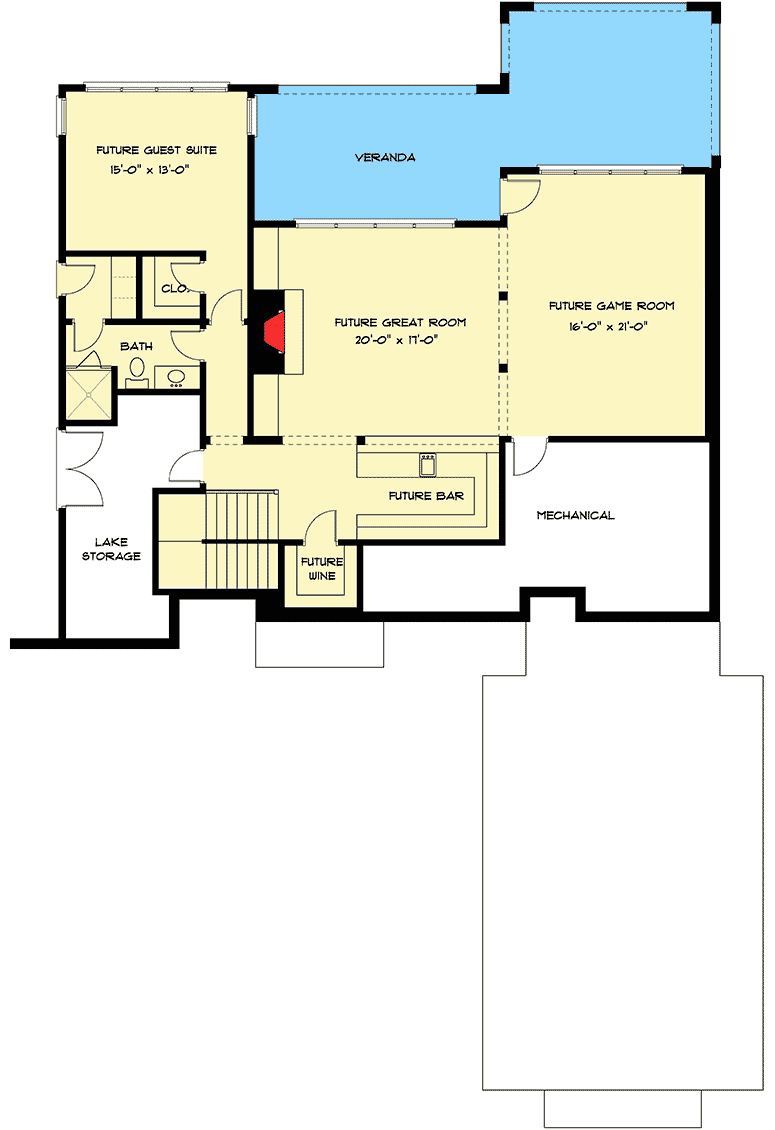

Stunning Shingle Style Home Plan - 93058EL floor plan - Basement

Main Level- 3D View

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Stunning Shingle Style Home Plan - 93058EL floor plan - Main Level- 3D View

2nd Floor - 3D View

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.
Stunning Shingle Style Home Plan - 93058EL floor plan - 2nd Floor - 3D View

Plan details

Square Footage Breakdown

  • Total Heated Area: 3,446 sq. ft.
  • 1st Floor: 2,126 sq. ft.
  • 2nd Floor: 1,320 sq. ft.
  • Porch, Rear: 456 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

  • Standard Foundations: Crawl
  • Optional Foundations: Slab, Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Dimensions

  • Width: 67' 5"
  • Depth: 76' 4"

Garage

  • Type: Attached
  • Area: 726 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Architectural Style

Special features

Plan Collections



Stunning Shingle Style Home Plan

  • 3,446

    Heated s.f.

  • 3 - 5

    Beds

  • 4 +

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - Single-Build $1,895
  • 5 Sets $2,395
  • CAD - Single-Build $2,395
  • View all purchase option online

About This Plan

  • A beautiful gambrel roof and a cupola over the garage add charm to this stunning Shingle style home plan.
  • From the moment you step into the foyer, the sightlines sweep through the main living area and out onto the terrace beyond.
  • The morning room is huge with windows on two sides to make it bright and airy.
  • With a first floor master suite, you'll have no stairs to climb and separation from the other family bedrooms on the upper floor.
  • Each of the other bedrooms has a large walk-in closet.
  • Double doors open to the spacious playroom that could easily function as a media room if desired.
  • Finish the lower level and gain an extra bedroom, bathroom and game room with wet bar.

Floor Plans

  • Main Level

  • 2nd Floor

  • Basement

  • Main Level- 3D View

  • 2nd Floor - 3D View

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,446 sq. ft.
  • 1st Floor: 2,126 sq. ft.
  • 2nd Floor: 1,320 sq. ft.
  • Porch, Rear: 456 sq. ft.

Beds/Baths

  • Bedrooms: 3, 4, & 5
  • Full bathrooms: 3 or 4
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Slab, Basement, Daylight, Walkout

Exterior Walls

  • Standard Type(s): 2x4 or 2x6

Dimensions

  • Width: 67' 5"
  • Depth: 76' 4"

Garage

  • Type: Attached
  • Area: 726 sq. ft.
  • Count: 3 Cars
  • Entry Location: Courtyard

Ceiling Heights

  • Floor / Height: First Floor / 10' 0" Second Floor / 9' 0"

Plan 93058EL
View this and more for this plan by visiting www.architechtecturaldesigns.com/93058EL
|
