Plan 72250DA

Sturdy Craftsman Home

Heated S.F.
1,701
Beds
3
Baths
2.5
Stories
2
Cars
2

Floor Plan

Plan 72250DA

Main Level
Main Level
2nd Floor
2nd Floor

Plan 72250DA

M-F 9am-5pm EST |

1-203-761-8500

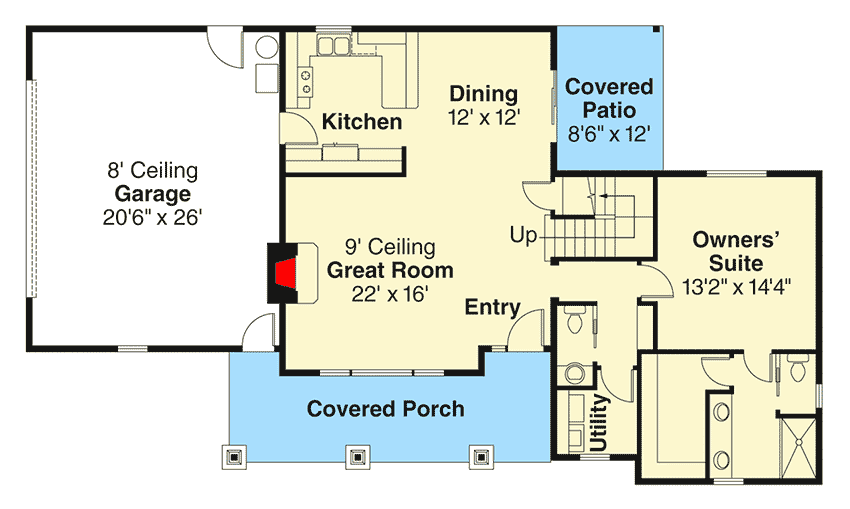

Main Level

Plan 72250DA: Sturdy Craftsman Home - Floor Plan - Main Level - Craftsman, Northwest

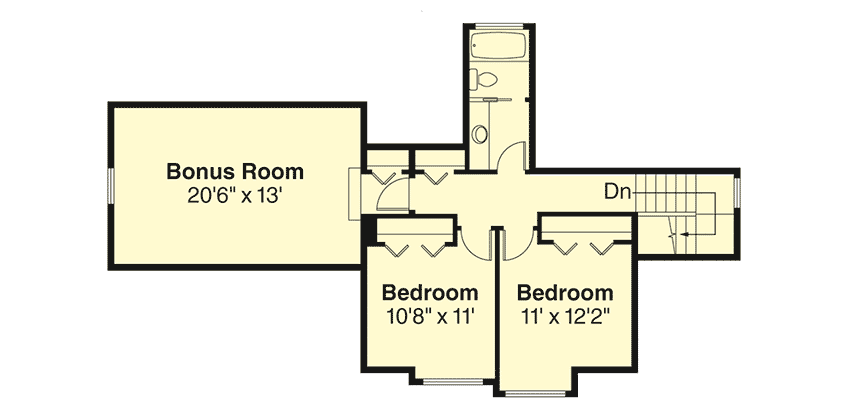

2nd Floor

Plan 72250DA: Sturdy Craftsman Home - Floor Plan - 2nd Floor - Craftsman, Northwest

Plan Details

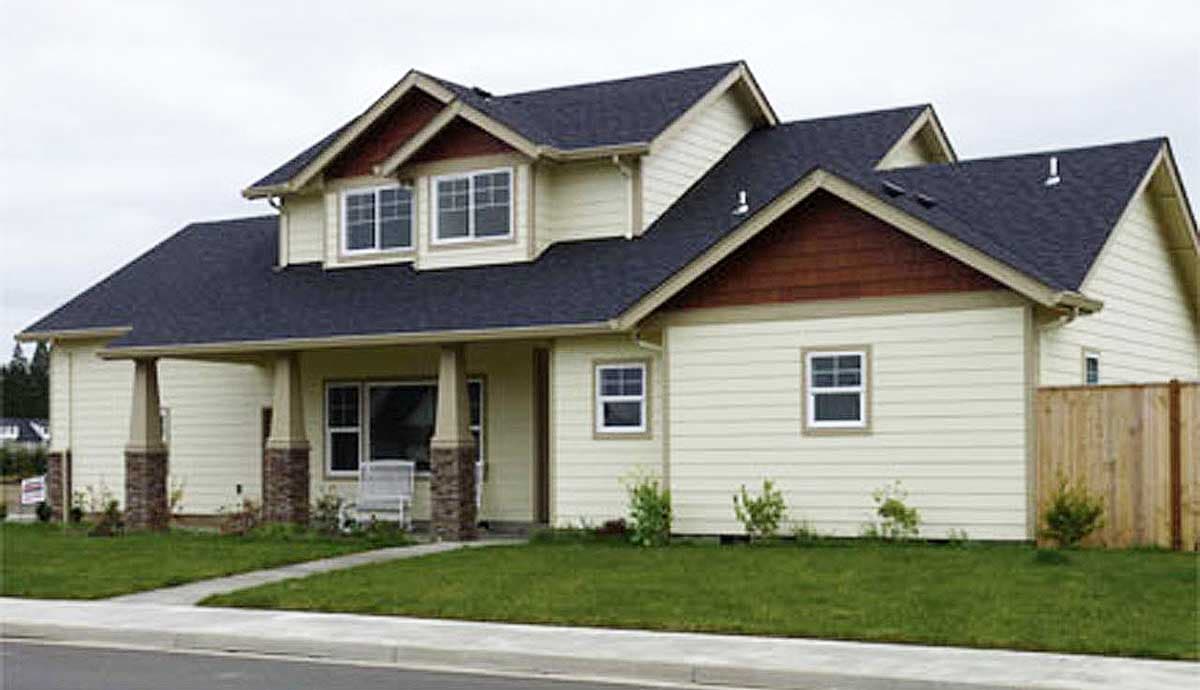

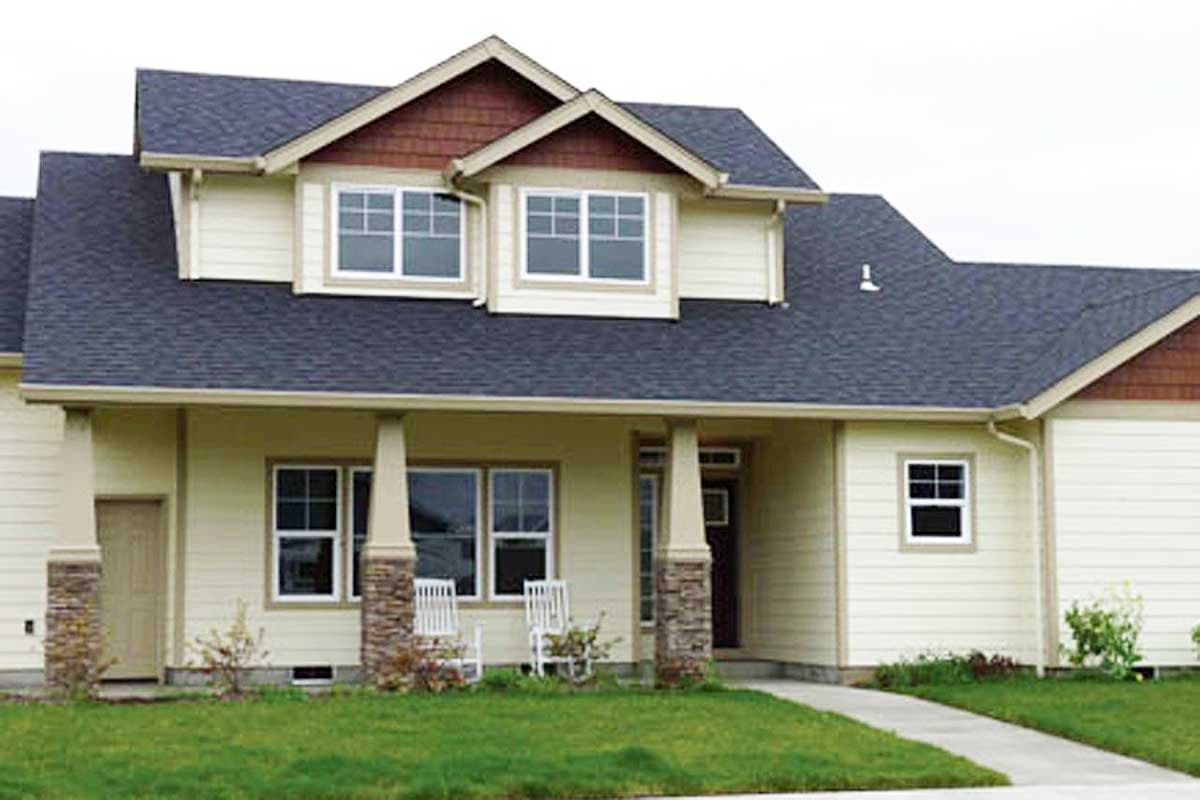

  • Shakes, stone and siding boost the curb appeal of this Craftsman home plan.

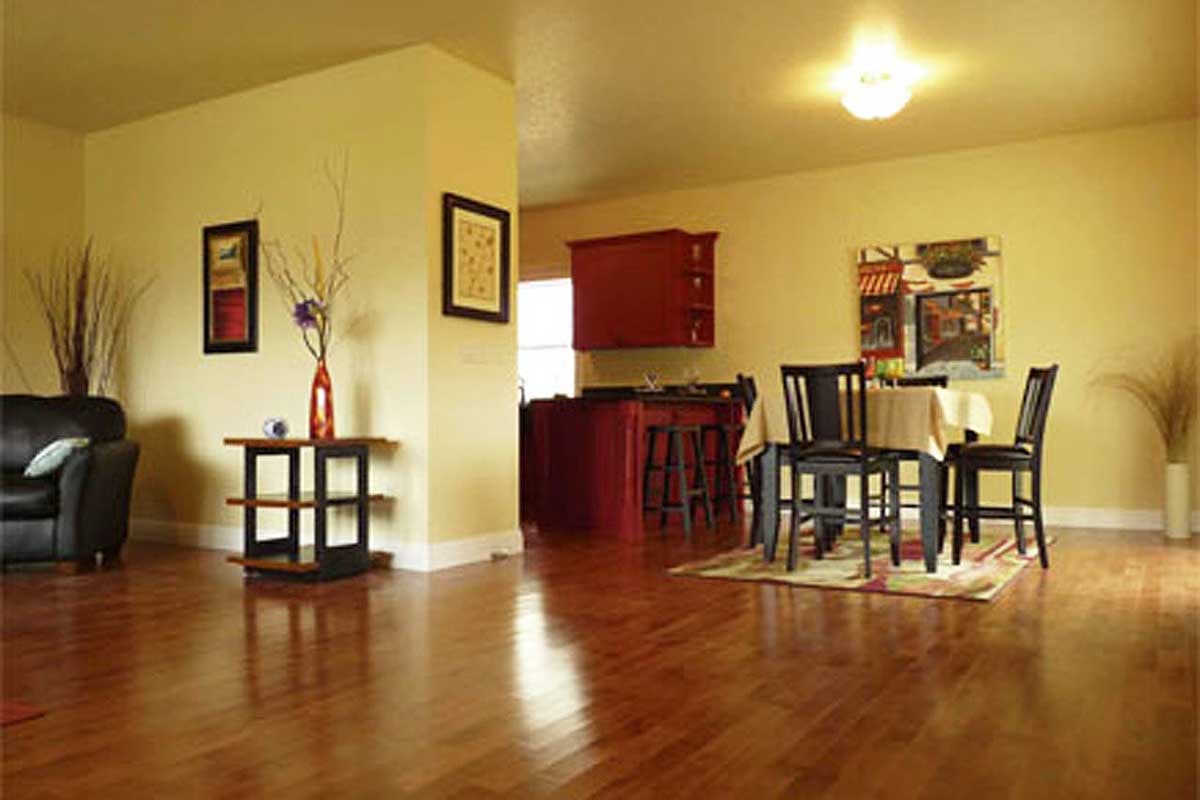

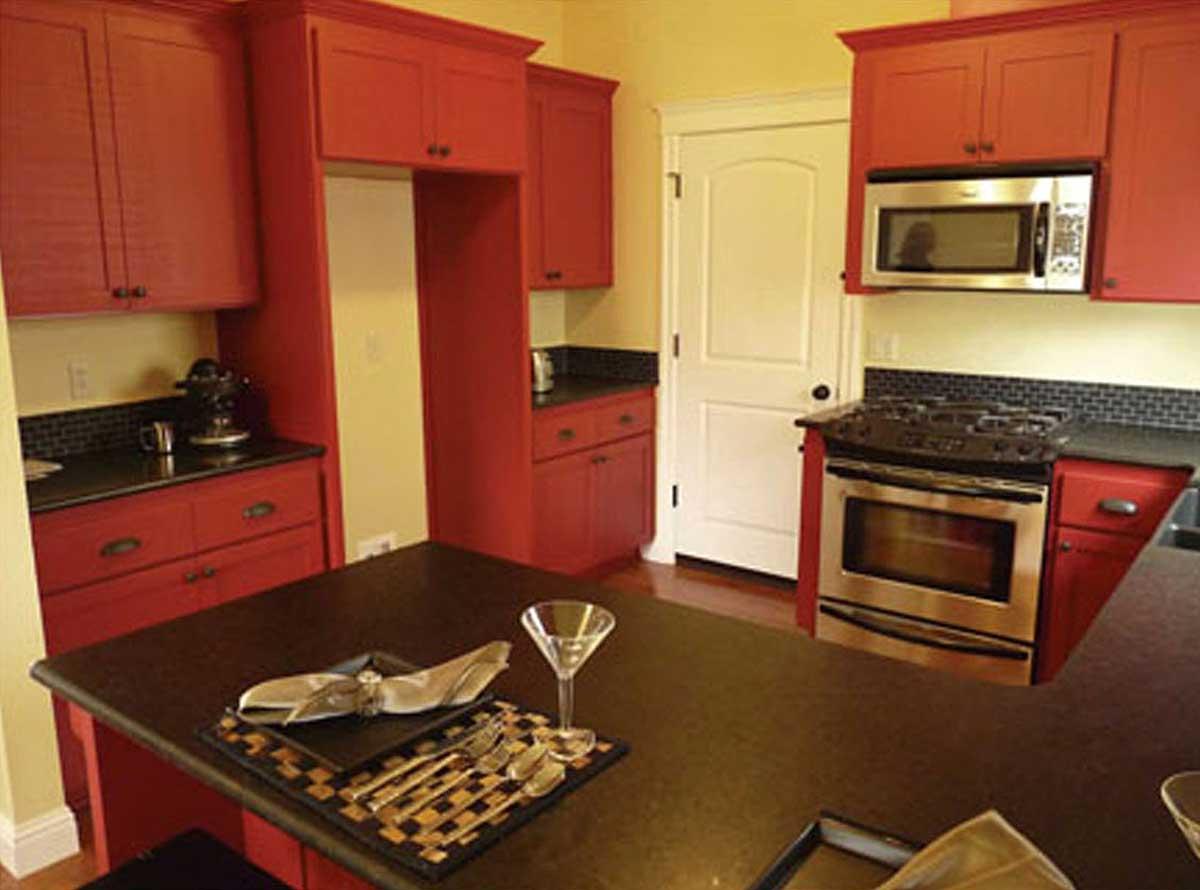

  • The open floor plan lets you see from the large great room right into the dining room that flows into the kitchen.

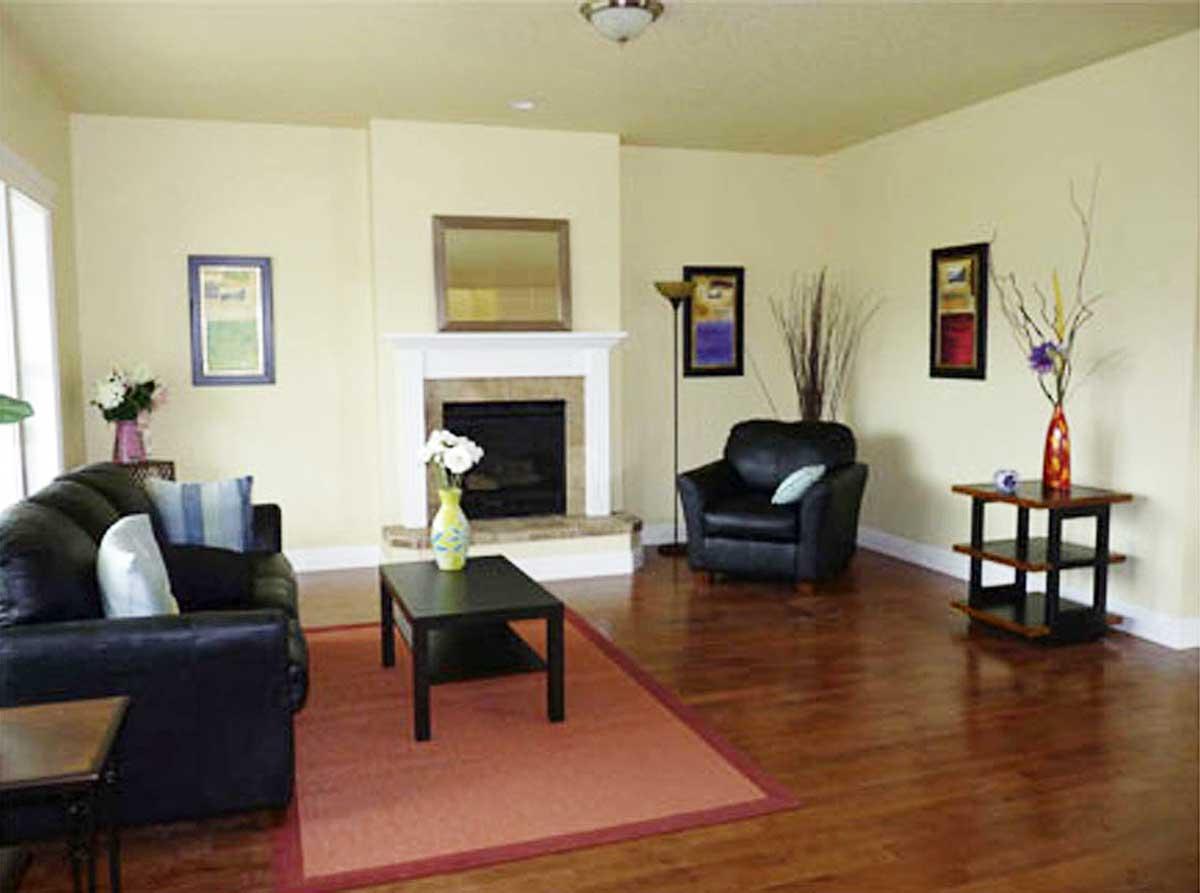

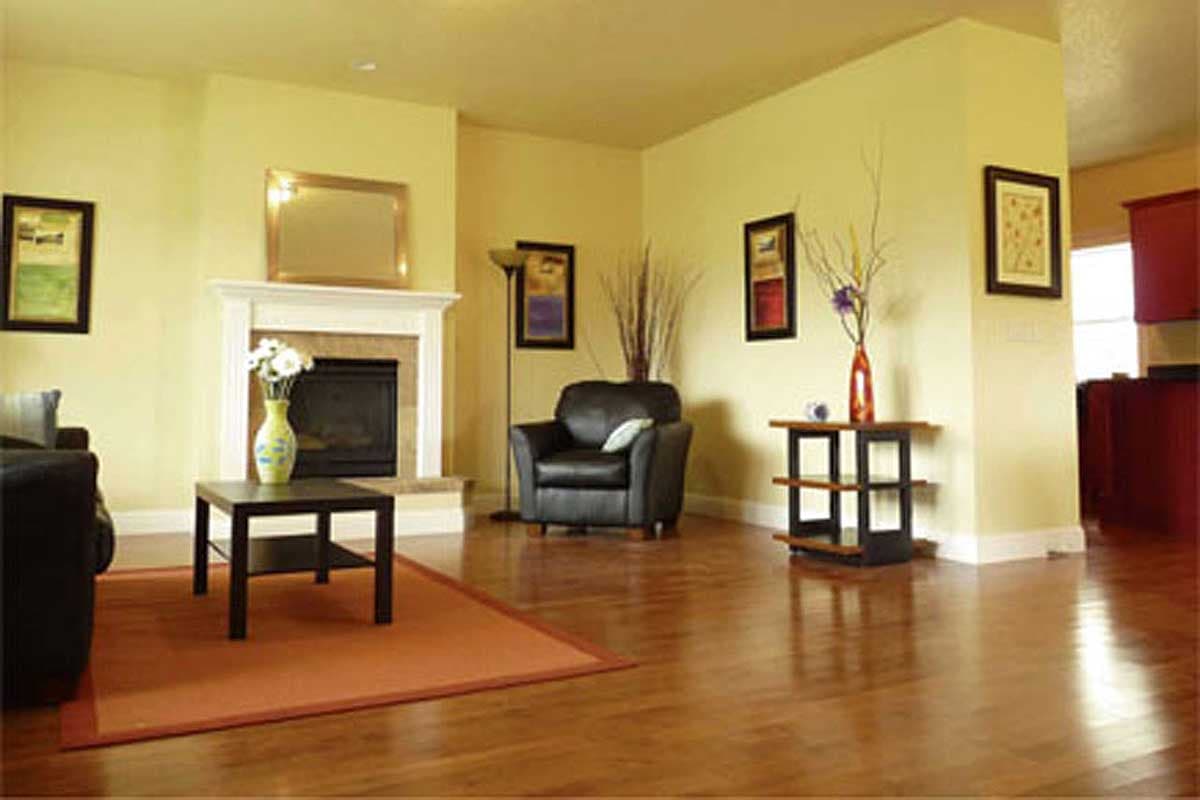

  • A big fireplace warms the whole area.
  • The owner's suite is on the main floor with its private bathroom and large walk-in closet.
  • Upstairs, two additional bedrooms share a hall bath.

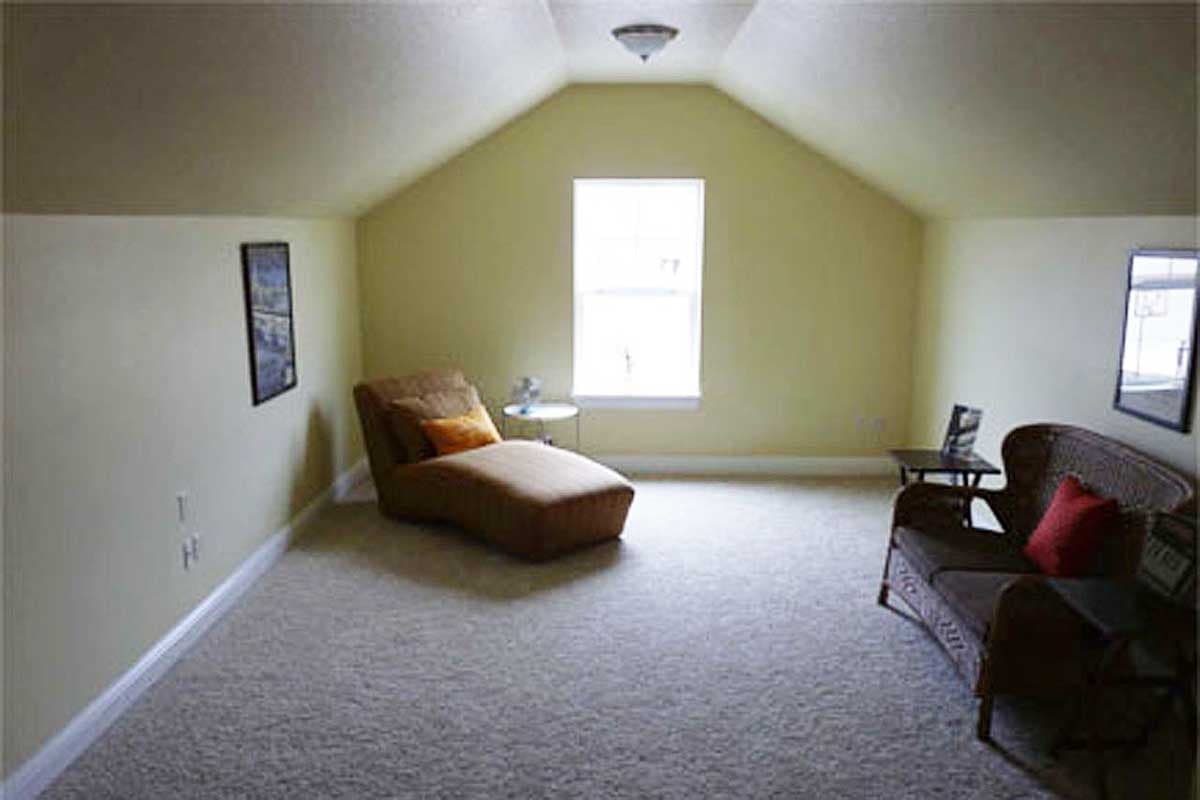

  • Bonus space lies over the two car garage.

What's Included

Each plan set is drawn at 1/4"=1' scale and includes the following drawings:
  • Cover Sheet/Artist's Rendering: An artist's drawing of the home, usually viewed from the front, and general construction notes.

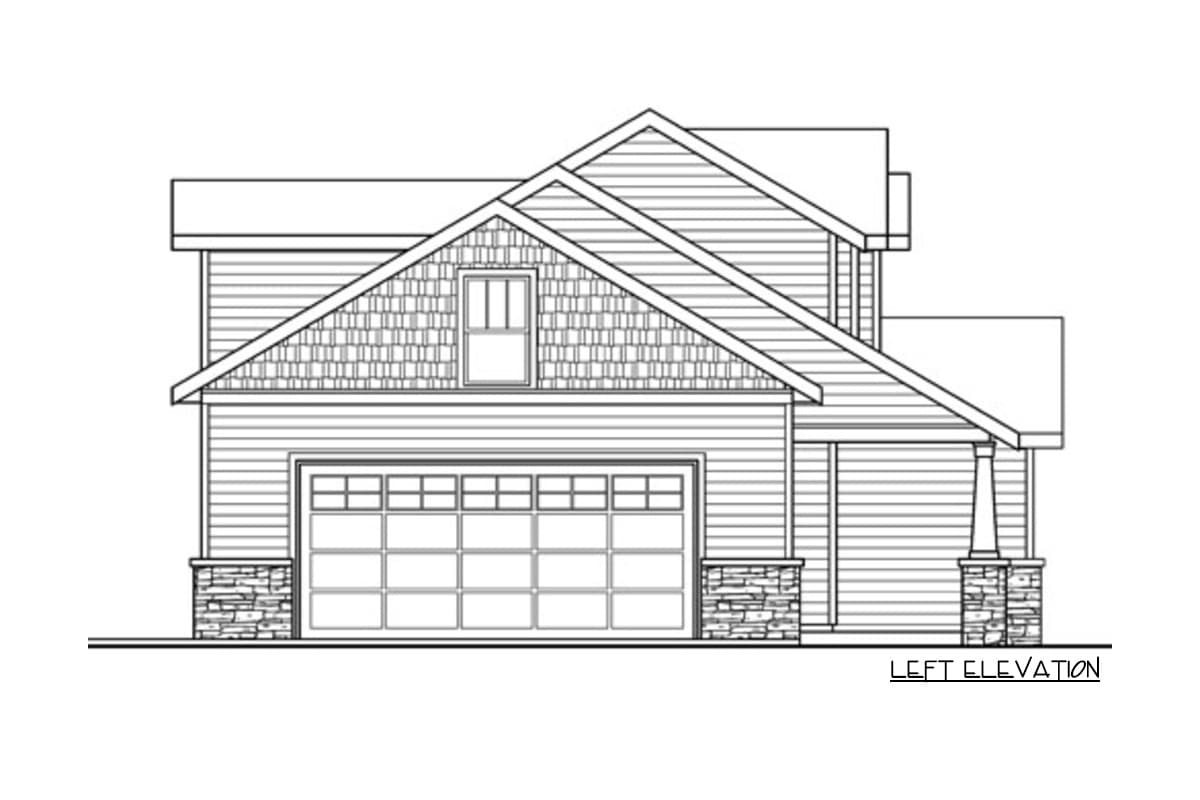

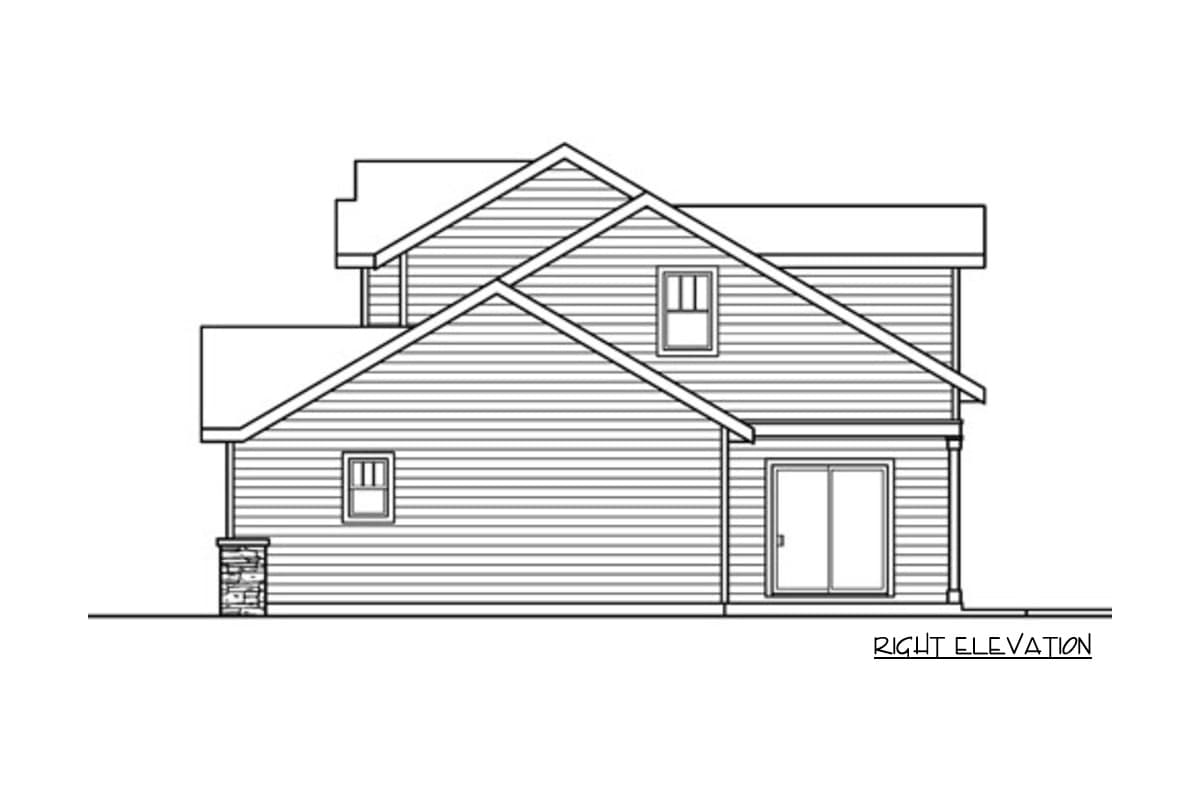

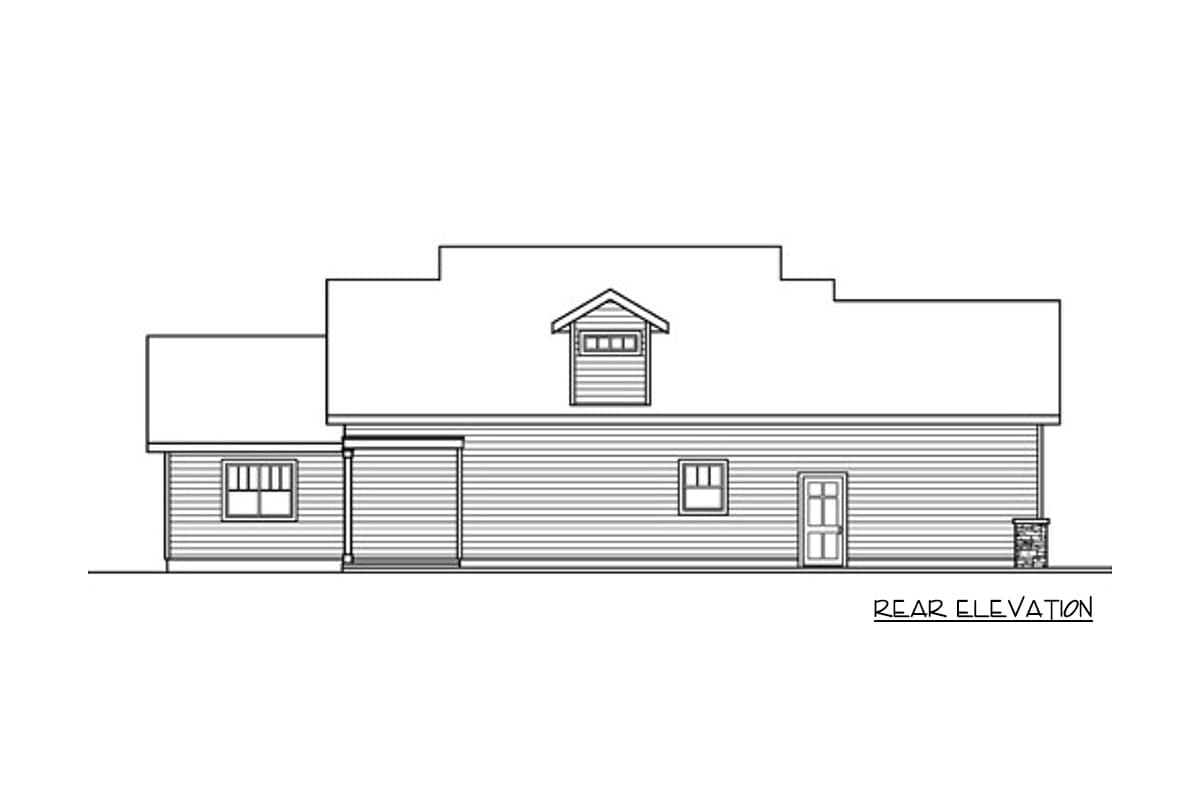

  • Elevations: Shows the front, sides, and rear, including exterior materials, trim sizes, roof pitches, etc.
  • Main Floor Plan: Shows placement and dimensions of walls, doors, & windows. Includes the location of appliances, plumbing fixtures, beams, ceiling heights, etc.
  • Second Floor Plan (if any): Shows the second floor in the same detail as the main floor. Includes second floor framing and details.
  • Foundation Plan: Shows the location of all concrete footings, floor beams, first floor framing, and foundation details. If there is a basement, a basement plan is included which shows all basement details. Foundation types vary; please call to confirm the foundation type of the plan you are interested in.
  • Roof Framing Plan: Shows roof outlines, conventional framing/trusses, beams, roof framing details, etc. Specific details such as fireplaces, stairways, decks, etc. Details are drawn at 1/2" = 1' scale, and appear as needed throughout the prints.
  • Building Section: Shows a cross-section of the home. Shows support members, exterior and interior materials, insulation, and foundation.
  • Electrical Plan: A schematic layout of all lighting, switches, and electrical outlets.

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,701 sq. ft.

1st Floor

1,224 sq. ft.

2nd Floor

477 sq. ft.

Bonus

319 sq. ft.

Porch, Front

286 sq. ft.

Covered Patio

126 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Half bathrooms

1

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

66' 0"

Depth

38' 0"

Max Ridge Height

24' 6"

Garage

Type

Attached

Area

562 sq. ft.

Count

2 Cars

Entry Location

Side

Ceiling Heights

First Floor

9'

Second Floor

8'

Roof Details

Primary Pitch

7 on 12

Framing Type

Truss

Architectural Style

Craftsman

Northwest

Special Features

Master Suite - 1st Floor

Optionally Finished Bonus Room
