Plan 42512DB

Stylish Craftsman with Flex Room

Stylish Craftsman with Flex Room

Plan 42512DB

  • 2,407

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Stories

  • 2

    Cars

  • Customize this stylish Craftsman house by using the flex space as a study, formal dining room or even as an extra bedroom.
  • A vaulted ceiling unites the giant great room with the kitchen.
  • The views swing around to include the dining room that has sliding glass doors to the rear covered porch.
  • Even the mud room benefits from features such as a drop zone and built-in bench.
  • Who doesn't want a large laundry room too - this one with lots of extra counter space.
  • In the master suite, the tray ceiling adds an elegant touch and the giant master walk-in closet comes with a built-in dresser.
  • The split bedroom layout places the two family bedrooms on the left wing of the home.
  • Each bedroom offers a large walk-in closet.

Plans include the following:


Cover Page. Each home plan features the rendered elevation and informative reference sections including: general notes and design criteria 1; abbreviations; and symbols for your plan.

Elevations:  Drafted at 1/4" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys and ridges.

 Foundation: Drafted at 1/4" scale. Poured or block basement or slab foundations are standard. We also show the HVAC equipment, structural information, steel beam and pole locations and the direction and spacing of the floor system above.

Main Level Floor Plan: 1/4" scale. Fully dimensioned from stud to stud for ease of framing. The detailed drawings include such things as structural header locations, framing layout and kitchen layout.1

 Second Level Floor Plan: 1/4" scale. Dimensioned from stud to stud and drafted to the same degree of detail as the main level floor plan.1

 Interior Elevations:Useful for the cabinet and bidding process, this page shows all kitchen and bathroom cabinets as well as any other cabinet elevations.

Electrical and Sections: Illustrated on a separate page for clarity, the electrical plan shows suggested electrical layout for the foundation, main and second level floor plans. Typical wall, cantilever, stair, brick and fireplace sections are provided to further explain construction of these areas.

Roof Framing Plan: Illustrated on a separate page for clarity, the roof framing plan shows the suggested dimensional plan showing lengths, runs, ridge heights and wall plate heights.

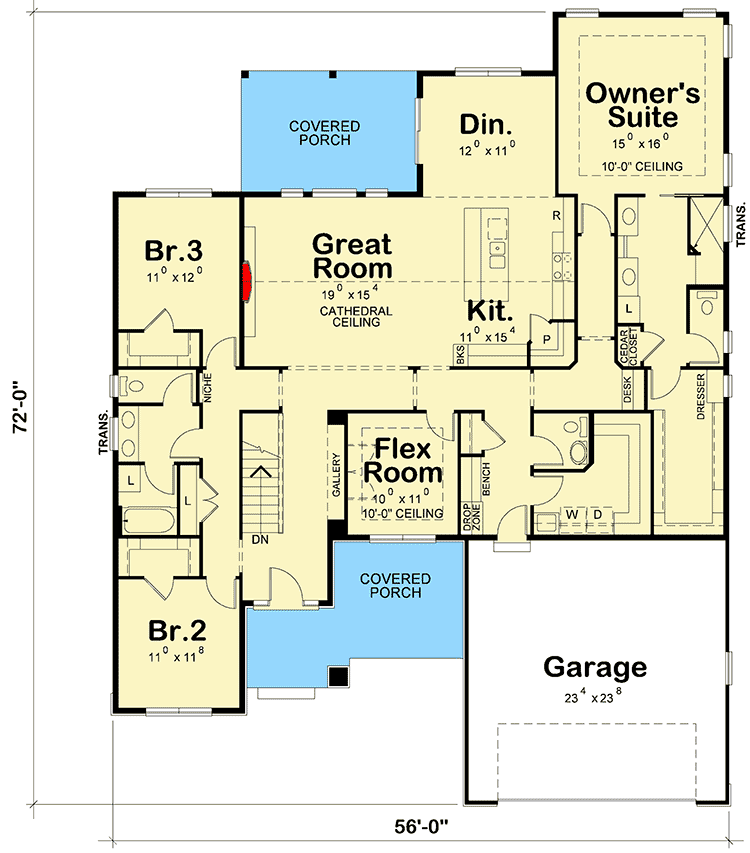

Floor Plan

Plan details



Stylish Craftsman with Flex Room

  • 2,407

    Heated s.f.

  • 3

    Beds

  • 3

    Baths

  • 1

    Floors

  • 2

    Car garage

Buy This Plan
  • Digital Study Set $670
  • PDF - single-use $1,025
  • 5 Sets $1,150
  • 5 Sets PLUS $1,195
  • 8 Sets $1,220
  • PDF - multi-use $1,525
  • CAD $1,794
  • CAD - multi-use $2,294
  • View all purchase option online

About This Plan

  • Customize this stylish Craftsman house by using the flex space as a study, formal dining room or even as an extra bedroom.
  • A vaulted ceiling unites the giant great room with the kitchen.
  • The views swing around to include the dining room that has sliding glass doors to the rear covered porch.
  • Even the mud room benefits from features such as a drop zone and built-in bench.
  • Who doesn't want a large laundry room too - this one with lots of extra counter space.
  • In the master suite, the tray ceiling adds an elegant touch and the giant master walk-in closet comes with a built-in dresser.
  • The split bedroom layout places the two family bedrooms on the left wing of the home.
  • Each bedroom offers a large walk-in closet.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 2,407 sq. ft.
  • 1st Floor: 2,407 sq. ft.

Beds/Baths

  • Bedrooms: 3
  • Full bathrooms: 3

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 56' 0"
  • Depth: 72' 0"

Garage

  • Type: Attached
  • Area: 576 sq. ft.
  • Count: 2 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: First Floor / 9' 0"
