Plan 57248HA
Stylish Duplex Home Plan
Heated S.F.
2,008
Units
2
Width
52'
Depth
45'
What's Included
Plan Details
  • Immersed in light, the living room of this duplex home plan has a luxury entrance foyer with full-glass double entry doors, two large windows and convenient coat closet. Each unit gives you 1,044 square feet of living space.
  • A snack counter, built-in pantry and laundry closet are a few features of the kitchen that opens to the breakfast room with bay and sliding doors to the rear patio.
  • The master bedroom offers an 11' volume ceiling with a special window wall, exterior planter box for flowers and an extra closet in addition to a walk-in closet.
Unit A
1,004 Sq. Ft.
1004 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
None
26' w 45' d
Unit B
1,004 Sq. Ft.
1004 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
None
26' w 45' d
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

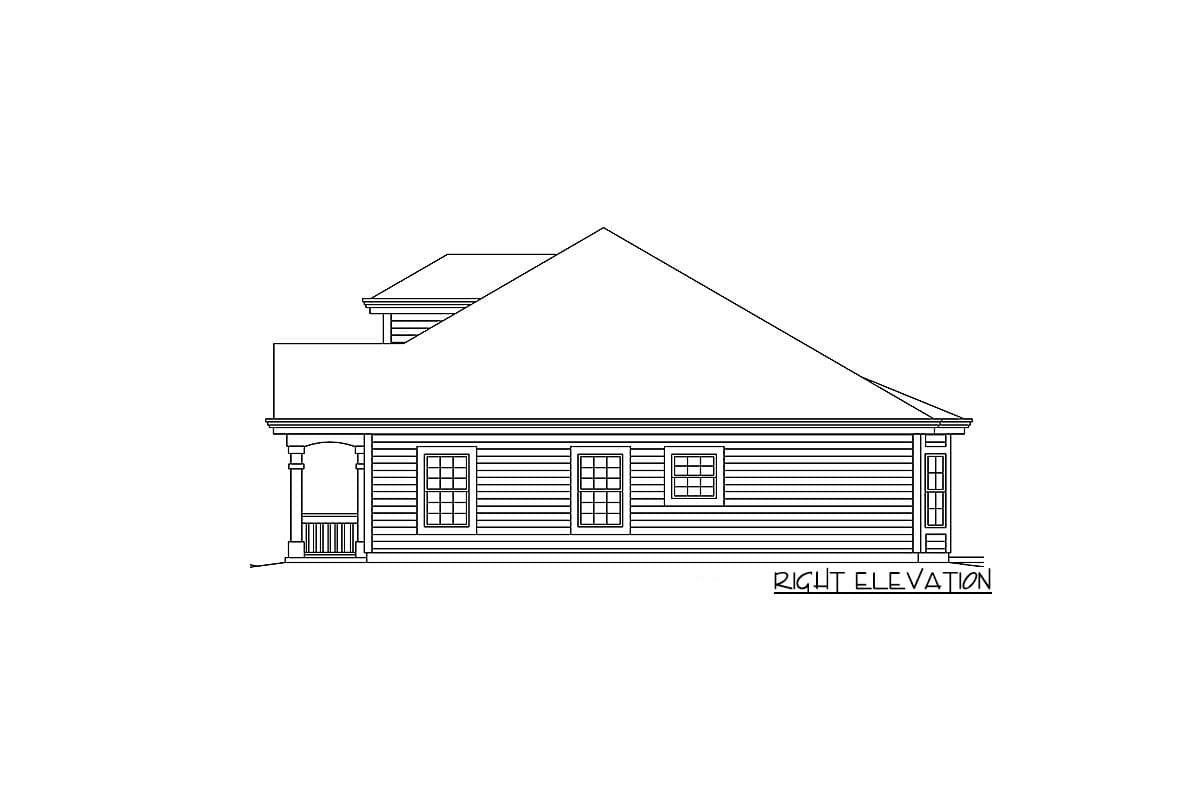

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Stylish Duplex Home Plan

  • 2,008

    Heated s.f.

  • 2

    Units

  • 52'

    Width

  • 45'

    Depth

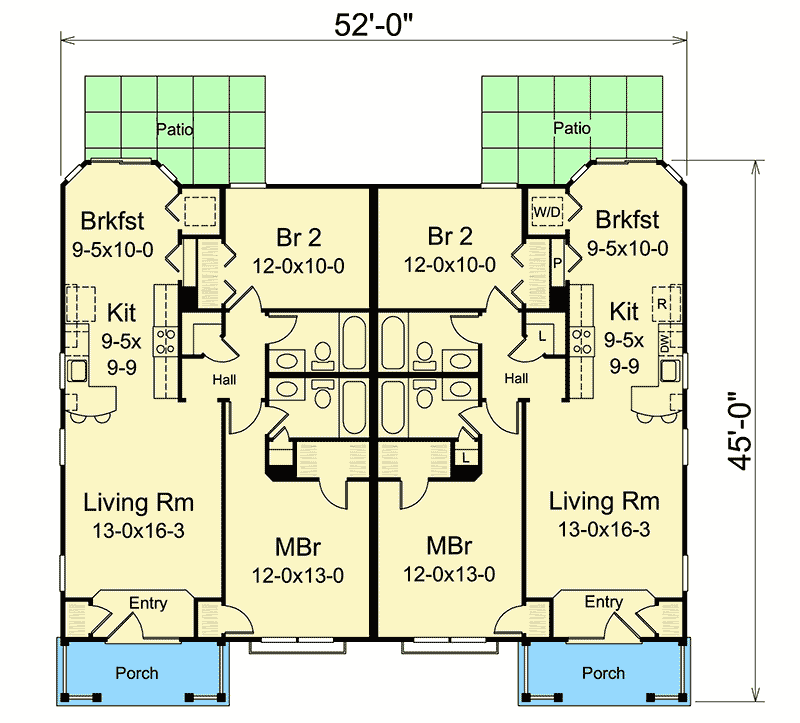

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 2,008 sq. ft.
  • 1st Floor: 2,008 sq. ft.

Dimensions

  • Width: 52' 0"
  • Depth: 45' 0"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Roof

  • Primary Pitch: 8 on 12
  • Secondary Pitch: 7 on 12
