Plan 57080HA

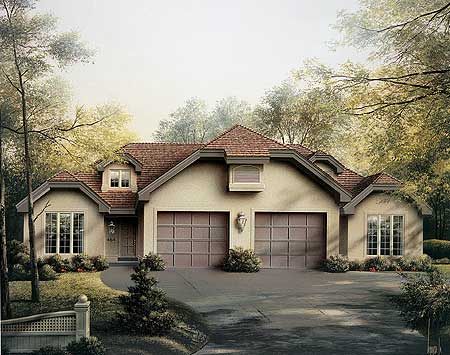

Stylish Living With This Open Multi-Family Design
Heated S.F.
1,992
Units
2
Width
60'
Depth
55'
Cars
1
What's Included
Plan Details
  • Graciously designed ranch duplex with alluring openness.
  • Vaulted kitchen with accent on spaciousness features huge pantry, plenty of cabinets and convenient laundry room.
  • Master bedroom includes its own cozy bath and oversized walk-in closet.
Unit A
996 Sq. Ft.
996 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
None
30' w 55' d
Unit B
996 Sq. Ft.
996 Sq. Ft. 1st Floor
2 Beds
2 Full Baths
None
30' w 55' d
What's Included

  • Front Cover Sheet
  • Detailed Floor Plans
  • Foundation Plan
  • Roof Plan

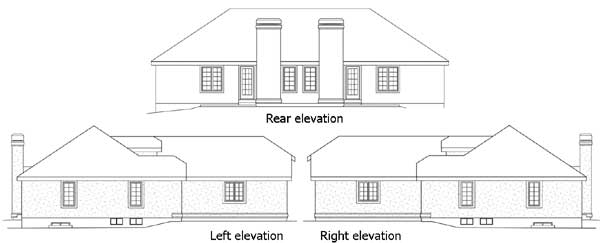

  • Exterior Elevations
  • Interior Elevations
  • Cross Section
  • Mechanical – Shows location of furnace
  • Electrical – Shows location of outlets, switches and fixtures
  • Plumbing – Shows location of fixtures

Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Stylish Living With This Open Multi-Family Design

  • 1,992

    Heated s.f.

  • 2

    Units

  • 60'

    Width

  • 55'

    Depth

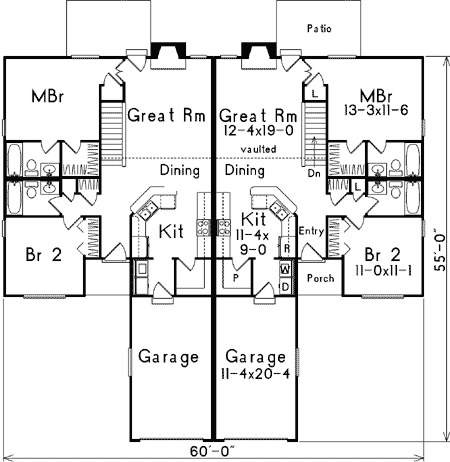

Floor Plan

  • Main Level

Plan Details

Square Footage Breakdown

  • Total: 1,992 sq. ft.
  • 1st Floor: 1,992 sq. ft.

Dimensions

  • Width: 60' 0"
  • Depth: 55' 0"
  • Max ridge height: 19' 6"

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 2

Garage

  • Type: Attached
  • Area: 496 sq. ft.
  • Count: 1 Cars
  • Entry Location: Front

Foundation Type

    • Standard Foundations: Basement

Exterior Walls

  • Standard Type(s): 2x4

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Truss
