Plan 560001TCD Sun-filled ADU with Open Floor Plan

596 1 1 1
Print
Compare
...
All plans are copyrighted by our designers. Photographed homes may include modifications made by the homeowner with their builder.

Sun-filled ADU with Open Floor Plan

Plan 560001TCD

  • 596

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Stories

  • Windows fill the front of this ADU cottage plan giving the home great natural light.
  • Enter the home from the side porch and you step into an open floor plan with the kitchen and living room in a sun-soaked combined space.
  • The bedroom and bath complete the back of the home. A stackable washer/dryer is conveniently tucked away.
  • Related Plan: Get a 400 square foot version with house plan 560004TCD.

This plan set includes the following items:

Cover Sheet
Artistic rendering of cottage, 3D perspective views showing all exterior sides, an interior view, an interior dollhouse view. Also, design criteria, misc. notes and specifications and some individual plan data.

Foundation Plan
Foundation plan in ¼" scale, 3D view, construction details and notes.

Floor Plan(s)
Floor plan in ¼" scale, wall framing plan, top down roof view showing roof pitches. Window and door schedules.

Ceiling & Roof Framing
2D and 3D views of framing.

Framing Details
Generic wall, ceiling and roof framing details. Lumber and framing notes.

Elevations
Front, rear, right and left side elevations. Notes on windows and doors. Miscellaneous notes.

Cross Sections
Cross section views with framing details.

Kitchen Plan
Kitchen and bath plans, elevations and schedule.

Electrical Plan
Electric layout plan, schedule and notes.

These items are NOT included:

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Floor Plan

Main Level

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

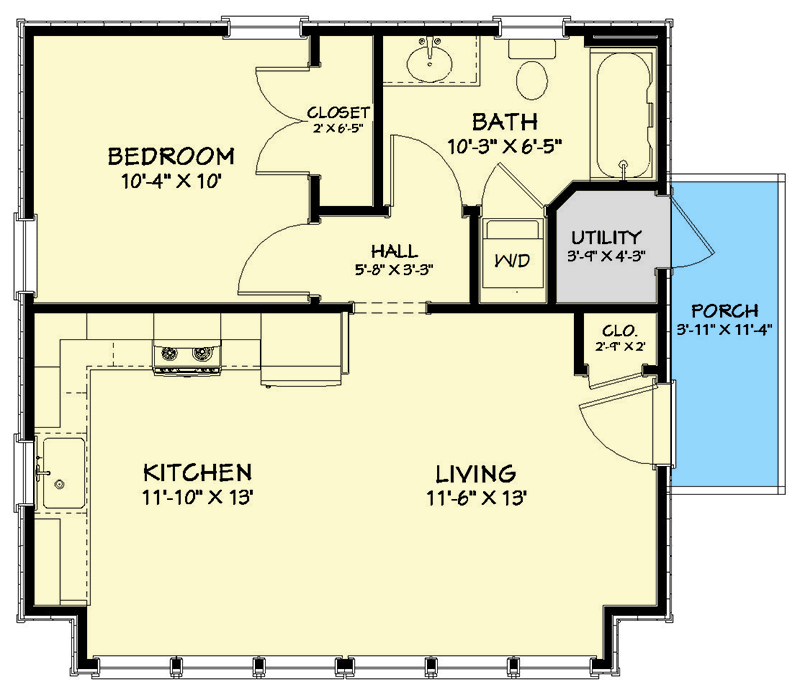

Sun-filled ADU with Open Floor Plan - 560001TCD floor plan - Main Level

Dollhouse View

Reverse Floor Plan
NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

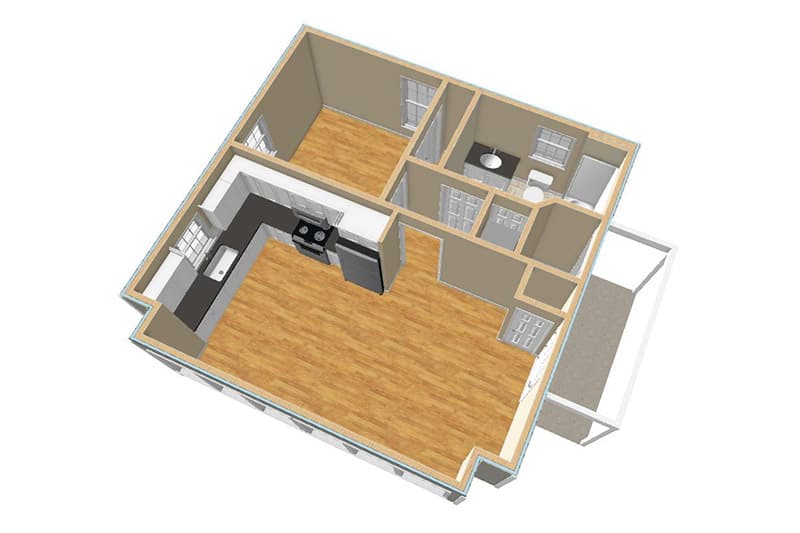

Sun-filled ADU with Open Floor Plan - 560001TCD floor plan - Dollhouse View

Plan details

Square Footage Breakdown

  • Total Heated Area: 596 sq. ft.
  • 1st Floor: 596 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

  • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 27' 0"
  • Depth: 30' 0"
  • Max ridge height: 13' 3"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"
Room Details Ceiling Type Width Depth Height
Kitchen 10' 0"
Living Room 10' 0"

Roof Details

  • Primary Pitch: 4 on 12

Architectural Style

Special features

Plan Collections

Sun-filled ADU with Open Floor Plan

  • 596

    Heated s.f.

  • 1

    Beds

  • 1

    Baths

  • 1

    Floors

Buy This Plan
  • PDF - Single-Build $675
  • CAD - Single-Build $1,475
  • View all purchase option online

About This Plan

  • Windows fill the front of this ADU cottage plan giving the home great natural light.
  • Enter the home from the side porch and you step into an open floor plan with the kitchen and living room in a sun-soaked combined space.
  • The bedroom and bath complete the back of the home. A stackable washer/dryer is conveniently tucked away.
  • Related Plan: Get a 400 square foot version with house plan 560004TCD.

Floor Plans

  • Main Level

  • Dollhouse View

Plan Details

Square Footage Breakdown

  • Total Heated Area: 596 sq. ft.
  • 1st Floor: 596 sq. ft.

Beds/Baths

  • Bedrooms: 1
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x4

Dimensions

  • Width: 27' 0"
  • Depth: 30' 0"
  • Max ridge height: 13' 3"

Ceiling Heights

  • Floor / Height: First Floor / 8' 0"

Roof

  • Primary Pitch: 4 on 12
Plan 560001TCD
View this and more for this plan by visiting www.architechtecturaldesigns.com/560001TCD
|
