Plan 85247MS

Exclusive

Sun-Filled Exclusive Modern Prairie Home with Casita

Heated S.F.
2,561
Beds
3 - 4
Baths
3
Stories
1
Cars
3

Floor Plan

Plan 85247MS

Main Level
Main Level
Basement Stairs
Basement Stairs
Optional Lower Level
Optional Lower Level

Plan 85247MS

M-F 9am-5pm EST |

1-203-761-8500

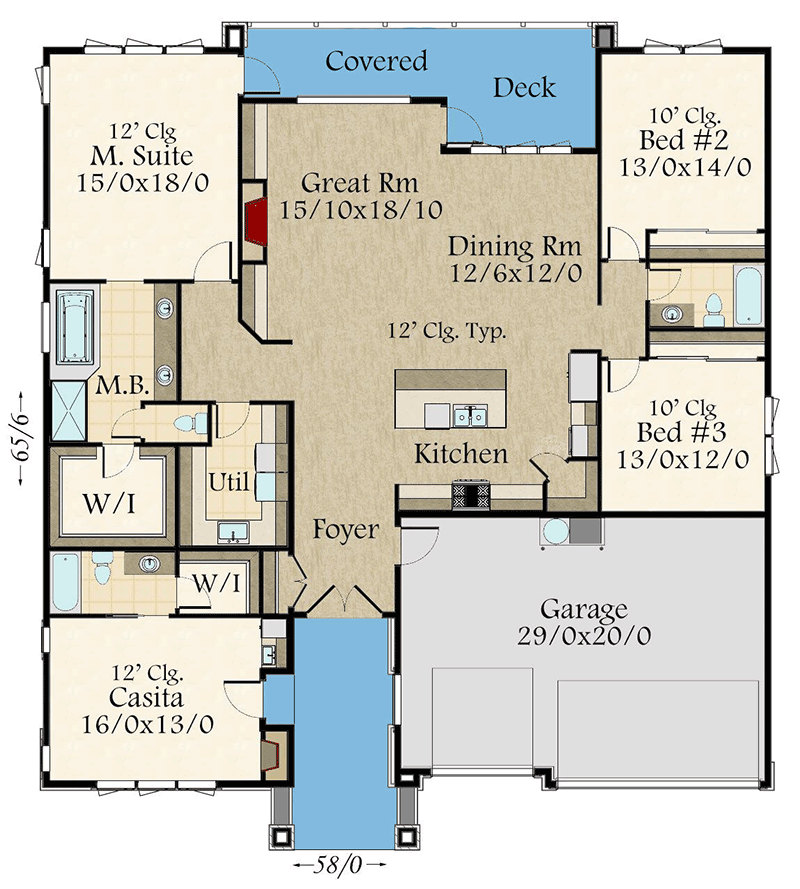

Main Level

Plan 85247MS: Sun-Filled Exclusive Modern Prairie Home with Casita - Floor Plan - Main Level - Mid Century Modern, Modern, Northwest, Prairie

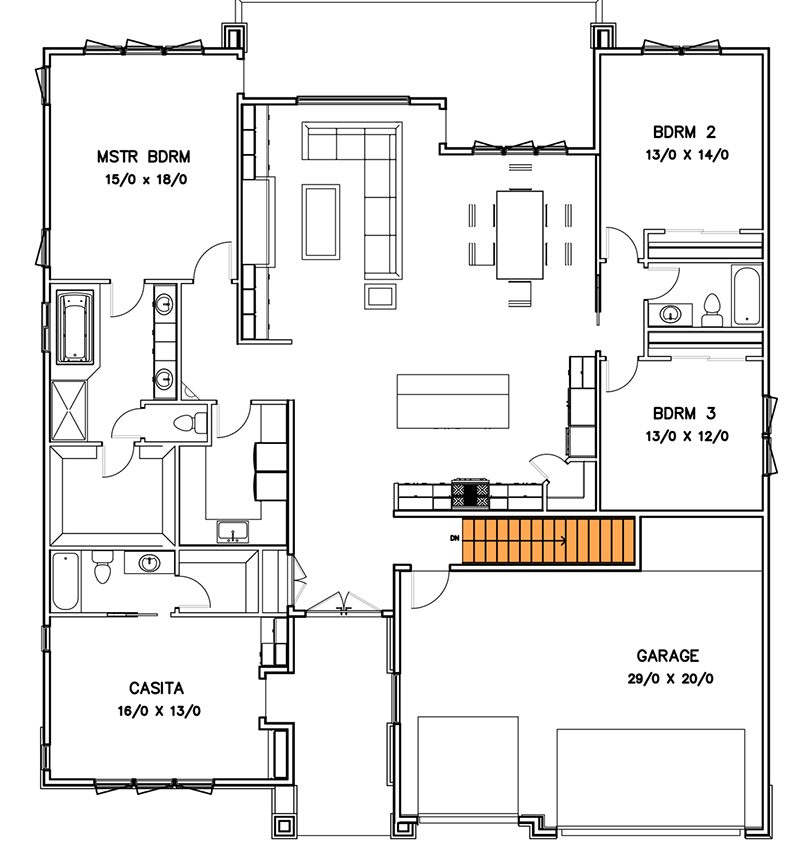

Basement Stairs

Plan 85247MS: Sun-Filled Exclusive Modern Prairie Home with Casita - Floor Plan - Basement Stairs - Mid Century Modern, Modern, Northwest, Prairie

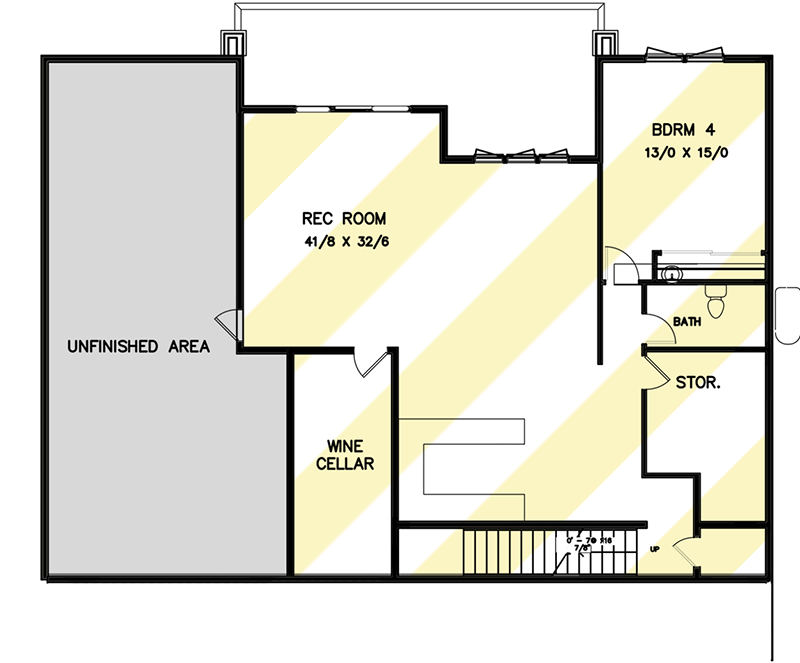

Optional Lower Level

Plan 85247MS: Sun-Filled Exclusive Modern Prairie Home with Casita - Floor Plan - Optional Lower Level - Mid Century Modern, Modern, Northwest, Prairie

Plan Details

  • This stunning one-story modern Prairie house plan (exclusive to Architectural Designs!) is full of natural light with 12 foot ceilings, transom windows and a casita for guests.
  • You can easily use the casita as a home office since it has a separate outdoor entrance.

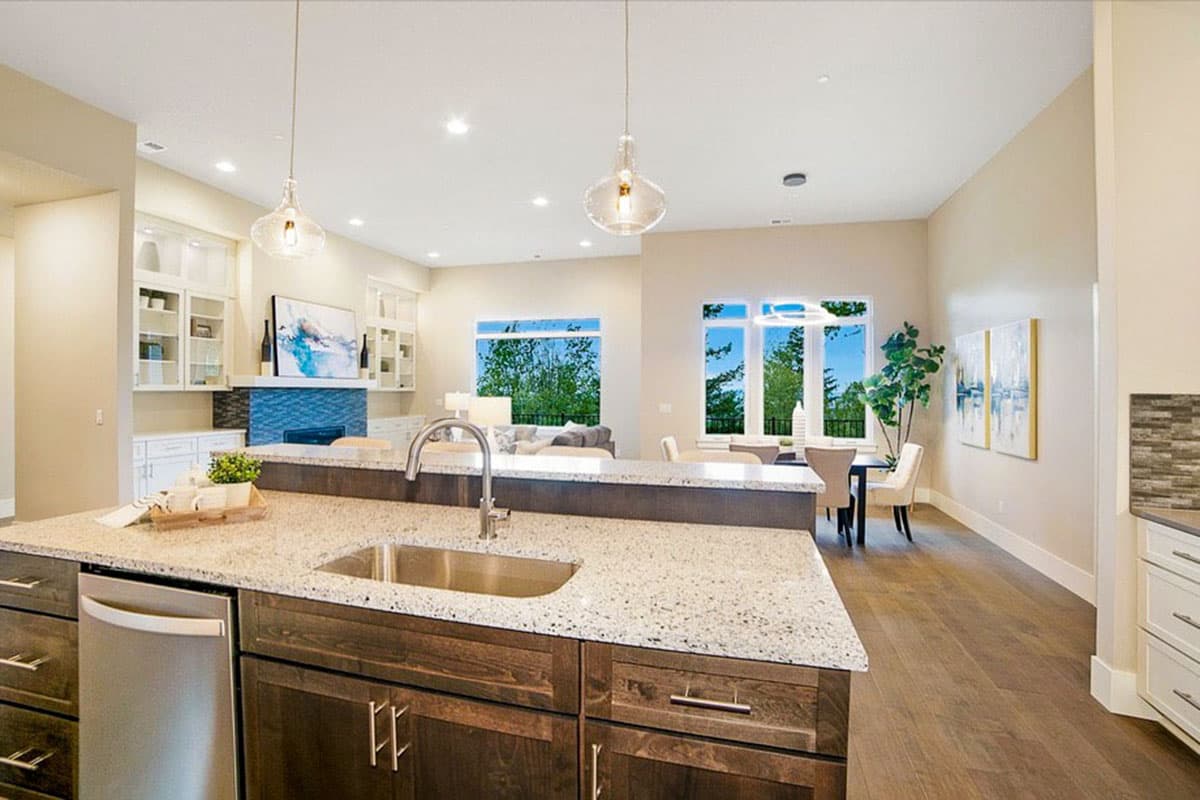

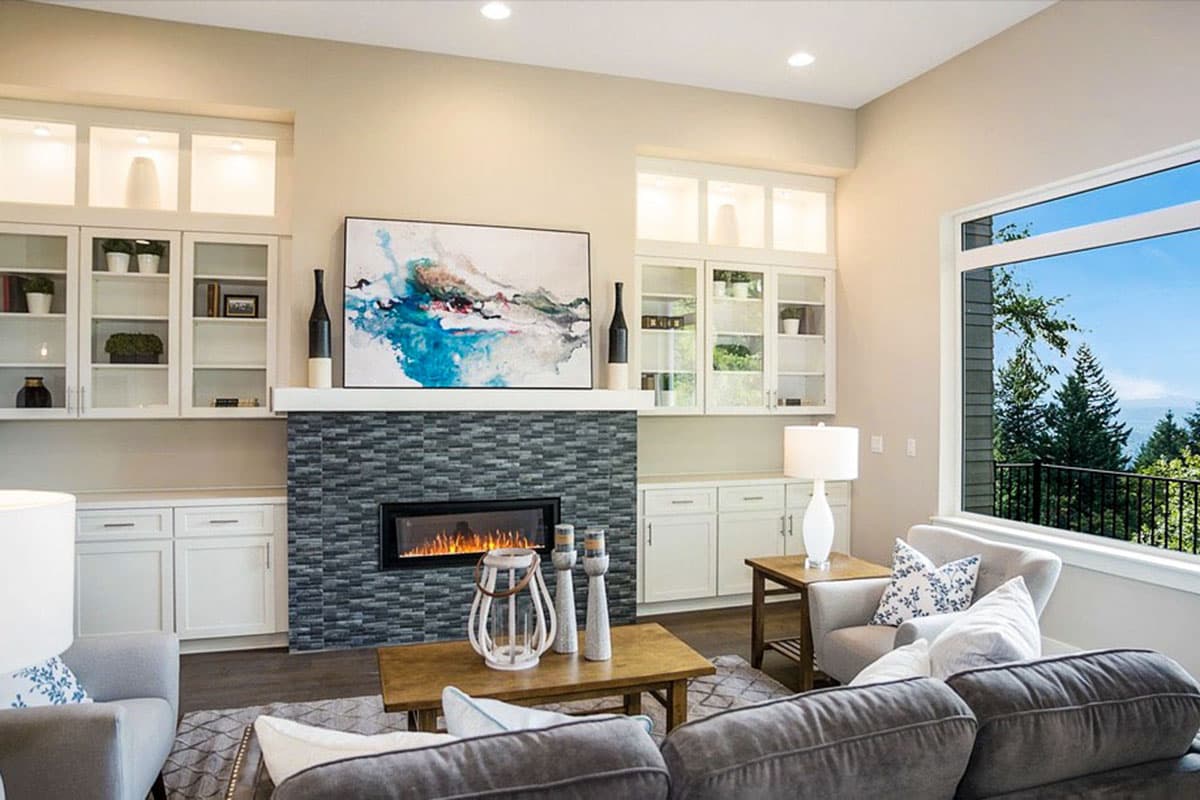

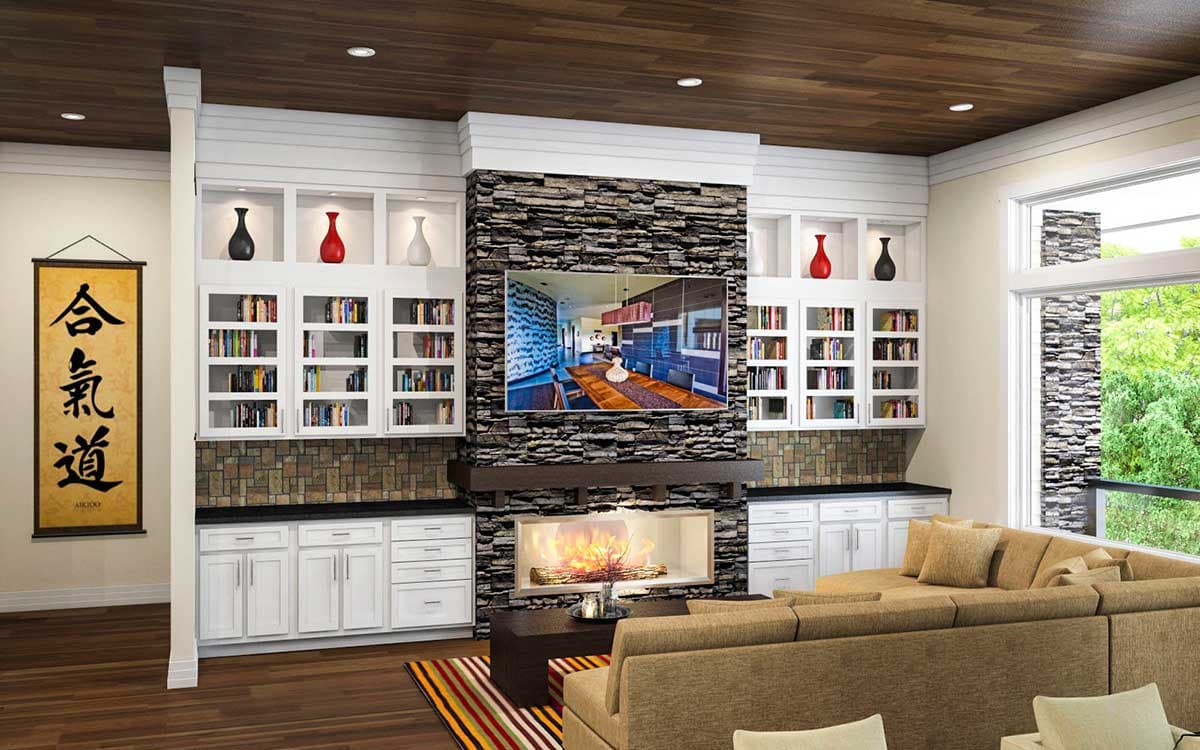

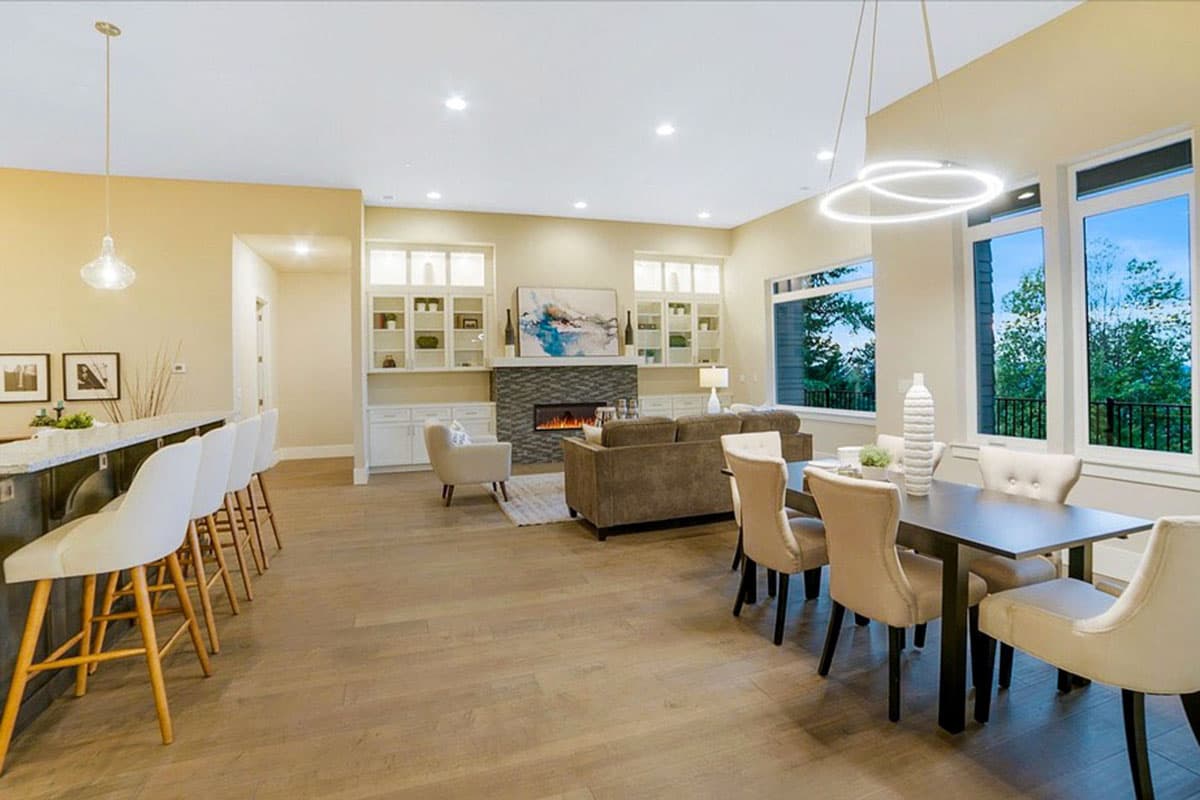

  • In the great room, a large built-in entertainment center flanks the big fireplace.

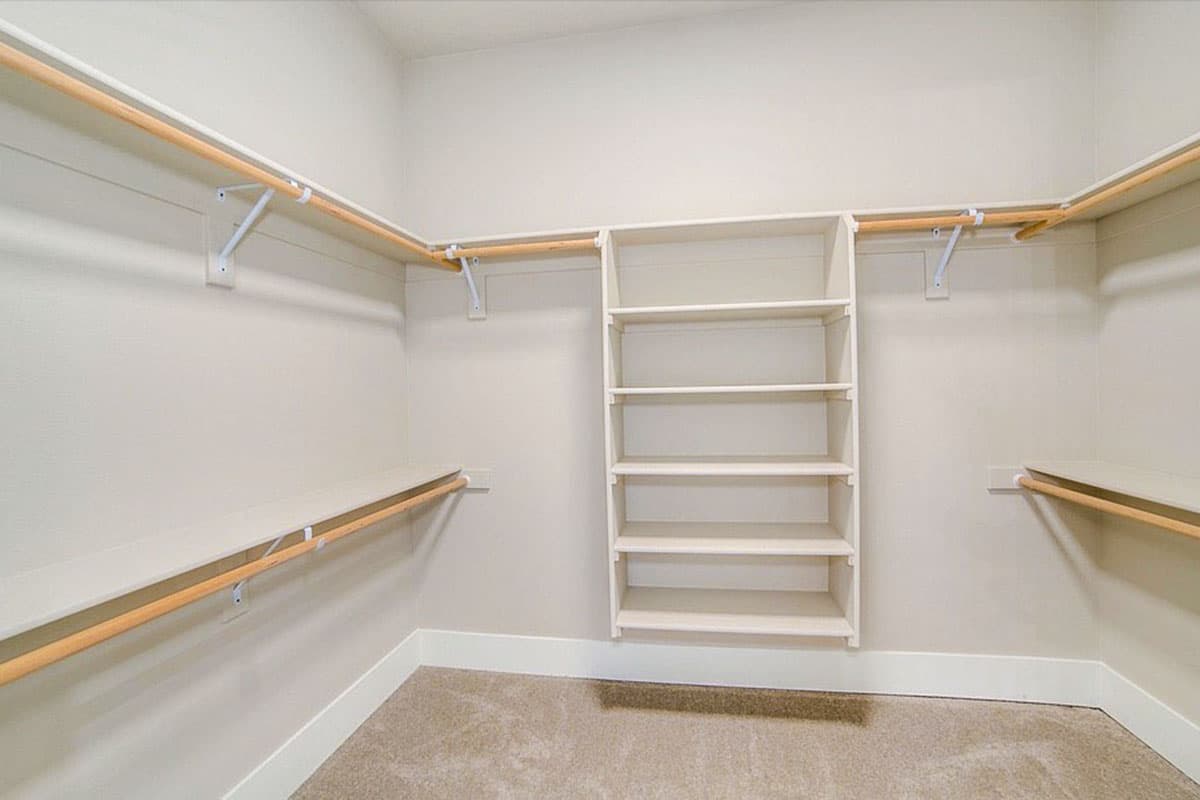

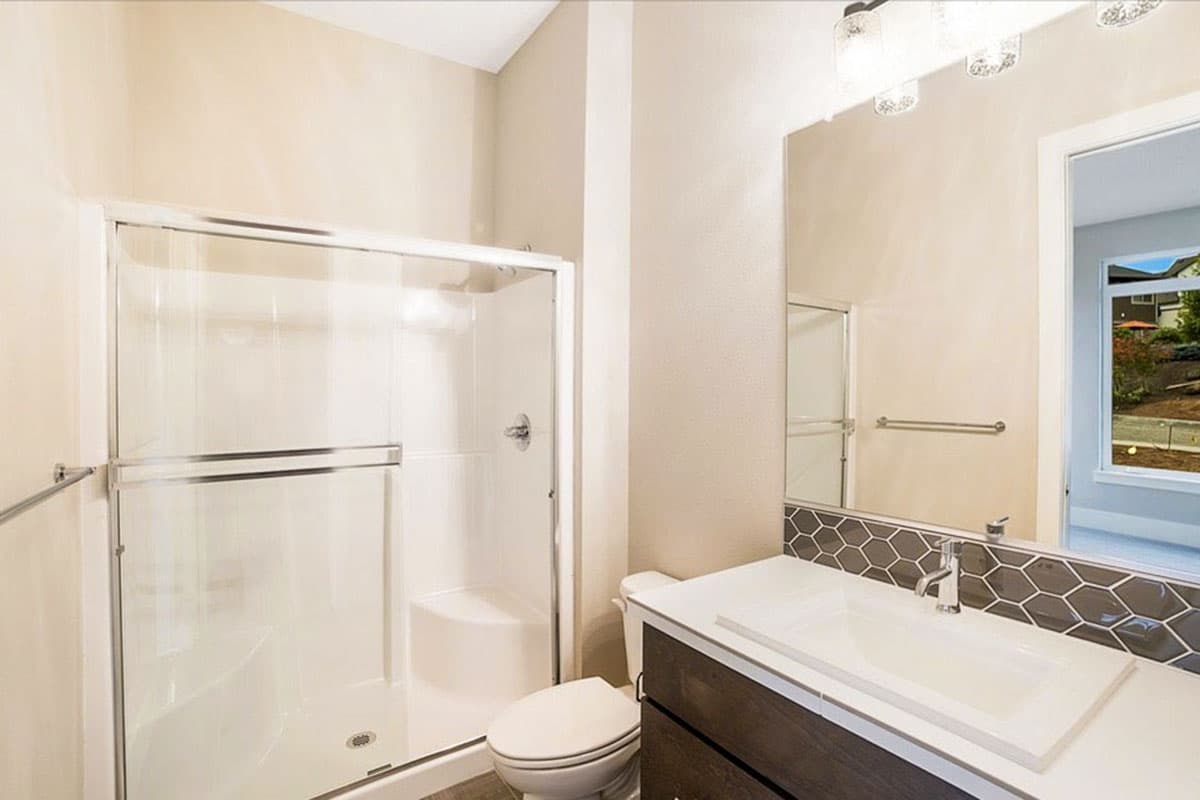

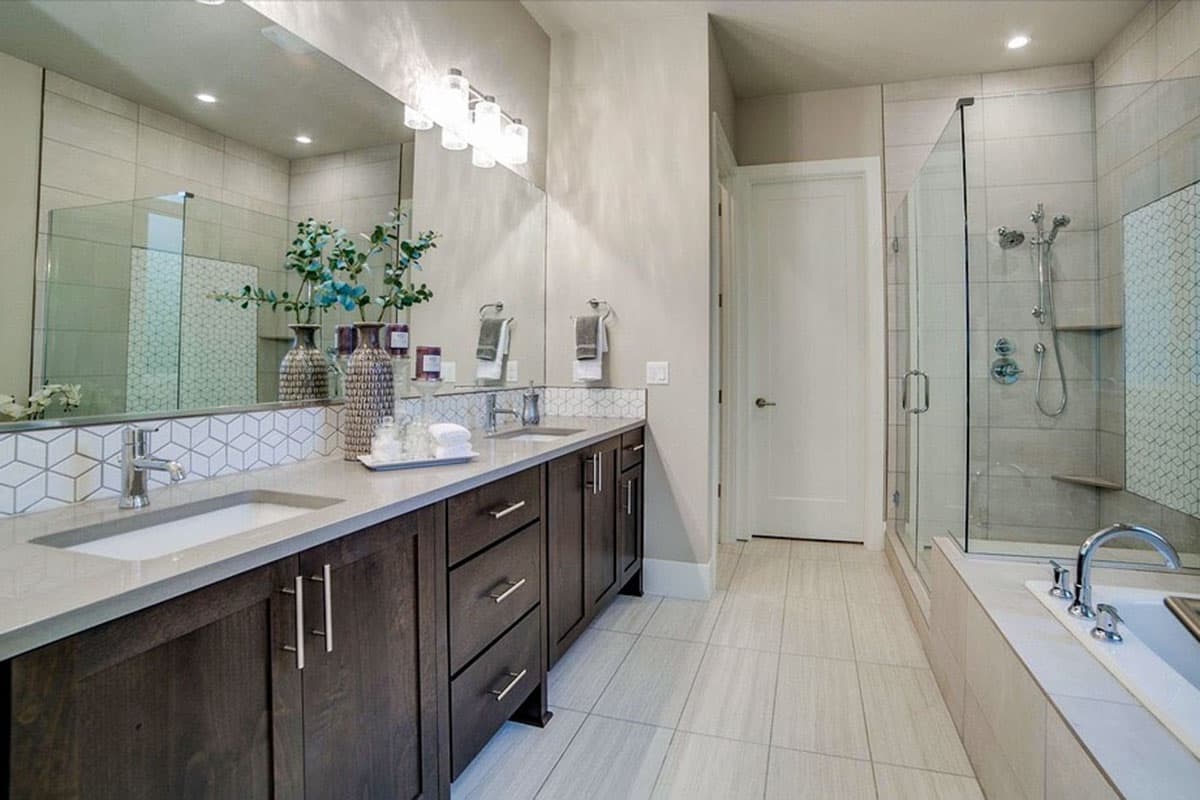

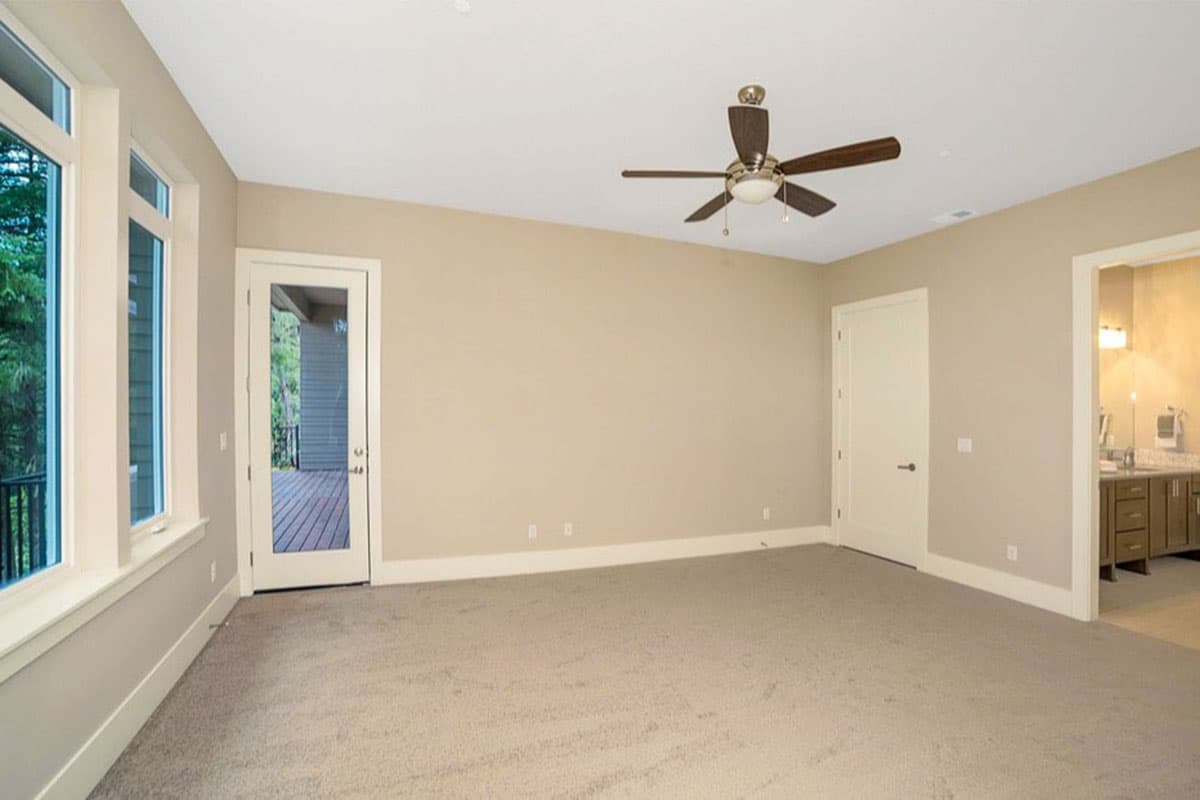

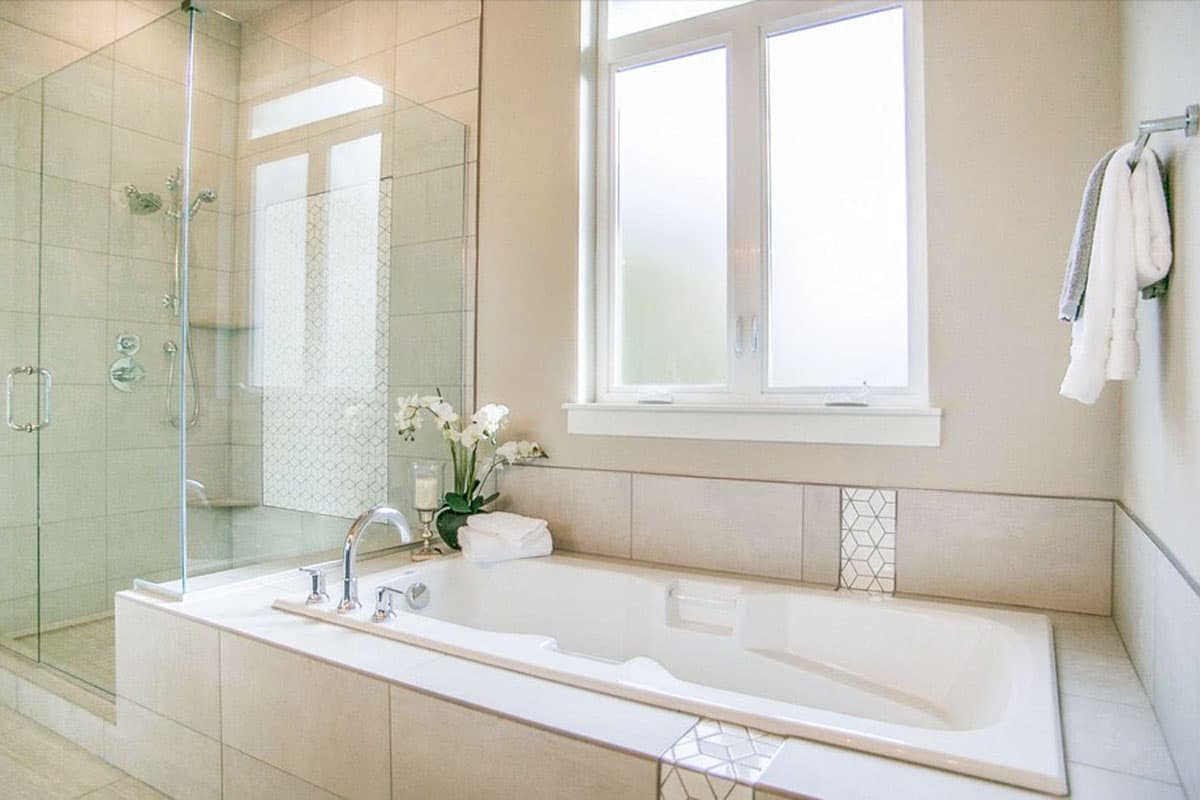

  • The master suite has an en-suite bathroom and also has a generous his and her closet.
  • Designed with great care, this home has an eye towards affordability and ease of construction.

What's Included

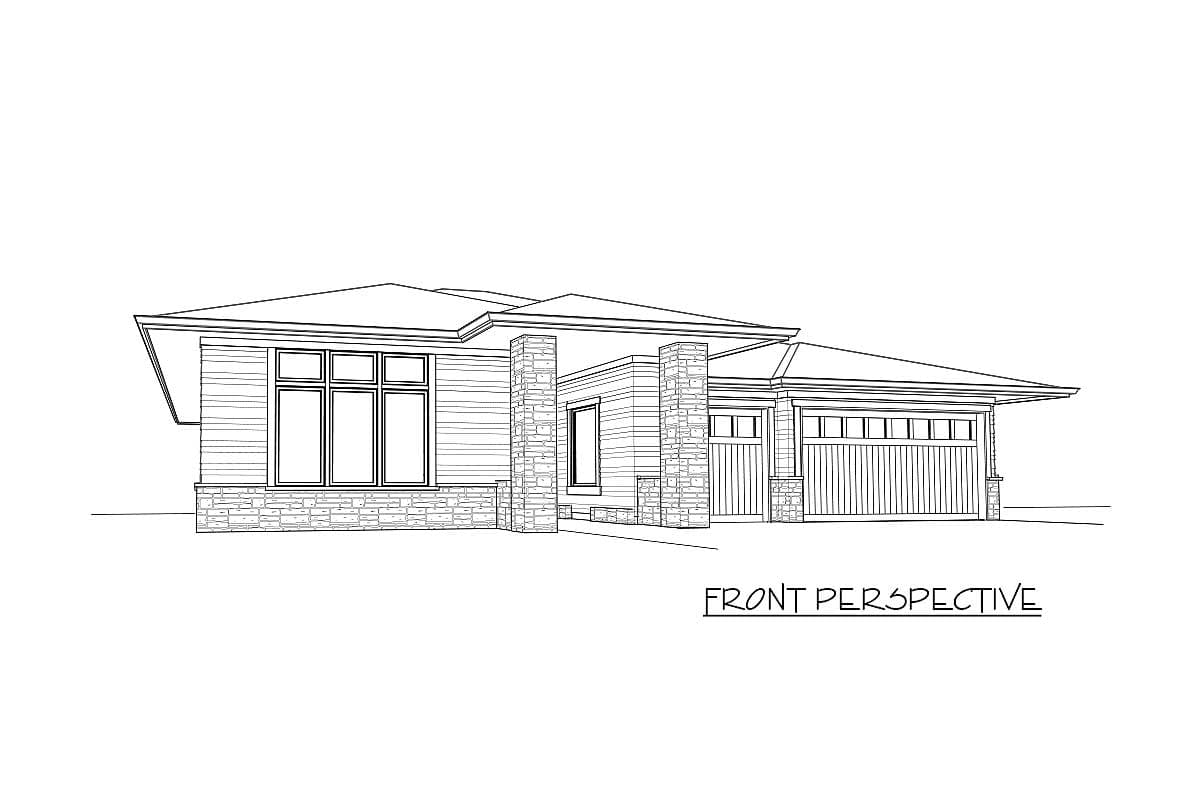

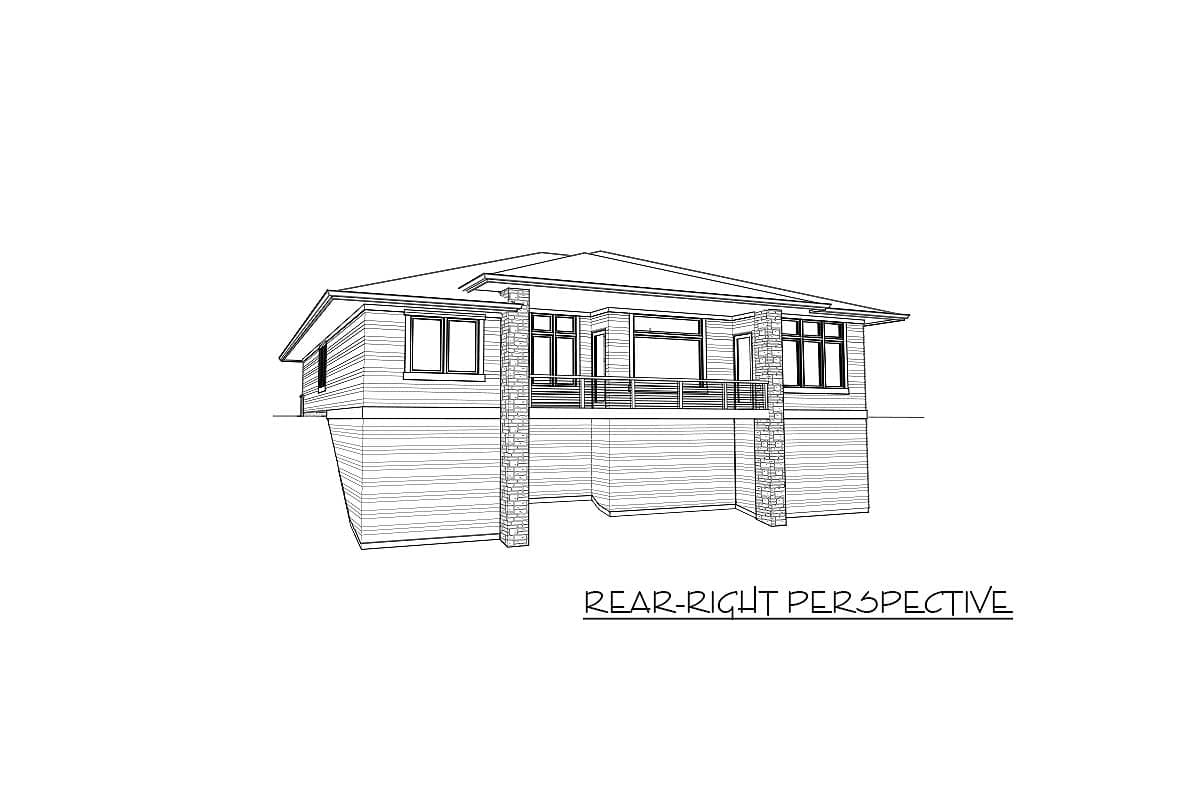

  • Elevations: Front, Right, Rear, Left
  • Fully Dimensioned Floor Plans (window and door sizes called out at openings)
  • Foundation Plan with notes
  • Roof Framing Plan with notes
  • Section Views
  • Electrical Layout
View Sample Plan

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required

Ready to Get Started?

Select your plan set options before checkout.

Price Match Guarantee
What's included?

Modify this Plan

Receive a free modification quote within 3 business days.

Start with a Cost Report

Calculate the cost to build & furnish your home.

Square Footage Breakdown

Total Heated Area

2,561 sq. ft.

1st Floor

2,561 sq. ft.

Beds/Baths

Bedrooms

3 or 4

Full bathrooms

3

Foundation Type

Standard Foundations

Crawl

Exterior Walls

Exterior Walls

2x6

Dimensions

Width

58' 0"

Depth

65' 6"

Max Ridge Height

18' 6"

Garage

Type

Attached

Area

640 sq. ft.

Count

3 Cars

Entry Location

Front

Ceiling Heights

First Floor

12'

Architectural Style

Mid Century Modern

Modern

Northwest

Prairie

Special Features

Bedrooms - Split

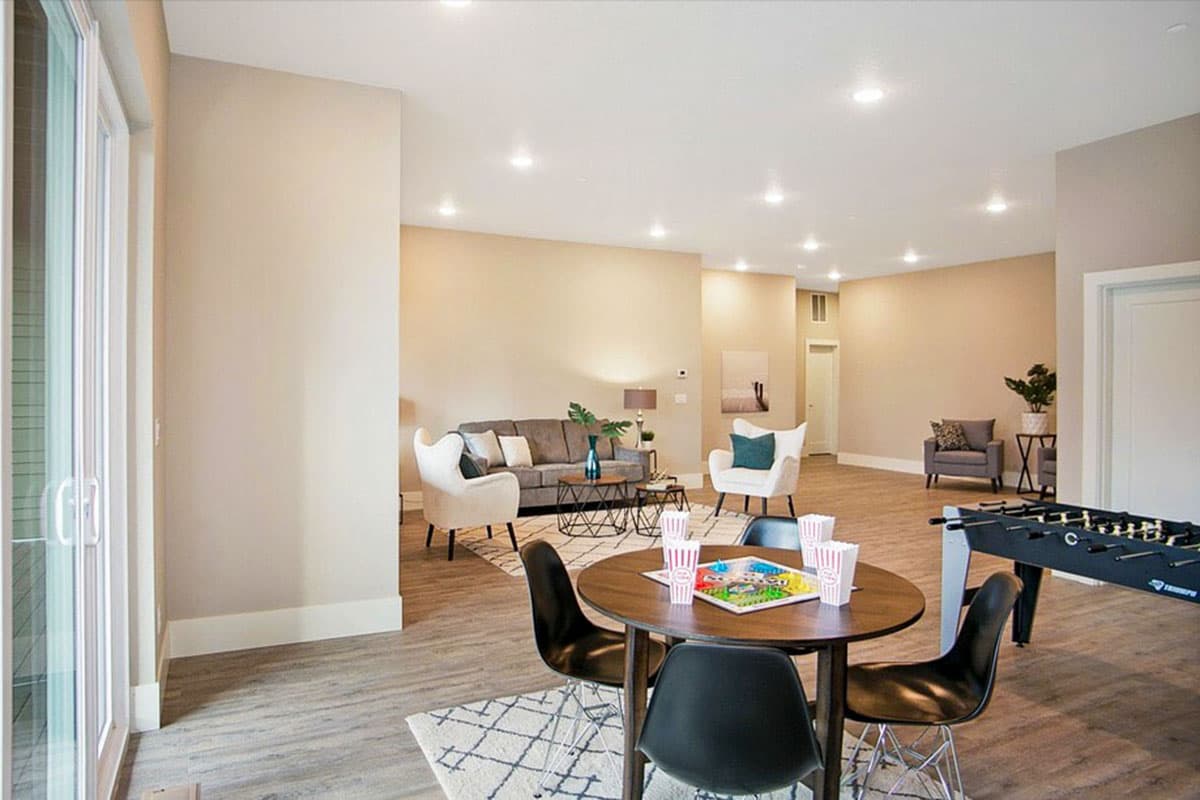

Game/Rec Room

Home Office

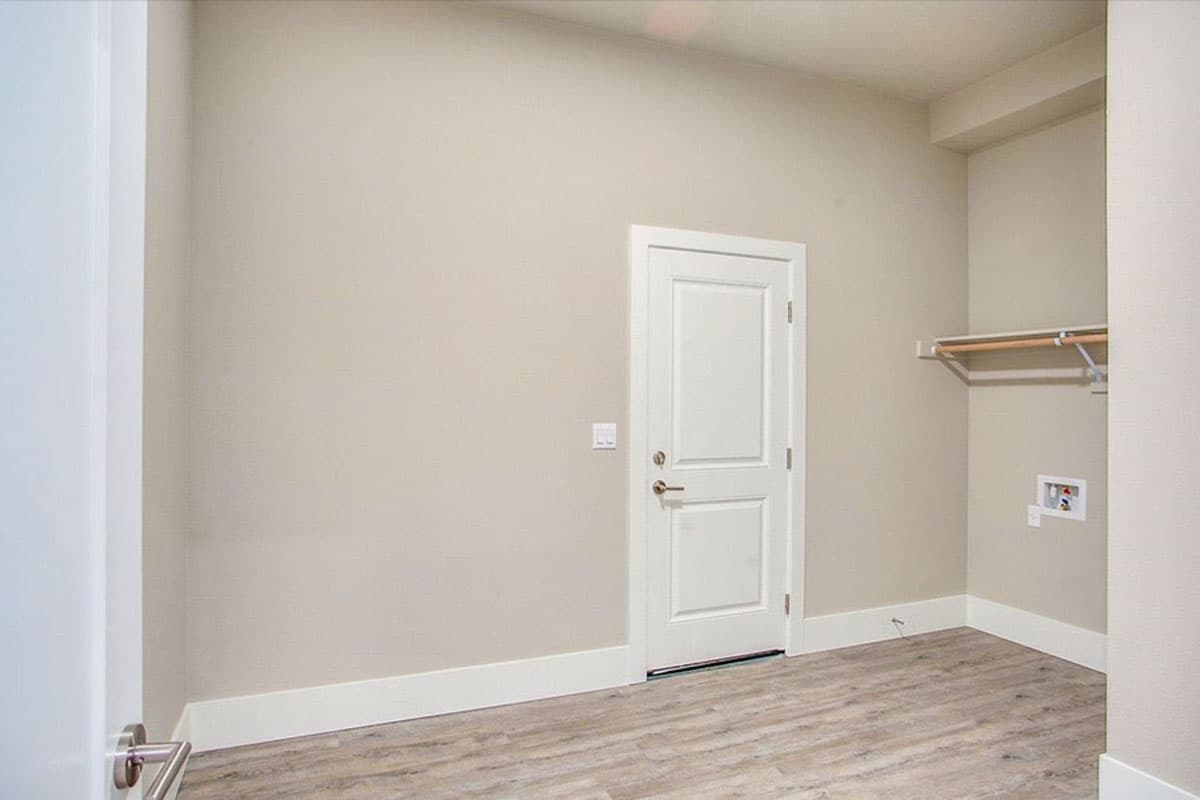

Laundry - Main Level

Master Suite - 1st Floor

Walk-in Pantry

Wine Room

Plan Collections

Exclusive

Photo Gallery
