Super-Size Cottage Home Plan with Vaulted Ceilings and an Angled 2-Car Garage
Heated S.F.
4,547
Beds
3-4
Baths
4.5
Stories
1
Cars
2
What's Included
Plan Details
  • This super-size cottage home plan - 4,547 square feet including the finished walkout basement - has sloped gables and graceful arches that combine with cedar shake, lap siding and stonework to create an elegant Old World exterior with a cottage ambiance.
  • This hillside walkout features an open floorplan and plenty of outdoor living areas. Create tempting meals in the kitchen with breakfast room. Eat outside in the inviting screen porch with skylights.
  • Cathedral ceilings top the great room (21'10"), master bedroom (17'2") and screened porch (17'2"), and three fireplaces, built-in cabinetry and an art niche add custom touches, along with the wet bar and large utility. The master suite offers a sitting area and convenient linen closets.
  • Downstairs, each bedroom has its own walk-in closet and bath, while a powder room services the rec room. For versatility, the home features a bedroom/study and expandable bonus room which adds 480 square feet when finished.
  • A service entry and laundry are located off the angled 2-car garage.
What's Included
  • Cover Sheet - An artist's rendering of the exterior of the house shows you approximately how the house will look when built and landscaped
  • Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
  • Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
  • Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
  • Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
  • Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
  • Cross-Section / Wall Section Details -  Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
  • Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
What's Not Included
  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Print
Hide
Compare
Favorite
Please note that all sale prices and promotions featured on our website are subject to change without prior notice. While we strive to provide accurate and up-to-date information, occasional discrepancies may occur due to factors beyond our control. We encourage you to verify all details, including pricing and availability, before making any purchase. Exclusions or restrictions may apply to specific promotions. We reserve the right to modify or cancel any sale at our discretion. Thank you for your understanding and happy shopping! Let's go back to the top.

Super-Size Cottage Home Plan with Vaulted Ceilings and an Angled 2-Car Garage

  • 4,547

    Heated s.f.

  • 3-4

    Beds

  • 4.5

    Baths

  • 1

    Floors

  • 2

    Car garage

Floor Plan

  • Main Level

  • Lower Level

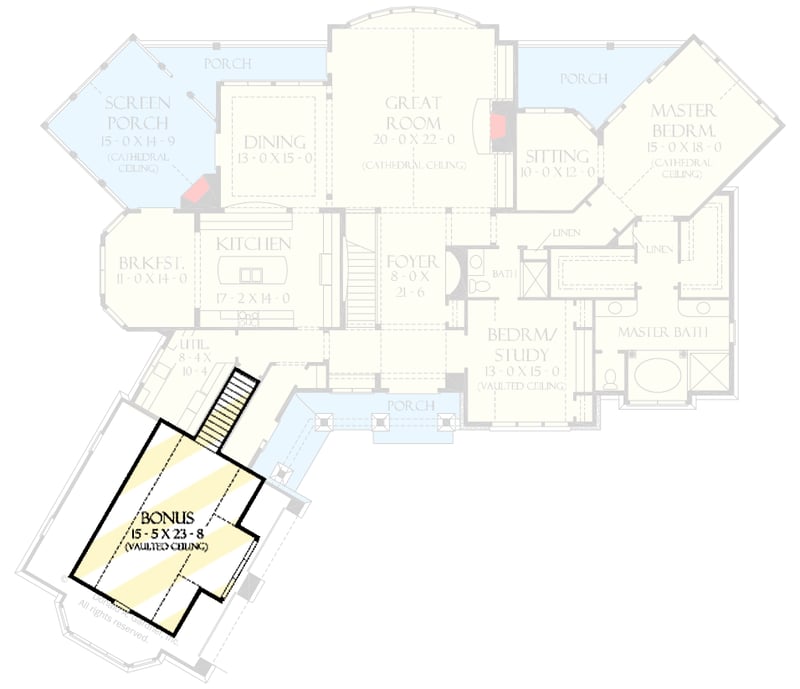

  • Bonus Level

Plan Details

Square Footage Breakdown

  • Total: 4,547 sq. ft.
  • Lower Level: 1,541 sq. ft.
  • 1st Floor: 3,006 sq. ft.

Dimensions

  • Width: 93' 11"
  • Depth: 80' 9"
  • Max ridge height: 30' 0"

Beds/Baths

  • Bedrooms: 3 or 4
  • Full bathrooms: 4
  • Half bathrooms: 1

Garage

  • Type: Attached
  • Area: 677 sq. ft.
  • Count: 2 Cars
  • Entry Location: Courtyard

Foundation Type

    • Standard Foundations: Walkout

Exterior Walls

  • Standard Type(s): 2x6

Ceiling Heights

  • Floor / Height: Lower Level / 10' 1" First Floor / 10' 0"

Roof

  • Primary Pitch: 12 on 12
  • Secondary Pitch: 14 on 12
  • Framing Type: Stick
