Plan 64450SC

Super-size Craftsman House Plan

Super-size Craftsman House Plan

Plan 64450SC

  • 4,562

    Heated s.f.

  • 4-5

    Beds

  • 5

    Baths

  • 2

    Stories

  • 3

    Cars

  • Flex space and a big, open layout characterize this gorgeous Craftsman house plan.
  • A massive island in the upscale kitchen gives you plenty of counter space and room for more than one cook.
  • Enjoy the living room fireplace while you prepare meals.
  • Use the flex room as a den or an extra bedroom or even as a craft room.
  • Let the kids have all their friends sleep over with a giant bunk room on the second floor.
  • There's even a bunk fun room that's ideal for games and toys.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

1.       Cover Sheet- project statistics, including square footages, 3D images (typically), general notes and drawings sheet index.

2.       Foundation/basement plan-showing room/wall layout, beams, posts and joist direction, and often electrical outlets, switches and light locations.

3.       Main Level Plan-floor plan rooms and walls dimensioned, window and door sizes noted, plumbing, millwork locations and other general notes.

4.       Upper Level Plan-(if needed)-same information as Main Level.

5.       Roof Plan-layout with pitch markers, dimensions and notes.

6.       Main Level Electrical Plan- electrical outlets, switches and light locations shown.

7.       Upper Level Electrical Plan-(if needed) electrical outlets, switches and light locations shown.

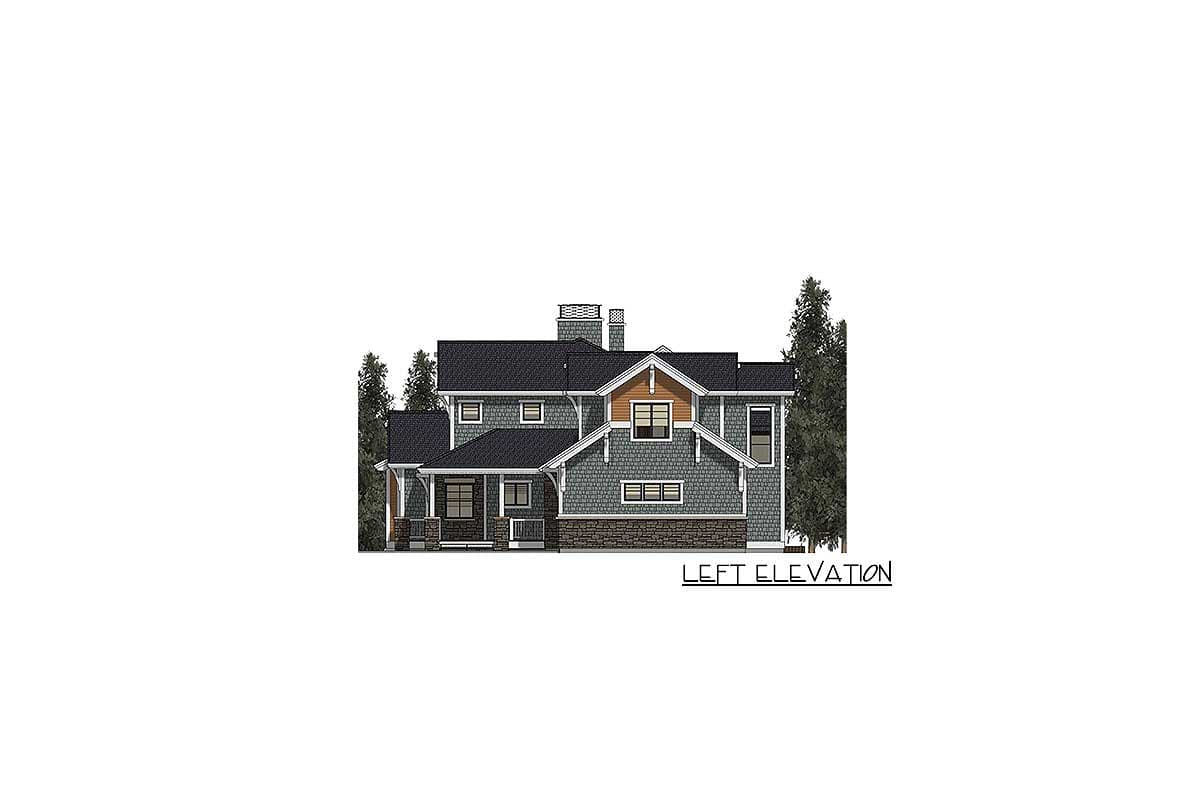

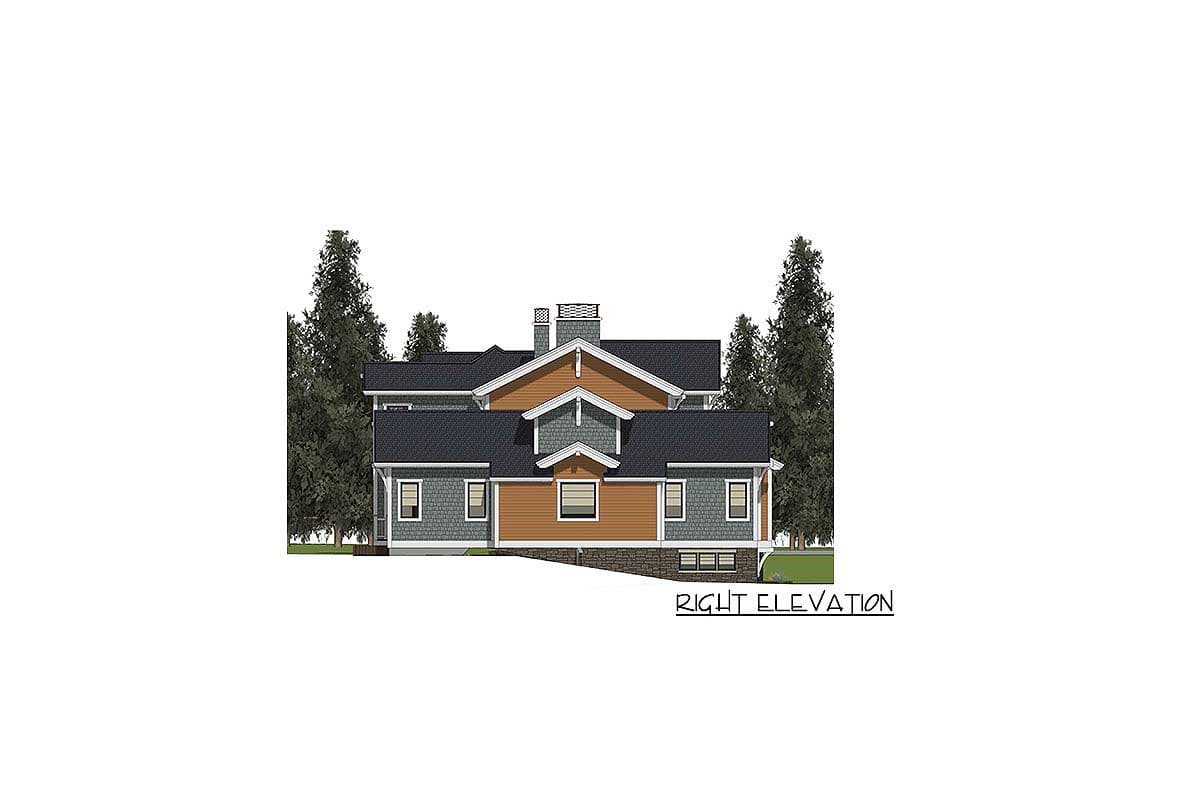

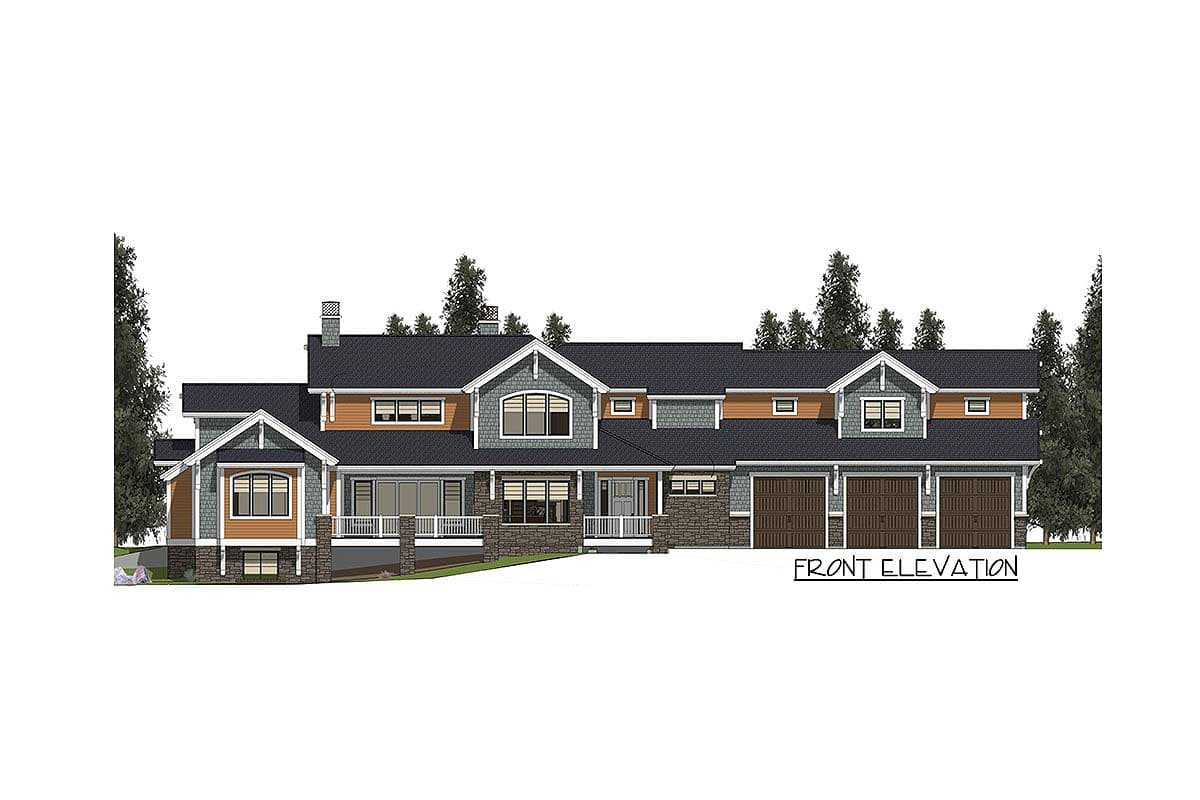

8.       Exterior Elevations-Elevations of the Front and Right side with notes, dimensions and material designations.

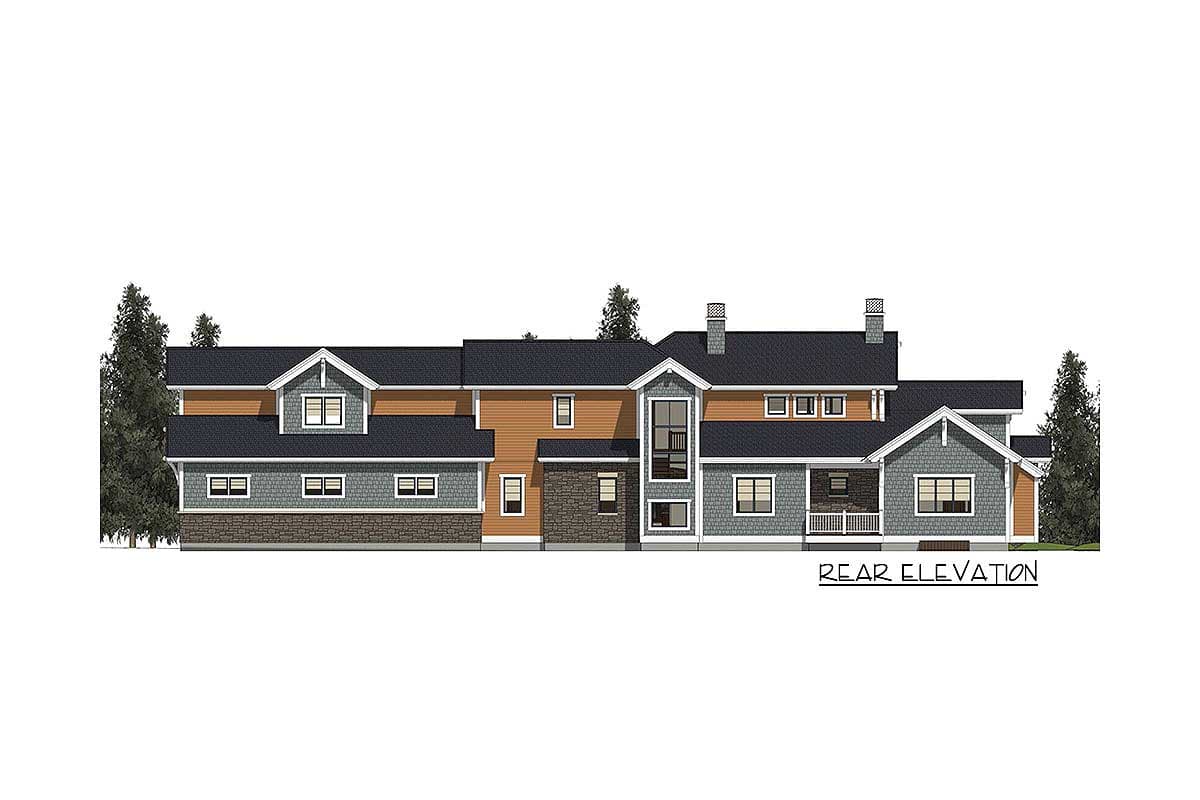

9.       Exterior Elevations-Elevations of the Back and Left side with notes, dimensions and material designations.

10.   Sections and details-One or more building sections to show vertical relationships and construction plate heights, details as needed.

11.   Interior Elevations and Details-mostly millwork, fireplace and other items that need additional explanation, details as needed.

Plan details



Super-size Craftsman House Plan

  • 4,562

    Heated s.f.

  • 4 - 5

    Beds

  • 5

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $2,495
  • PDF - multi-use $2,795
  • CAD $2,995
  • CAD - multi-use $3,495
  • View all purchase option online

About This Plan

  • Flex space and a big, open layout characterize this gorgeous Craftsman house plan.
  • A massive island in the upscale kitchen gives you plenty of counter space and room for more than one cook.
  • Enjoy the living room fireplace while you prepare meals.
  • Use the flex room as a den or an extra bedroom or even as a craft room.
  • Let the kids have all their friends sleep over with a giant bunk room on the second floor.
  • There's even a bunk fun room that's ideal for games and toys.
  • NOTE: Plans cannot be built within a 50 mile radius of Fort Collins, CO.

Floor Plans

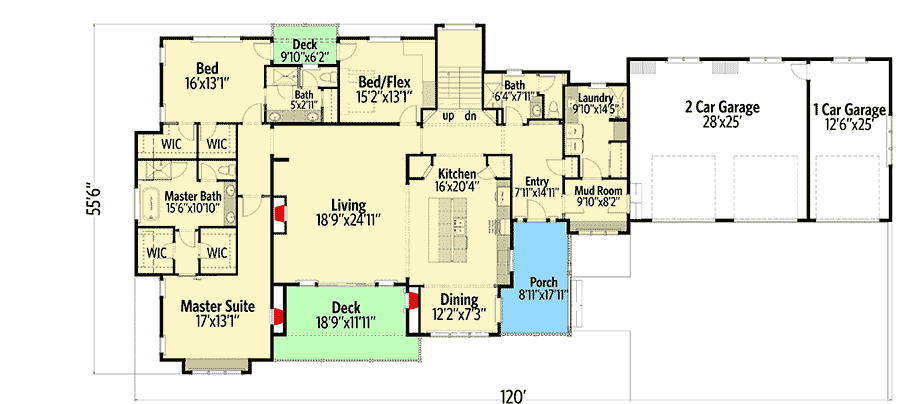

  • Main Level

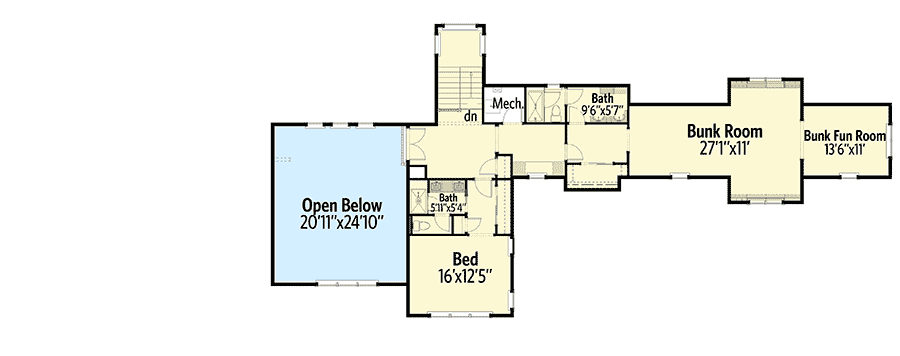

  • 2nd Floor

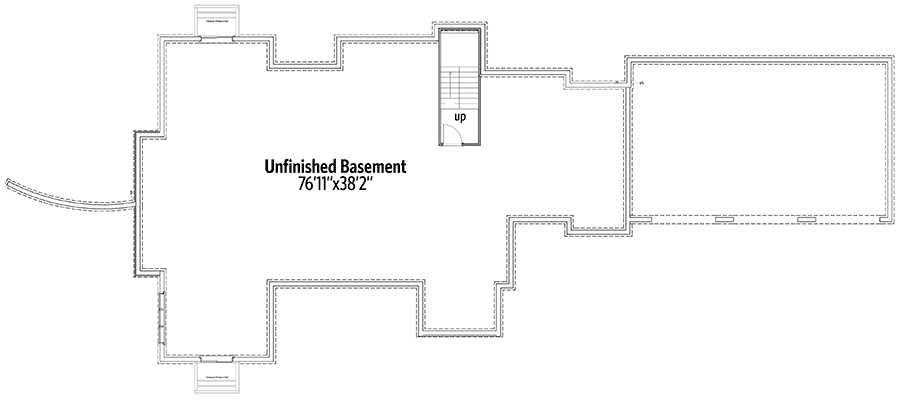

  • Basement

Plan Details

Square Footage Breakdown

  • Total Heated Area: 4,562 sq. ft.
  • Lower Level: 134 sq. ft.
  • 1st Floor: 2,970 sq. ft.
  • 2nd Floor: 1,458 sq. ft.
  • Basement Unfinished: 2,897 sq. ft.
  • Deck & Porch: 476 sq. ft.

Beds/Baths

  • Bedrooms: 4 or 5
  • Full bathrooms: 5

Foundation Type

    • Standard Foundations: Basement
    • Optional Foundations: Crawl, Slab, Walkout

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 120' 0"
  • Depth: 55' 6"
  • Max ridge height: 28' 3"

Garage

  • Type: Attached
  • Area: 1102 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Ceiling Heights

  • Floor / Height: Lower Level / 9' 0" First Floor / 10' 0"

Roof

  • Primary Pitch: 8 on 12
  • Framing Type: Stick And Truss
