Plan 86212HH

Surprisingly Large

Heated S.F.
1,799
Beds
3
Baths
2
Stories
1
Cars
2

Floor Plan

Plan 86212HH

Main Level
Main Level

Plan 86212HH

M-F 9am-5pm EST |

1-203-761-8500

Main Level

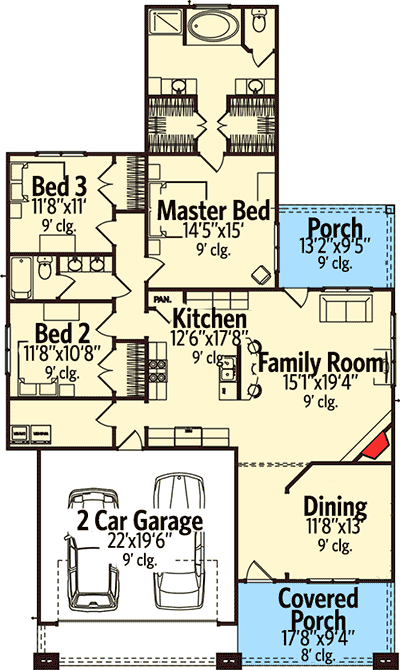

Plan 86212HH: Surprisingly Large - Floor Plan - Main Level - Craftsman, Northwest

Plan Details

  • From the front, this Northwest bungalow appears to be small but once inside, the floor plan just opens right up.
  • The formal dining room faces front with the main living area further back.
  • Here, you have a corner fireplace to warm both the kitchen and the family room.
  • A back porch stands ready to give you a spot to rest in the shade.
  • The master bedroom overlooks the porch and has a huge private bathroom plus twin walk-in closets.
  • The hall bathroom serves the two family bedrooms and there is a separate laundry room close by.
  • The stick framed roof has a 6:12 pitch.

What's Included

  • Cover Sheet
  • Foundation plans
  • Elevations - complete with dimensions, ridge heights and special notes
  • Floor Plans - complete with dimensions of all elements including plumbing, appliances and cabinet sizes
  • Roof Plan - complete with dimensions, plate heights, roof pitches and notes for special conditions
  • Rafter Plan
  • Details
  • Interior Elevations - include applicable cabinetry, electrical and special construction notes
  • Floor Joist Plan - complete with spans, sizes and direction (if applicable)
  • Ceiling Joist - complete with spans, sizes and direction
  • Sections - complete with dimensions, notes and specifications
  • Electrical plan - complete wit layout, light fixtures, outlets and legend

What's Not Included

  • Architectural or Engineering Stamp - handled locally if required
  • Site Plan - handled locally when required
  • Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
  • Energy calculations - handled locally when required
Starting at
What's included?
Plan Set
Select...
Foundation
Select...
Options
Optional Add-Ons
+$0
Price Match Guarantee
Cost to Build Report
Still deciding? Calculate the cost to build this house in your area.
Customize This Plan
Need to make changes? We will get you a free price quote within 1 to 3 business days.
Cost to Furnish Report
Instant room-by-room estimates for your entire furniture & home decor plan, matched to your budget.

Square Footage Breakdown

Total Heated Area

1,799 sq. ft.

1st Floor

1,799 sq. ft.

Porch, Front

395 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

43' 11"

Depth

75' 2"

Max Ridge Height

20' 1"

Garage

Type

Attached

Area

445 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery

Square Footage Breakdown

Total Heated Area

1,799 sq. ft.

1st Floor

1,799 sq. ft.

Porch, Front

395 sq. ft.

Beds/Baths

Bedrooms

3

Full bathrooms

2

Foundation Type

Standard Foundations

Slab

Exterior Walls

Exterior Walls

2x4

Dimensions

Width

43' 11"

Depth

75' 2"

Max Ridge Height

20' 1"

Garage

Type

Attached

Area

445 sq. ft.

Count

2 Cars

Entry Location

Front

Ceiling Heights

First Floor

9'

Roof Details

Primary Pitch

6 on 12

Framing Type

Stick

Architectural Style

Craftsman

Northwest

Special Features

Bedrooms - Clustered

Formal Dining

Laundry - Main Level

Master Suite - 1st Floor

Plan Collections

Photo Gallery
