Plan 11764HZ

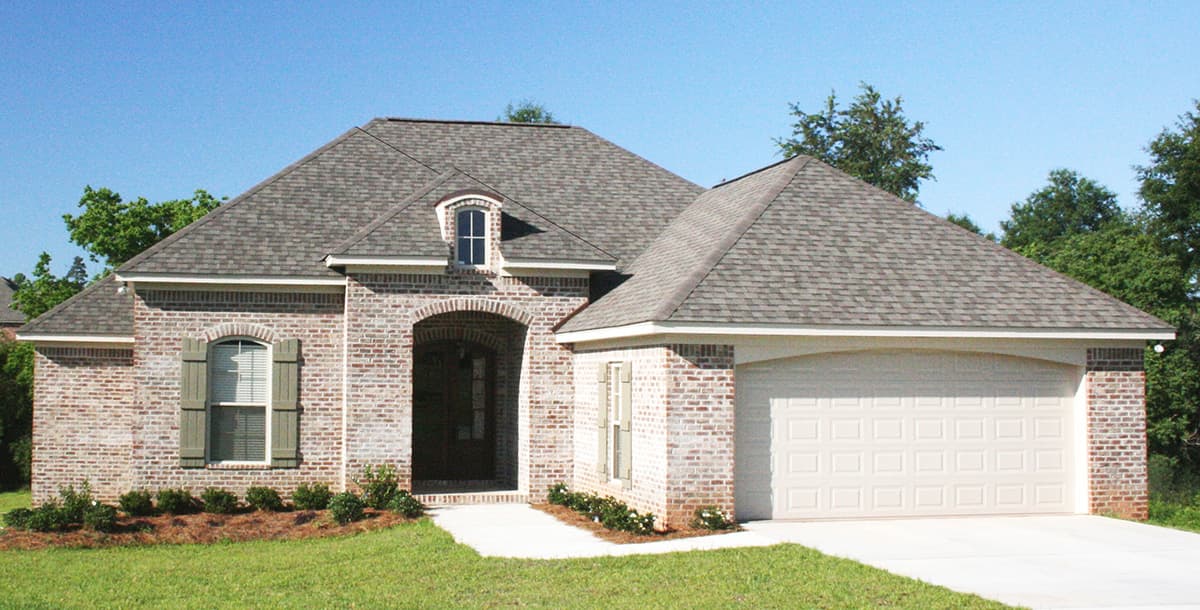

Sweeping Views

Heated S.F.

1,575

Beds

3

Baths

2

Stories

1

Cars

2

What's Included

Floor Plan

Main Level

Reverse Floor Plan

Sweeping Views - 11764HZ floor plan - Main Level

Plan Details

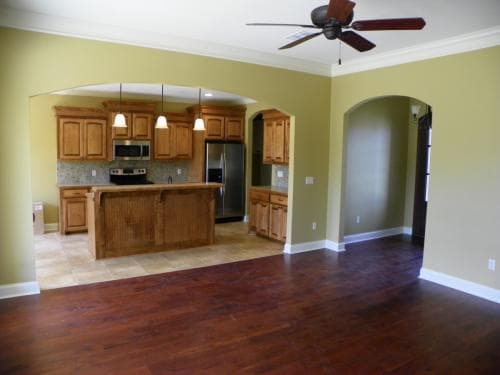

Sweeping views from the great room to the kitchen to the dining room are all possible because of the open floor plan in this one level home.
A big island and walk-in pantry benefit the kitchen and a raised eating bar on the island makes it possible to chat with guests while cooking.
Split bedrooms separate the family bedrooms from the master with its tray ceiling and deluxe bath with garden tub.
A rear covered porch gives you outdoor space in the shade.
Related Plan: See house plan 11765HZ for another version of this home with a staggered garage.

What's Included

This designer's plans include the following details:

Cover Sheet with abbreviations, rendering, sheet index
Foundation plan with details
Detailed floor plan (includes window sizes, ceiling joist directions, plumbing fixture locations, etc.)
Four exterior views (front, rear, right, left)
Roof plan (birds eye view of roof)
Building section
Kitchen cabinet views
Electrical plan
Span charts and other misc details

The following details are NOT included in the plans:

Architectural or Engineering Stamp - handled locally if required
Site Plan - handled locally when required
Mechanical Drawings (location of heating and air equipment and duct work) - your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) - your subcontractors handle this
REScheck or other energy related calculations are NOT included.
Wind load or seismic calculations are NOT included.
Framing plans or beam sizes are NOT included.
Other specific drawings that your local permit office may require

Square Footage Breakdown

Total Heated Area:

1,575 sq. ft.

1st Floor:

1,575 sq. ft.

Storage:

25 sq. ft.

Porch, Combined:

151 sq. ft.

Beds/Baths

Bedrooms:

3

Full bathrooms:

2

Foundation Type

Standard Foundations:

Crawl, Slab

Optional Foundations:

Basement, Walkout

Need A Different Foundation?

Request A Modification Quote

Exterior Walls

Standard Type(s):

2x4

Optional Type(s):

2x6

Dimensions

Width:

54' 4"

Depth:

58' 0"

Max Ridge Height:

23' 5"

Garage

Type:

Attached

Area:

563 sq. ft.

Count:

2 Cars

Entry Location:

Front

Ceiling Heights

Floor / Height:

Lower Level / 9' 4" First Floor / 9' 0"

Roof Details

Primary Pitch:

9 on 12

Framing Type:

Stick

Architectural Style

Special Features

Bedrooms - Split

Butler Walk-in Pantry

Master Suite - 1st Floor

Plan Collections
