Plan 280164JWD Symmetrical 2-Bed Country Farmhouse ADU with Oversized Garage

Symmetrical 2-Bed Country Farmhouse ADU with Oversized Garage

Plan 280164JWD

  • 924

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Stories

  • 3

    Cars

  • A blend of vertical and horizontal siding wraps the exterior of this country farmhouse with two oversized garage doors resting in the center.
  • The 924 square feet of heated living space is attached to the right of the garage, and extends onto a side patio, perfect for a grill.
  • Zero walls between the living room and kitchen creates an open living space, anchored by a large island.
  • Split off the hall you'll find two bedrooms and laundry.
  • The oversized double garage provides plenty of space for a workshop, and a rear garage door opens to a covered porch.
  • Related Plan: Get a 1-bed version with house plan 280119JWD.

This house plan includes the following details:
  • Four Exterior Elevations
  • Main Floor Plan
  • Second level floor plan - if applicable
  • Bonus Floor Plan - if applicable
  • Building Sections
  • Typical Wall Detail
  • Main Floor Framing Plan & Details
  • Bonus Room & Roof Framing Plan
  • Electrical Plan

These items are NOT included:

  • Architectural or Engineering Stamp
  • Site Plan
  • Mechanical Drawings (location of heating and air equipment and duct work)
  • Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations)
  • Energy calculations

Floor Plan

NOTE:
If you want to purchase this plan in reverse, please select "readable reverse" or "mirror reverse" under Options above.

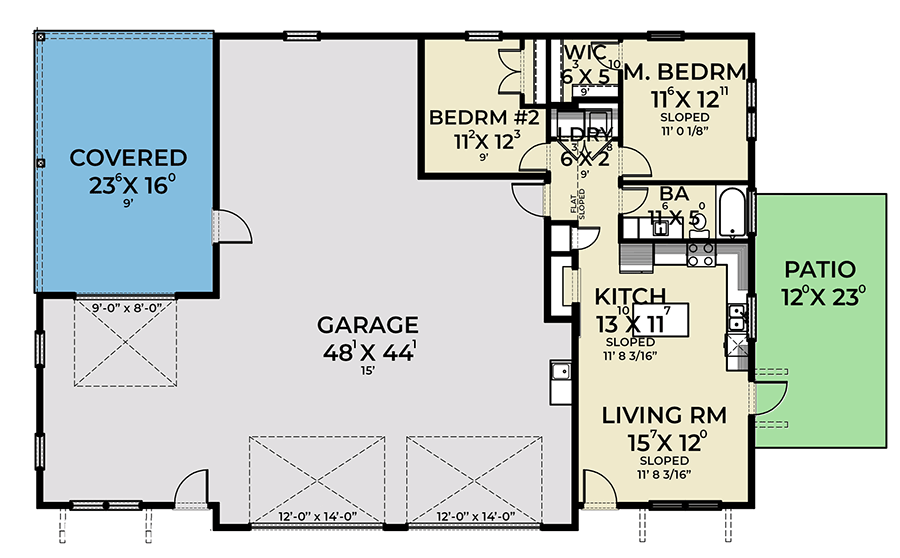

Symmetrical 2-Bed Country Farmhouse ADU with Oversized Garage - 280164JWD floor plan - Main Level

Plan details

Symmetrical 2-Bed Country Farmhouse ADU with Oversized Garage

  • 924

    Heated s.f.

  • 2

    Beds

  • 1

    Baths

  • 1

    Floors

  • 3

    Car garage

Buy This Plan
  • Study Set - Digital $875
  • PDF - Single-Build $1,750
  • 5 Sets + PDF $2,200
  • CAD + PDF - Single-Build $2,250
  • View all purchase option online

About This Plan

  • A blend of vertical and horizontal siding wraps the exterior of this country farmhouse with two oversized garage doors resting in the center.
  • The 924 square feet of heated living space is attached to the right of the garage, and extends onto a side patio, perfect for a grill.
  • Zero walls between the living room and kitchen creates an open living space, anchored by a large island.
  • Split off the hall you'll find two bedrooms and laundry.
  • The oversized double garage provides plenty of space for a workshop, and a rear garage door opens to a covered porch.
  • Related Plan: Get a 1-bed version with house plan 280119JWD.

Floor Plans

  • Main Level

Plan Details

Square Footage Breakdown

  • Total Heated Area: 924 sq. ft.
  • 1st Floor: 924 sq. ft.
  • Covered Patio: 376 sq. ft.

Beds/Baths

  • Bedrooms: 2
  • Full bathrooms: 1

Foundation Type

    • Standard Foundations: Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 65' 0"
  • Depth: 45' 0"
  • Max ridge height: 29' 10"

Garage

  • Type: RV Garage, Attached
  • Area: 1561 sq. ft.
  • Count: 3 Cars
  • Entry Location: Front

Roof

  • Primary Pitch: 10 on 12
  • Secondary Pitch: 4 on 12
  • Framing Type: Truss
