Plan 5567BR

  • 3,119

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Stories

  • 3

    Cars

  • The master bedroom sitting area teams with the eating area to provide the look of twin sunrooms on the exterior of this symmetrical, energy-efficient plan that also has covered front and rear porches.
  • Inside, formal living and dining rooms flank the foyer and open to the fireplaced family room via French doors.
  • Two sinks and a cooktop island with a snack bar are featured in the kitchen.
  • Besides the sitting area, the private first floor master suite features a large walk-in closet and a skylit bath with separate tub and shower.
  • Upstairs, two bedrooms share a bath, while the third bedroom enjoys its own bath.
  • Ceilings: 9' first floor; 8' second floor.
  • Foundation: basement, slab or crawl space. Specify when ordering.
  • Related Plans: Two smaller versions of this plan exist. See 55067BR for the Insulated Concrete Form (ICF) version and 5508BR for the 2x6 version.

Plans include the following:

  • Cover sheet with general information
  • Foundation plan drawn to 1/4" scale - if the foundation is a basement or crawlspace, a floor framing plan will be included indicating the floor joist or trusses.
  • Foundation footing details
  • Fully dimensioned floor plan which indicates all plumbing fixture locations, cabinet locations, beam locations and sizes, door & window schedules, design load charts and general notes. Also included are tables for all dimensional lumber sizes such as ceiling joist, rafters and floor joists.

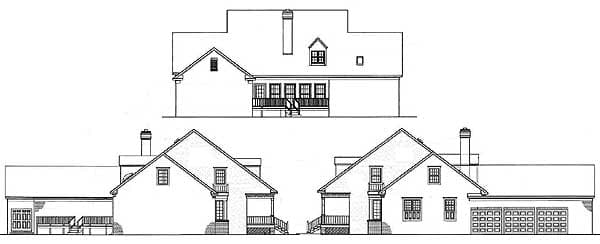

  • Front, rear and side elevations which call out exterior finish materials
  • Building sections, enlarged drawings of the cornice and wall construction at various area of the exterior
  • Interior elevations that have built-in cabinets or areas with special wall detail such as a fireplace wall.
  • Roof plan indicating planes of the roof and a birds eye view of the roof configuration. Electrical plan indication location of all wall outlets, lighting and switch locations along with a schedule of electrical symbols.
  • Construction details - schedules for the interior finish, exterior finish, electrical schedule





Floor Plan

Plan details



Symmetrical Creole

  • 3,119

    Heated s.f.

  • 4

    Beds

  • 4

    Baths

  • 2

    Floors

  • 3

    Car garage

Buy This Plan
  • PDF - single-use $1,095
  • 1 Set $1,110
  • 5 Sets $1,125
  • 8 Sets $1,170
  • Reproducible Set $1,235
  • CAD $1,908
  • View all purchase option online

About This Plan

  • The master bedroom sitting area teams with the eating area to provide the look of twin sunrooms on the exterior of this symmetrical, energy-efficient plan that also has covered front and rear porches.
  • Inside, formal living and dining rooms flank the foyer and open to the fireplaced family room via French doors.
  • Two sinks and a cooktop island with a snack bar are featured in the kitchen.
  • Besides the sitting area, the private first floor master suite features a large walk-in closet and a skylit bath with separate tub and shower.
  • Upstairs, two bedrooms share a bath, while the third bedroom enjoys its own bath.
  • Ceilings: 9' first floor; 8' second floor.
  • Foundation: basement, slab or crawl space. Specify when ordering.
  • Related Plans: Two smaller versions of this plan exist. See 55067BR for the Insulated Concrete Form (ICF) version and 5508BR for the 2x6 version.

Floor Plans

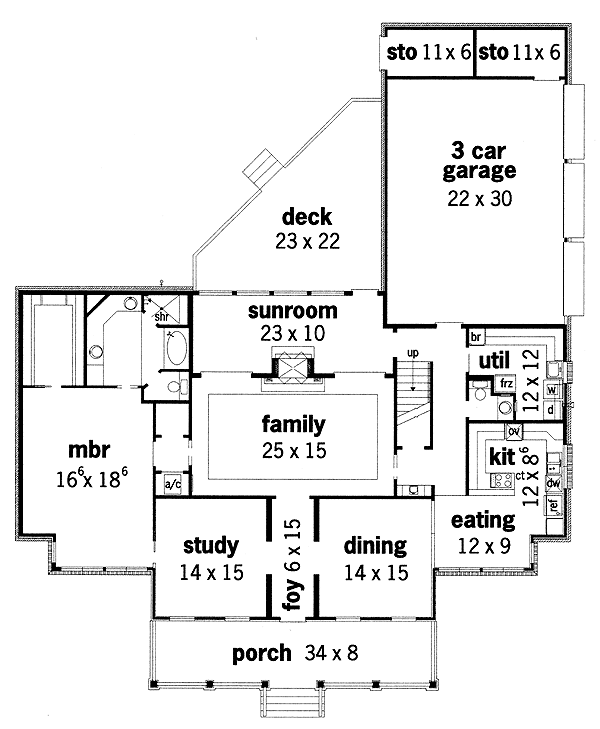

  • Main Level

  • 2nd Floor

Plan Details

Square Footage Breakdown

  • Total Heated Area: 3,119 sq. ft.
  • 1st Floor: 2,092 sq. ft.
  • 2nd Floor: 1,027 sq. ft.
  • Storage: 132 sq. ft.
  • Porch, Front: 272 sq. ft.

Beds/Baths

  • Bedrooms: 4
  • Full bathrooms: 3
  • Half bathrooms: 1

Foundation Type

    • Standard Foundations: Crawl
    • Optional Foundations: Basement, Slab

Exterior Walls

  • Standard Type(s): 2x6

Dimensions

  • Width: 66' 0"
  • Depth: 80' 0"
  • Max ridge height: 29' 0"

Garage

  • Type: Attached
  • Area: 653 sq. ft.
  • Count: 3 Cars
  • Entry Location: Side

Ceiling Heights

  • Floor / Height: First Floor / 9' 0" Second Floor / 8' 0"

Roof

  • Primary Pitch: 9 on 12
  • Framing Type: Stick

Architectural Style

  • Country
  • Traditional

Special features

  • 1st Floor Master Suite
  • CAD Available
  • Den-Office-Library-Study
  • Jack & Jill Bath
  • PDF

Plan Collections
