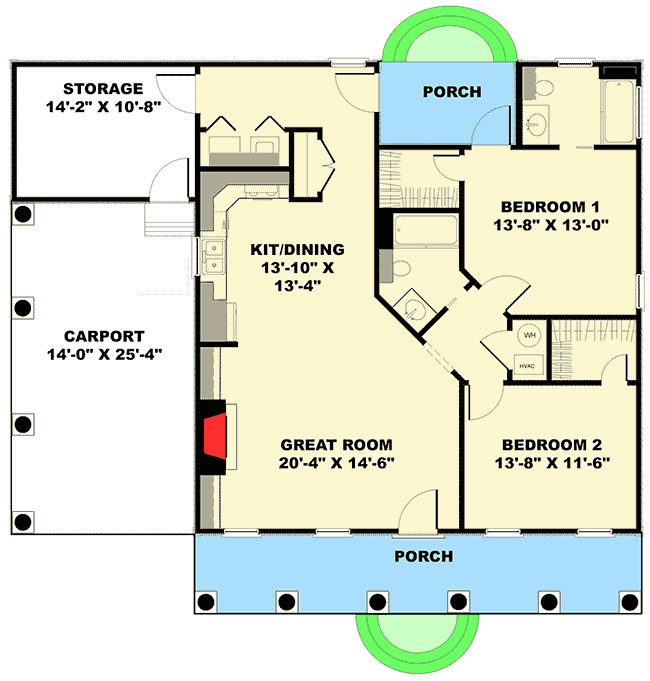

Floor plans -
Included with your plans will be a detailed floor plan at 1/4" scale with
a window and door schedule.
Foundation Plan -
On many of our plans we offer you options on the type of foundation. The
available options for each plan are shown on the page with the plans.
- This sheet will show the locations of all lights, receptacles, switches, etc.
as well as a roof layout.

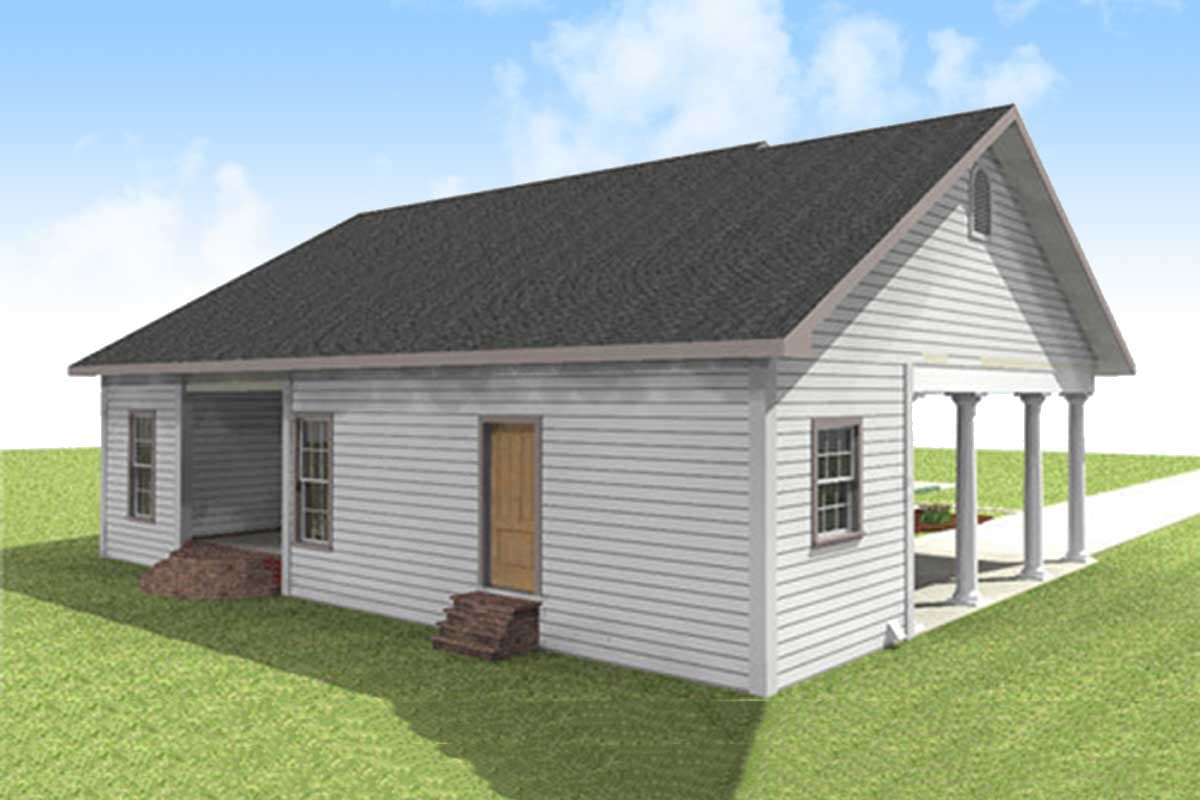

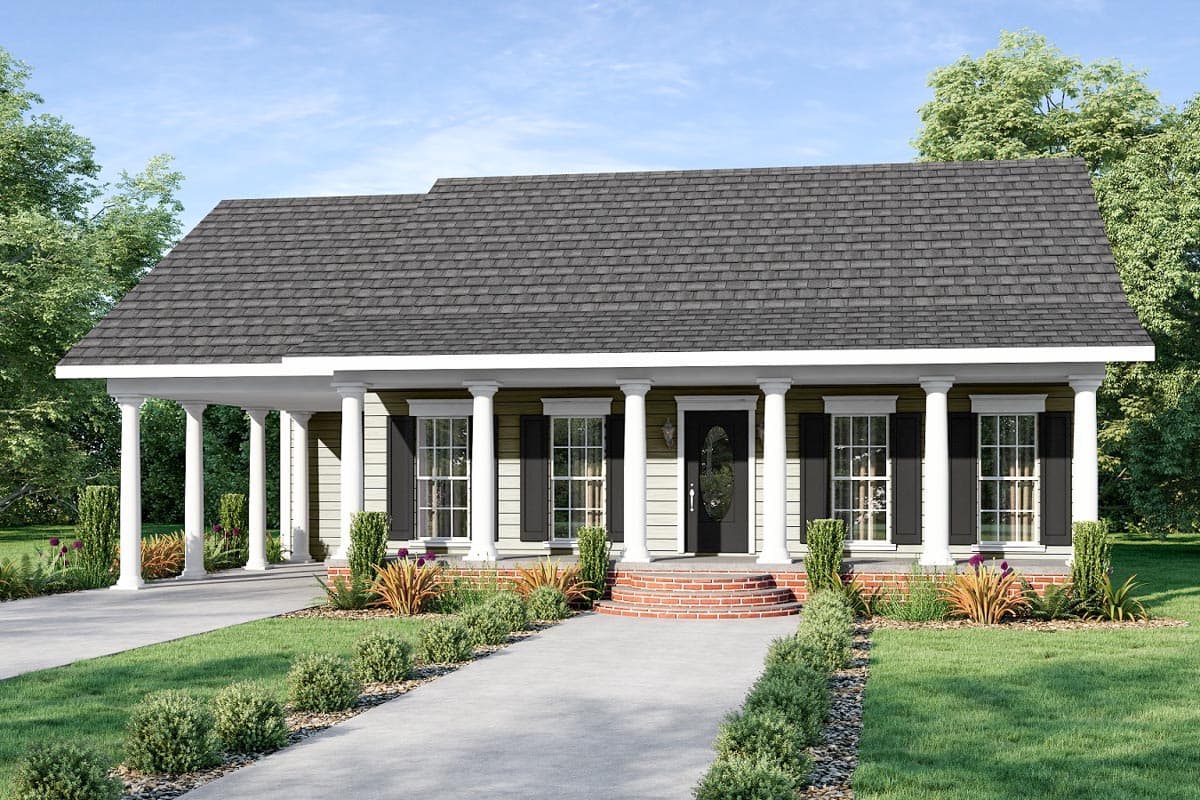

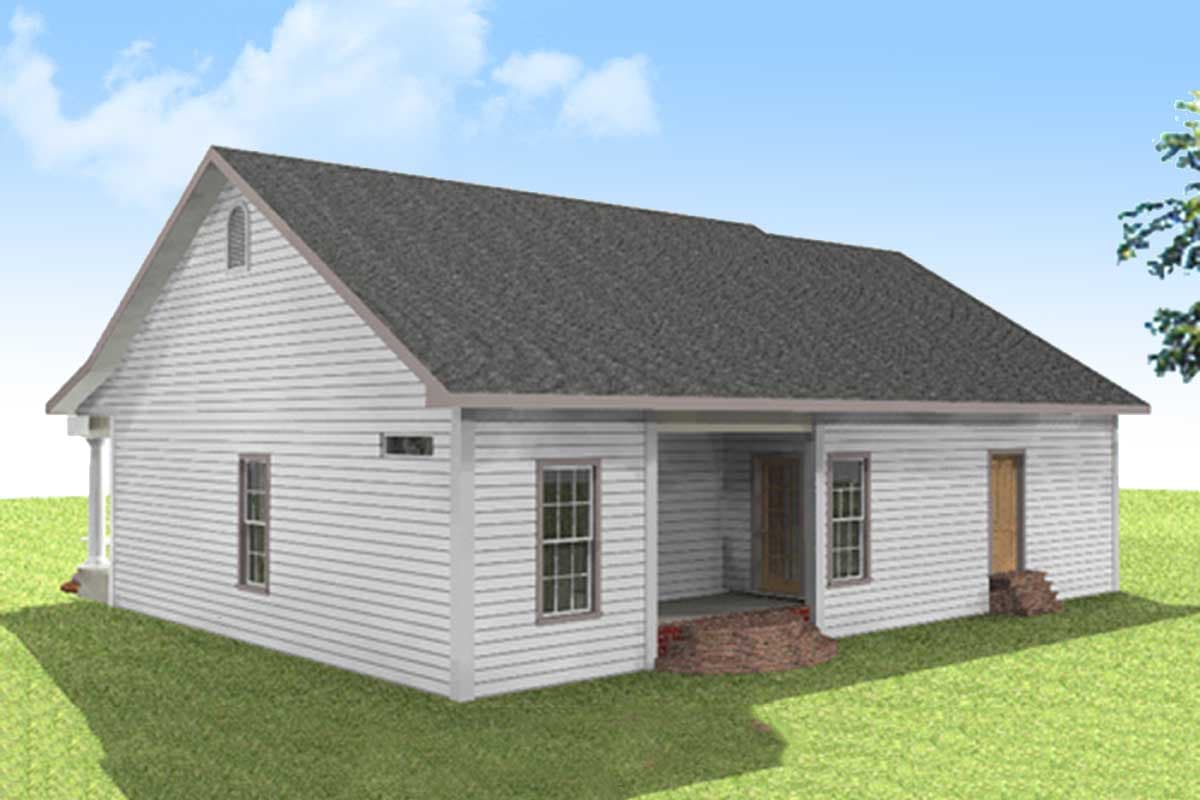

Exterior Elevations -
Our plans include complete front, sides and rear views, as well as any special
of cabinets, cabinet details, columns and walls with unique conditions.
Building Sections, Details and Typical
can be ordered with a materials list for an extra change. Please check
availability for this option.
Plumbing diagrams and HVAC plans are
not available for these homes, since they are generally not needed for home
construction and since each county's code will vary and a licensed plumber
and/or electrician must follow the codes.
